react-native-tableview-simple

Donate Build Status npm version npm Package Quality Known Vulnerabilities GitHub license

👉 This component is used in my production app Game ideas. Make sure to check it out! 👈

This cross-platform component is inspired by the iOS-TableView. Made with pure CSS, the intention is to provide a flexible and lightweight alternative to a bridged component. Don't be scared of React-Native upgrades anymore!

A possible use case might be an about- or a settings-screen with a few rows. For displaying long datalists it is recommended to use the FlatList Component together with Cell and Separator Components. (see example)

🚀 If you like my component and want to buy me a coffee press the Sponsor Button and find out about GitHub Sponsors – Thanks! 👈



Have a look at the examples below! :-)

Installation

  1. Install as dependency:
// yarn
yarn add react-native-tableview-simple
// or npm
npm i react-native-tableview-simple --S
  1. Add needed components:
import { Cell, Section, TableView } from 'react-native-tableview-simple';

Extensible

react-native-tableview-simple provides you with some predefined CSS-styles, inspired by the native TableView. You can always mix the Cell-instances inside a Section, with other (React-Native)-Views.

Override defaults of Cell-Component

Don't repeat yourself. If you override the default props over and over again, just pass them as an object.

const cellPropsCustom = {
  cellStyle: 'Basic',
  title: 'Basic Custom',
  backgroundColor: 'black',
};


<Cell onPress={console.log} {...cellPropsCustom} />
<Cell onPress={console.log} {...cellPropsCustom} />

Separator BackgroundColor is derived from Cell BackgroundColor

The Separator-Component is a line from the left end to the right end. According to the original iOS TableView there should be an insent on the left end. This is done by separating the Separator-Component in two parts: SeparatorContainer (full width) and SeparatorInner (width - inset). (See: Separator.tsx) The SeparatorContainer has the same color that the Cell-Component above. The SeparatorInner has the default Separator Color. Pressing a Cell Component will change the color of SeparatorInner to transparent.

Why is that so complicated?

Because just hiding the separator would make the height of the component jump.

Props

TableView

The TableView component controls the theme.

Prop Default Type Description
children - React.ReactNode Children. Should be of type Section
appearance auto string auto: System Appearance; light: Light Appearance; dark: Dark Appearance; [string]: Appearance defined through customAppearances
customAppearances - THEME_APPEARANCE

Section

The Section component is needed to render the Cells together with Separators. It's possible to use the Flatlist component instead (Example).

Prop Default Type Description
allowFontScaling true bool Respect Text Size accessibility setting on iOS
footerComponent - React.Component Inject any component to replace original footer (optional)
headerComponent - React.Component Inject any component to replace original header (optional)
footer - string Footer value
footerTextColor #6d6d72 string Text color of footer
footerTextStyle {} Text.propTypes.style These styles will be applied to the footer Text-Component.
header - string Header value
headerTextColor #6d6d72 string Text color of header
headerTextStyle {} Text.propTypes.style These styles will be applied to the header Text-Component.
hideSeparator false bool Hide separators
hideSurroundingSeparators false bool Hide surrounding separators, best combined with roundedCorners
roundedCorners false bool Enable rounded corners, best combined with hideSurroundingSeparator
sectionPaddingBottom 15 number Padding bottom of section
sectionPaddingTop 15 number Padding top of section
sectionTintColor #EFEFF4 string Background color of section
separatorInsetLeft 15 number Left inset of separator
separatorInsetRight 0 number Right inset of separator
separatorTintColor #C8C7CC string Color of separator
withSafeAreaView true / false (on iOS <= 10) bool Render section header and footer with SafeAreaView

Cell

The style of the Cell component is inspired by the native UITableView. Because the Cell component is created with CSS only, its highly flexible. The content of the cell is separated in three views, which can all be modified via props: cellImageView | cellContentView | cellAccessoryView.

To get an idea what you can modify via props, have a look at the examples below.

Prop Default Type Description
accessory - string Predefined accessory: DisclosureIndicator, Detail, DetailDisclosure, Checkmark
accessoryColor #007AFF string Color of accessory
accessoryColorDisclosureIndicator #C7C7CC string Color of accessory DisclosureIndicator
allowFontScaling true bool Respect Text Size accessibility setting on iOS
backgroundColor #FFF string Background color of cell
cellStyle Basic string Predefined styles: Basic, RightDetail, LeftDetail, Subtitle
cellAccessoryView - React.Component Replace accessory view component (e.g.: add Switch or ActivityIndicator)
cellContentView - React.Component Replace content view component
cellImageView - React.Component Replace image view component
contentContainerStyle {} View.propTypes.style These styles will be applied to the content container which wraps all of the child views. Overrides cellStyle (e.g.: Override paddingLeft and paddingRight or set fixed height)
detail - string or number Detail value
detailTextProps {} Text.propTypes These props will be applied to the (left- / right-) detail Text-Component.
detailTextStyle {} Text.propTypes.style These styles will be applied to the (left- / right-) detail Text-Component.
disableImageResize false bool Disable resizing of image
hideSeparator false bool Hide the following Separator-Component
highlightActiveOpacity 0.8 number Opacity of cell when touch is active
highlightUnderlayColor black string Color of underlay that will show through when touch is active
isDisabled false bool Cell is disabled. onPress will not get triggered
image - React.Component (Image) Image component displayed on the left. Will resized automatically
leftDetailColor #007AFF string Text color of left detail
rightDetailColor #8E8E93 string Text color of right detail
subtitleColor #000 string Text color of subtitle
subtitleTextStyle {} Text.propTypes.style These styles will be applied to the subtitle Text-Component.
testID undefined string Add testID to root component
title - string or number or React.Component Title value
titleTextColor #000 string Text color of title
titleTextProps {} Text.propTypes These props will be applied to the title Text-Component.
titleTextStyle {} Text.propTypes.style These styles will be applied to the title Text-Component (e.g.: update fontSize or fontFamily)
titleTextStyleDisabled {} Text.propTypes.style These styles will be applied to the title Text-Component, when the cell is disabled
onPress - func or false If set, cell will be automaticaly initialized with TouchableHighlight
onPressDetailAccessory - func or false Listen to onPress event of detail accessory
withSafeAreaView true / false (on iOS <= 10) bool Render cell with SafeAreaView

Wrap Cell

Sometimes custom Cell components are needed. By creating new component, which is based on Cell, its only necessary to set the props once.

...

import {
  Cell,
  Section,
  TableView,
} from 'react-native-tableview-simple';

const CellVariant = (props) => (
  <Cell
    {...props}
    cellContentView={
      <View
        style={{ alignItems: 'center', flexDirection: 'row', flex: 1, paddingVertical: 10 }}
      >
        <Text
          allowFontScaling
          numberOfLines={1}
          style={{ flex: 1, fontSize: 20 }}
        >
          {props.title}
        </Text>
      </View>
    }
  />
);

...

<TableView>
  <Section>
    <CellVariant title="Element 1" />
    <CellVariant title="Element 2" />
    <CellVariant title="Element 3" />
    <CellVariant title="Element 4" />
  </Section>
</TableView>

...

Separator

In general the Separator component is used internally by the Section component. But additionally this component can be used together with FlatList. See the example below.

Prop Default Type Description
backgroundColor #EFEFF4 string Background color
insetLeft 15 number Left inset of separator
insetRight 0 number Right inset of separator
isHidden false bool Hide separator but keeping its height
tintColor #C8C7CC string Color of separator
withSafeAreaView true / false (on iOS <= 10) bool Render separator with SafeAreaView

Examples

The following examples can be found in the folder example.
To run the example project, follow these steps:

  1. git clone https://github.com/Purii/react-native-tableview-simple
  2. cd example
  3. yarn or npm i
  4. run /example/ios/example.xcodeproj via Xcode

Quick look

// ActivityIndicator as accessory
  <Cell
    title="Switch"
    cellAccessoryView={<Switch />}
    contentContainerStyle={{ paddingVertical: 4 }} // Adjust height
  />

// Switch as accessory
  <Cell
    title="ActivityIndicator"
    cellAccessoryView={<ActivityIndicator />}
  />

// TextInput
  <Cell
    cellContentView={<TextInput style={{fontSize: 16, flex: 1}} placeholder="TextInput"/>}
  />

// Image
  <Cell
    title="Image"
    image={
      <Image
        style={{ borderRadius: 5 }}
        source={{
          uri: 'https://facebook.github.io/react/img/logo_og.png',
        }}
      />
    }
  />

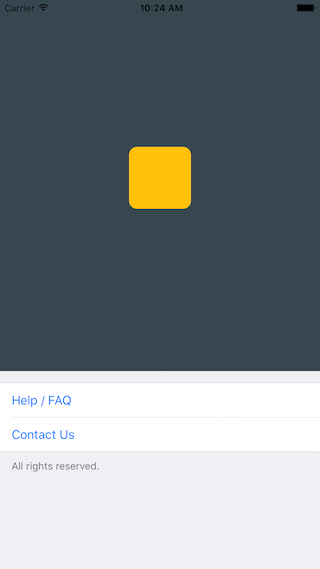

Use case: About-screen

/**
 * Sample React Native App
 * https://github.com/facebook/react-native
 * @flow
 */

import React, { Component } from 'react';
import { AppRegistry, ScrollView, StyleSheet, Text, View } from 'react-native';
import { Cell, Section, TableView } from 'react-native-tableview-simple';

export default class App extends Component<{}> {
  render() {
    return (
      <ScrollView contentContainerStyle={styles.stage}>
        <View
          style={{
            backgroundColor: '#37474F',
            height: 500,
            alignItems: 'center',
            justifyContent: 'center',
          }}>
          <View
            style={{
              backgroundColor: '#ffc107',
              width: 80,
              height: 80,
              borderRadius: 10,
            }}
          />
        </View>
        <TableView>
          <Section footer="All rights reserved.">
            <Cell
              title="Help / FAQ"
              titleTextColor="#007AFF"
              onPress={() => console.log('open Help/FAQ')}
            />
            <Cell
              title="Contact Us"
              titleTextColor="#007AFF"
              onPress={() => console.log('open Contact Us')}
            />
          </Section>
        </TableView>
      </ScrollView>
    );
  }
}

const styles = StyleSheet.create({
  stage: {
    backgroundColor: '#EFEFF4',
    paddingBottom: 20,
    flex: 1,
  },
});

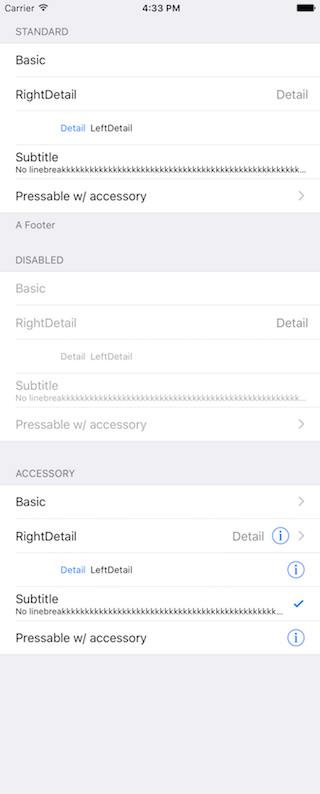

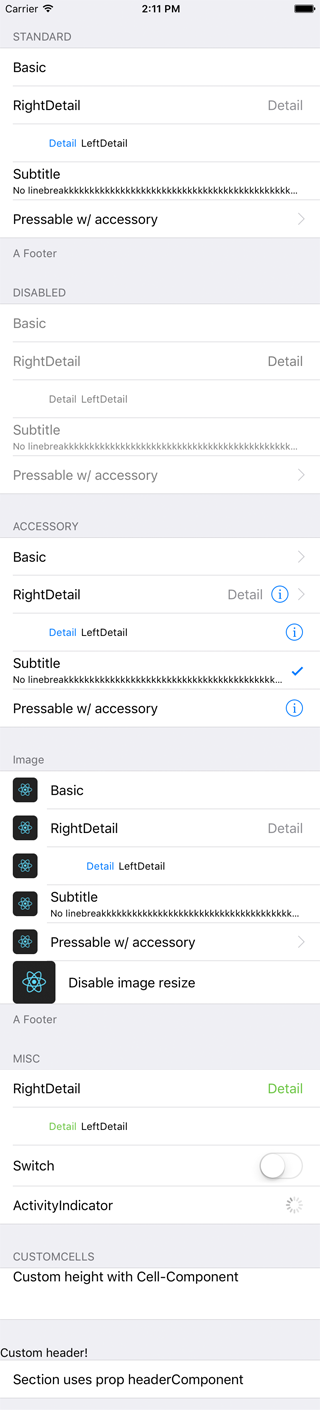

react-native-tableview-simple vs. Native iOS

The left and middle screens are build using react-native-tableview-simple. The right one is native.

react-native-tableview-simple (Dark Appearance) react-native-tableview-simple Native iOS
/**
 * Sample React Native App
 * https://github.com/facebook/react-native
 * @flow
 */

import React, { Component } from 'react';
import {
  ActivityIndicator,
  AppRegistry,
  Dimensions,
  Image,
  ScrollView,
  StyleSheet,
  Switch,
  Text,
  TextInput,
  View,
} from 'react-native';
import { Cell, Section, TableView } from 'react-native-tableview-simple';

export default class App extends Component<{}> {
  render() {
    return (
      <ScrollView contentContainerStyle={styles.stage}>
        <TableView>
          <Section header="STANDARD" footer="A Footer">
            <Cell cellStyle="Basic" title="Basic" />
            <Cell cellStyle="RightDetail" title="RightDetail" detail="Detail" />
            <Cell cellStyle="LeftDetail" title="LeftDetail" detail="Detail" />
            <Cell
              cellStyle="Subtitle"
              title="Subtitle"
              detail="No linebreakkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk"
            />
            <Cell
              cellStyle="Basic"
              title="Pressable w/ accessory"
              accessory="DisclosureIndicator"
              onPress={() => console.log('Heyho!')}
            />
          </Section>
          <Section header="DISABLED">
            <Cell cellStyle="Basic" isDisabled title="Basic" />
            <Cell
              cellStyle="RightDetail"
              isDisabled
              title="RightDetail"
              detail="Detail"
            />
            <Cell
              cellStyle="LeftDetail"
              isDisabled
              title="LeftDetail"
              detail="Detail"
            />
            <Cell
              cellStyle="Subtitle"
              isDisabled
              title="Subtitle"
              detail="No linebreakkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk"
            />
            <Cell
              cellStyle="Basic"
              isDisabled
              title="Pressable w/ accessory"
              accessory="DisclosureIndicator"
              onPress={() => console.log('Heyho!')}
            />
          </Section>
          <Section header="ACCESSORY">
            <Cell
              cellStyle="Basic"
              accessory="DisclosureIndicator"
              title="Basic"
            />
            <Cell
              cellStyle="RightDetail"
              accessory="DetailDisclosure"
              title="RightDetail"
              detail="Detail"
            />
            <Cell
              cellStyle="LeftDetail"
              accessory="Detail"
              title="LeftDetail"
              detail="Detail"
            />
            <Cell
              cellStyle="Subtitle"
              accessory="Checkmark"
              title="Subtitle"
              detail="No linebreakkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk"
            />
            <Cell
              cellStyle="Basic"
              accessory="Detail"
              title="Pressable w/ accessory"
              onPress={() => console.log('Heyho!')}
            />
          </Section>
          <Section header="Image" footer="A Footer">
            <Cell
              cellStyle="Basic"
              title="Basic"
              image={
                <Image
                  style={{ borderRadius: 5 }}
                  source={{
                    uri: 'https://facebook.github.io/react/img/logo_og.png',
                  }}
                />
              }
            />
            <Cell
              cellStyle="RightDetail"
              title="RightDetail"
              detail="Detail"
              image={
                <Image
                  style={{ borderRadius: 5 }}
                  source={{
                    uri: 'https://facebook.github.io/react/img/logo_og.png',
                  }}
                />
              }
            />
            <Cell
              cellStyle="LeftDetail"
              title="LeftDetail"
              detail="Detail"
              image={
                <Image
                  style={{ borderRadius: 5 }}
                  source={{
                    uri: 'https://facebook.github.io/react/img/logo_og.png',
                  }}
                />
              }
            />
            <Cell
              cellStyle="Subtitle"
              title="Subtitle"
              detail="No linebreakkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk"
              image={
                <Image
                  style={{ borderRadius: 5 }}
                  source={{
                    uri: 'https://facebook.github.io/react/img/logo_og.png',
                  }}
                />
              }
            />
            <Cell
              cellStyle="Basic"
              title="Pressable w/ accessory"
              accessory="DisclosureIndicator"
              onPress={() => console.log('Heyho!')}
              image={
                <Image
                  style={{ borderRadius: 5 }}
                  source={{
                    uri: 'https://facebook.github.io/react/img/logo_og.png',
                  }}
                />
              }
            />
            <Cell
              cellStyle="Basic"
              title="Disable image resize"
              disableImageResize
              image={
                <Image
                  style={{ height: 50, width: 50, borderRadius: 5 }}
                  source={{
                    uri: 'https://facebook.github.io/react/img/logo_og.png',
                  }}
                />
              }
            />
          </Section>
          <Section header="MISC">
            <Cell
              cellStyle="RightDetail"
              title="RightDetail"
              detail="Detail"
              rightDetailColor="#6cc644"
            />
            <Cell
              cellStyle="LeftDetail"
              title="LeftDetail"
              detail="Detail"
              leftDetailColor="#6cc644"
            />
            <Cell
              cellStyle="Basic"
              title="Switch"
              cellAccessoryView={<Switch />}
              contentContainerStyle={{ paddingVertical: 4 }}
            />
            <Cell
              cellStyle="Basic"
              title="ActivityIndicator"
              cellAccessoryView={<ActivityIndicator />}
            />
            <Cell
              cellContentView={
                <TextInput
                  style={{ fontSize: 16, flex: 1 }}
                  placeholder="TextInput"
                />
              }
            />
          </Section>
          <Section header="CUSTOMCELLS">
            <Cell
              onPress={() => console.log('Heyho!')}
              contentContainerStyle={{ alignItems: 'flex-start', height: 60 }}
              cellContentView={
                <Text style={{ flex: 1, fontSize: 16 }}>
                  Custom height with Cell-Component
                </Text>
              }
            />
          </Section>
          <Section headerComponent={<CustomSectionHeader />}>
            <Cell cellStyle="Basic" title="Section uses prop headerComponent" />
          </Section>
        </TableView>
        <View
          style={{
            minHeight: Dimensions.get('window').height,
          }}>
          <View
            style={{
              backgroundColor: '#37474F',
              height: 500,
              alignItems: 'center',
              justifyContent: 'center',
            }}>
            <View
              style={{
                backgroundColor: '#ffc107',
                width: 80,
                height: 80,
                borderRadius: 10,
              }}
            />
          </View>
          <TableView>
            <Section footer="All rights reserved.">
              <Cell
                title="Help / FAQ"
                titleTextColor="#007AFF"
                onPress={() => console.log('open Help/FAQ')}
              />
              <Cell
                title="Contact Us"
                titleTextColor="#007AFF"
                onPress={() => console.log('open Contact Us')}
              />
            </Section>
          </TableView>
        </View>
      </ScrollView>
    );
  }
}

const styles = StyleSheet.create({
  stage: {
    backgroundColor: '#EFEFF4',
    paddingTop: 20,
    paddingBottom: 20,
  },
});

Render with FlatList

Be aware of the prop keyboardShouldPersistTaps if using ScrollView or similar components. (See #85)

import React from 'react';
import { FlatList } from 'react-native';

import { Cell, Separator, TableView } from 'react-native-tableview-simple';

const data = [
  { id: 1, title: '1' },
  { id: 2, title: '2' },
  { id: 3, title: '3' },
  { id: 4, title: '4' },
];

export default ExampleWithFlatList = () => (
  <FlatList
    data={data}
    keyExtractor={(item, index) => item.id}
    renderItem={({ item, separators }) => (
      <Cell
        title={item.title}
        onPress={console.log}
        onHighlightRow={separators.highlight}
        onUnHighlightRow={separators.unhighlight}
      />
    )}
    ItemSeparatorComponent={({ highlighted }) => (
      <Separator isHidden={highlighted} />
    )}
  />
);

Try it out

Try it in Expo: https://snack.expo.io/@purii/react-native-tableview-simple

You can’t perform that action at this time.
