Fatal bug on R 3.2 and intel integrated graphics prevents boot with kernel 1000:4.9.45-21. Kinda really bad.

[tonsimple]

So I got around to updating my dom0 (finally!) and ran into a bug that completely breaks everything (fortunately there's a workaround, but it's a lame and unhealthy one, so it's still bad)

Qubes OS version (e.g., R3.2):

R 3.2

Affected TemplateVMs (e.g., fedora-23, if applicable):

dom0

---

Steps to reproduce the behavior:

Have an Asus ROG Hero VIII motherboard and a Skylake Intel processor (other Intels and motherboards might be affected, but tested on this config)

Use integrated graphics (because Nvidia 1070 GPU support still completely broken on R 3.2)

update all dom0 stuff, particularly kernel
kernel version should be 1000:4.9.45-21

Now try a reboot

Expected behavior:

System booting normally, or at least getting to LUKS password entry splash screen

Actual behavior:

Almost complete boot failure.

GRUB menu displays, but after it tries to actually start up Qubes, it displays black screen.
No error, no nothing.
Attempt to enter LUKS password blindly also gives nothing.

General notes:

There is a "workaround" (that allowed me to boot and work normally, including posting this)

The workaround is to go into advanced options menu item in GRUB menu and choose to boot Qubes with a different kernel
(all other kernels work fine, currently posting this using 1000:4.4.67-13 kernel)

Can't provide logs because with kernel 1000:4.9.45-21 I can't even enter disk encryption password, and with kernel 1000:4.4.67-13 it boots without any issues at all (it seems)

Using an old kernel in dom0 really rubs me the wrong way, so any pointers as to how to get it boot with 1000:4.9.45-21 are greatly appreciated.

---

Related issues:

[marmarek]

@rtiangha any idea? Some options to try?

I'd start with modeset=0 kernel option.

[marmarek]

@rtiangha any idea? Some options to try?

I'd start with modeset=0 kernel option.

[tonsimple]

I've managed to catch an error message via cellphone cam (by just waiting for a few hours), I'll try to upload the photo a bit later on.

[tonsimple]

I've managed to catch an error message via cellphone cam (by just waiting for a few hours), I'll try to upload the photo a bit later on.

[tonsimple]

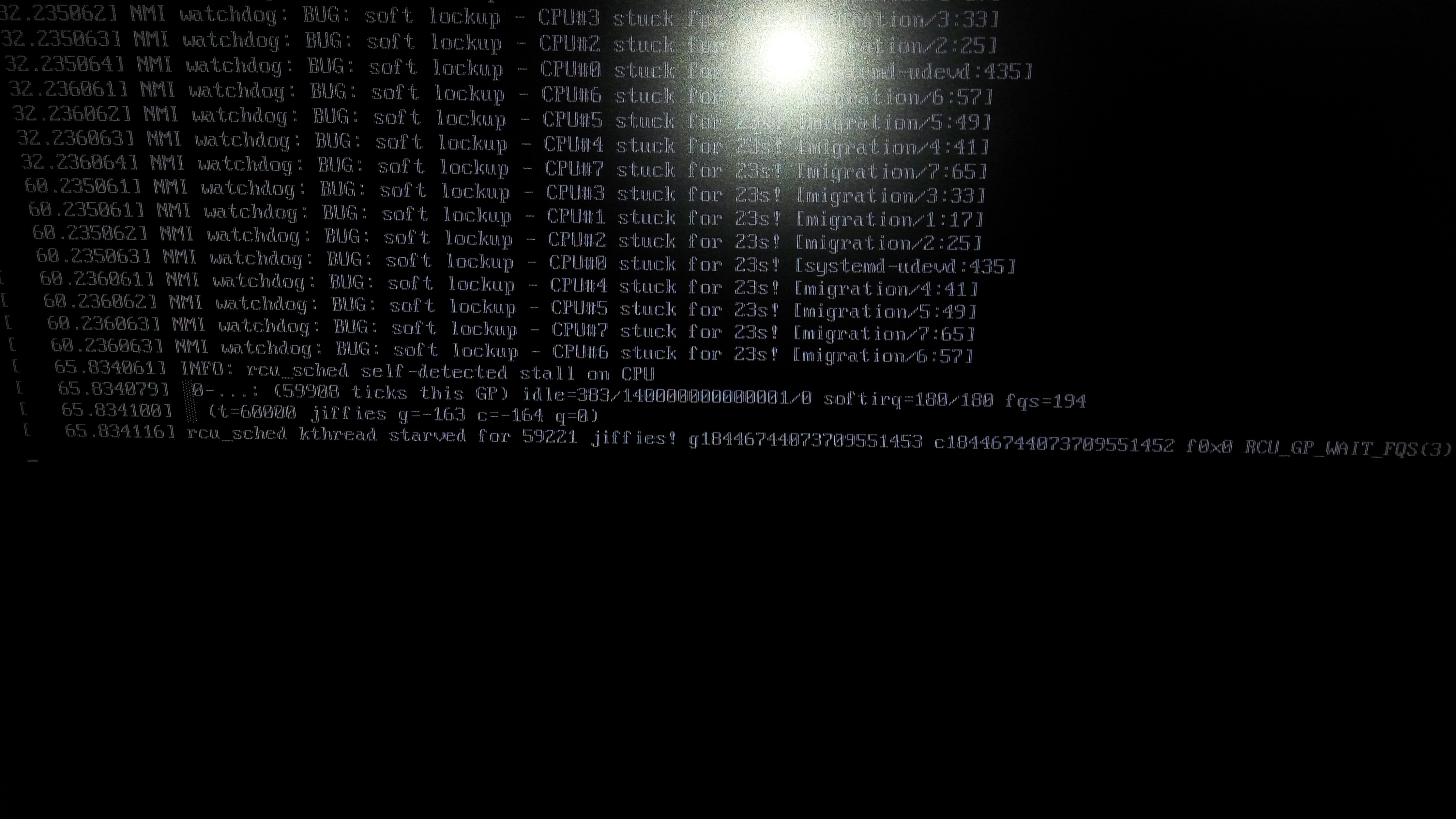

Okay, here's the "log"

It appears on screen after several hours (though the messages speak about tens of seconds of "starving")

[tonsimple]

Okay, here's the "log"

It appears on screen after several hours (though the messages speak about tens of seconds of "starving")

[tonsimple]

I hate to be naggy, but the issue persists on kernel 4.9.56-21 and is really getting me worried

P.S.:
Oh, and modeset=0 does nothing

[tonsimple]

I hate to be naggy, but the issue persists on kernel 4.9.56-21 and is really getting me worried

P.S.:
Oh, and modeset=0 does nothing

[0spinboson]

did you actually blacklist nouveau (or the PCIe slot containing the 1070)? It may still be trying to initialize the GPU, and getting stuck, because I'm not sure 4.9 supports the pascal series at all.

[0spinboson]

did you actually blacklist nouveau (or the PCIe slot containing the 1070)? It may still be trying to initialize the GPU, and getting stuck, because I'm not sure 4.9 supports the pascal series at all.

[tonsimple]

@0spinboson
How do I blacklist a PCIe slot at "grub level"?

It hangs before the disk encryption password can be entered so stuff I put in "/etc/modprobe.d/" can't be relevant here, no?

[tonsimple]

@0spinboson
How do I blacklist a PCIe slot at "grub level"?

It hangs before the disk encryption password can be entered so stuff I put in "/etc/modprobe.d/" can't be relevant here, no?

[0spinboson]

what should work is adding 'rd.qubes.hide_pci=0d:00.0' (or whatever the PCI ID is that's shown when you run lspci) to /etc/default/grub (or by editing the grub boot parameters during boot). It's odd that it freezes so early in the boot process, though.

[0spinboson]

what should work is adding 'rd.qubes.hide_pci=0d:00.0' (or whatever the PCI ID is that's shown when you run lspci) to /etc/default/grub (or by editing the grub boot parameters during boot). It's odd that it freezes so early in the boot process, though.

[tonsimple]

@0spinboson

Tried that, no cigar but the error messages about stalling no longer appear at all

[tonsimple]

@0spinboson

Tried that, no cigar but the error messages about stalling no longer appear at all

[tonsimple]

@0spinboson okay, if I blacklist BOTH NVIDIA VGA device and NVIDIA audio device it starts spamming the NMI error messages right away with no wait at all (but still never reaches the password entry screen)

Not sure if that helps fixing it :( but hope it does...

[tonsimple]

@0spinboson okay, if I blacklist BOTH NVIDIA VGA device and NVIDIA audio device it starts spamming the NMI error messages right away with no wait at all (but still never reaches the password entry screen)

Not sure if that helps fixing it :( but hope it does...

[tonsimple]

@marmarek @0spinboson
A little update:

with most recent updates (dunno what changed...) nomodeset allows the system to boot (password can be entered and boot completes) but lightdm dies right away and I am limited to command line interface (fortunately, that's enough to revert things back to normal without too much pain)

Also, with most recent updates the "starved for jiffies" message never ever shows up (when booting most recent kernel without nomodeset option)
Just black screen, forever.

[tonsimple]

@marmarek @0spinboson
A little update:

with most recent updates (dunno what changed...) nomodeset allows the system to boot (password can be entered and boot completes) but lightdm dies right away and I am limited to command line interface (fortunately, that's enough to revert things back to normal without too much pain)

Also, with most recent updates the "starved for jiffies" message never ever shows up (when booting most recent kernel without nomodeset option)
Just black screen, forever.

[marmarek]

What version do you have now? Testing repository have 4.14.18 now, you may want to check if that fixed anything. But pay attention during update to not remove the working kernel - you may want to raise installonly_limit option in /etc/dnf/dnf.conf, or remove one of broken kernels.

[marmarek]

What version do you have now? Testing repository have 4.14.18 now, you may want to check if that fixed anything. But pay attention during update to not remove the working kernel - you may want to raise installonly_limit option in /etc/dnf/dnf.conf, or remove one of broken kernels.

[marmarek]

Try also iommu=no-igfx option to xen (xen.gz line in grub).

[marmarek]

Try also iommu=no-igfx option to xen (xen.gz line in grub).

[loadcorp]

@tonsimple did you resolve your problem? Could you tell me which updates you got? Which version you installed?
What exactly you did with nomodeset and where?

[loadcorp]

@tonsimple did you resolve your problem? Could you tell me which updates you got? Which version you installed?
What exactly you did with nomodeset and where?

[tonsimple]

@marmarek
iommu=no-igfx causes immediate crash (the screen flashes a few times, then system shuts down)

I'll try out the new testing kernel and report results.

@loadcorp

My current solution is to increase installonly_limit, then install kernel 1000:4.4.67-13, then boot using it.
But it's not really a "solution" and sooner or later a properly working kernel will become needed.

nomodeset allows boot, but GUI (lightdm) environment won't start/dies right away, so it's a "no go"

[tonsimple]

@marmarek
iommu=no-igfx causes immediate crash (the screen flashes a few times, then system shuts down)

I'll try out the new testing kernel and report results.

@loadcorp

My current solution is to increase installonly_limit, then install kernel 1000:4.4.67-13, then boot using it.
But it's not really a "solution" and sooner or later a properly working kernel will become needed.

nomodeset allows boot, but GUI (lightdm) environment won't start/dies right away, so it's a "no go"

[tonsimple]

@marmarek @0spinboson

Well, I tried it with the 4.14.18 from testing and there is good news and bad news

Good news:
It actually gets to the password entry screen, password gets accepted, logs are written, and it reaches desktop environment user password entry screen.

HOWEVER
Bad news:
after user's password is entered the desktop fails to load.
The cursor is there, but neither the shortcuts on desktop nor anything else (like the VM manager) ever show up.

But, since logs are being written, I managed to retrieve logs from this "almost but not quite" successful boot.

Here it is
badboot2018.txt

The "oldie but still goodie" kernel 1000:4.4.67-13 still works flawlessly.

Just in case it helps determining "what went wrong this time" I attach a log of "completely healthy boot" using the kernel 1000:4.4.67-13
goodboot2018.txt

P.S.:
Should I start a separate issue for this behavior, post it to dev forum, or anything else? It is, after all, distinct from "wontboot" behavior observed on non-testing kernels...

[tonsimple]

@marmarek @0spinboson

Well, I tried it with the 4.14.18 from testing and there is good news and bad news

Good news:
It actually gets to the password entry screen, password gets accepted, logs are written, and it reaches desktop environment user password entry screen.

HOWEVER
Bad news:
after user's password is entered the desktop fails to load.
The cursor is there, but neither the shortcuts on desktop nor anything else (like the VM manager) ever show up.

But, since logs are being written, I managed to retrieve logs from this "almost but not quite" successful boot.

Here it is
badboot2018.txt

The "oldie but still goodie" kernel 1000:4.4.67-13 still works flawlessly.

Just in case it helps determining "what went wrong this time" I attach a log of "completely healthy boot" using the kernel 1000:4.4.67-13
goodboot2018.txt

P.S.:
Should I start a separate issue for this behavior, post it to dev forum, or anything else? It is, after all, distinct from "wontboot" behavior observed on non-testing kernels...
