GL/Vulkan: One Piece: Pirate Warriors graphical issues

[MarioSonic2987]

As of 0.0.25-14507:

• Broken depth of field (blur) in cutscenes. - Fixed in rsx/fp: Halfplement dynamic indexed TEX[n] loads #10733
• Black textures on in-game cutscenes

Old comment

DX12 - Freezes in title screen with:

·F {rsx::thread} class std::runtime_error thrown: HRESULT = La instancia de dispositivo de GPU se ha suspendido. Use GetDeviceRemovedReason para averiguar cuál es la acción adecuada.
(in file C:\rpcs3\rpcs3\Emu\RSX\D3D12\D3D12RenderTargetSets.cpp:279)

OGL:

Vulkan:

Crashes in same moment as in these pictures.

Outputs in all backends:

·E {rsx::thread} RSX: Unimplemented sca_opcode BRB
·E {rsx::thread} RSX: Unimplemented sca_opcode BRB

Shaderlog DX12
Shaderlog OpenGL
Shaderlog Vulkan
RenderDoc Vulkan (Title screen & Main menu)

[SakataGintokiYT]

@AniLeo

Crash by sysnet issue on the line 425 'recvfrom'
After disabling this feature, the game starts normally without crash.

W {PPU[0x1000000] Thread (main_thread) [0x00812824]} libnet: recvfrom(s=0, buf=*0x0, len=0, flags=0x80, addr=*0xd001f684, paddrlen=*0xd001f670)

Fatal error
Unhandled Win32 exception 0xC0000005.
Segfault reading location 0000000000000000 at 000000000021ef9f.
Instruction address: 000000000021ef9f.
Function address: 000000000021eec0 (base+0x20eec0).
Module name: 'rpcs3.exe'.
Module base: 0000000000010000.
RPCS3 image base: 0000000000010000.

[kd-11]

Please retest with #2426

[MarioSonic2987]

@kd-11

With #2426, Luffy's trousers are rendered properly. Remains the other glitches (no lighting, no water).

Shaderlog Vulkan
RenderDoc Vulkan

[SakataGintokiYT]

@kd-11
OpenGL-RenderDoc
Shaderlog:

---

**DX12**
Unhandled Win32 exception 0xC0000005.
Segfault reading location ffffffffffffffff at 00000000003bd400.
Instruction address: 00000000003bd400.
Module name: 'rpcs3.exe'.
Module base: 0000000000010000.
RPCS3 image base: 0000000000010000.

Shaderlog:
Log:

[Zangetsu38]

menu bugger and ingame strange blur

[MarioSonic2987]

Hits this (same as Skate 2):
E {rsx::thread} RSX: Surface color buffer: Unsupported surface color format (0xd)

On BRB side, it's the same in VK and GL.

In DX12, outputs:

·F 0:03:07.672151 {rsx::thread} class std::runtime_error thrown: HRESULT = La instancia de dispositivo de GPU se ha suspendido. Use GetDeviceRemovedReason para averiguar cu⬠es la acci󮠡decuada.
(in file C:\rpcs3\rpcs3\Emu\RSX\D3D12\D3D12RenderTargetSets.cpp:279)

Shaderlog DX12

[MarioSonic2987]

With #2482, lighting effects are improved.

[SakataGintokiYT]

OpenGL

#2962

[MarioSonic2987]

With jarves' build (https://ci.appveyor.com/project/jarveson/rpcs3/build/0.0.3-154), fixes water in title screen.

@Zangetsu38

[MarioSonic2987]

Tested with cde29ab:

[Asinin3]

@MarioSonic2987 I think this was fixed with: 9c70d2a

[MarioSonic2987]

@Asinin3 Only fixed a portion of broken geometry.

[AniLeo]

Retested but latest build driver crashes Vulkan on AMD, reported to kd-11.

OpenGL Exploding Vertices

[MarioSonic2987]

With PR #3488, has water effects, but with a white texture:

[MarioSonic2987]

With #3744, lighting effects are improved (look at Luffy).

[MarioSonic2987]

Tested in f24491d:

Log OpenGL
Shaderlog OpenGL
RenderDoc OpenGL

[MarioSonic2987]

With #4312, gamma is fixed.

[hcorion]

Was this fixed in #4356

[AniLeo]

No

[MarioSonic2987]

With #4902, fixes black and misplaced textures in levels.

[reaper185]

exploding vertices also happens in Dynasty Warriors Gundam Reborn #4632

[MarioSonic2987]

This screenshot catches more graphical issues:

• Exploding vertices - Fixed in rsx/vp: Fix ARL opcode #5125
• Screen flickering during ingame cutscenes (epileptic colors)
• Broken effects (smoke, water and dust) - Fixed in GT fixes #5436

RenderDoc (OpenGL)

[Zangetsu38]

maybe need change issue name now ? with "One piece rendering Issue" ?

[MarioSonic2987]

With #5436, fixes broken and missing effects, although the water effects are still not perfect.

[kd-11]

Needs an update.

[MarioSonic2987]

There's still broken effects in water and flickering colors during cutscenes.

Images

RenderDoc VK
RSX Captures

[elad335]

Retest with #7846

[MarioSonic2987]

Nothing changed with PR #7846. Same glitches as before.

[kd-11]

Attach recent RSX capture of broken water effects. The format has changed recently.

[Kyon-irk]

Nothing changed

[Emulator-Team-2]

Edit: Fixed by #8243.

---

RSX Capture:
-(Broken water effects).

Link: RSX-Capture-(Build-0.0.10-10346 - Deleted.)

[Emulator-Team-2]

Remaining glitches:
-(The background remains black in the initial cutscene instead of blue.)

---

Edit:
-(Flickering colors and missing blur in cutscenes.)

• Fixed by rsx/fp: Halfplement dynamic indexed TEX[n] loads #10733.

---

Update:

RDC Capture and screenshot for remaining glitches.

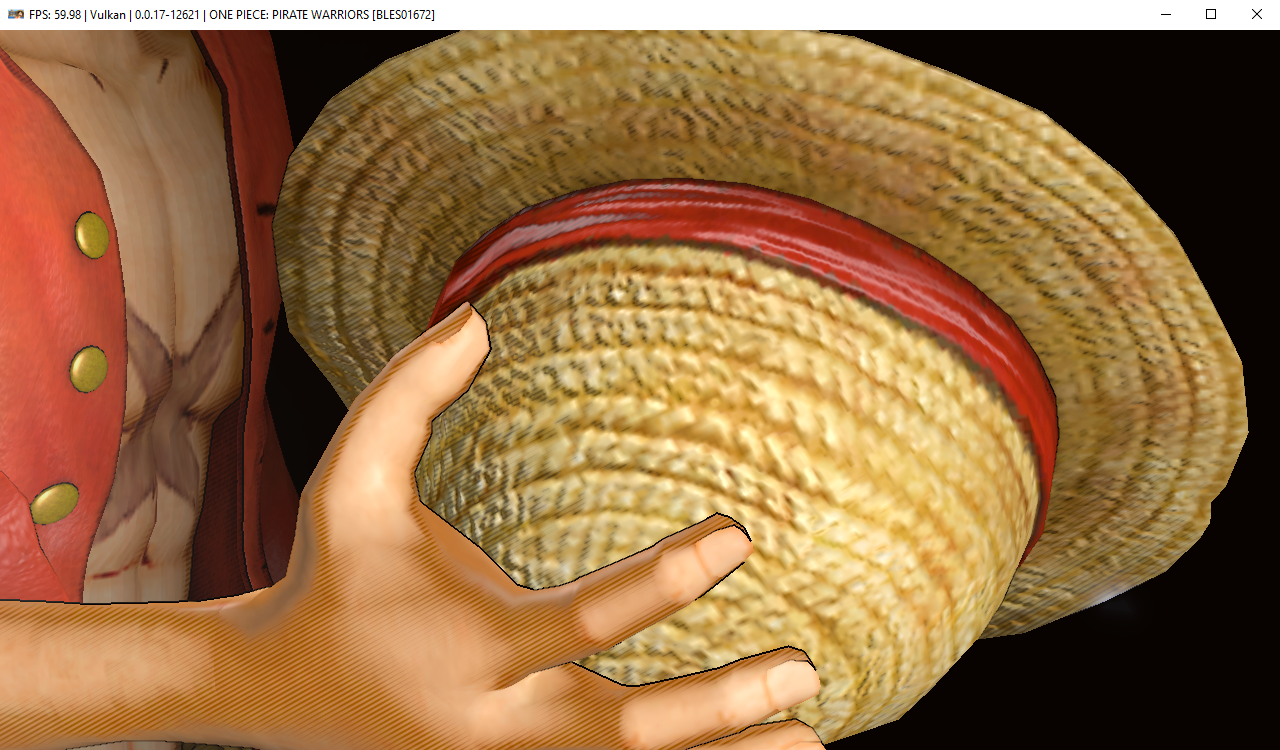

(Flickering colors and missing blur in cutscenes.)

RPCS3:

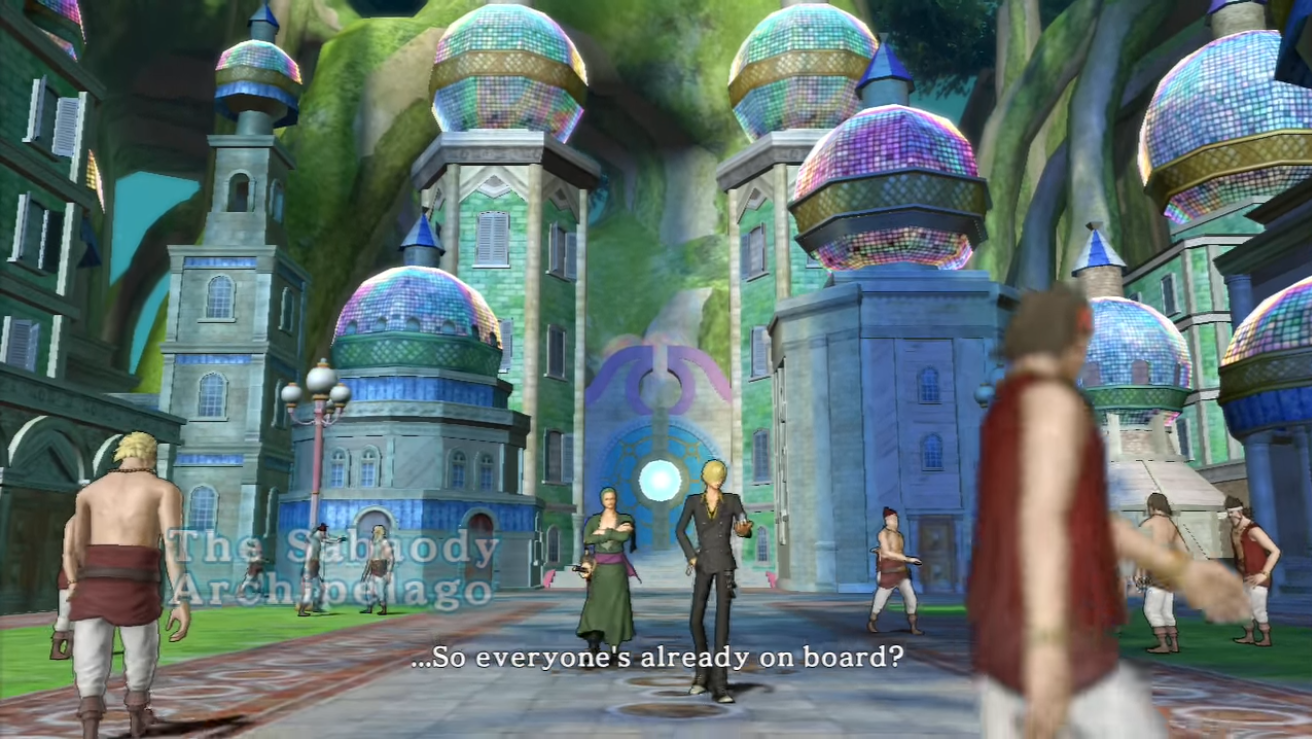

PS3:

---

RPCS3:
PS3:

• (RenderDoc):
  Link:
  [rdc capture-1 - Deleted.]
  [rdc capture-2 - Deleted.]

Details:
-rpcs3-v0.0.17-12621
-Issue: Flickering colors and missing blur in cutscenes.

OS: Windows 10 64-bit
CPU: Intel i7-10700
GPU: GTX 1660 - ( Driver version: 471.41.0.0 )

[kd-11]

Flickering and other glitches are solved by #10733
However, the background remains black during the intro sequence instead of blue. I can fix this in a one-line fix but hardware tests have refuted my hypothesis so I will not commit the hack.

[MarioSonic2987]

It remains black textures in most cutscenes, like this background in Episode 0.

[Emulator-Team-2]

Update:

-Still an issue, tested with the latest master build: (0.0.23-14031).

Screenshots:

(PS3/RPCS3 Comparisons)

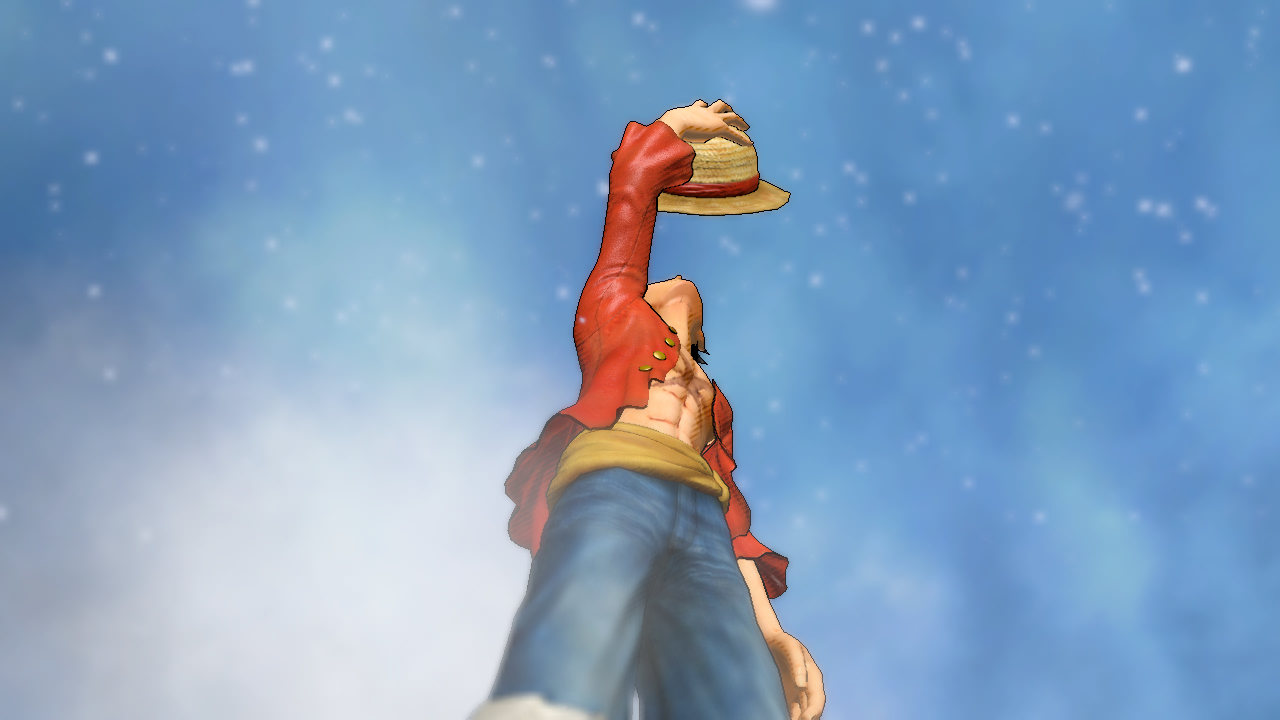

PS3:

RPCS3:

(RenderDoc/RSX Capture)
Link:
rdc capture-vk
rsx capture

System configuration:

• OS: Windows 10 64-bit
• CPU: Intel i7-10700
• Memory: 16GB RAM
• GPU: GTX 1660
• Driver version: 512.95.0.0

[Emulator-Team-2]

Still an issue, tested with the latest master build: (rpcs3-v0.0.30-15912).
