rsx: Fbo fixes

[kd-11]

Reimplements some parts of framebuffer management including:

• Avoiding generating framebuffer attachments for attachments that are likely unused. This prevents memory corruption when WCB/WDB is not in use since we rely on attachment memory tags to watch for events. Fixes tag_framebuffer causes FIFO corruption in a few games #5406.
• Rewrites memory inheritance to implicity guarantee correct results even when strict mode is not enabled. This both simplifies the design and potentially moves some more games from strict mode requirement.
• Fix a texture cache deadlock due to incorrect internal size computations
• Bump max number of compute invocations on vulkan to 8 times the old value. Real-world testing has shown that it is completely possible to trigger a very high number of readback operations in loading screens. Fixes Soul Calibur [NPEB01363] with WCB crashes on VKCompute.h:137 #5193 and other similar issues.

This is the first in a series of pull requests, so gt_fixes will be made available after this one is merged as they touch some of the same common code.

[Megamouse]

best review

[HerrHulaHoop]

best review so far

[MSuih]

X-Men Origins: Wolverine no longer needs SRM to fix flickering models. Sadly it's still needed to fix rainbow-colored effects, but that might be AMD-specific.

Skate 3 is very close to playable with this PR, I think the only issues that remain are performance, very rare crashes and teammate naming.

[Xcedf]

#4429 now fixed
Games like Killzone 2 or TeKken Tag 2 work without Strict rendering now, and charcters texturing is also fixed now in Tekken Tag 2 no more black areas with WCB+CPU Blit, scalig works, graphics is perfect.

[Xcedf]

With this PR i have this error
F {RSX [0x02f2ca0]} RSX: class std::runtime_error thrown: VirtualProtect failed (00000003cf600000, 0x400000, addr=0x3cf900000, error=0x1e7)
in Sonic & Sega All Stras Racing Demo just before ingame
F {RSX [0x1356430]} RSX: class std::runtime_error thrown: VirtualProtect failed (000000034e506000, 0x3f5000, addr=0x34e800000, error=0x1e7)
This one i have in Gran Turismo 5 almost after game booting

[kd-11]

The virtualprotect failures hint that I may be over-estimating the size of some textures, something which was actually much more broken before. Let me know if you encounter any more applications that trigger this, maybe one of them will be easy to debug.

[Xcedf]

F {RSX [0x037ad40]} RSX: class std::runtime_error thrown: VirtualProtect failed (00000003cd834000, 0x4001000, addr=0x3cf900000, error=0x1e7) God of War Ascension "Prison of the Damned" Demo, right before the menu.

F {RSX [0x00508f8]} RSX: class std::runtime_error thrown: VirtualProtect failed (00000003cd85d000, 0x4001000, addr=0x3cf900000, error=0x1e7) Rage Demo, just before ingame

[darkdragonz12]

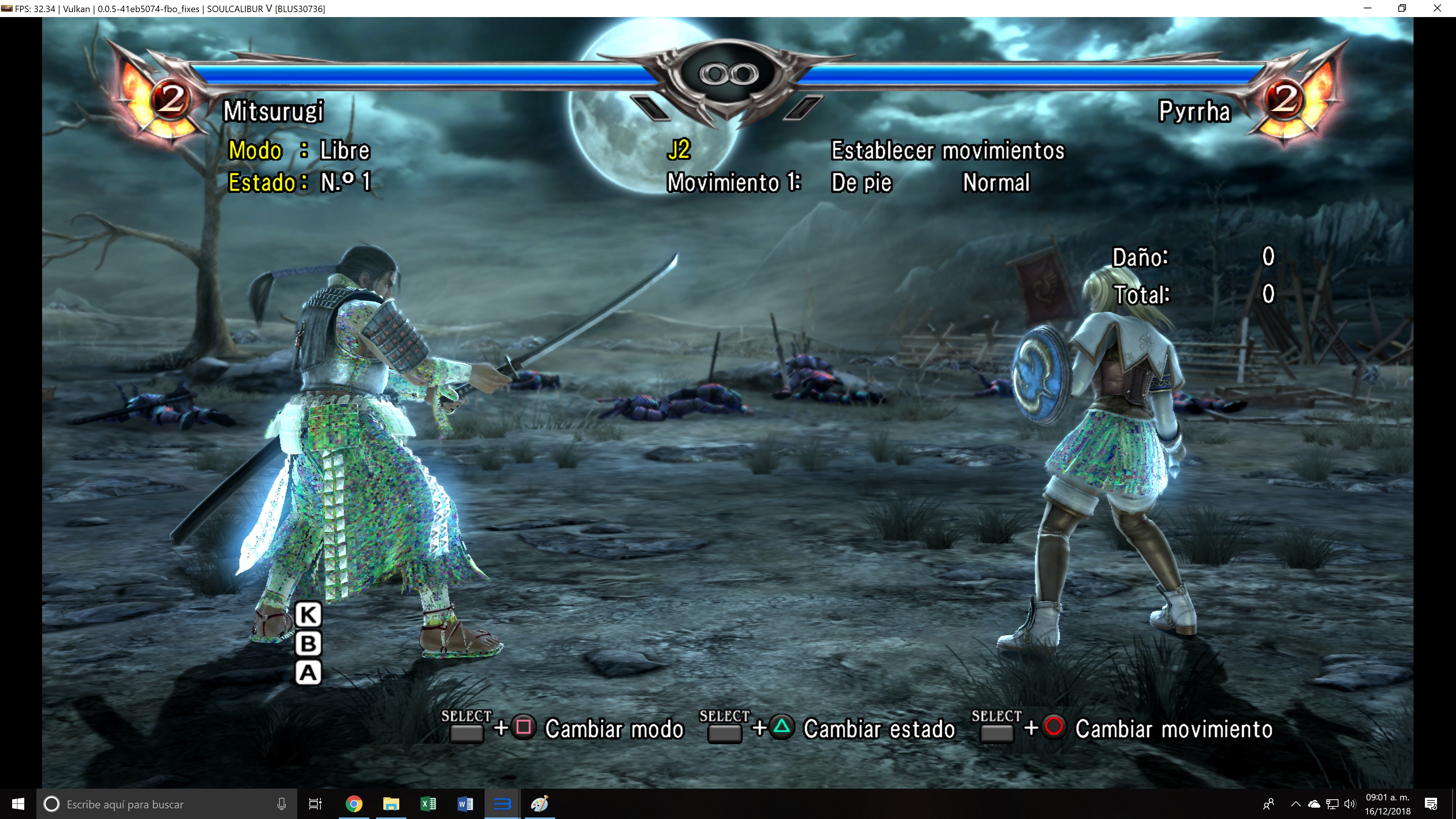

Soul calibur V

the error has been corrected with active WCB, to have disabled strict render mode I get this, activating the strict render mode the graphics look good is my observation.

[HenningJW]

I noticed a regression in Catherine, flickering in main menu and fps cut in half, I haven't had time to test it and compare it to the latest master (maybe another PR caused this) and test if WCB fix this. I can test on Friday again if no one else does.

Sorry for this not very helpful report, I'll try to post logs on Friday.

[legend800]

Tested about 15 games (see list below) w/w/o WCB and only found 2 regressions from today's mainline:

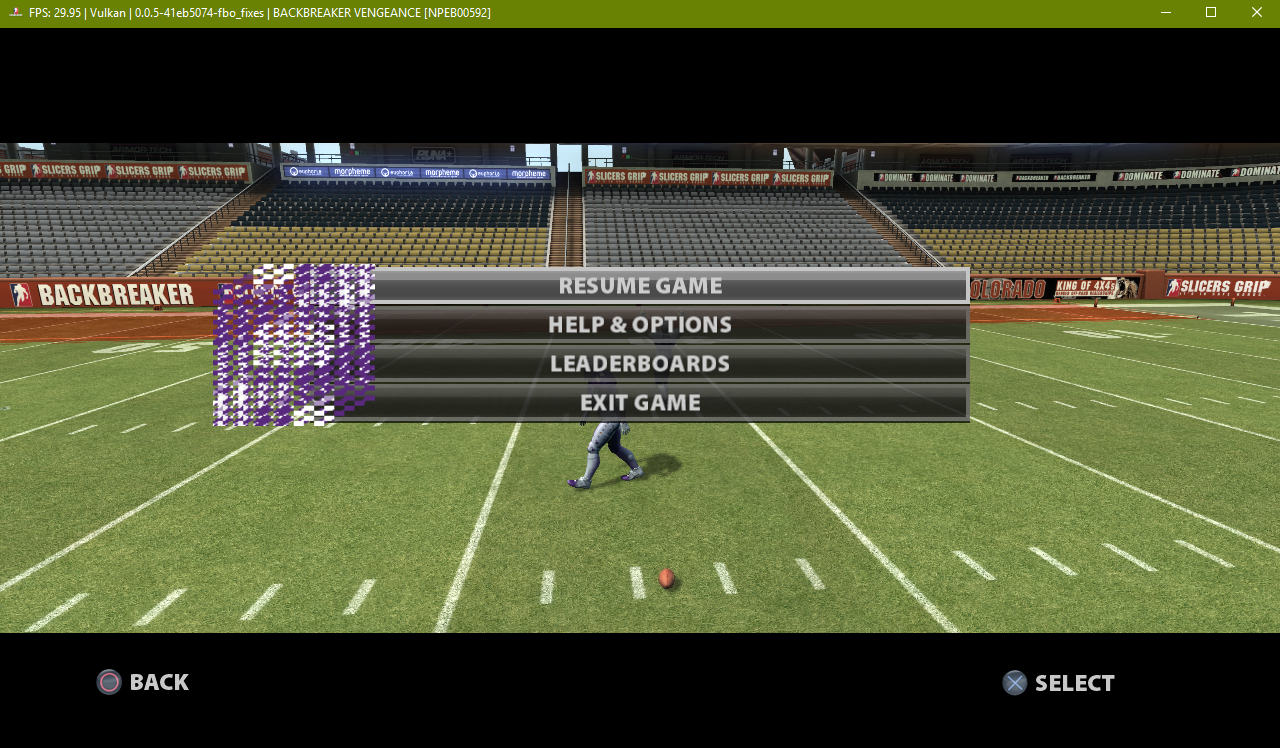

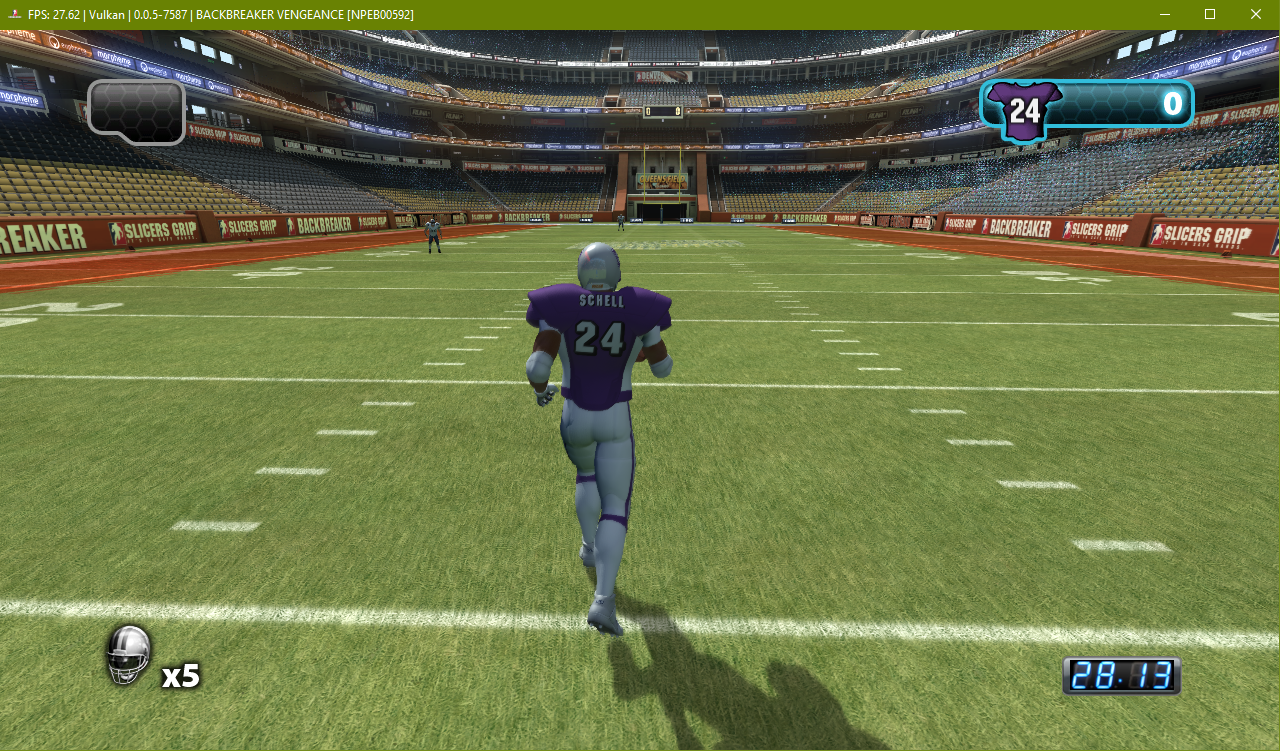

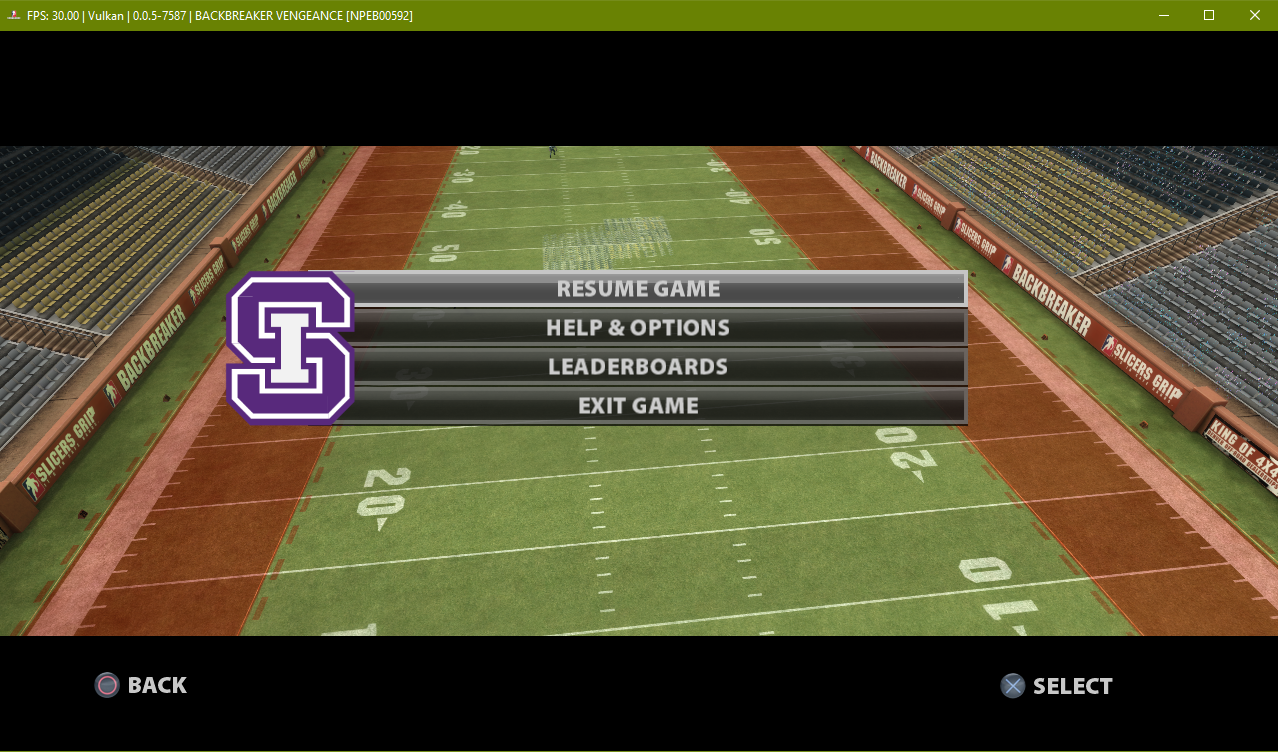

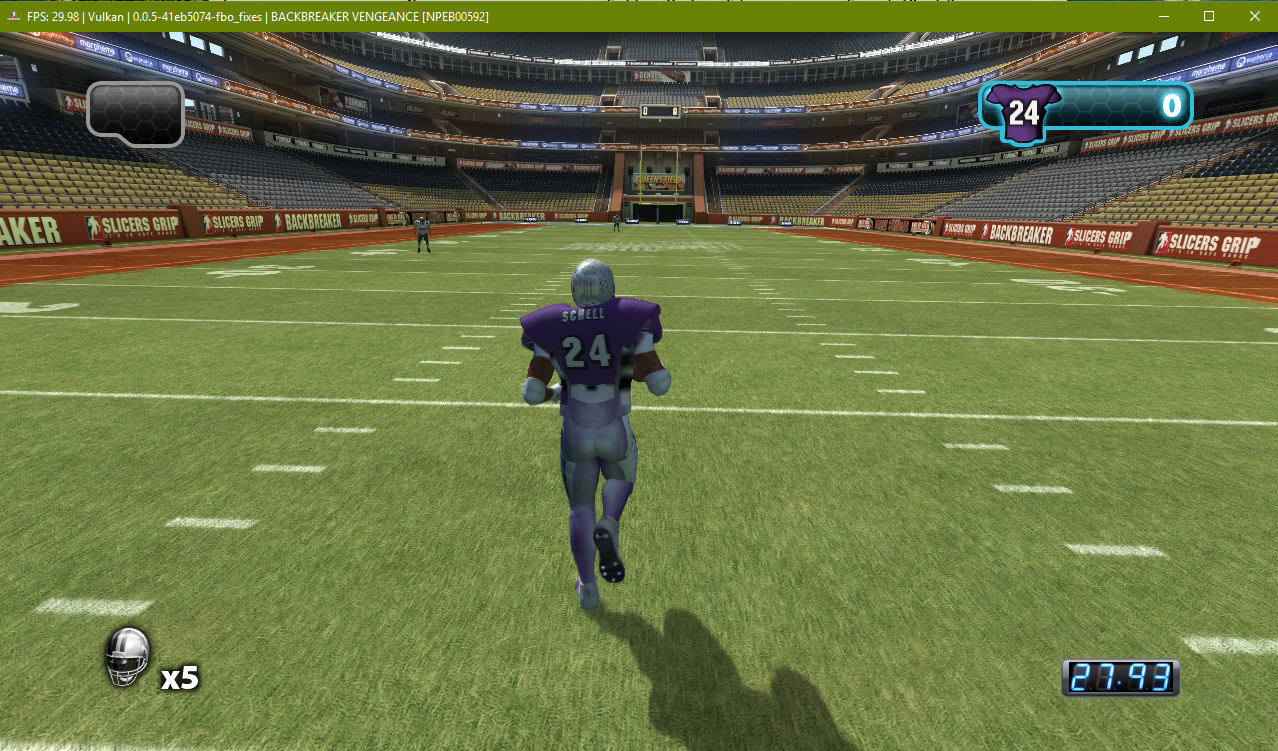

Backbreaker Vengeance - more gfx corruption (WCB/Blit on - has other existing issues if those are off):
Mainline:

PR:

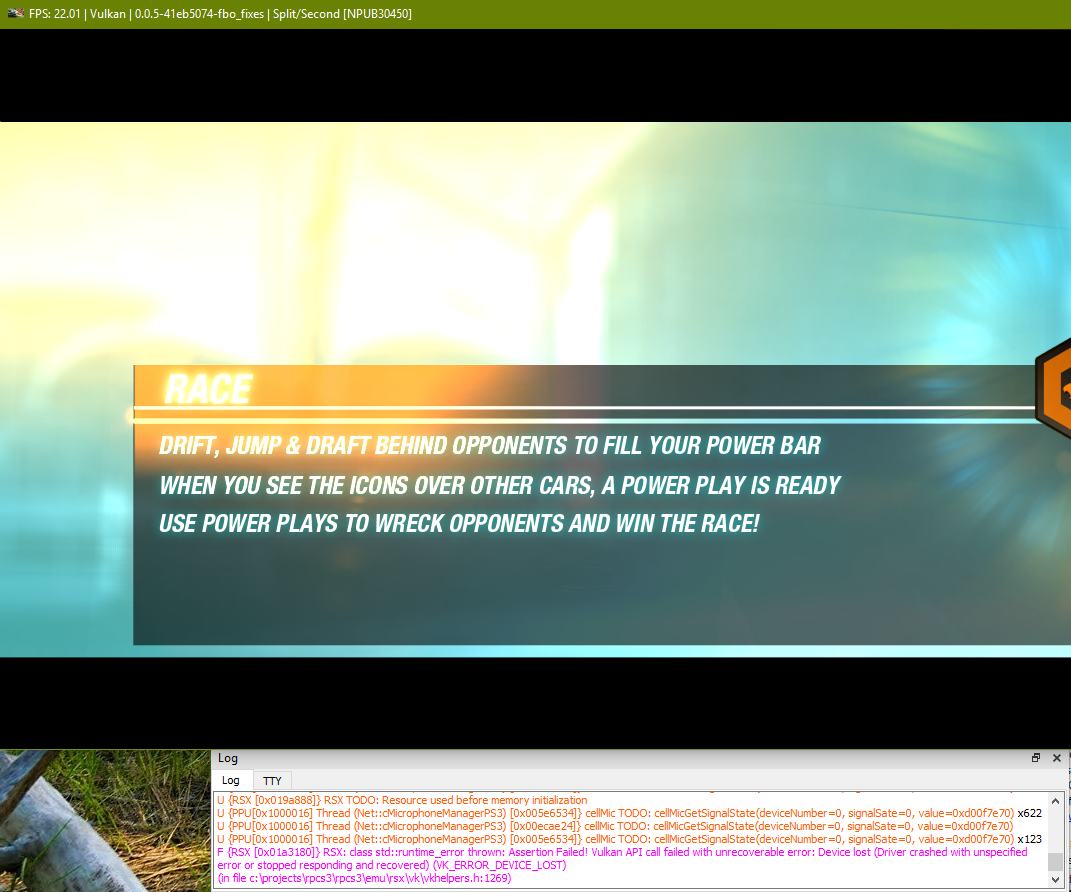

Split Second - vulkan driver error / emu crash(no log) (similar to the Conan regression from a couple months back):

Here's all the games tested (you can disregard the playability notes):
• Backbreaker Vengeance(v1.0-eu-c00)[WCB(field cache), Blit(fixes textures on VK)] Note: Broken text (3 minor areas-WCB), broken field logo (WCB), missing crowd (partially shows with blit) – Black endzone on new pr which fixes glow/only blocker remaining
• (d)Captain America(3D)[Stretch, Strict (Cap shading)] – Slow(~15 fps on curr. lvl)
• (d)Conan [WCB+Blit – stability on vulkan] – missing textures, (hangs during loads sometimes now-logged)
• NFL Blitz (v1.0) – little slow, some gfx issues (logged), bad player physics(logged)
• Ridge Racer 7(3D)(25-special events) – [SPU LLVM+xfloat off(curr. broken 11/14)] – Tree flickering on x stages
• (d)Splatterhouse (1-survival)(eur) PPU mem crashes (needs PPU interpreter for certain areas like start of chapters-but 15 fps)
• Wipeout HD (1-Fury)(v2.51)[WCB for bloom] Slow (20 at start, 40 avg.)
• Force Unleashed 2 – Hangs randomly, Long loads/HDD reading, blue screen vids/gameplay
• Split Second – Slow, Bad gfx
• Double Dragon Neon – Broken gfx (background)
• *(d)TC 4 [PS Move or Mouse(Y button, can’t skip cinematics)] Settings: WCB | Note: Little slow w/o TSX
• *(d)Deadstorm Pirates(+install data) [PS Move (Mouse(Y button) can’t press Start to Continue, could alternative P1 & P2)] Settings: WCB | Note: Minor transparent textures, Must enter config when Move is full red

[Aurez]

Just tested and no: Tekken Tag Tournament 2 still needs Strict Rendering Mode for the 2 last stages.

[elhaya]

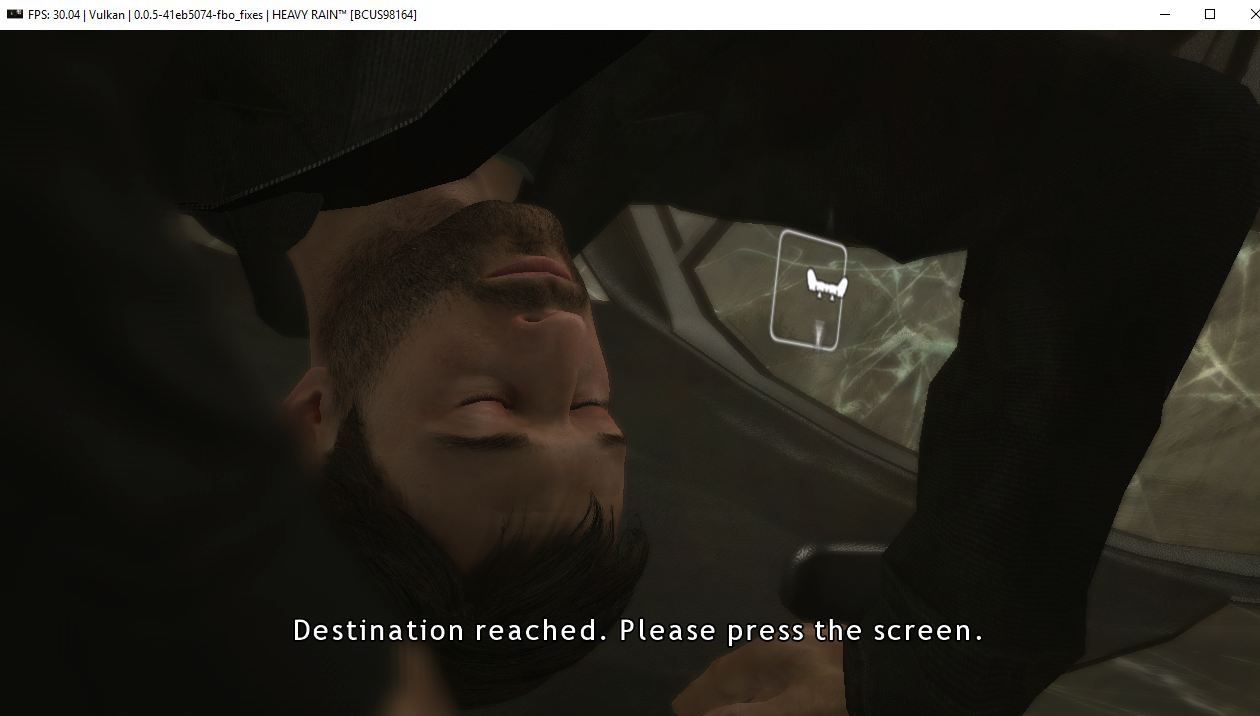

fixes heavy rain with WCB :)

[Xcedf]

Confirm Heavy Rain fixed
found Another error
F {RSX [0x1481f90]} RSX: class std::runtime_error thrown: VirtualProtect failed (000000033d608000, 0x3f5000, addr=0x33d900000, error=0x1e7)
Gran Turismo HD Concept, right after booting the game

[Dani1977]

Hi,
I do not know if this PR looking for to fix the problem of Demon's Souls with CPU 4/4 core (like my i7-7700k).

Unfortunately, the game continues to crash and also emulator crash too.

RPCS3.zip

event viewer:

Nome dell'applicazione che ha generato l'errore: rpcs3.exe, versione: 0.0.0.0, timestamp: 0x5c164d3a
Nome del modulo che ha generato l'errore: ucrtbase.dll, versione: 10.0.17763.1, timestamp: 0x309241e0
Codice eccezione: 0xc0000409
Offset errore 0x000000000006f08e
ID processo che ha generato l'errore: 0x3470
Ora di avvio dell'applicazione che ha generato l'errore: 0x01d4956ff409508d
Percorso dell'applicazione che ha generato l'errore: G:\aa\rpcs3.exe
Percorso del modulo che ha generato l'errore: C:\WINDOWS\System32\ucrtbase.dll
ID segnalazione: e32fac44-0c67-4f10-a42a-88c67762ee2f
Nome completo pacchetto che ha generato l'errore:
ID applicazione relativo al pacchetto che ha generato l'errore:

Regards

[MsDarkLow]

More VirtualProtect Fatals, Yakuza 5, Dead Souls, Ishin and Kiwami now crash after boot.
Yakuza 5:

F {RSX [0x07a7ff0]} RSX: class std::runtime_error thrown: VirtualProtect failed (00000003cf8bf000, 0x100000, addr=0x3cf900000, error=0x1e7)

Yakuza Dead Souls:

F {RSX [0x03005f0]} RSX: class std::runtime_error thrown: VirtualProtect failed (00000003cf8f7000, 0x20000, addr=0x3cf900000, error=0x1e7)

Yakuza Ishin:

F {RSX [0x01008d0]} RSX: class std::runtime_error thrown: VirtualProtect failed (00000003cf8f7000, 0x20000, addr=0x3cf900000, error=0x1e7)

Yakuza Kiwami:

F {RSX [0x01008f0]} RSX: class std::runtime_error thrown: VirtualProtect failed (00000003cf8ef000, 0x40000, addr=0x3cf900000, error=0x1e7)

[Xcedf]

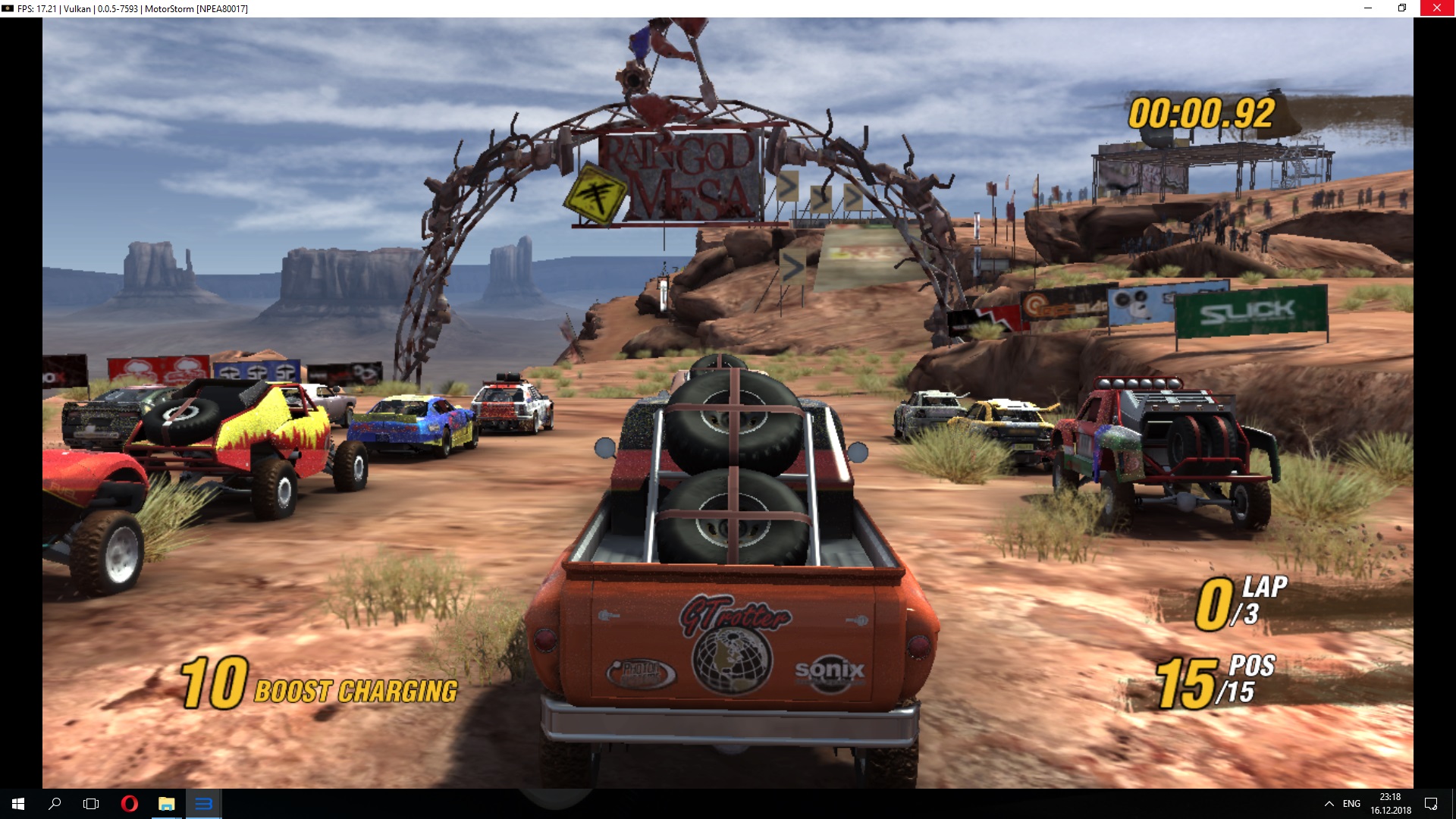

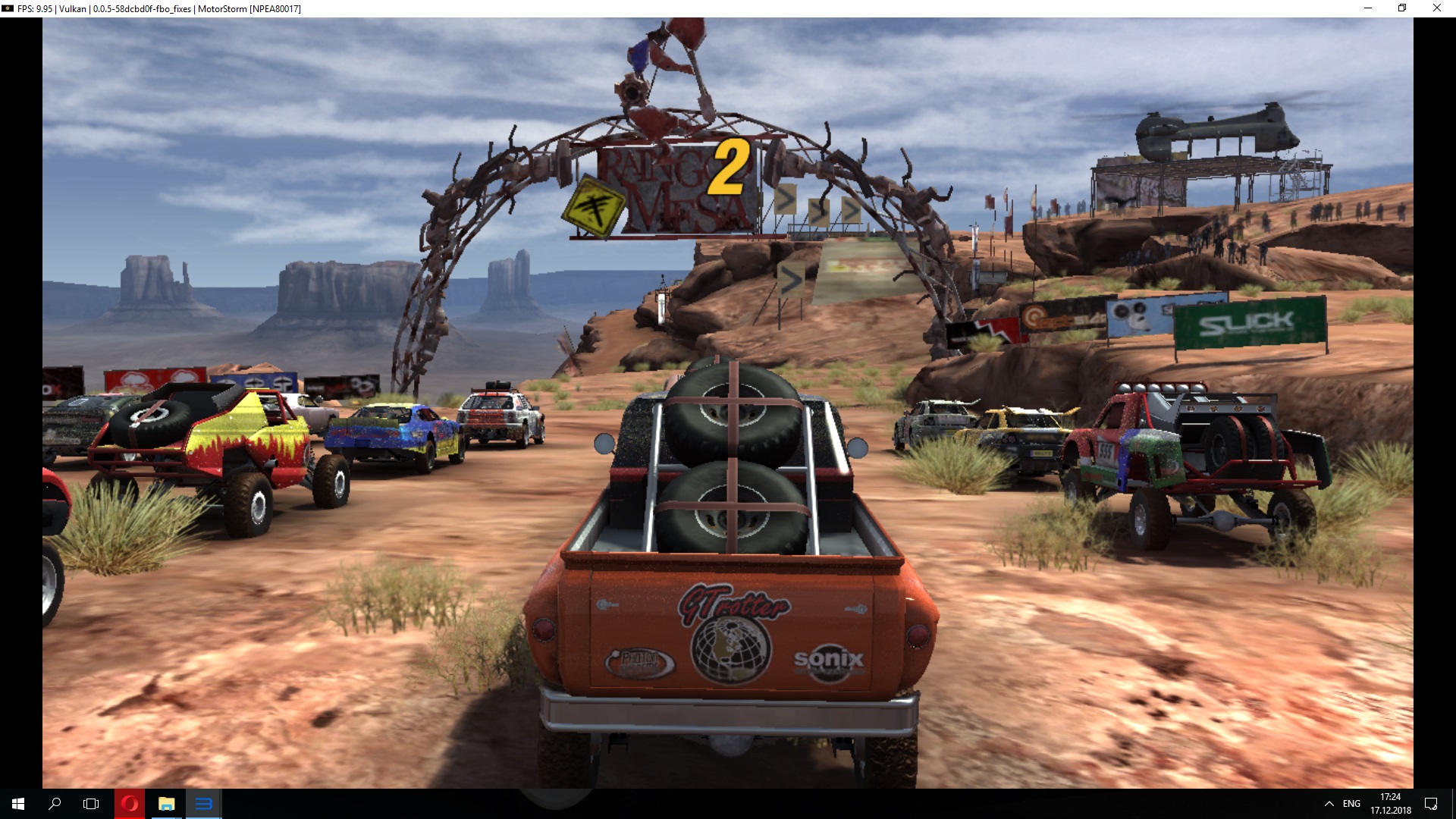

Motorstorm speed regression, commit 01f7ad4
Before

After

Reverting fixes it , and it seems fixes VirtualProtect failed errors, but undo Heavy Rain fix.

[stride21]

Killzone 3:
F {RSX [0x02d6534]} RSX: class std::runtime_error thrown: VirtualProtect failed (00000003cf7c5000, 0x201000, addr=0x3cf900000, error=0x1e7)

Battlefield: Bad Company:
F {RSX [0x0024f08]} RSX: class std::runtime_error thrown: VirtualProtect failed (0000000370c55000, 0x101000, addr=0x370d00000, error=0x1e7)

[stride21]

In Motorstorm the 2nd and 3rd races go ingame again with this PR but I can also confirm that I'm seeing the same performance regression.

[kd-11]

A lot of the regressions reported are due to incorrect texture size approximation, or rather, it was so bad before (seriously under-estimated size) that I do not know if its a real bug or if fixing the problem correctly just uncovered other issues. A solution will be made available in the next few hours though.

[kd-11]

The regressions should be fixed now, I forgot to account for number-of-texels decoded per single row of bytes which caused overestimated size of S3TC data. Should be resolved now.

[kd-11]

Found another small error, crash may still happen.

[Xcedf]

On new build all of my VirtualProtect failed errors still happen, and become

Motorstorm even slower

[legend800]

This PR reintroduced this issue which was actually fixed a few weeks prior:
#4949

[Josivan88]

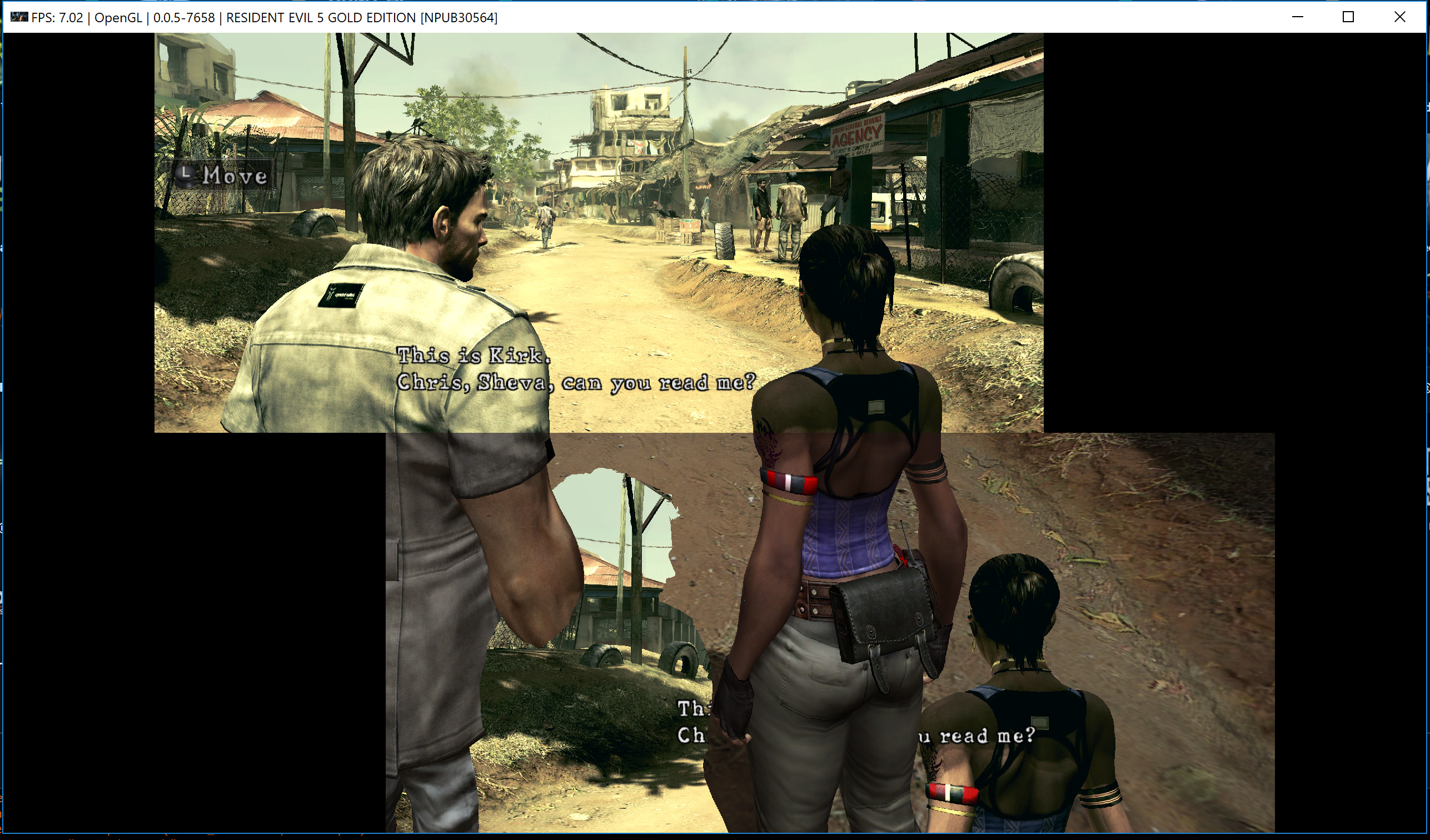

affect resident evil 5
before

After

RPCS3.log.gz

[stride21]

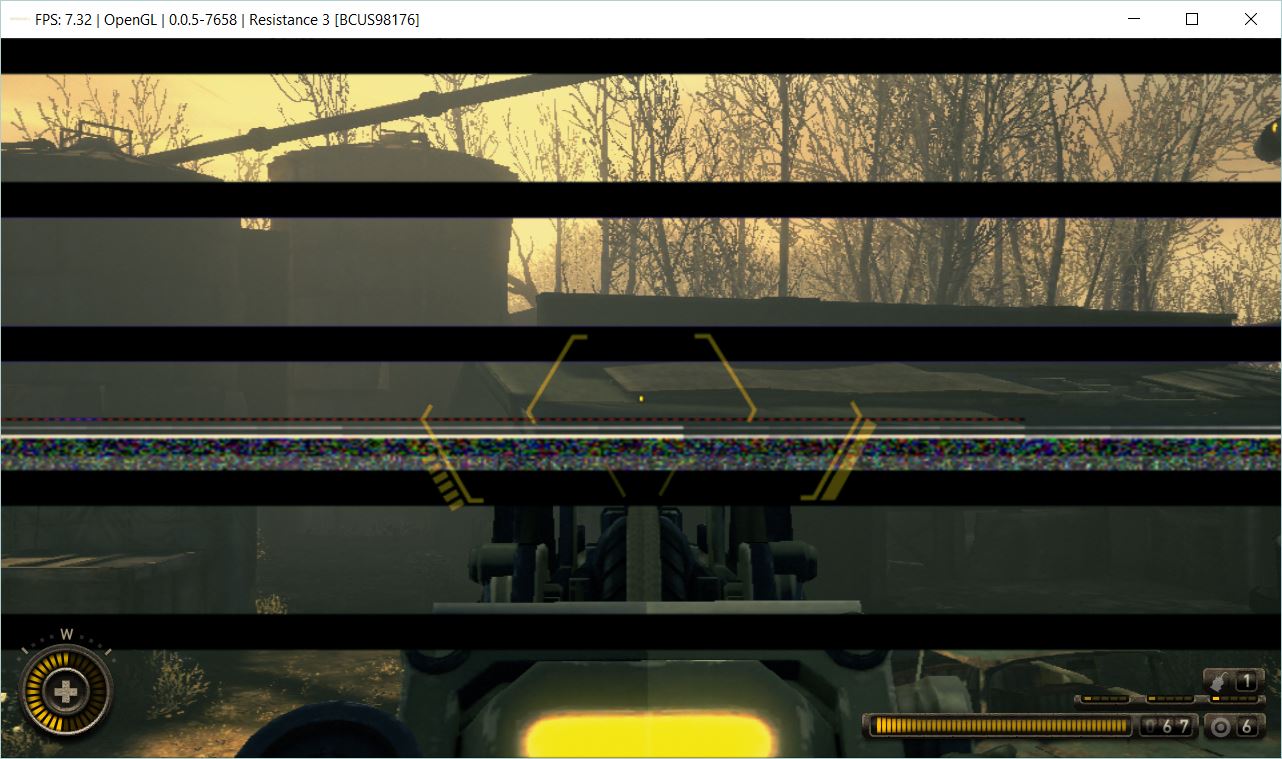

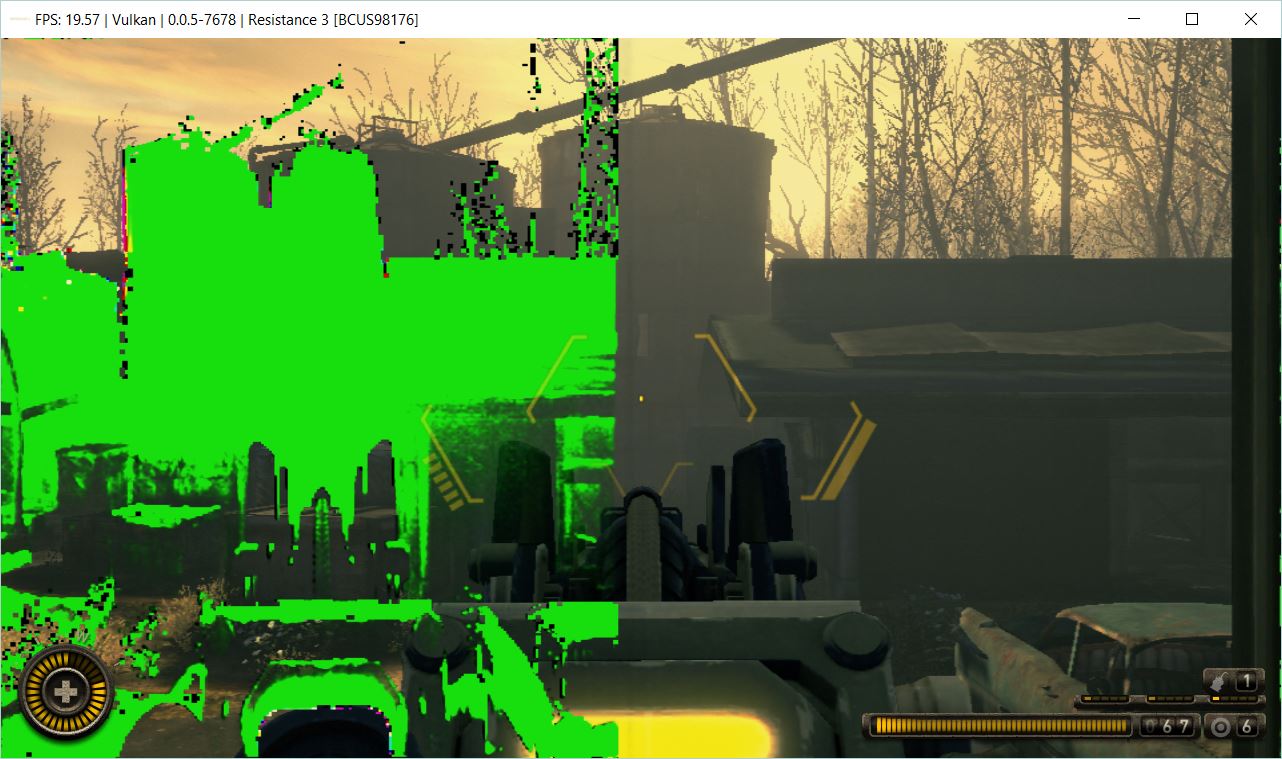

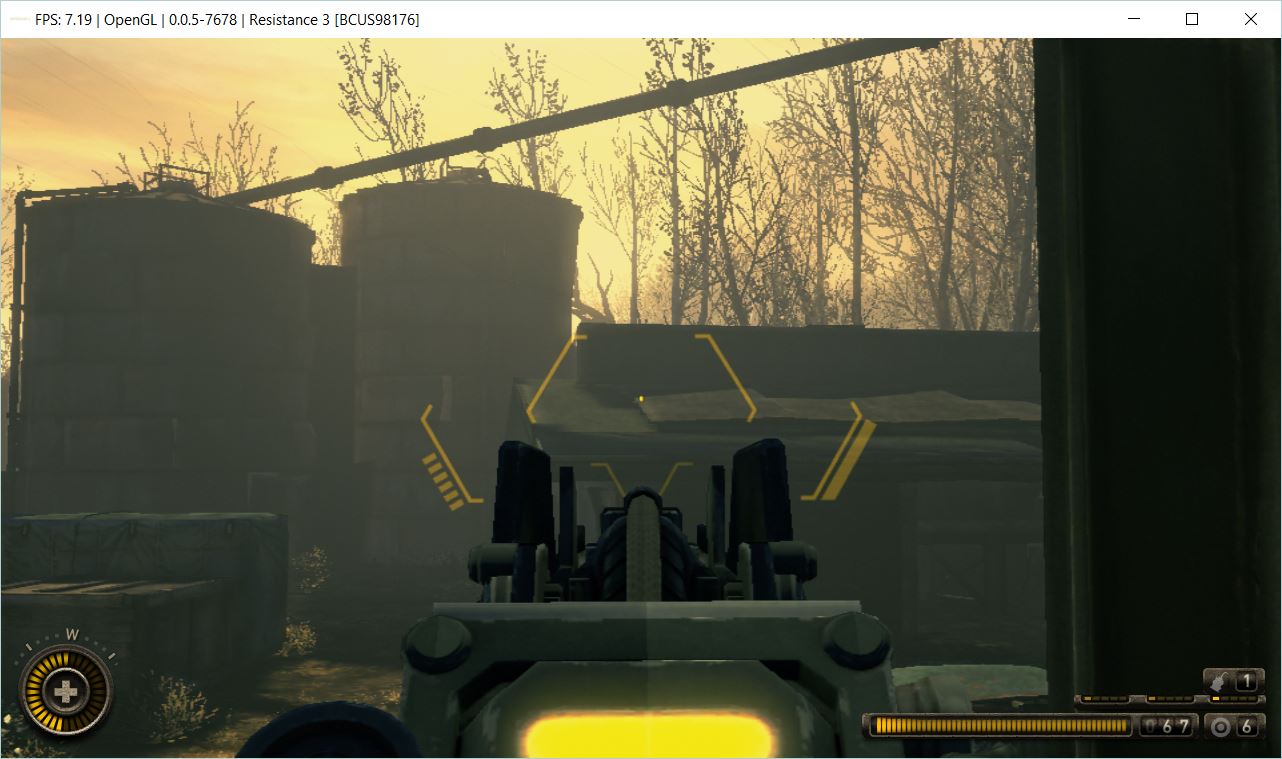

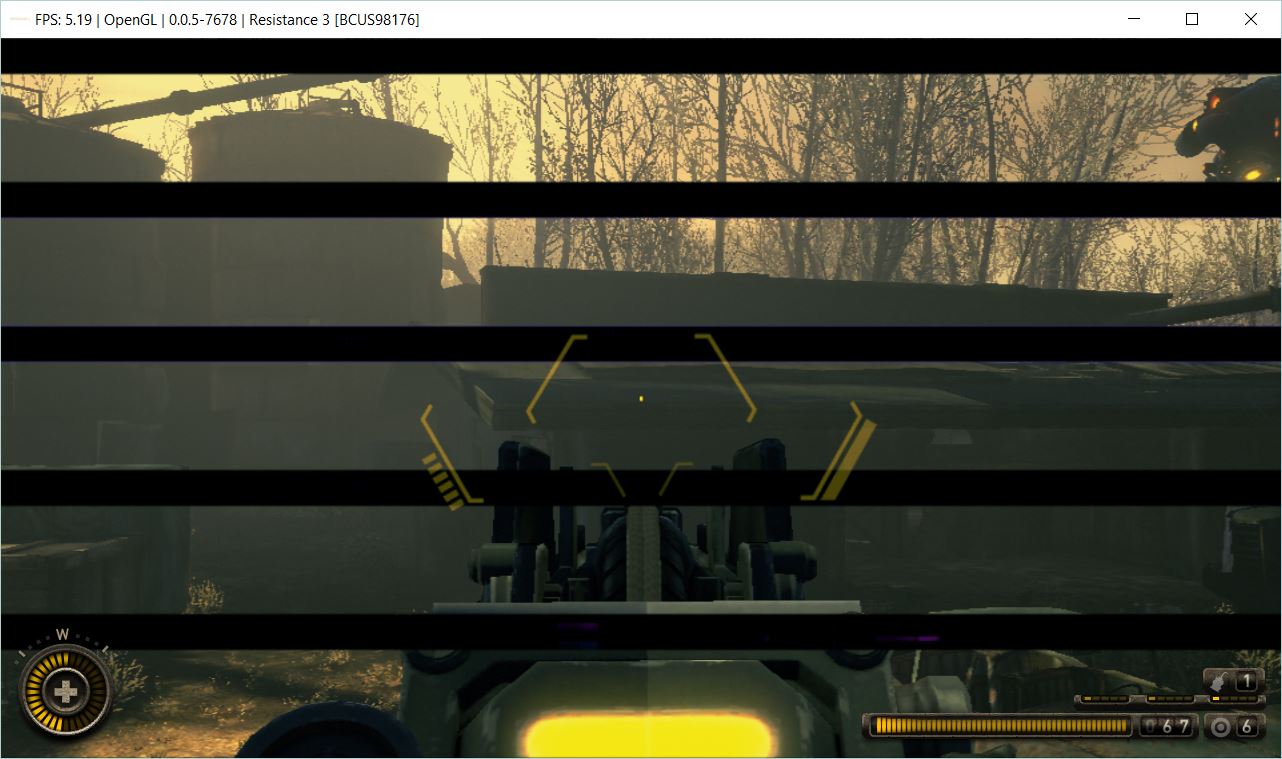

This PR fixed some of the issues with black lines going horizontally across the screen when aiming down sight.

Before (OpenGL + SRM):

After (OpenGL + SRM):

Before (Vulkan + SRM):

After (Vulkan + SRM):

Before (WCB + SRM):

After (WCB + SRM):

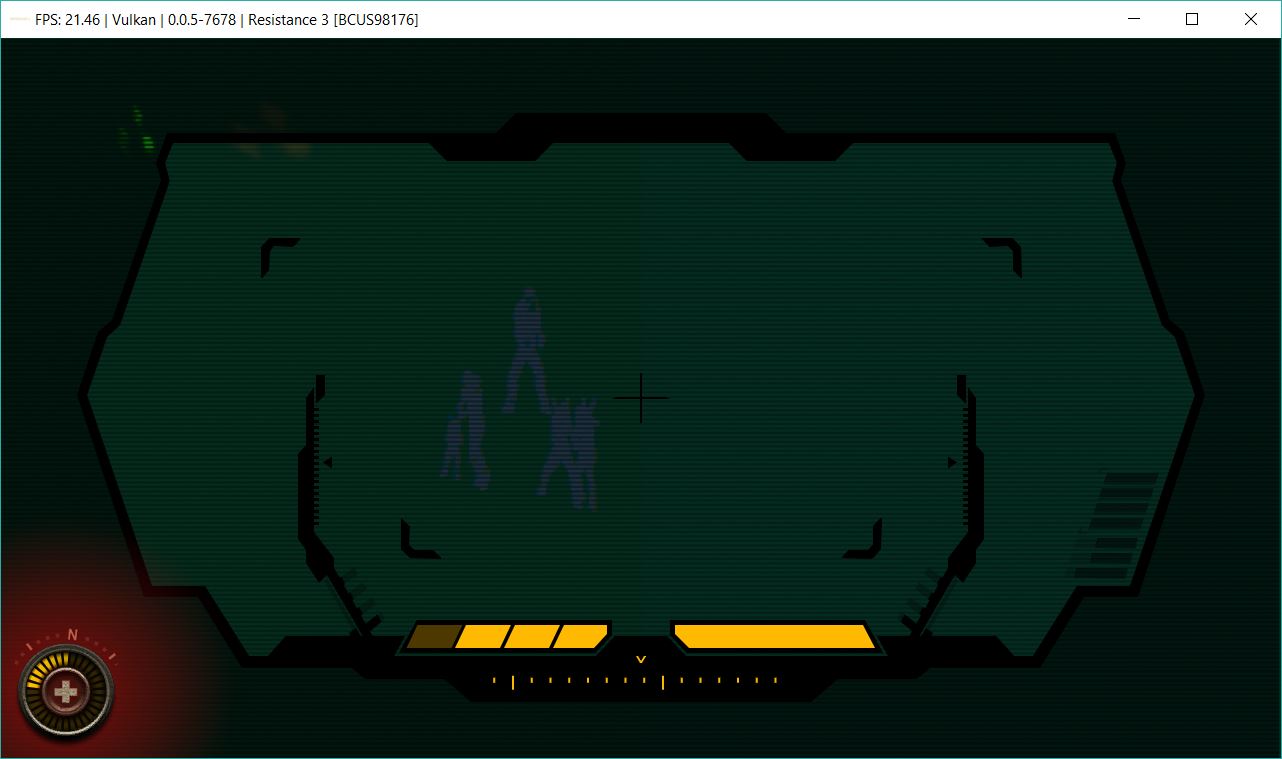

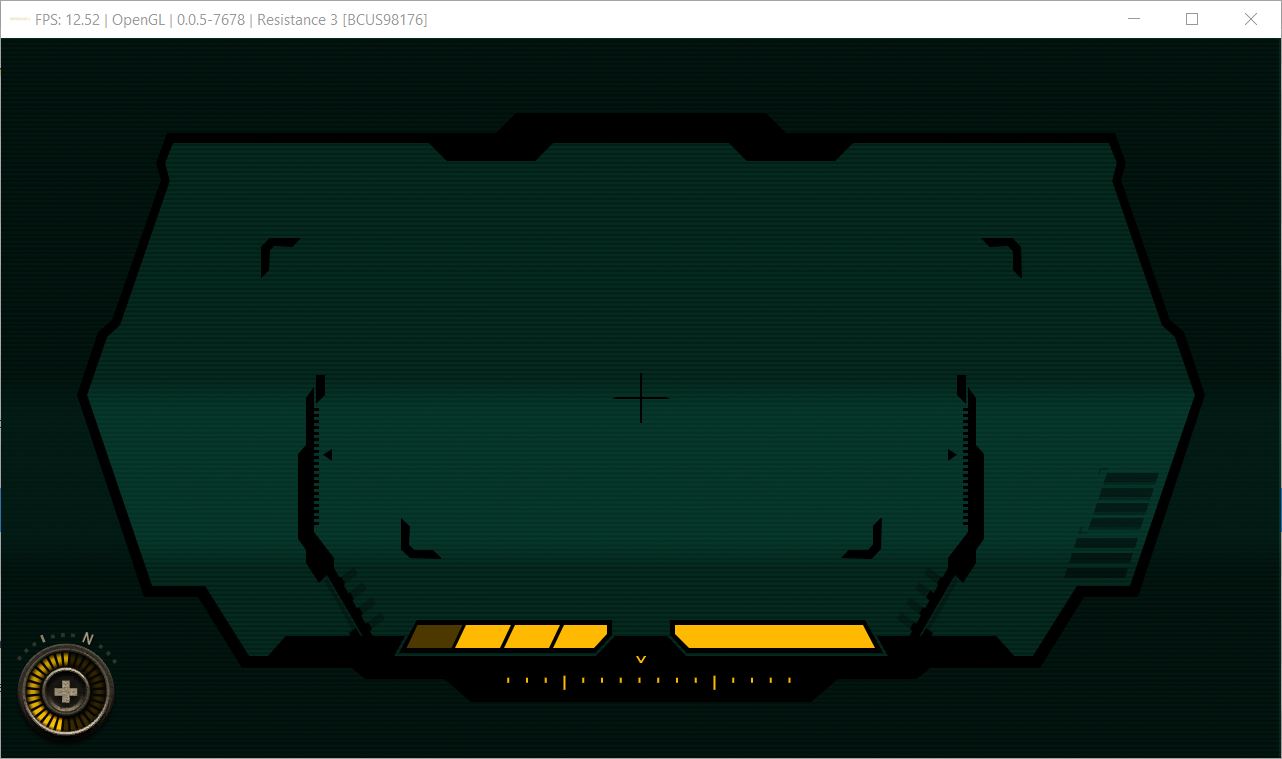

Edit: When using Vulkan on this PR the auger shows enemies through the wall on the left half of the screen.

Before (Vulkan + SRM):

After (Vulkan + SRM):

After (OpenGL + SRM)
