SPU/PPU reservations: Optimizations #8175

Merged
merged 4 commits into from
May 13, 2020
Merged

SPU/PPU reservations: Optimizations #8175

merged 4 commits into from
May 13, 2020

Conversation

elad335
Copy link
Contributor

@elad335 elad335 commented May 8, 2020 •
edited
Loading

  • Implement vm::reservation_trylock, optimized locking on reservation stores with no waiting. Always fail if reservation lock bits are set.
  • Make SPU accurate GET transfers on non-TSX not modify reservation lock bits.
  • Add some optimization regarding to unmodified data reservations writes.
  • Use optimized PPU signaling to SPU on reservation pause.
  • Improve SPU LLVM MFC transfers recompilation for non-TSX.

@elad335 elad335 mentioned this pull request May 8, 2020
Closed
@elad335 elad335 force-pushed the dma branch 2 times, most recently from a577e84 to d248c59 Compare May 8, 2020 19:58
@BellezaEmporium
Copy link

BellezaEmporium commented May 8, 2020 •
edited
Loading

I do not know if it is related, but using your release on (already broken) Gran Turismo 6, I have got a semaphore timeout (appeared once, but not the second time).

@legend800
Copy link

Got 1-2 more fps in Motorstorm Apoc. vs. today's master. I'm up to 22fps in my "test spot" now. :)

@elad335
Copy link
Contributor Author

elad335 commented May 9, 2020 •
edited
Loading

I added a commit attempting to improve non-tsx performance, testers are welcome.

@BellezaEmporium
Copy link

Build failed, cannot test release.

@elad335
Copy link
Contributor Author

elad335 commented May 9, 2020

@lanesh4d0w fixed.

@MsDarkLow
Copy link
Contributor

MsDarkLow commented May 9, 2020 •
edited
Loading

Saw a major improvement in Yakuza Ishin, accurate getllar was enabled.
8700k@ 5GHz

NO-TSX
Master: 21 to 24 fps
PR: 28 to 32 fps

NO-TSX @ 3.7GHz
Master: 18 to 21 fps
PR: 21 to 28 fps

TSX (NULL RENDERER)
Master: 44 to 46 fps
PR: 47 to 50 fps

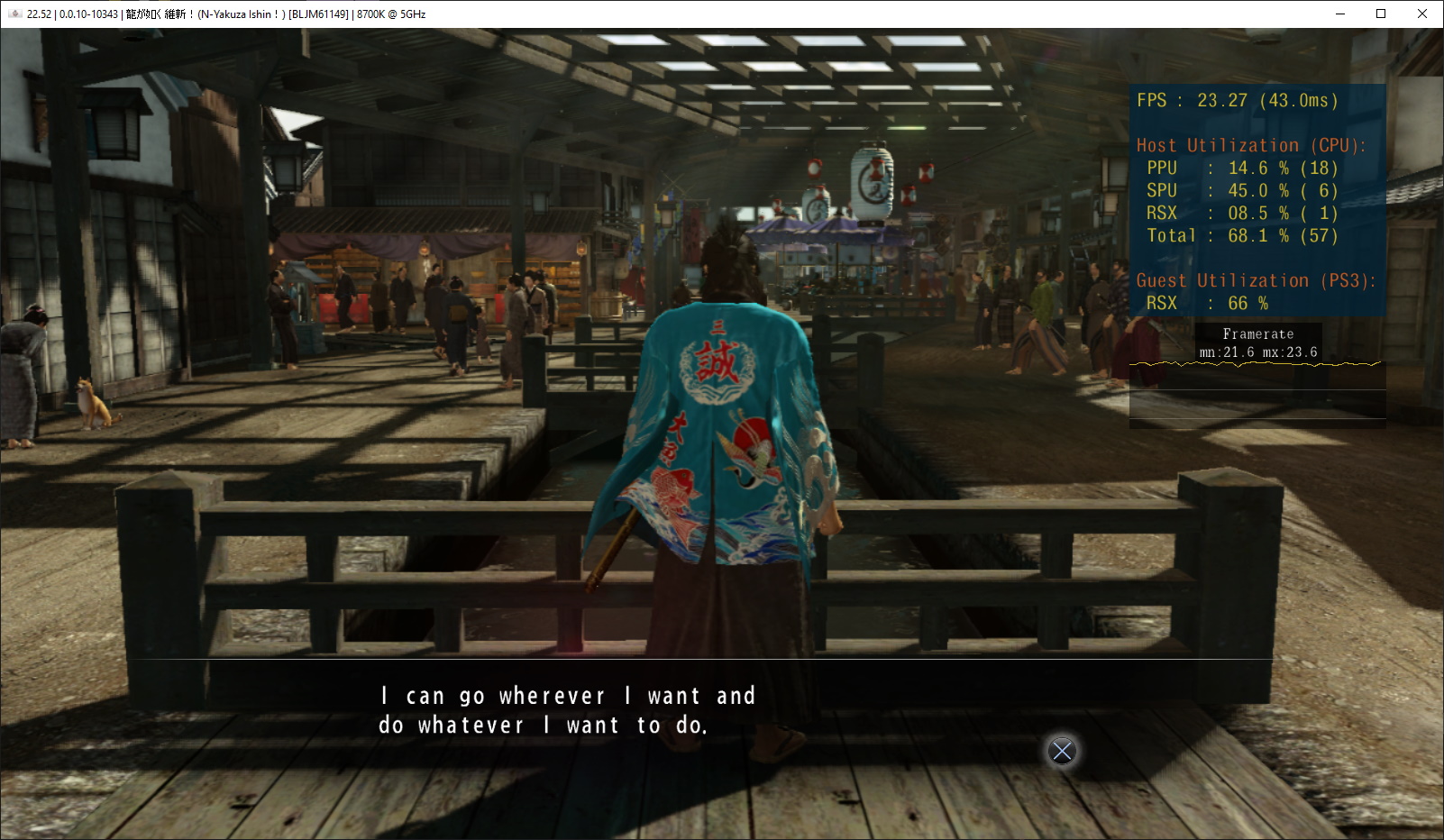

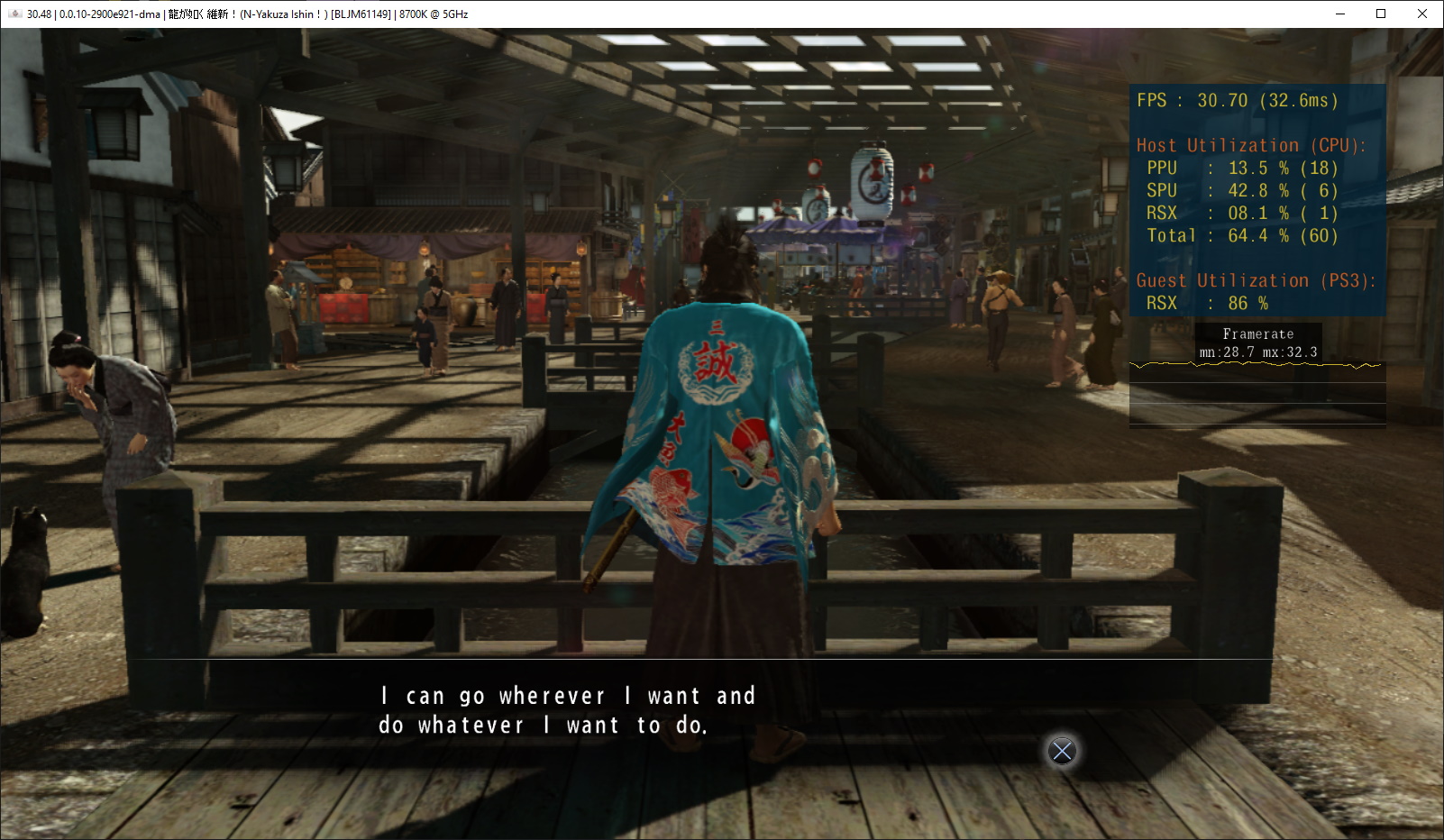

Images of NO-TSX @ 5GHz

Master
Master

PR
PR

@elad335
Copy link
Contributor Author

elad335 commented May 9, 2020 •
edited
Loading

The goal here is to improve performance both on non-TSX path and TSX path.
So testing both of them is important.

@BellezaEmporium
Copy link

BellezaEmporium commented May 9, 2020 •
edited
Loading

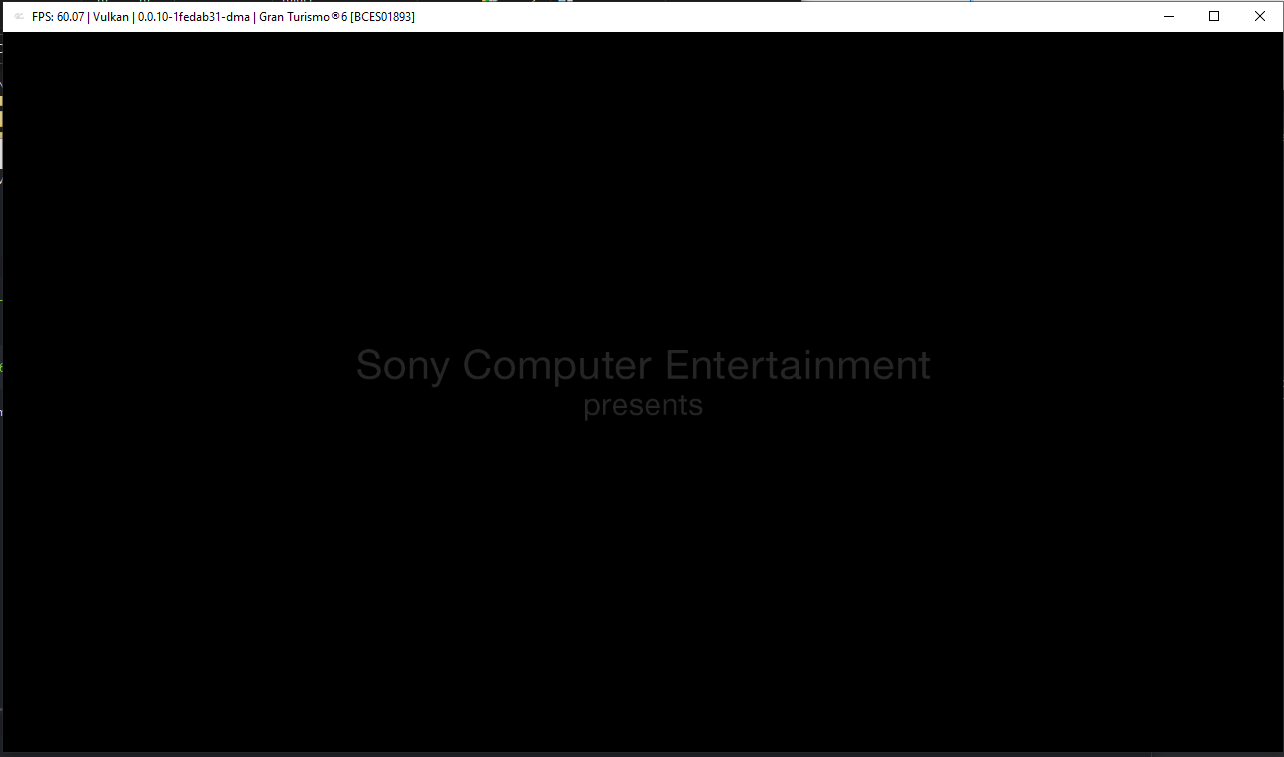

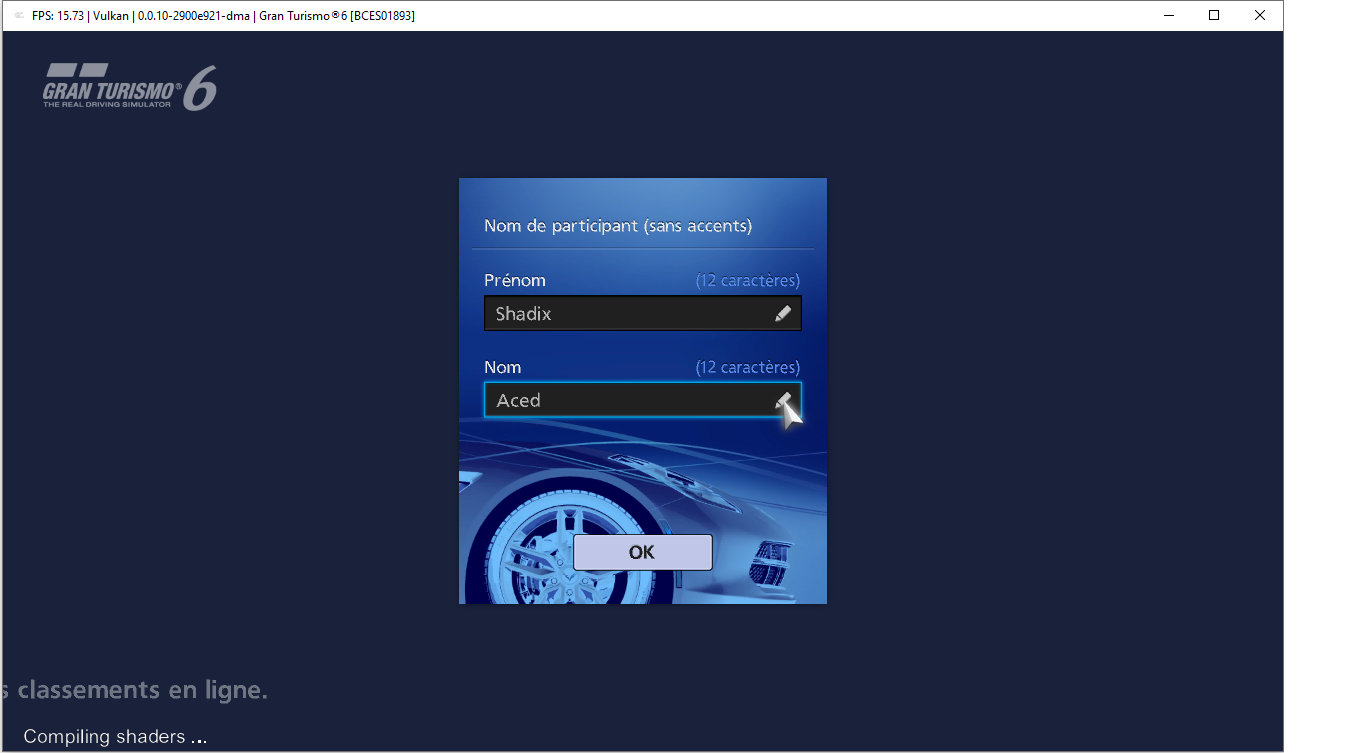

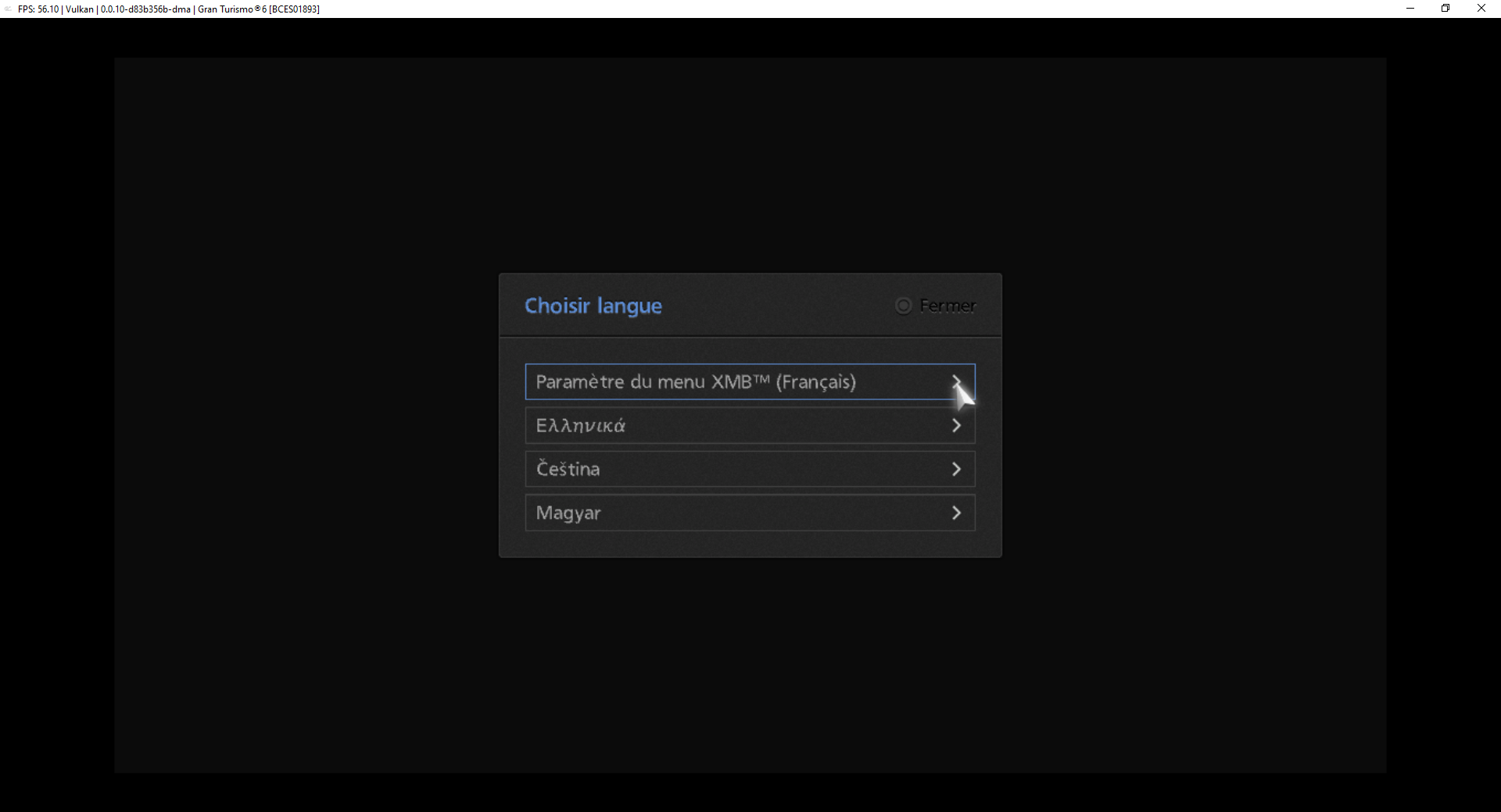

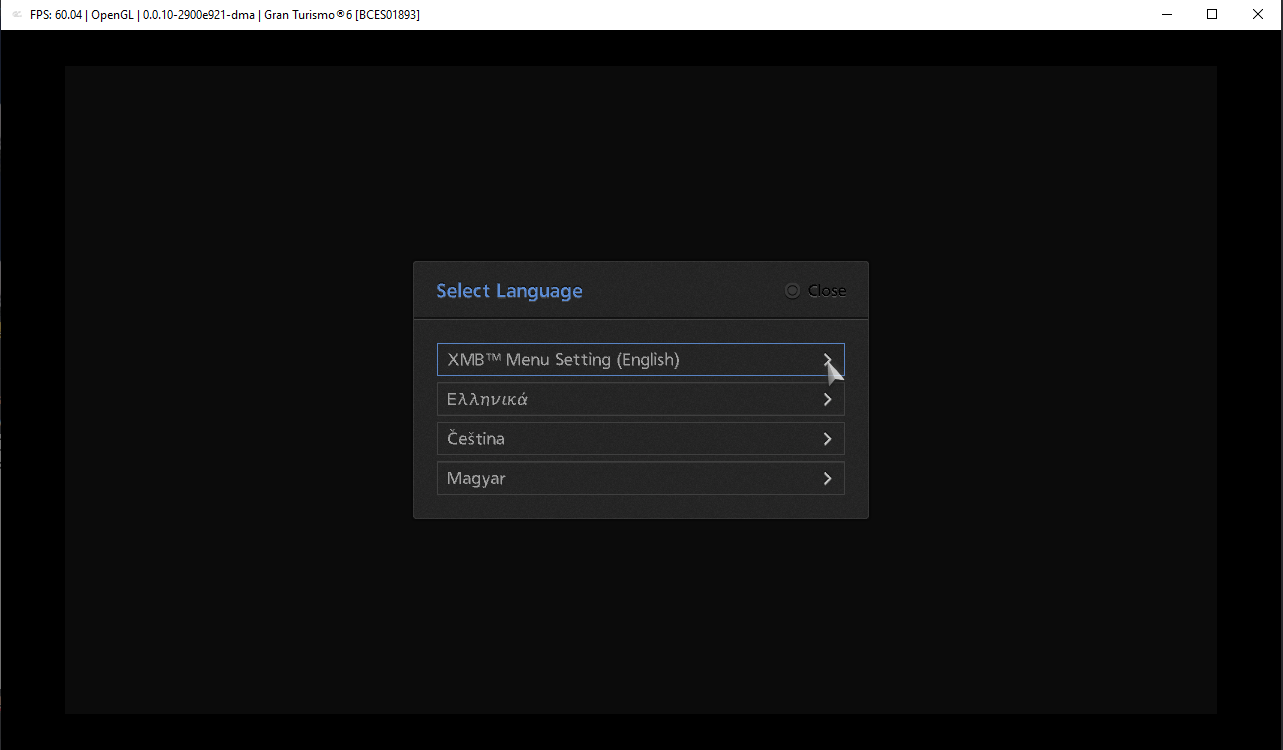

Seems to have fixed Gran Turismo 6



When buying first vehicle : F {RSX [0x0bb6500]} SIG: Thread terminated due to fatal error: rsx::get_address(offset=0x346a100, location=0x1): RSXIO memory not mapped!
(in file d:\a\1\s\rpcs3\Emu\RSX\Common\texture_cache.h:1718)

Log file (also contains FW installation + config being changed to fit my processor and other things.)
RPCS3.log.gz

@xddxd
Copy link
Contributor

xddxd commented May 9, 2020

Gran Turismo 6 is still not fixed here. Are you using TSX?
Screenshot_3
RPCS3.log

@elad335 elad335 force-pushed the dma branch 2 times, most recently from d2816b2 to 8d02d6d Compare May 9, 2020 11:26
@BellezaEmporium
Copy link

BellezaEmporium commented May 9, 2020 •
edited
Loading

@xddxd CPU not supported for TSX.

The first launch (v 1.00 / no savedata) seemed to work. However, on second start, it doesn't, indeed.

@BellezaEmporium
Copy link

@xddxd Works if you don't have any savedata. I suppose it's a savedata issue. (since the save data is based on the Japanese game release, the European one might not like it.)

@xddxd
Copy link
Contributor

xddxd commented May 9, 2020

Can confirm, it only works if there is no savedata.

@elad335
Copy link
Contributor Author

elad335 commented May 9, 2020

Added another optimization for non-TSX.

@elad335 elad335 marked this pull request as ready for review May 9, 2020 18:09
@BellezaEmporium
Copy link

No regressions so far when testing different games. No better results too.

@elad335 elad335 changed the title [WIP] SPU/PPU reservations: Optimizations SPU/PPU reservations: Optimizations May 10, 2020
@AniLeo AniLeo requested a review from Nekotekina May 11, 2020 10:59
@elad335
Copy link
Contributor Author

elad335 commented May 11, 2020 •
edited
Loading

Actually wait a bit as I want to change a few lines.

@elad335 elad335 marked this pull request as draft May 11, 2020 23:16
elad335 added 3 commits May 12, 2020 17:57
@elad335
SPU/PPU reservations: Optimizations part 1
f6e27eb
- Implement vm::reservation_trylock, optimized locking on reservation stores with no waiting. Always fail if reservation lock bitsa are set.
- Make SPU accurate GET transfers on non-TSX not modify reservation lock bits.
- Add some optimization regarding to unmodified data reservations writes.
@elad335
SPU: Use optimized PPU signaling to SPU on reservation pause
0a5d348
@elad335
SPU LLVM: Improve MFC transfers recompilation for non-TSX
23cc42f
@elad335 elad335 marked this pull request as ready for review May 12, 2020 14:57
@elad335
Copy link
Contributor Author

elad335 commented May 12, 2020

Made the changes I wanted.

@AniLeo
Copy link
Member

AniLeo commented May 12, 2020

Needs testing in a few games to ensure they didn't regress

@elad335
Copy link
Contributor Author

elad335 commented May 13, 2020

I tested them locally, I know what the changes are and what they affect.

@MsDarkLow
Copy link
Contributor

MsDarkLow commented May 13, 2020 •
edited
Loading

Update as per request.
8700k@ 3.7GHz
Persona 5 is tested in Central Street, this is kinda RSX bottlenecked but tested anyways.
Yakuza Ishin (NULL RENDERER) is tested in Fushimi by the Singing bar
Portal 2 is tested with SPU Thread Auto and 2 at Test Chamber 5. With TSX the game already performs nicely, but no-tsx is another story.
With SPU Thread Auto I'll stand still at the start when you descend from the elevator
With SPU Thread 2 I'll be spinning around on a button with

TSX NO TSX
PR Master PR Master
Yakuza Ishin (NULL) 33 - 36 31 - 34 25 - 27 18 - 20
Persona 5 42 - 49 42 - 47 39 - 44 39 - 42
Portal 2 (Auto) 30 30 30 19 - 22
Portal 2 (2) 30 30 28 - 30 20 - 30

@AniLeo
Copy link
Member

AniLeo commented May 13, 2020

Yakuza 0 Demo (OpenGL, Mesa, R9 280X)

Master: 25-29 FPS
PR: 30-34 FPS

RDR works better, didn't benchmark a single spot

@AniLeo AniLeo merged commit 12f0278 into RPCS3:master May 13, 2020
elad335 added a commit to elad335/rpcs3 that referenced this pull request May 13, 2020
@elad335
vm: Fix vm::passive_lock regression (RPCS3#8175)
47e2ed1
possible broken signaling in rare occusions.
@elad335 elad335 mentioned this pull request May 13, 2020
Merged
Nekotekina pushed a commit that referenced this pull request May 13, 2020
@elad335 @Nekotekina
vm: Fix vm::passive_lock regression (#8175)
9312219
possible broken signaling in rare occusions.
elad335 added a commit to elad335/rpcs3 that referenced this pull request May 13, 2020
@elad335
SPU LLVM: fixup after RPCS3#8175
0ffdc0a
AniLeo pushed a commit that referenced this pull request May 14, 2020
@elad335
SPU LLVM: fixup after #8175 (#8214)
91d06a9
Mask out RESULT cmd bit, do not create unbound branch blocks. (non-TSX)
@zminhquanz
Copy link

GOW 3 has improve a little bit performance , very good job developer

@Emogop Emogop mentioned this pull request May 14, 2020
Closed
@legend800
Copy link

@elad335 This PR also fixed Star Wars Force Unleashed 2 loading menus. However, it only works with TSX off. Can you look into fixing the TSX path too?

@legend800 legend800 mentioned this pull request May 17, 2020
Closed
@Yahfz Yahfz mentioned this pull request May 31, 2020
Closed
@galahadhiryu galahadhiryu mentioned this pull request Jun 6, 2020
Merged
@elad335 elad335 deleted the dma branch July 24, 2020 06:26
