caCert is required in Recipe-generated BackupStorageLocation CR to access S3/MinIO

[keslerzhu]

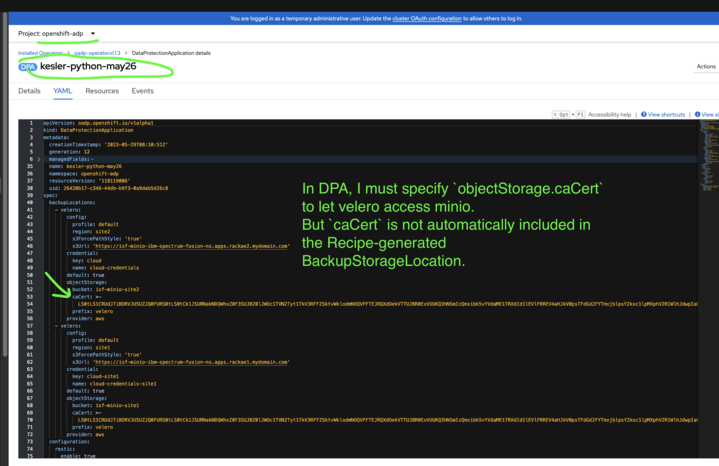

In production environment, I have to config the property caCert in DPA to make Velero to acccess MinIO.

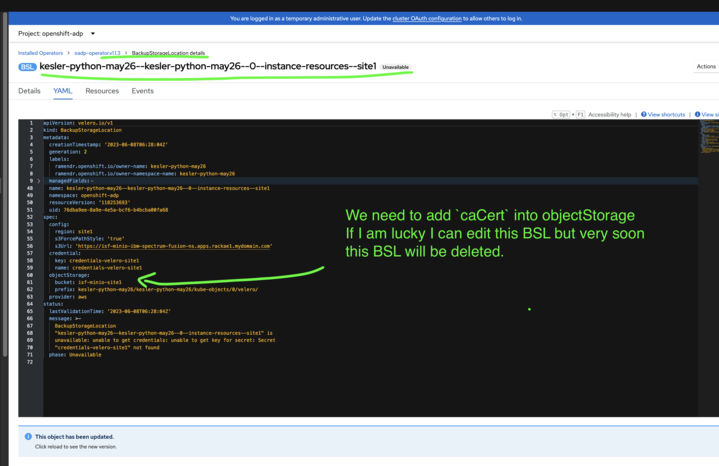

However, I found the BackupStorageLocation generated by Ramen Recipe does not include caCert

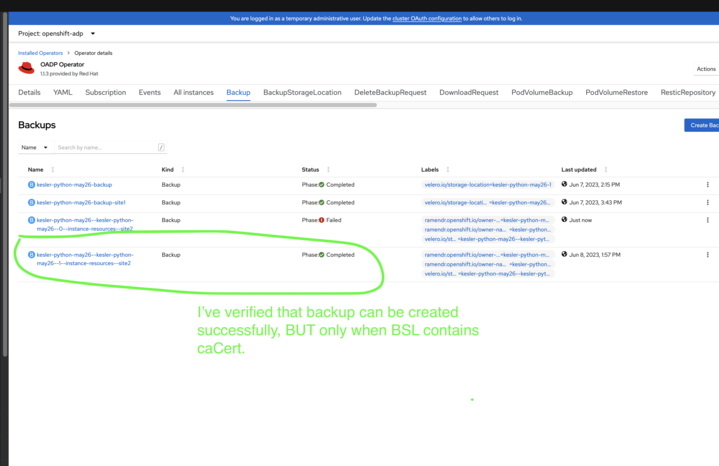

I was lucky that I edited the BackupStorageLocation once, added caCert, made it work for one time.
But that BackupStorageLocation was deleted very soon, nny new BSL instance does not have caCert any more.

[hatfieldbrian]

@keslerzhu until we can get you a fix, please try the following workaround to preserve the bsls so you can specify their caCerts:

1. Wait up to VRG.spec.kubeObjectProtection.captureInterval, or 5 minutes if unspecified, for Ramen to create a bsl for each s3 store:

   watch -n1 kubectl get bsl -nopenshift-adp --show-labels

2. Ctrl+C to terminate watch
3. Quickly run the following command to remove the Ramen VRG owner labels from the bsls, replacing the angle-bracketed parameters with their values:

   for i in 0 1;do for group in <groups>;do for s3profile in <s3profiles>;do kubectl -n<velero_namespace> label bsl/<vrg namespace>--<vrg name>--$i--$group--$s3profile ramendr.openshift.io/owner-name- ramendr.openshift.io/owner-namespace-name-;done;done;done

   For example:

   $ for i in 0 1;do for group in "";do for s3profile in minio-on-cluster1 minio-on-cluster2;do kubectl -nopenshift-adp label bsl/asdf--bb--$i--$group--$s3profile ramendr.openshift.io/owner-name- ramendr.openshift.io/owner-namespace-name-;done;done;done
   Error from server (NotFound): backupstoragelocations.velero.io "asdf--bb--0----minio-on-cluster1" not found
   Error from server (NotFound): backupstoragelocations.velero.io "asdf--bb--0----minio-on-cluster2" not found
   backupstoragelocation.velero.io/asdf--bb--1----minio-on-cluster1 labeled
   backupstoragelocation.velero.io/asdf--bb--1----minio-on-cluster2 labeled

4. Repeat the above steps for the other "slot" i.e., 0 or 1, expecting the watch to show more bsls within captureInterval; or, run the command once in a loop for 2x the captureInterval. For example:

   $ for i in 0 1;do for group in "";do for s3profile in minio-on-cluster1 minio-on-cluster2;do kubectl -nopenshift-adp label bsl/asdf--bb--$i--$group--$s3profile ramendr.openshift.io/owner-name- ramendr.openshift.io/owner-namespace-name-;done;done;done
   backupstoragelocation.velero.io/asdf--bb--0----minio-on-cluster1 labeled
   backupstoragelocation.velero.io/asdf--bb--0----minio-on-cluster2 labeled
   label "ramendr.openshift.io/owner-name" not found.
   label "ramendr.openshift.io/owner-namespace-name" not found.
   backupstoragelocation.velero.io/asdf--bb--1----minio-on-cluster1 labeled
   label "ramendr.openshift.io/owner-name" not found.
   label "ramendr.openshift.io/owner-namespace-name" not found.
   backupstoragelocation.velero.io/asdf--bb--1----minio-on-cluster2 labeled

5. Confirm the presence of the expected bsls. For example:

   $ kubectl get bsl -nopenshift-adp --show-labels
   NAME                               PHASE       LAST VALIDATED   AGE   DEFAULT   LABELS
   asdf--bb--0----minio-on-cluster1   Available   51s              35m             <none>
   asdf--bb--0----minio-on-cluster2   Available   51s              35m             <none>
   asdf--bb--1----minio-on-cluster1   Available   51s              36m             <none>
   asdf--bb--1----minio-on-cluster2   Available   51s              36m             <none>

6. Specify a caCert for each bsl
7. Replicate the bsls on the other cluster, again replacing the angle-bracketed parameters with their values:

   for i in 0 1;do for group in <groups>;do for s3profile in <s3profiles>;do kubectl -n<velero namespace> get -oyaml bsl/<vrg namespace>--<vrg name>--$i--$group--$s3profile|kubectl --context <other cluster name> create -f-;done;done;done

   For example:

   $ for i in 0 1;do for group in "";do for s3profile in minio-on-cluster1 minio-on-cluster2;do kubectl -nopenshift-adp get -oyaml bsl/asdf--bb--$i--$group--$s3profile|kubectl --context cluster2 create -f-;done;done;done
   backupstoragelocation.velero.io/asdf--bb--0----minio-on-cluster1 created
   backupstoragelocation.velero.io/asdf--bb--0----minio-on-cluster2 created
   backupstoragelocation.velero.io/asdf--bb--1----minio-on-cluster1 created
   backupstoragelocation.velero.io/asdf--bb--1----minio-on-cluster2 created

8. User is responsible for removing bsls when no longer needed or restoring VRG labels so Ramen deletes them. For example:

   $ for i in 0 1;do for group in "";do for s3profile in minio-on-cluster1 minio-on-cluster2;do kubectl -nopenshift-adp label bsl/asdf--bb--$i--$group--$s3profile ramendr.openshift.io/owner-name=bb ramendr.openshift.io/owner-namespace-name=asdf;done;done;done
   backupstoragelocation.velero.io/asdf--bb--0----minio-on-cluster1 labeled
   backupstoragelocation.velero.io/asdf--bb--0----minio-on-cluster2 labeled
   backupstoragelocation.velero.io/asdf--bb--1----minio-on-cluster1 labeled
   backupstoragelocation.velero.io/asdf--bb--1----minio-on-cluster2 labeled

[keslerzhu]

@hatfieldbrian Thank you for the workaround.
Unfortunately (at least on our environment), it does not work as expected.

In our case, we can successfully unlabel the BSL shiopal--shiopal--1----site1 using this command

for i in 0 1;do for group in "";do for s3profile in site1 site2;do kubectl -nopenshift-adp label bsl/shiopal--shiopal--$i--$group--$s3profile ramendr.openshift.io/owner-name- ramendr.openshift.io/owner-namespace-name-;done;done;done

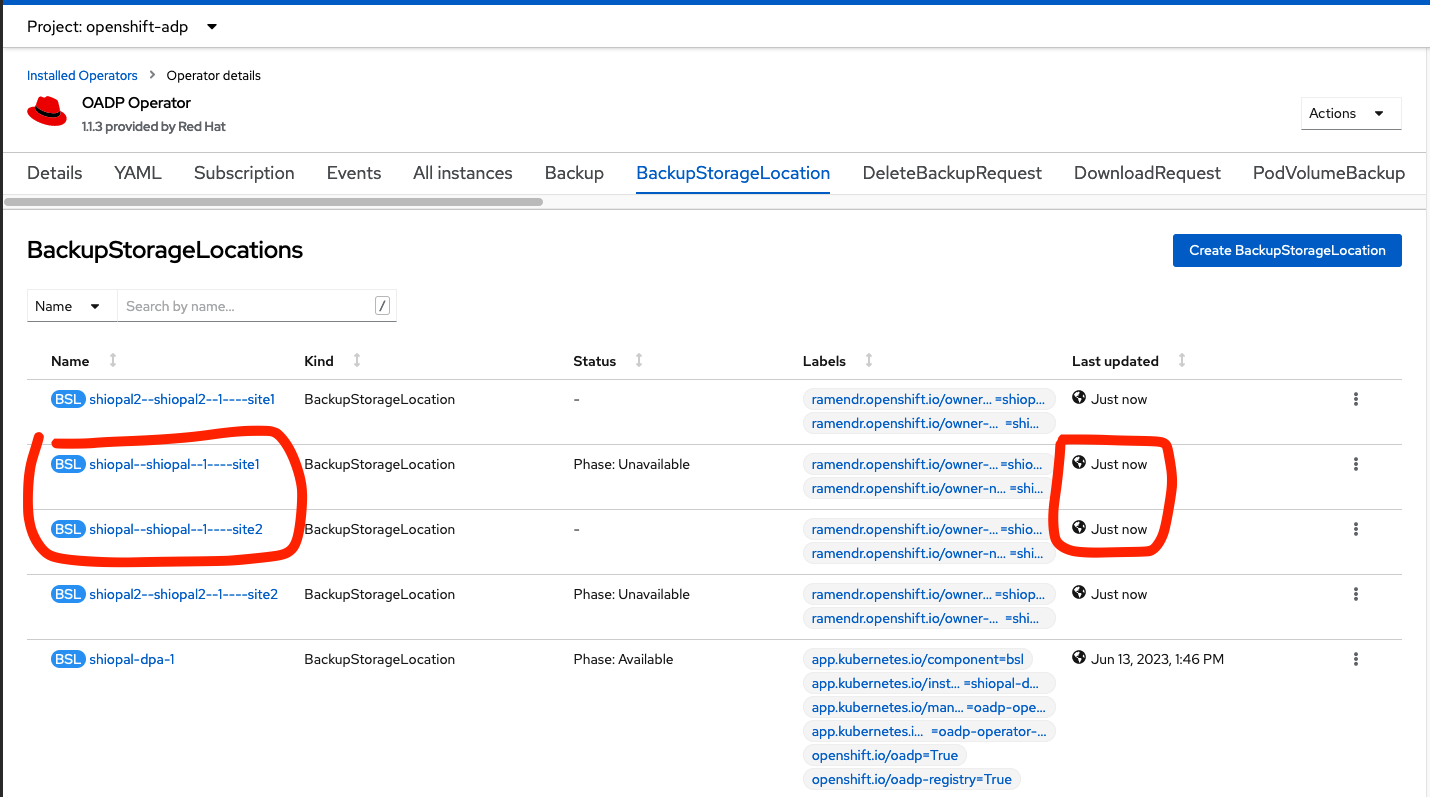

But from GUI, we still can see shiopal--shiopal--1----site1 being deleted and created, again and again.

I have tried it for about an hour, in vain.

[hatfieldbrian]

@keslerzhu I'm sorry it's not working in your environment. Will you please share the version of Ramen you're using? Perhaps a git commit identifier or image identifier?

[hatfieldbrian]

I verified this workaround in a "good" environment. @keslerzhu is trying it in a "bad" environment where a failed backup results in deletion of the bsl, not by label but by name. At this point I am abandoning a workaround and focusing on the fix. I intend to submit a PR and map it to a branch based off downstream release-4.13 so Fusion can verify it.

[hatfieldbrian]

Proposed fix: #925

[hatfieldbrian]

Fixed by #925
