HACS Integration (Home Assistant)

The SmartGhar Home Assistant integration exposes every paired tank as a HA device — level sensor, battery voltage, RSSI, buzzer switch, LED config, plus editable configuration (capacity, sleep interval, samples-per-wake) all from inside HA. Works fully local (your own MQTT broker) or via the SmartGhar cloud.

Repo: github.com/Techposts/smartghar-homeassistant Current version: v0.8.0 (May 2026) Scope: Multi-product. Today: TankSync (water-tank monitoring) + AmbiSense (radar presence + LED). On the roadmap: PowerSync (energy), RidgeSync (locks).

What it looks like in HA

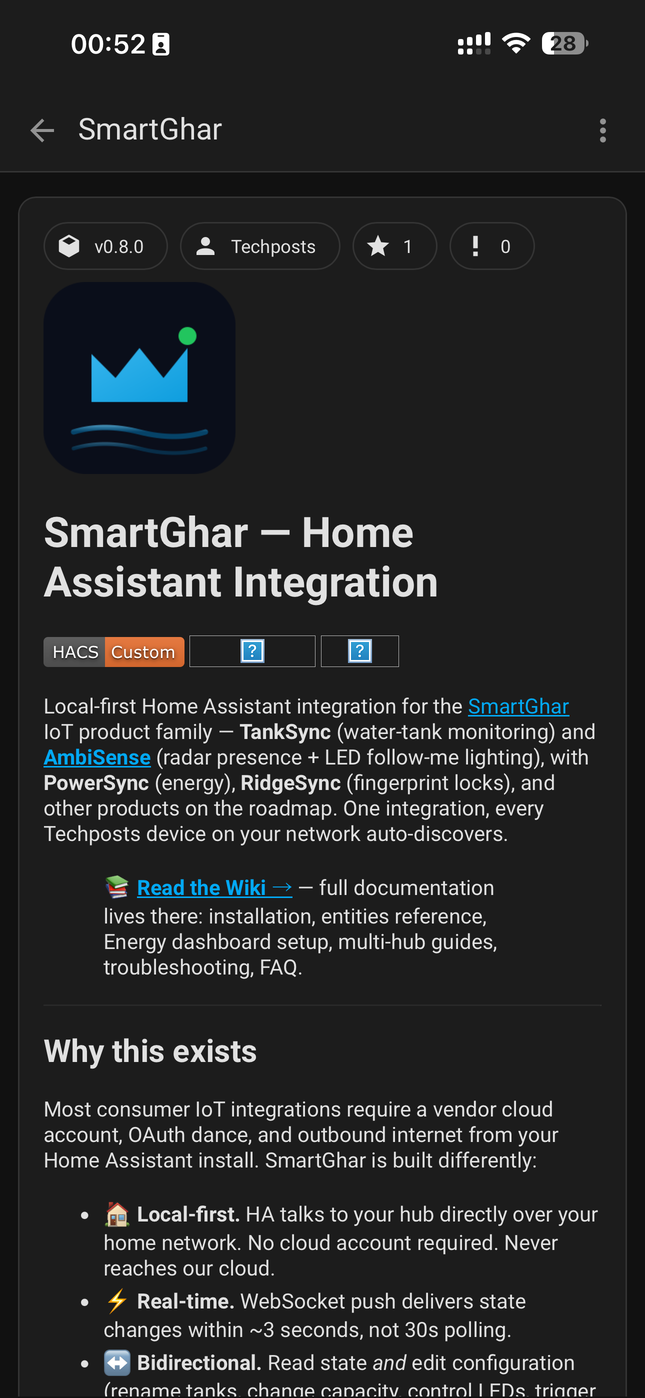

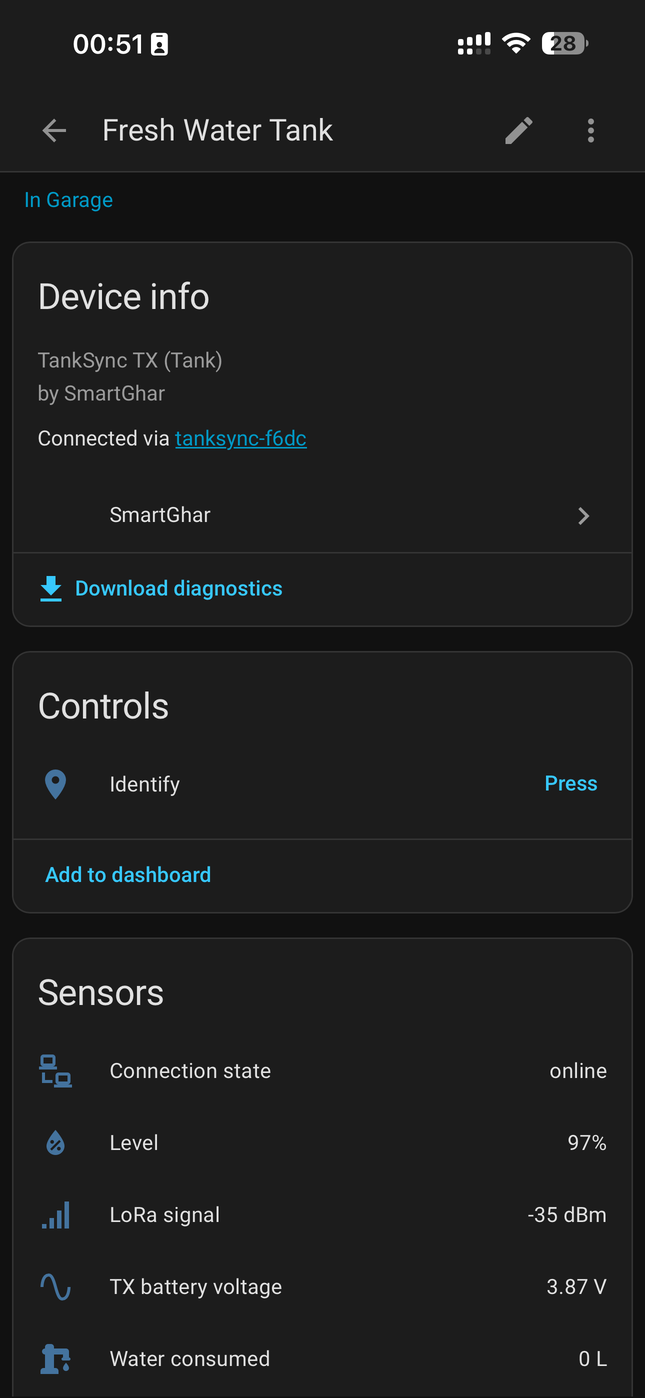

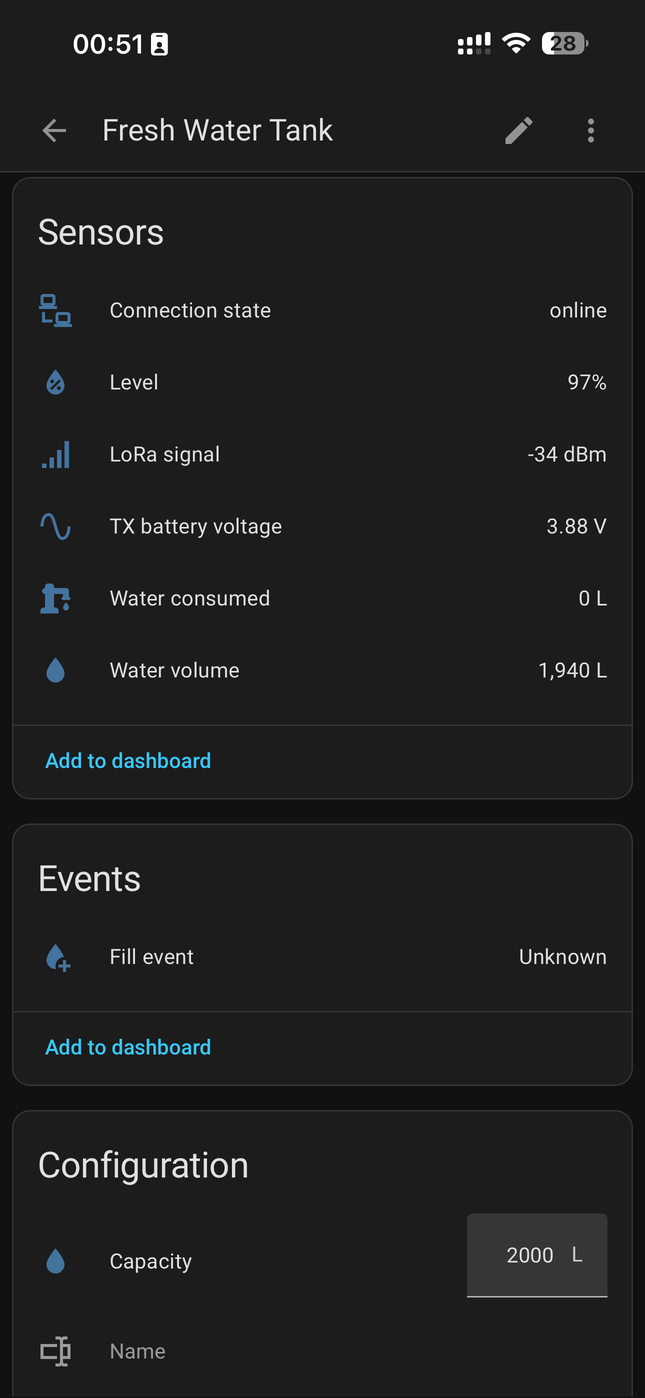

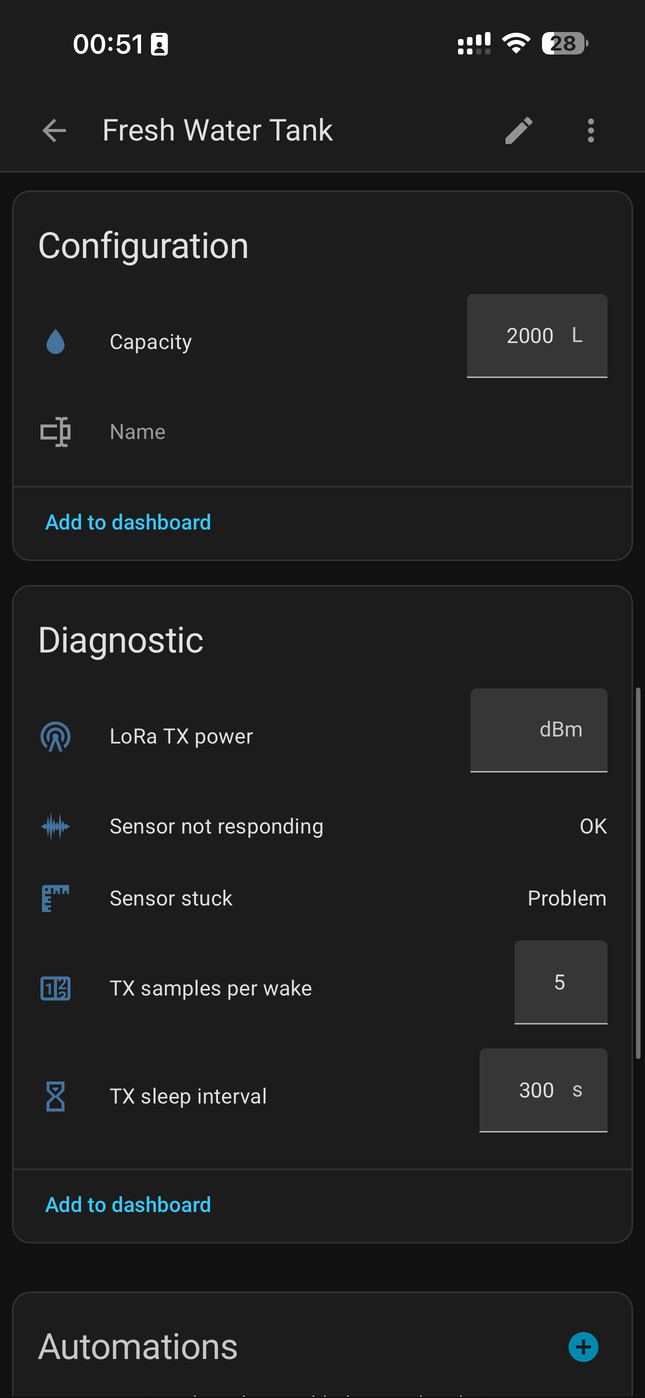

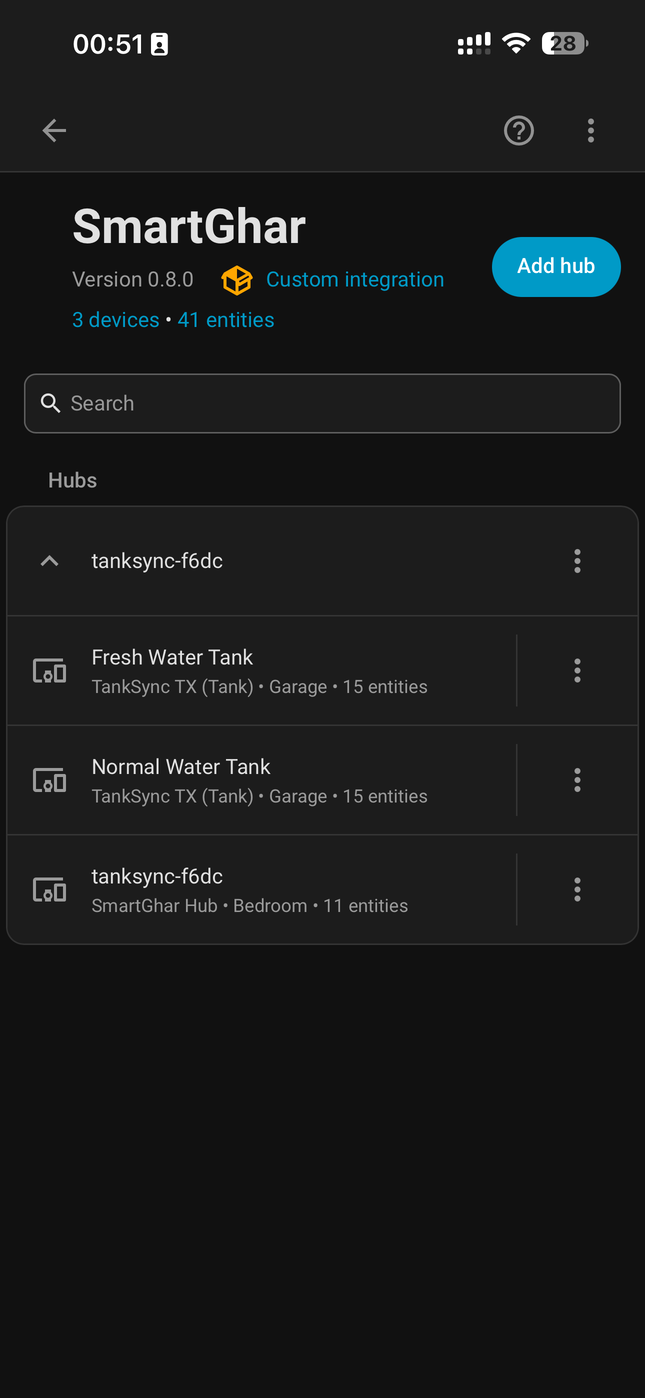

1. HACS listing — SmartGhar v0.8.0, multi-product (TankSync + AmbiSense) 2. Integration overview — 3 devices, 41 entities (2 tanks + 1 hub) 3. Tank device page — info, identify button, first sensors 4. Sensors continued (water volume), Events (fill event), start of Configuration 5. Configuration + Diagnostic — capacity, sleep interval, samples-per-wake all editable from HA

1. HACS listing  ·  2. Integration overview  ·  3. Tank device page  ·  4. Sensors + Events  ·  5. Configuration + Diagnostic

After install you get one HA device per paired tank (named whatever you named it in the PWA — "Fresh Water Tank", "Normal Water Tank" in screenshot 2) plus one extra device for the hub itself carrying the buzzer / LED / system controls. HA auto-groups each tank's entities into Sensors (live data — Level, LoRa signal, TX battery voltage, water volume, water consumed — screenshots 3+4), Events (Fill event — screenshot 4), Configuration (Capacity, Name — editable from HA — screenshots 4+5) and Diagnostic (LoRa TX power, Sensor not responding, Sensor stuck, TX samples per wake, TX sleep interval — also editable — screenshot 5). The grouping comes from the right HA entity-class assignments in the integration — diagnostic entities don't clutter your dashboards, configuration entities surface as proper input controls.

Why this matters: most HA integrations are read-only. SmartGhar's is bidirectional — what you change in HA rides the same MQTT command channel the PWA uses, so HA and the PWA stay in sync. Change capacity from HA, the PWA reflects it within seconds. (How the command channel works.)

Install via HACS

  1. In Home Assistant → HACS → Integrations → ⋮ → Custom Repositories.
  2. Add https://github.com/Techposts/smartghar-homeassistant with category Integration.
  3. Search for "SmartGhar" → Download.
  4. Restart Home Assistant.
  5. Settings → Devices & Services → Add Integration → "SmartGhar".

Configure the connection

The integration needs three things:

Field Local-broker setup Cloud setup
MQTT broker Your Mosquitto host (e.g. core-mosquitto on HA) mqtt.smartghar.org
Port 1883 (or 8883 for TLS) 8883 (TLS required)
Username / Password Your broker's creds Your TankSync account creds (visible in the PWA's Settings → Local network → MQTT panel)

Hit Submit. The integration discovers your hubs and tanks within ~10 seconds.

What you get per tank

Each paired tank shows up as a single HA device with these entities:

Sensors (live data)

Friendly name (in HA) entity_id Unit Notes
Connection state binary_sensor.<tank>_connection_state online/offline Last packet within 2× wake interval
Level sensor.<tank>_level_pct % 0–100, primary user-facing metric
Water volume sensor.<tank>_water_volume L Computed from capacity × percent
Water consumed sensor.<tank>_water_consumed L Running total since reset (cumulative state_class: total_increasing)
LoRa signal sensor.<tank>_rssi dBm Link quality (last received packet)
TX battery voltage sensor.<tank>_battery_v V INA219 bus voltage
TX battery percent sensor.<tank>_battery_pct % Battery health (smoothed)
TX current sensor.<tank>_current_ma mA Signed; +ve = discharge, −ve = charge
Distance sensor.<tank>_distance_cm cm Raw sensor-to-water reading
Last seen sensor.<tank>_last_seen timestamp Most recent successful packet
Firmware version sensor.<tank>_firmware_version string TX firmware version

Events

Friendly name entity_id Fires on
Fill event event.<tank>_fill_event Detected fill (level rise above threshold over the fill window)

Event entities are HA's modern way of exposing "something happened" — use them in automations with the event.event_type trigger.

Configuration (editable from HA)

These appear as inline inputs on the device page. Changes ride the MQTT command channel — the PWA reflects the change within seconds.

Friendly name entity_id Type
Capacity number.<tank>_capacity number (L)
Name text.<tank>_name text
LoRa TX power number.<tank>_lora_tx_power number (dBm)
TX samples per wake number.<tank>_tx_samples_per_wake number
TX sleep interval number.<tank>_tx_sleep_interval number (s)

Diagnostic

Diagnostic entities don't clutter dashboards by default — they live in the device page's Diagnostic section.

Friendly name entity_id True / value when
Sensor not responding binary_sensor.<tank>_sensor_not_responding TX reports sensor_status = 'e' or 'u'
Sensor stuck binary_sensor.<tank>_sensor_stuck Sensor reports identical value across the variance window (see Sensor Honesty)
Low water binary_sensor.<tank>_low_water Level < configured low threshold
Overflow binary_sensor.<tank>_overflow Level > 95 %

Per-hub controls (the hub appears as its own device)

In addition to the per-tank devices, the hub itself shows up as a device (in the screenshots above: tanksync-f6dc · 11 entities). It carries the buzzer/LED/system controls.

Friendly name entity_id What it does
Buzzer — master switch.<hub>_buzzer_master Master mute (all alerts)
Buzzer — volume select.<hub>_buzzer_volume Quiet / Standard / Loud
Buzzer — test tone button.<hub>_test_buzzer Plays a 1 s test tone
Buzzer — (per alert) switch.<hub>_buzzer_<alert_name> Per-alert toggle (low, overflow, sensor offline, etc.)
LED strip type select.<hub>_led_strip_type 2 / 8 / 24 LEDs
LED brightness number.<hub>_led_brightness 0–255

Example automations

Tell me when the tank drops fast

alias: "TankSync — fast drop alert"
trigger:
  - platform: numeric_state
    entity_id: sensor.fresh_water_tank_level_pct
    below: 30
condition:
  - condition: template
    value_template: >
      {{ (trigger.from_state.state | float)
         - (trigger.to_state.state | float) > 10 }}
action:
  - service: notify.mobile_app_my_phone
    data:
      message: "Fresh Water Tank dropped 10%+ — possible leak?"

Pause irrigation when overflowing

alias: "Overflow auto-pause"
trigger:
  - platform: state
    entity_id: binary_sensor.fresh_water_tank_overflow
    to: "on"
action:
  - service: switch.turn_off
    entity_id: switch.irrigation_main

Troubleshooting

  • Integration loads but no entities → broker connection OK but no retained topics. Force-publish from the hub's web UI → System → Send refresh to MQTT.
  • unique_id collision across multiple hubs → fixed in v0.8.1 (MAC-anchored unique_id + async_migrate_entry). Upgrade if you're on ≤0.8.0.
  • Entities go unavailable overnight → broker disconnect. Check Mosquitto logs. The integration auto-reconnects but reports stale until the hub re-publishes (next wake cycle).
  • HA sees the integration but not the buzzer entities → hub firmware is pre-rx-v2.8.0 (no buzzer support). Update firmware.

For deeper logs: HA's Settings → System → Logs → "TankSync" filter.

Architectural note

The integration doesn't poll — it subscribes to MQTT topics published by your hub. Every TX wake cycle pushes new sensor data; the hub re-publishes retained on every change. So:

  • Latency = wake interval (default 5 min, configurable per-tank via the PWA).
  • HA sees stale data when the TX hasn't woken yet — that's expected behavior, not a bug.
  • If you want sub-minute granularity, lower the wake interval in the PWA's Devices → Edit page. But faster polling = shorter battery life.
