Exile

Handmade-style voxel engine & game. Currently working on a re-write privately :^).

Blog

Objective is to create a featureful low-level programming environment & voxel game engine with minimal libraries, to dig into and perfect its systems, and to create a modded-minecraft-like game on top of the engine.

Goals:

• High quality graphics (lighting, render distance, fast movement, large worlds)
• Interesting and variable procedural terrain & feature generation
• Powerful & complex player-managed systems (e.g. modded minecraft/factorio)
• Smooth multiplayer and efficient servers
• Flexible & powerful modding support

Build

Install meson and ninja if necessary.

Commands are run in the repository root.

Windows:

meson build
meson configure build -D buildtype=debugoptimized
ninja -C build

Linux - ubuntu/debian (probably works, but only with clang):

sudo apt install clang libclang-dev libsdl2-dev ninja-build
pip3 install meson

CXX=clang++ meson build
meson configure build -D buildtype=debugoptimized -D platform=sdl
ninja -C build

Run

In the top level directory:

cd data
..\build\main.exe

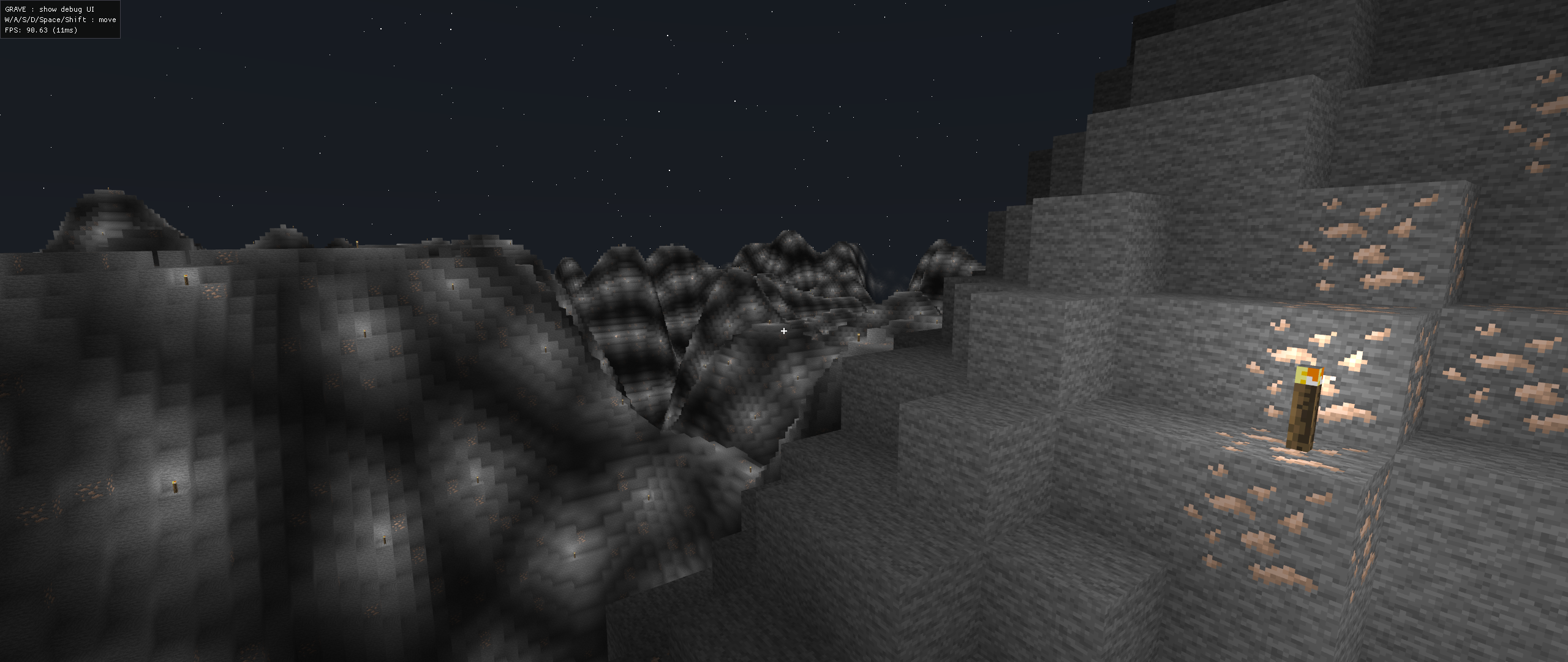

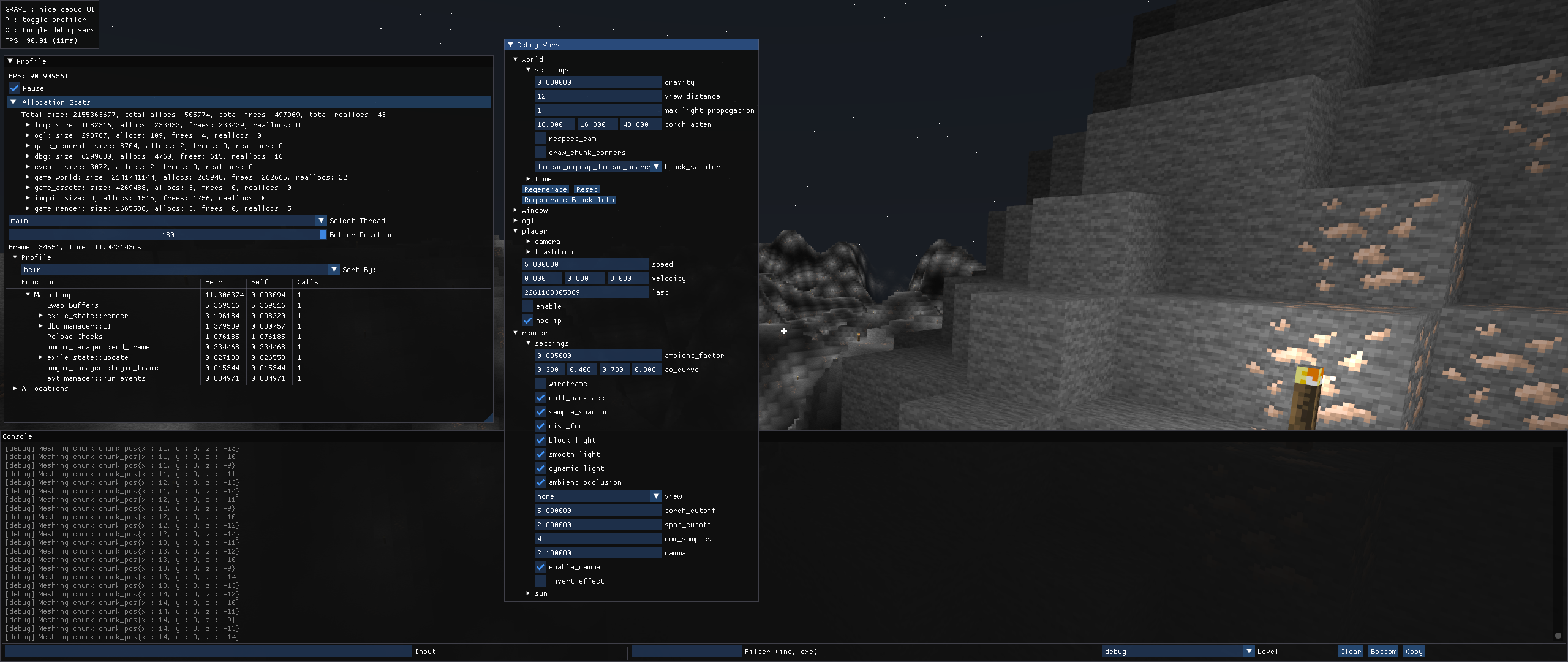

Screenshots

Tools

• Engine & Game:
  • C+: C with member functions, function/operator overloading, lambdas, and templates (no STL, no exceptions, minimal RAII, minimal inheritance)
  • Custom standard library (data structures, threading, type info, serialization, platform, allocators)
  • Win32/Unix APIs
  • SSE4.2
• Assets:
  • STB media libraries
  • C++14/STL
• Metaprogram:
  • libclang for C++ parsing
  • C++14/STL

Current Features

See todo.txt for plans.

• Game

  • World generation
    • Parallelized chunk generation, updates, and voxel lighting
  • Rendering
    • Hybrid voxel terrain meshing
    • Static voxel-based light propagation
    • Dynamic directional/spot/point lights
    • Modern OpenGL deferred renderer with light volumes
    • Effect pipeline, gamma
    • Diffuse, specular, and normal block textures
    • MSAA
    • Future: dynamic shadow mapping, bloom, HDR, screen-space AA
  • Time and environment assets
  • Block data framework
  • Player movement

• Engine

  • Assets
    • Images
    • Fonts, font atlases
  • Debugging
    • Debug message system
    • Profiler
      • Timing
      • Calls/call locations
      • Allocations/memory safety
      • Threaded timing/work delegation
    • Debug console and command system
    • Runtime variable inspection interface
  • Input
    • Event parsing from the platform layer
    • Context state machines
  • Interface
    • Dear ImGui implementation and reflection-based add-ons
    • [depreciated] Custom immediate mode GUI system
  • Log
    • Thread safe log formatting and output
    • HTML and custom output
  • Rendering
    • Textures
    • Shaders
    • Meshes
    • Command lists
    • State management
    • OpenGL setup
  • Async
    • Atomics
    • Thread pool
    • Futures

• Lib

  • Allocators
    • General
    • Arena
    • Pool
  • Array
  • Buffer
  • Queue
  • Hash Map
  • Stack
  • Vector
  • Strings
  • Thread pool and futures
  • Reflection
    • Type info
    • Serialization
  • SIMD vector and matrix math

• Platform Layer

  • Windowing
  • Input
  • Filesystem
  • Threading
  • OpenGL
  • Dynamic code compilation/loading
  • Architectures
    • Win32
    • SDL2

• Meta

  • Metaprogram to generate reflection data
  • Asset bulider to generate asset packs
  • Batch build system for asset builder, metaprogram, engine, tests, game
