G3000 annunciator fixes #1411

Closed

Conversation

Nezz
Copy link

@Nezz Nezz commented Oct 25, 2021

Longitude changes
Fix "Master warning reset" and "Master caution reset" buttons. Now that the annunciators are working on the Longitude with SU6, it became really bothersome that the buttons did not work. After some digging I found that the issue is that the logic for managing the annunciations is in the Cabin_Annunciations class. The caution/warning reset buttons work on the TBM because its MFD uses that class (in the form of Engine_Annunciations). The Longitude however does not have annunciations on the MFD. It needs to use Cabin_Annunciations on the PFD instead.

The G5000 PFD also did not support blinking annunciations. That's supported now by adding the necessary entries to the CSS.

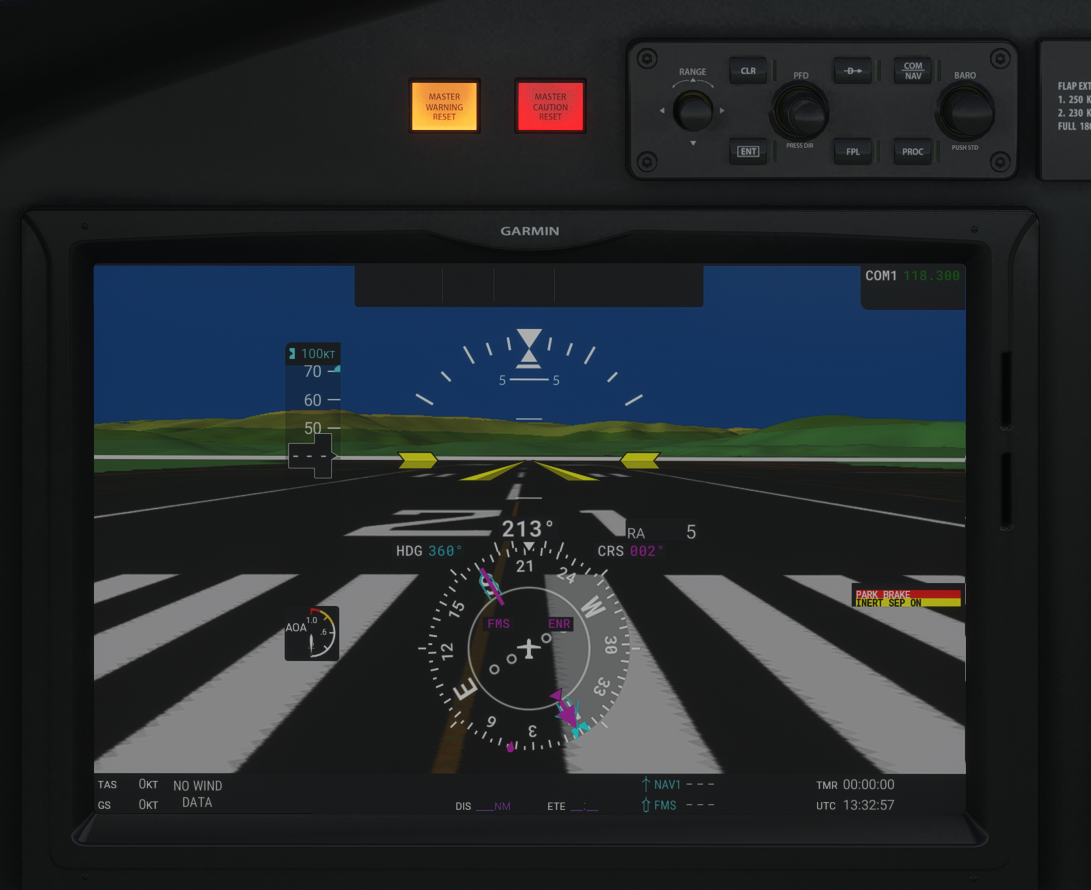

End result:

Known issues: The aircraft model has switched up the two the reset buttons. According to a Textron employee:

Amber Outboard, Red Inboard is correct, but the wording is wrong, Warning should always be closest to the Pilots. They just need to change the wording.

TBM changes

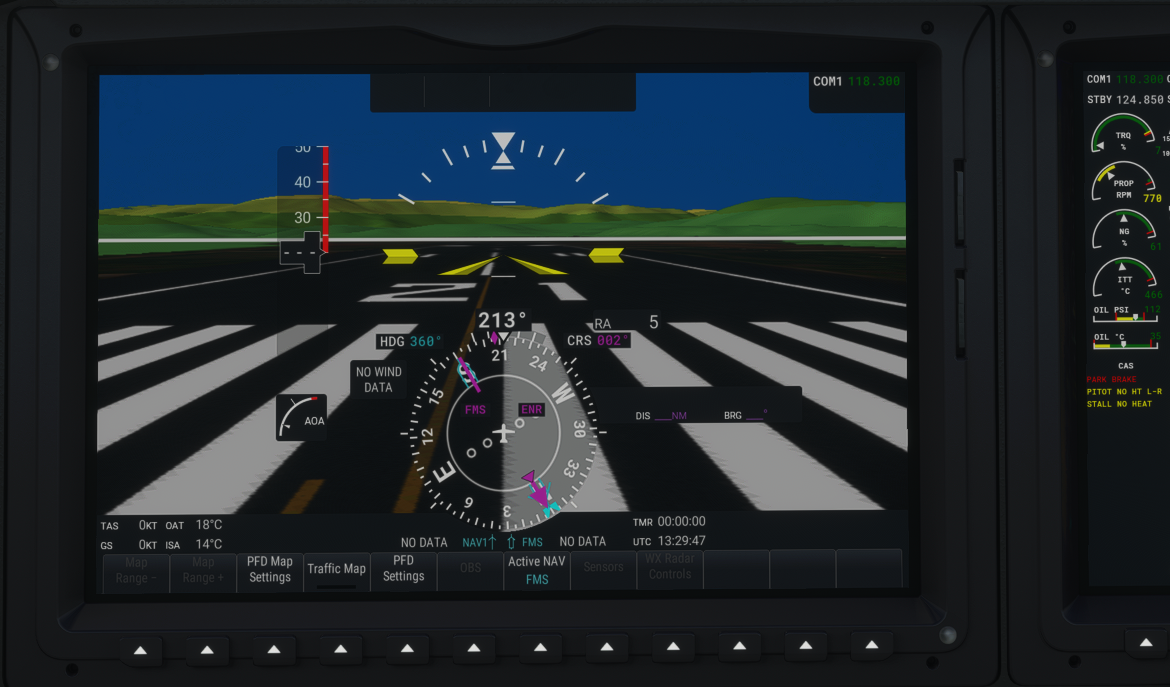

CAS messages should not be displayed on the PFD under normal display conditions (e.g. no reversionary mode). End result:

Now that the annunciators are working on the Longitude with SU6, it became really bothersome that the buttons did not work. After some digging I found that the issue is that the logic for managing the annunciations is in the `Cabin_Annunciations` class. The caution/warning reset buttons work on the TBM because its MFD uses that class (in the form of `Engine_Annunciations`). The Longitude however does not have annunciations on the MFD. It needs to use `Cabin_Annunciations` on the PFD instead.
Nezz added 3 commits October 25, 2021 22:05
CAS messages are not displayed on the PFD under normal display conditions (e.g. no reversionary mode)

Fix
@Nezz Nezz force-pushed the fix/g3000annunciations branch from c38d50f to ccc27cc Compare October 25, 2021 19:05
The Hidden state isn't set as of SU6
Copy link

@roadfox roadfox left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Can only test the TBM 930 as this is the only aircraft i know well enough.
Anoing Gear down alarm which was not silent after acknowledge is now working correct.
CAS Messages are now only shown in MFD and not in PFD as i would expect.

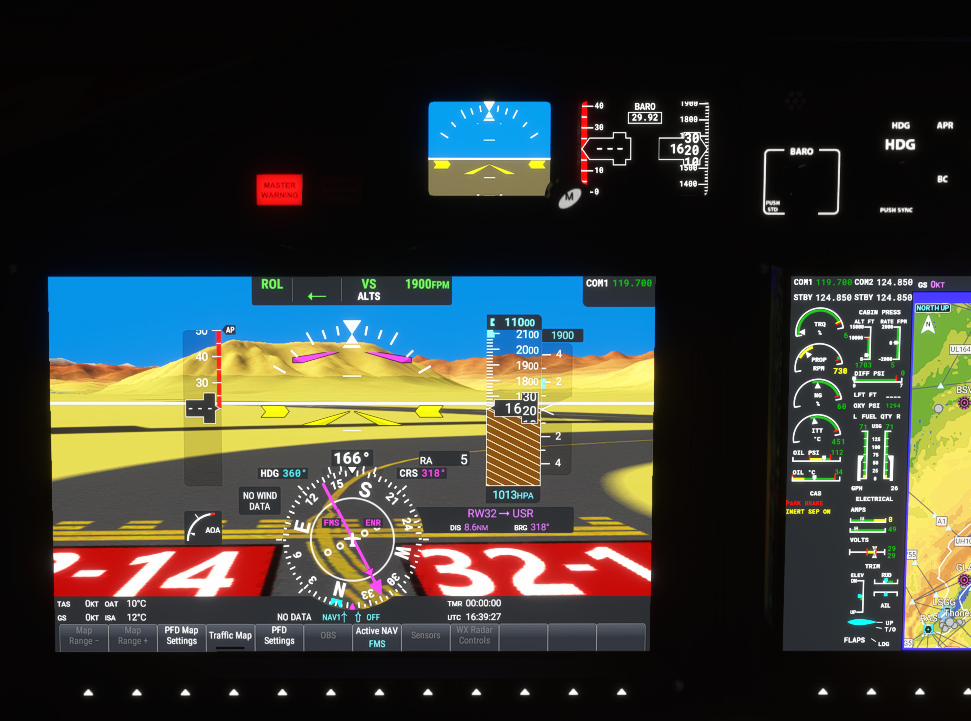

grafik

thanks allot
