Lack of 3D models for many components #12

Open
CRImier opened this Issue May 14, 2017 · 29 comments

Comments

Projects
None yet
2 participants
@CRImier
Contributor

CRImier commented May 14, 2017

KiCad provides board 3D view/export functionality, which would be very useful for creating ZeroPhone cases. However, for many components used by ZeroPhone there just aren't suitable 3D models. What's necessary is to find/develop simple to-scale 3D models for these components and link them to the PCB so that they appear in the 3D viewer, and can then be exported by the KiCad VRML export option for case building. Most of the component size data can be gotten from footprints and ZeroPhone photos, and I'll post more component photos shortly for those components where dimensions might be unclear.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 14, 2017

Addition - it's very important that 3D model source files are present, due to the fact that KiCad will be moving away from VRML in the future.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 17, 2017

Components that are the most necessary for case creation:

Front board:

  • Audio jack: JACK1 (part number is FC68125) - added by @dwaq
  • Microphone: W3 (currently has a terminal block 3D model, which is kinda unacceptable =) Is basically a cylinder, dimensions are 5mm (diameter) x 6mm (height) - added by @dwaq
  • OLED screen: P2/P7 (any of those) (description in #24 ) - added by @dwaq
  • ESP-12: U2 - added by @dwaq
  • 2x20 2.54 female header - to be used on Pi Zero footprint - added by @dwaq

Back board:

  • Expansion headers: P1, P2, P3, P7 (2.54 THT angled female headers)
  • RGB LED: D3 (5050 package) - added by @dwaq
  • SIM800 modem breakout: U2 (SIM card slot, modem itself, tantalum capacitors and uFL connectors)
  • TP4056 breakout: U4 (Chinese breakout board, can pretty much be modelled from the footprint) (description in #25 )
  • 5V boost DC-DC breakout: U6 (Chinese breakout board) (description in #27 )
  • JST connector for battery: P8 (2.0mm connector, like this SMD one from Sparkfun, but a through-hole version will also do) - added by @dwaq
  • 2x20 2.54 male header - to be used on Pi Zero footprint - added by @dwaq

Keypad board:

  • 4-pin switches: UP1, DOWN1, LEFT1, RIGHT1, OK1 (SKQG switches, though with a higher pin part) - added by @dwaq
  • 2-pin switches: N0-N9, N*1, N#1, C1-C6, GREEN1, RED1 (very popular and can be sold under many different codes, photo here) - added by @dwaq
  • 4-pin/2-pin side switches: VOL_UP1, VOL_DOWN1, OPTION1, PHOTO1, PHOTO2 (EVQP7C switches ) (description in #28) - added by @dwaq

Will be adding component dimensions here over the course of this week, for Chinese breakouts and components without part numbers.

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 17, 2017

In regards to ESP-12, are you using the 22 pin version or the 20 pin version? The 20 pin version uses pins 2-21.

Edit: I see your note on the sch about using the 20 pin version. I might need to modify that to be compatible with the 3D model.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 17, 2017

@dwaq AFAIK the 3D model doesn't use the pins for model alignment on the board, instead, it uses the grid reference point, so there should be no problems =)

If the schematic didn't make it clear (I'll re-check), I'm actually using the 22-pin model of ESP-12, but some pins are removed from the ESP-12 footprint, since they're not used anyway and there's more space for routing traces and antenna keepout polygon. If the 3D model has pins that just won't be on the pads, I imagine it's not going to be an issue - this is what it looks like in reality, on a real ZeroPhone =)

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 18, 2017

Found the SKQG button 3D rendering here

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 18, 2017

I'm working on the Microphone: W3 now. What are the dimensions? I don't see details on that page and can't tell if 6mm and 5mm is height and radius or what. I can't even make sense out of it while looking at the footprint on the PCB.

PS, you can use the task list markdown for the models remaining and add a check when they're done instead of crossing out. But that's personal preference I guess.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 18, 2017

Found the 2-pin switch 3D model here
button 3D model collection
2-pin SMD button on the left to the SKQG button

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 18, 2017

Task list - done, thank you for suggestion!

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 18, 2017

Microphone: can't measure it right now but will do in 2 hours. I think 6mm is height and 5mm is width.

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 18, 2017

As for the OLED display, I found Monochrome 1.3" 128x64 OLED graphic display on Adafruit which appears to be compatible with your design, but not the exact model that you're using. It provides dimensions but not a 3D model so I'd have to design it. Should I use these dimensions or can you find the dimensions of the display you're using? For case design, I assume screen dimensions are going to be very important, so this model needs to be correct.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 18, 2017

@dwaq - you're right about screen dimensions being very important. I can't measure my screen right now, and can't check if the dimensions are right, either, but I'll measure the screens I'm using and post the dimensions today or tomorrow.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 18, 2017

@dwaq Just measured the microphone, it's 5mm in width and 6mm in height.

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 18, 2017

I tried modeling those dimensions today and it didn't look right. Can you provide a photo of the part soldered to the board so I can see how it's supposed to look? Thanks.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 18, 2017

@dwaq Here it is:

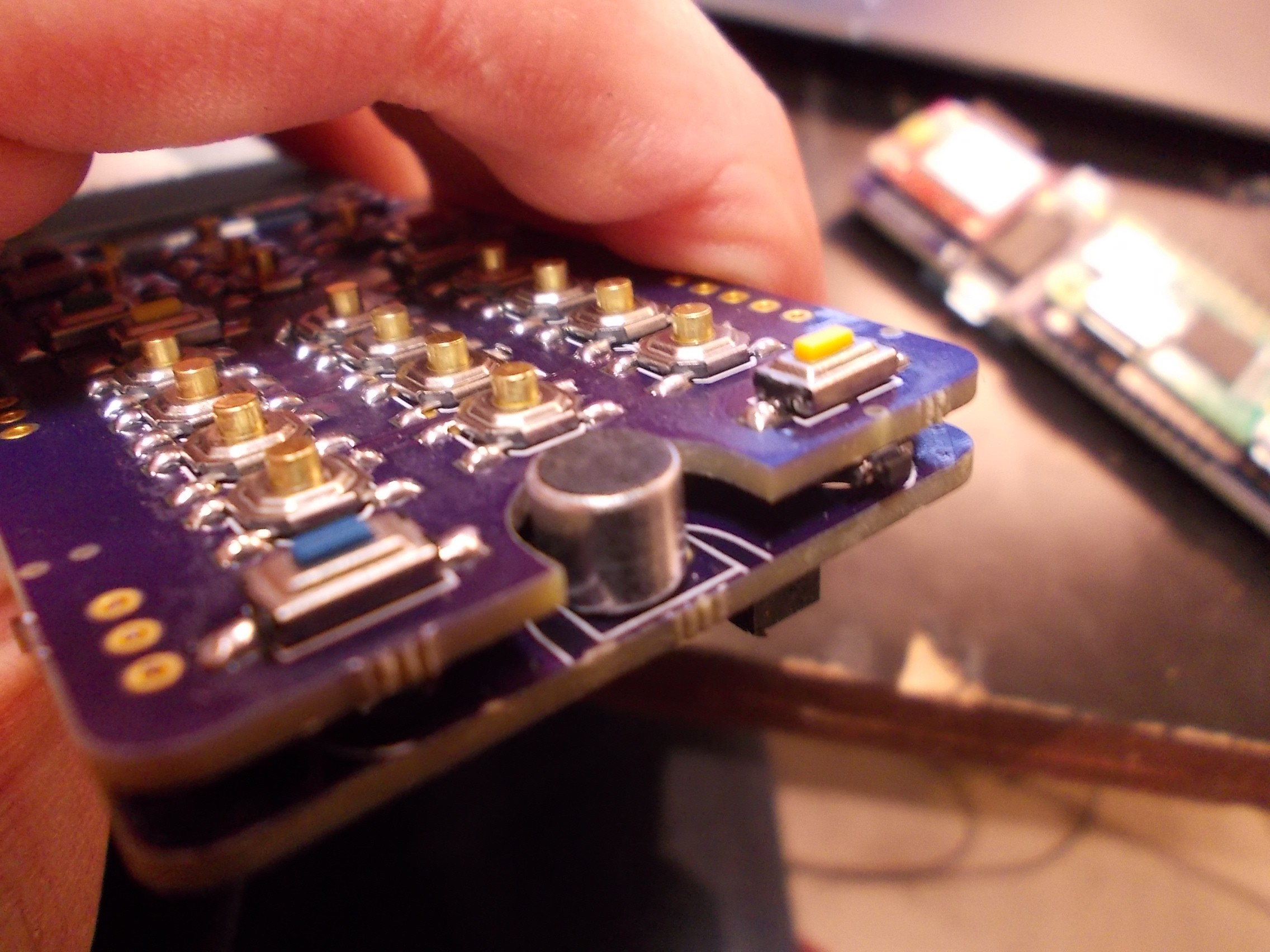

photo of microphone on the board
It's not the part I'm using on beta prototype there are photos of, but it's one of the samples I bought from TaoBao in QTY30 that was the best of them all, microphones like one currently on beta prototype would be great to use as they're smaller, but the sellers I used didn't have any of those.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 19, 2017

Pushed new changes - changed the crystal footprint to a reasonable one and removed pin headers that aren't actually soldered on.

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 19, 2017

Here's a capture of the microphone modeled at 5mm width, 6mm height. As you can see, it doesn't fill out the terminal block silkscreen like the component in your photo does. It also barely covers the holes.
front_prototype
I'll make a pull request regardless and you can either let me know what to change, or modify it yourself.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 19, 2017

Hi! It should be OK, mostly it's the center position and height of microphone that matters . I'll check its height once I'll think of a way to do that. As for the possible modifications - it would be good to have a thin black layer on the top, just like it is with microphones I'm using - but nothing more, you could just paint the top black.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 20, 2017

@dwaq - sorry for the screen dimension delay. Screen dimensions added in #24 (so that this issue isn't picture-heavy).

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 20, 2017

Added #25 for TP4056 charger breakout board

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 20, 2017

Fixed pin headers on back board, chaned pushed to repo

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 24, 2017

For RGB LED: D3 (5050 package), are these dimensions correct for the part you're using? Especially the location of the polarity mark? I found a few 3D models of 5050 LEDs but they don't match these dimensions. If I have to model it myself, it's just going to be a cube -- I can't make it as detailed as the 3D models out there.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 24, 2017

@dwaq Yes, that's the correct type. As for the dimensions - could this just be a scaling issue?

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 24, 2017

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 24, 2017

The first one: yeah, if it could be scaled, it would be very cool.
The third one is OK too - it's a 4-pin one (instead of 6 pins), but it's not too much of a problem since this model is meant to be a guide for where to make a cutout/light path in the case, not to be 100% pin-perfect.

@dwaq dwaq referenced this issue May 24, 2017

Merged

Apa102 c #32

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 26, 2017

All that's left is the modules.. These are too complicated to create using my current design flow. I don't know the "correct" way to make these. Create them in KiCad and export the 3D model? Create them from the ground up in some 3D cad system? If you know of a tutorial on how this is typically done, I might be able to try it. Otherwise, I'm going to leave these items for someone else to tackle.

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 28, 2017

You know, making the parts as KiCad PCBs and them exporting them does make a lot of sense, I could easily do that. For example, the current GSM module is basically a PCB with a GSM module, SIM slot and pin headers. I could easily model that, and then it could be exported to VRML and imported to another board. It's still going to need some simpler blocks, like the SIM holder, the GSM modem itself (basically a flat square block) and an inductor - would you be interested in drawing those from dimensions? That'd finish the 3D modelling stage, so we could start designing cases =)

@CRImier

This comment has been minimized.

Contributor

CRImier commented May 28, 2017

Also, @dwaq - could you find a 3D model of a Pi Zero? The model needs to have USB&HDMI connectors and an empty GPIO header (with holes, preferably), but that's pretty much the only hard requirement.

@dwaq

This comment has been minimized.

Contributor

dwaq commented May 30, 2017

As far as the module comment.. Yeah, I think I can help make some components. It might be nice to make them in a separate repo so that others can more easily find them and use them and we can just import the product of that work into this model.

@CRImier

This comment has been minimized.

Contributor

CRImier commented Jun 9, 2017
