Sketchy Pies

A Sketch plugin to magically convert Circle layers into pie charts!

Install the plugin

Download and extract the contents of this repository. Then double-click the Sketchy Pies.sketchplugin bundle to install the plugin. Remember, this will only work if you have Sketch updated to version 3.3 or above.

Usage

Using the plugin is easy:

Draw and select a Circle on the canvas or in an artboard.
Draw a circle

Run the plugin from the menu Plugins > Sketchy Pies > Convert to Pie Chart.

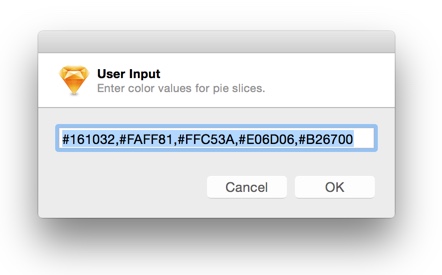

Enter color values for each slice in the Pie Chart, separated by commas.
Enter Color Values

This will create a Pie Chart with equal slices based on the number of color values you added.
Pie is ready

Optionally, you can also specify percent values along with the relative color values. For example, #FF0000:0.5, #0000FF:50%.
Enter Color and Percent Values

This will create a Pie Chart with variable slices based on the percent values and their associated colors.
Percent Pie is ready


Editing pie colors

Each slice of pie will be a separate layer, in case you need to change the colors later.
Enter Color Values

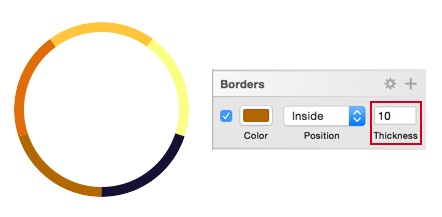

You can select all the pie layers and adjust the border thickness to make donut charts, if that's what you're after.
Donut Charts

Share

If Sketchy Pies saved you a few minutes of mundane work, do spend a second to Tweet about it or share on Facebook.

This plugin was inspired by this tweet from @getflourish.


Made by Aby Nimbalkar. I'm on Twitter if you run into any issues with this, or just want to say hello.
