API Star's Poll Tutorial

This tutorial is meant for those, who have basic knowledge of Django and have done Django Poll tutorial.

Refer: https://docs.djangoproject.com/en/1.11/intro/tutorial01/

Note: Use Python 3+ for whole tutorial.

Apistar: https://github.com/tomchristie/apistar

---

Features

Why should you consider using API Star for your next Web API project?

• API documentation - Interactive API documentation, that's guaranteed to always be in sync with your codebase.
• Client libraries - JavaScript and Python client libraries, driven by the schemas that API Star generates.
• Schema generation - Support for generating Swagger or RAML API schemas.
• Expressive - Type annotated views, that make for expressive, testable code.
• Performance - Dynamic behavior for determining how to run each view makes API Star incredibly efficient.

---

Table of Contents

• Apistar Installation
• Create new Project
• Apistar Architecture
• Run Project
• Database configuration
• First Poll
• More Code
• Clone and Run

Apistar Installation

$ pip3 install apistar

If its not working, then check your python version. It works with Python 3 and higher.

Check Installation:

$ apistar --version
0.1.17

Create new project

$ mkdir apistar_demo
$ cd apistar_demo
$ apistar new .

This will create a new project directory in your current working directory. The directory looks like:

Apistar Architecture

You get few files when you start a new project using Apistar namely:

app.py: Present in the same directory as of your project, you need to write all settings related stuff here.

routes.py: Similar to urls.py in django we have routes in Apistar, any request coming to the application goes via., routes.

views.py: All the logical implementation is being done in this file.

test_app.py: Apistar comes well equipped with the TDD (Test Driven Development)

Note We will be creating some new files as per our requirement further. Like models.py for db related stuff.

Run Project

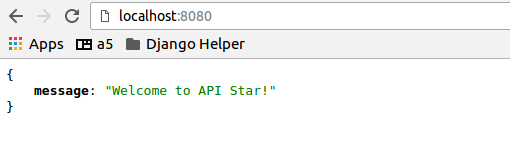

$ apistar run
Starting up...
* Running on http://localhost:8080/ (Press CTRL+C to quit)
* Restarting with stat
* Debugger is active!
* Debugger PIN: 325-680-236

For running project in different port and host use

$ apistar run --port <someport> --host <somehost>

Database Configuration

For doing database related stuff, you need to install sqlalchemy.

$ pip install sqlalchemy

We will be using, SQLite for our tutorial, though apistar supports postgres and MySQL as well.

Step 1: Create a new file in your project directory and name it as models.py and paste the code present below:

from sqlalchemy.sql import func
import datetime
from sqlalchemy.ext.declarative import declarative_base
from sqlalchemy.orm import relationship
from sqlalchemy import Column, Integer, String, DateTime, ForeignKey

Base = declarative_base()

class Poll(Base):
    __tablename__ = "Poll"
    id = Column(Integer, primary_key=True)
    question = Column(String)
    pub_date = Column(DateTime(timezone=True), default=func.now())
    # Gives the flexibilty to access child table's object.
    choice = relationship("Choice")

class Choice(Base):
    __tablename__ = "Choice"
    id = Column(Integer, primary_key=True)
    poll = Column(Integer, ForeignKey("Poll.id"), nullable=False)
    choice_text = Column(String)
    votes = Column(Integer)

Step 2: In your app.py file paste the code to configure your database as below:

from apistar import App
from project.routes import routes
from project.models import Base

settings = {
    "DATABASE": {
	    "URL": "sqlite:///db.sqlite3",
            "METADATA": Base.metadata
    }
}
app = App(routes=routes, settings=settings)

Step 3: Now that you have written all the code for your database, execute the command from your terminal.

$ apistar create_tables
Tables created

First Poll

Now that you have done your database configuration , the time comes to create your first poll. As we are not using django which gives us the flexibility of Django Admin so we depend on creating an endpoint for creating a Poll.

We will be dealing with routes and views.

Views

For creating first poll, add the code snnipet in views.py

from apistar.backends import SQLAlchemy
from .models import Poll, Choice

def create_poll(db: SQLAlchemy, question: str):
    session = db.session_class()
    poll = Poll(question=question)
    session.add(poll)
    session.commit()
    return {'question': question}

def create_choices(db: SQLAlchemy, poll_id: int, choice_text: str):
    session = db.session_class()
    poll = session.query(Poll).get(poll_id)
    choice = Choice(poll=poll.id, choice_text=choice_text, votes=0)
    session.add(choice)
    session.commit()
    return {'choice_text': choice_text}

Routes

For providing the route for the function, first we call the create_poll in routes.py and create a route related to as shown in the snnipet below

from apistar import Include, Route
from project.views import  create_poll, create_choices

routes = [
    # API to create Polls
    Route('/create_poll', 'POST', create_poll)
    # API to add choices to the polls
    Route('/create_choices', 'POST', create_choices),
    ]

Run Code

$ apistar run

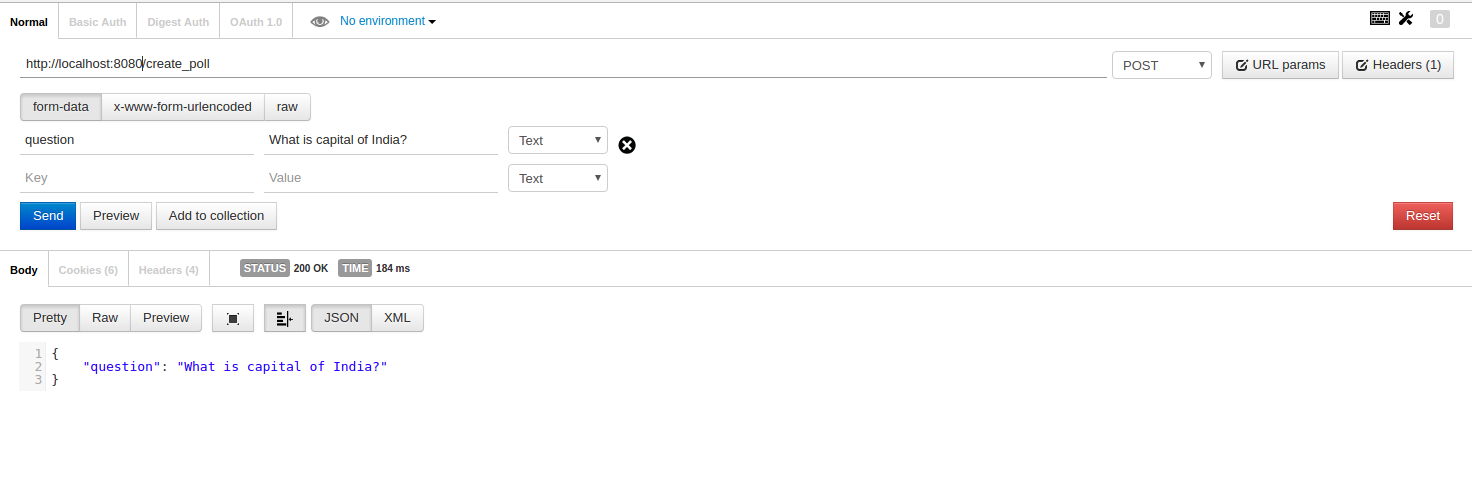

You may use any REST client to test the API, created here.

With every poll you create, you need to add choices with respect to it.

More Code

views

...
def polls(db: SQLAlchemy):
    data = []
    current_time = datetime.datetime.utcnow()
    session = db.session_class()
    polls = session.query(Poll).filter(Poll.pub_date < current_time)[:5]
    for poll in polls:
        poll_data = {}
        poll_data['question'] = poll.question
        poll_data['pub_date'] = str(poll.pub_date)
        data.append(poll_data)
    return {'polls': data}


def polls_details(db: SQLAlchemy):
    data = []
    cdata = []
    session = db.session_class()
    polls = session.query(Poll).all()
    for poll in polls:
        poll_data = {}
        poll_data['question'] = poll.question
        poll_data['pub_date'] = str(poll.pub_date)
        if poll.choice:
            for choice in poll.choice:
                choice_data = {}
                choice_data['id'] = choice.id
                choice_data['choice_text'] = choice.choice_text
                choice_data['votes'] = choice.votes
                cdata.append(choice_data)
            poll_data['choice'] = cdata
        data.append(poll_data)
    return {'polls': data}

def vote(db: SQLAlchemy, poll_id: int, choice_id: int):
    session = db.session_class()
    poll = session.query(Poll).get(poll_id)
    for option in poll.choice:
        if option.id == choice_id:
            choice = session.query(Choice).get(choice_id)
            temp = int(choice.votes)
            temp += 1
            choice.votes = temp
            session.add(choice)
            result = 'Vote Added'
        else:
            result = 'Wrong Choice'
        session.commit()
    return {'result': result}

routes

...
from project.views import welcome, create_poll, polls, polls_details, create_choices, vote

routes = [
    ...
    Route('/polls', 'GET', polls),
    # API to show the details of polls
    Route('/polls_details', 'GET', polls_details),
    # API to cast the vote
    Route('/vote', 'POST', vote)
    ]

By adding above code, you will be able to access, all the API's in the similar way as you get in Django Poll app.

Clone and Run

By this time you will be aware of the flow of APISTAR. You can simply clone the project and run it locally on your machine.
