Added support for Individual Conditional Expectation plots to `graph_partial_dependencies()` by christopherbunn · Pull Request #2386 · alteryx/evalml

christopherbunn · 2021-06-16T19:45:08Z

This implementation extends graph_partial_dependencies() by adding support for plotting Individual Conditional Expectations (ICE) behind a Partial Dependency plot. In addition, partial_dependence() has been updated to be able to generate the ICE data (as graph_partial_dependencies() uses this function to get the plot data).

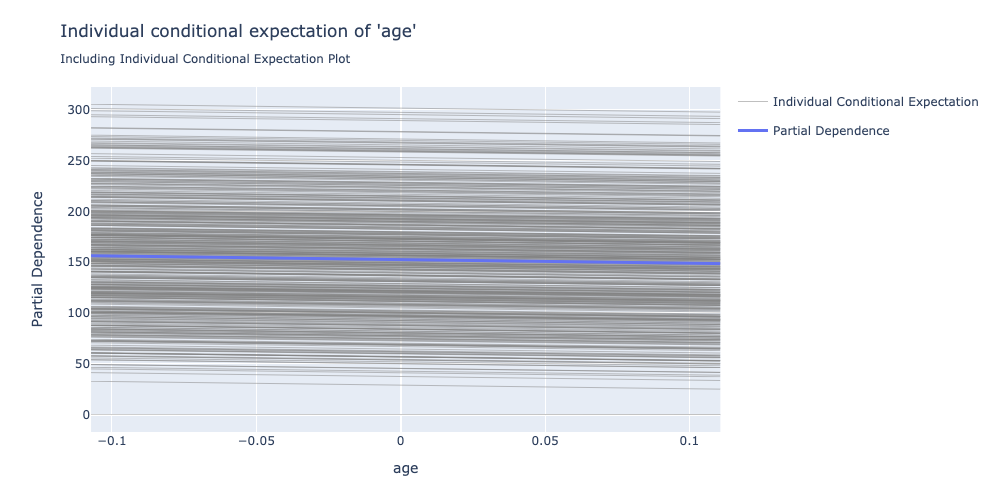

Single Class:

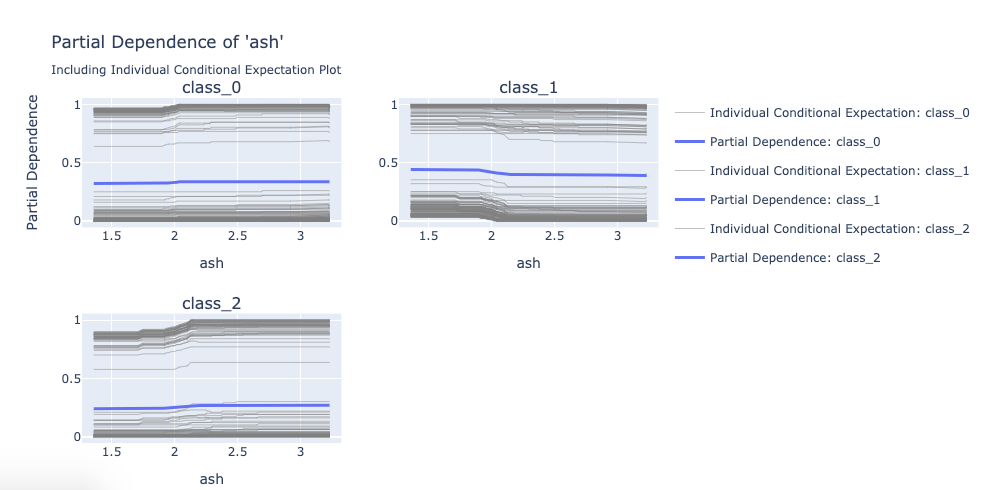

Multiclass:

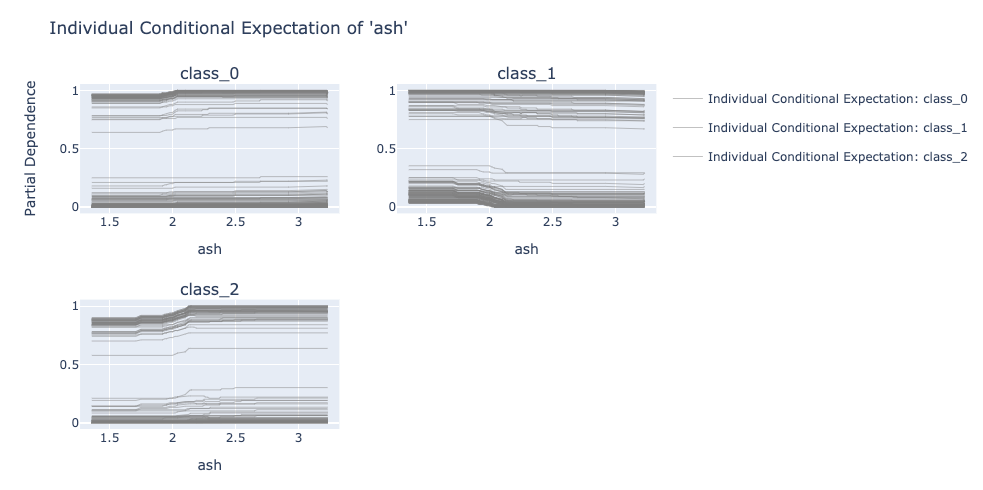

Multiclass ICE only:

By default, ICE plots are not shown when partial dependency plots are created. Setting kind='individual' or kind='both' will show the ICE plot.

Caveats:

Does not work for creating two-way partial dependency plots as there is no clean way to display ICE plots over a Contour plot. partial_dependence() is able to calculate the data behind the two-way partial dependency plot and return it as a list of DataFrames (with each DataFrame representing one sample). For now, a ValueError is thrown when an ICE plot is attempted for a two-way partial dependency.

Once the implementation clears, I can update the documentation example to show an ICE plot.

Resolves #2025

CLAassistant · 2021-06-16T19:45:14Z

All committers have signed the CLA.

codecov · 2021-06-16T19:48:28Z

Codecov Report

Merging #2386 (c7932f9) into main (f5a17c4) will increase coverage by 0.1%.
The diff coverage is 100.0%.

@@           Coverage Diff           @@
##            main   #2386     +/-   ##
=======================================
+ Coverage   99.7%   99.7%   +0.1%
=======================================
  Files        283     283
  Lines      25316   25478    +162
=======================================
+ Hits       25216   25378    +162
  Misses       100     100

Impacted Files	Coverage Δ
evalml/model_understanding/graphs.py	`100.0% <100.0%> (ø)`
...lml/tests/model_understanding_tests/test_graphs.py	`100.0% <100.0%> (ø)`
...del_understanding_tests/test_partial_dependence.py	`100.0% <100.0%> (ø)`

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update f5a17c4...c7932f9. Read the comment docs.

christopherbunn

Some implementation details to consider when reviewing:

christopherbunn · 2021-06-16T21:17:19Z

evalml/model_understanding/graphs.py


 def partial_dependence(
-    pipeline, X, features, percentiles=(0.05, 0.95), grid_resolution=100
+    pipeline, X, features, percentiles=(0.05, 0.95), grid_resolution=100, kind="average"


We could potentially make kind="both" by default, but it would throw an error when doing a two-way PD. If we changed the behavior to be a silent change or a warning, I would be okay with doing this as a default

christopherbunn · 2021-06-16T21:18:54Z

evalml/model_understanding/graphs.py

                    y=part_dep["partial_dependence"],
                    name="Partial Dependence",
-                    line=dict(width=3),
+                    line=dict(width=3, color="rgb(99,110,250)"),


The RGB number corresponds to the default blue that I extracted from the default MacOS color picker. I don't think there's like an alias to this exact color in plotly, but I could be missing it from the docs

christopherbunn · 2021-06-16T21:19:28Z

evalml/tests/model_understanding_tests/test_graphs.py

    with pytest.warns(None) as graph_valid:
        graph_partial_dependence(clf, X, features=0, grid_resolution=20)
-        assert len(graph_valid) == 1
+        assert len(graph_valid) == 0


Is there a particular reason that graph_partial_dependence was set to 1 here while the other graphing functions were 0?

I think we should move the grid_resolution back to 5. That was part of @freddyaboulton 's unit test speed up MR! But sorry, don't know the answer to that question.

christopherbunn · 2021-06-16T21:21:03Z

evalml/model_understanding/graphs.py

+            _go.Scatter(
+                x=x,
+                y=ice_data[sample],
+                line=dict(width=0.5, color="gray"),


There's some leeway to adjust this but from tweaking it a bit this is the best color and thickness combo for the ICE plot lines.

christopherbunn · 2021-06-16T21:24:26Z

evalml/model_understanding/graphs.py

+        if kind == "individual" or kind == "both":
+            raise ValueError(
+                "Individual conditional expectation plot can only be created with a one-way partial dependence plot"
+            )


Currently, I'm leaving out the ICE plot when plotting a two-way PD. I think the current behavior of raising an error is the best move, although I've considered putting in a warning message in the log. Open to suggestions for this behavior 🙂

christopherbunn

Some more testing specific notes:

christopherbunn · 2021-06-18T16:26:24Z

evalml/tests/model_understanding_tests/test_partial_dependence.py

+            data = np.concatenate([fig_dict["data"][i]["y"][:window_length],
+                                   fig_dict["data"][i + len(X) + 1]["y"][:window_length],
+                                   fig_dict["data"][i + 2 * len(X) + 2]["y"][:window_length]])


For this particular test, I ended up doing some weird matrix math to wrangle the plotly data. For each sample, this snippet essentially combines the ICE data for each class to one array and compares it to the data for that particular sample in the partial_dependence() output data. The +1 and +2 accounts for the additional PD trace that is in each plot.

christopherbunn · 2021-06-18T16:26:47Z

evalml/tests/model_understanding_tests/test_partial_dependence.py

+            data = np.concatenate([fig_dict["data"][i]["y"][:window_length],
+                                   fig_dict["data"][i + len(X)]["y"][:window_length],
+                                   fig_dict["data"][i + 2 * len(X)]["y"][:window_length]])


Same as the other comment, but the +1 and +2 aren't here since we're only plotting the ICE data.

christopherbunn · 2021-06-18T16:27:42Z

evalml/tests/model_understanding_tests/test_partial_dependence.py

        assert len(data["x"]) == 5
        assert len(data["y"]) == 5
-        assert data["name"] == label
+        assert data["name"] == "Partial Dependence: " + label


Ended up changing the PD trace name to mention that it is the partial dependence line to differentiate it from the ICE plots.

chukarsten

Awesome, great work. I need to do some more due dilligence as I can't run this at the Pentagon and visualize it, but the code and tests look good. I would just say let's stick with the lower grid resolutions, if possible, to try and reduce partial dependence run time. If it can all be tied to one variable, that would be better but I can do that in another PR. Also, I think shying away from the "if not" logic would be a bit more readable. Really great work though for your first week back!

evalml/model_understanding/graphs.py

chukarsten · 2021-06-19T18:50:28Z

evalml/tests/model_understanding_tests/test_graphs.py

    with pytest.warns(None) as graph_valid:
        graph_partial_dependence(clf, X, features=0, grid_resolution=20)
-        assert len(graph_valid) == 1
+        assert len(graph_valid) == 0


I think we should move the grid_resolution back to 5. That was part of @freddyaboulton 's unit test speed up MR! But sorry, don't know the answer to that question.

evalml/tests/model_understanding_tests/test_partial_dependence.py

chukarsten

Thanks for the changes, friendo!
