Partial Dependence Fast Mode by tamargrey · Pull Request #3753 · alteryx/evalml

tamargrey · 2022-10-13T19:21:25Z

Optimize partial dependence by avoiding the repeated transformations that come from running pipeline.predict(X) on the entire dataset for every grid value. This implementation transforms only the features whose partial dependence we are calculating by running pipeline.transform_all_but_final(X[[single_col]]), updating the transformed full X, and running estimator.predict on the updated transformed X.

Has the following limitations:

Fast mode cannot be used if the pipeline contains components that rely on more than one column to fit and transform data correctly.
- If there is a way of handling such components for fast mode, it will exist in a _handle_partial_dependence_fast_mode method on the component itself.
- Known components with this issue that have not been handled are Oversampler, StackedEnsembleRegressor, and StackedEnsembleClassifier. They are blocked with a _can_be_used_for_fast_partial_dependence = False property.
- Known components that have handed this in some way are DFSTransformer, RFClassifierSelectFromModel, and RFRegressorSelectFromModel.
Requires that training X and y are passed in in order to properly refit cloned pipelines with the correct data. Spoke to @eccabay about how X_train is known to be needed in partial dependence parameters for future time series work. y_train is known to be needed for the oversampler, which is currently blocked, so we could in theory remove it for now, but I think keeping it is a good failsafe for any components that might use for fit and transform that we missed here.

Note that listed above are only the known components with problems in fast mode. This implementation provides some great performance improvements, but there are risks, as it is not hard to accidentally add or change a component in such a way as to make it not compatible with fast mode. Therefore, it is an opt-in API.

codecov · 2022-10-13T19:29:10Z

Codecov Report

Merging #3753 (48d5465) into main (132e712) will increase coverage by 0.1%.
The diff coverage is 99.7%.

@@           Coverage Diff           @@
##            main   #3753     +/-   ##
=======================================
+ Coverage   99.7%   99.7%   +0.1%
=======================================
  Files        343     344      +1
  Lines      35807   36080    +273
=======================================
+ Hits       35670   35942    +272
- Misses       137     138      +1

Impacted Files	Coverage Δ
evalml/tests/component_tests/test_components.py	`99.0% <88.9%> (-0.1%)`	⬇️
...derstanding/_partial_dependence_fast_mode_utils.py	`100.0% <100.0%> (ø)`
...l/model_understanding/_partial_dependence_utils.py	`99.4% <100.0%> (+0.1%)`	⬆️
...odel_understanding/partial_dependence_functions.py	`100.0% <100.0%> (ø)`
evalml/pipelines/components/component_base.py	`100.0% <100.0%> (ø)`
...lines/components/ensemble/stacked_ensemble_base.py	`100.0% <100.0%> (ø)`
...transformers/feature_selection/feature_selector.py	`100.0% <100.0%> (ø)`
...ponents/transformers/preprocessing/featuretools.py	`100.0% <100.0%> (ø)`
...es/components/transformers/samplers/oversampler.py	`100.0% <100.0%> (ø)`
...del_understanding_tests/test_partial_dependence.py	`100.0% <100.0%> (ø)`

Help us with your feedback. Take ten seconds to tell us how you rate us. Have a feature suggestion? Share it here.

tamargrey · 2022-10-26T17:38:55Z

+        X_t_single_col = X_t_single_col[cols_to_replace]
+
+    # --> not keeping in woodwork - problematic?
+    X_t[cols_to_replace] = X_t_single_col


I wasn't sure if I should be adding the columns into X_t though woodwork or not. This X_t gets passed to estimator.predict, so I would think that it'd be problematic if the woodwork schema was invalid. What I think is happening here to allow this to work is that the cols_to_replace are the correct types to not break the woodwork schema.

But maybe I should just go through woodwork to be safe. Open to hearing other peoples' thoughts!

tamargrey · 2022-10-26T17:43:30Z

+    # --> this won't make custom components invalid for fast mode, but lets us opt into it.
+    # Given that fast mode isn't default behavior and we'll have proper warnings about not
+    # using it for custom components, (maybe we raise a warning if we find custom?), this makes the most sense
+    _can_be_used_for_fast_partial_dependence = True


I just wanted to highlight this behavior: Any component defaults to being valid for fast mode, so if a user created a custom component or a developer added a new component, it's possible they might get incorrect PD results for pipelines containing it.

I added a test in test_components.py that will raise an error when a new component is added to evalml, forcing developers to update the test and hopefully spend a little time thinking about if their component should be used for fast mode. It should be very quick to update, and devs can just default to disallowing it if they want. If people think that's a pain in the butt, I can remove it.

There's nothing currently in place to stop custom components, but I was considering adding a warning using the all_components util to let users know the results may be wrong if a custom component is detected. Does anyone feel strongly about whether this warning should exist or not?

I think its ok for now since fast mode is off by default but we should file an issue to track it!

Created an issue: #3817

While thinking about this more, it occurred to me that we could add a check in fast mode itself as to whether the pipeline relies on multiple columns. I think that check will be a little tricky to implement correctly, and we should test the impact on fast mode's runtime, so we shouldn't do that here, but I outlined the idea in the issue!

tamargrey · 2022-10-26T17:47:22Z

            A new instance of this pipeline with identical components.
        """
+        # --> why is there no setting of the threshold for binary like there is in clone?
        return self.__class__(


Not really relevant to the rest of the PR, but I noticed that the following check that's in clone isn't in this method and wanted to see if anyone knew why:

if is_binary(self.problem_type): clone.threshold = self.threshold

tamargrey · 2022-11-01T15:29:05Z

+        prediction_method = prediction_object.predict_proba
+    if fast_mode and no_features_passed_to_estimator:
+        original_predictions = prediction_method(X_eval)
+        original_predictions_mean = np.mean(original_predictions, axis=0)


In theory we could do this for slow mode too-- it would require us to calculate pipeline.transform_all_but_final(X_eval), though, and I didn't do a full set of analysis on whether that ends up saving time in many cases, so I decided to not add it in for now. I created an issue to look into adding it at a separate time.

jeremyliweishih

LGTM - just some nits and questions but overall looks great! Is there an issue add to our docs? If not we should create one so we can tell users to use fast mode.

jeremyliweishih · 2022-11-02T17:10:08Z

+    cloned_feature_pipelines = {}
+    for variable in features:
+        # Don't fit pipelines if the feature has no impact on predictions
+        if not variable_has_features_passed_to_estimator[variable]:


can you give me an example of when this happens in practice? Can't think of one off the top of my head!

If the RFRegressorSelectFromModel decides that the same feature you're trying to calculate PD for is unimportant and should be dropped prior to passing the data to the estimator.

It's what lets us just use the original data's average predictions as PD values. We know we won't have to change that feature's values and re-transform, so there's no need to waste time fitting a cloned pipeline for that feature!

gotcha - I think I understand how everything is linked now. Thanks!

jeremyliweishih · 2022-11-02T17:20:38Z

+    # --> this won't make custom components invalid for fast mode, but lets us opt into it.
+    # Given that fast mode isn't default behavior and we'll have proper warnings about not
+    # using it for custom components, (maybe we raise a warning if we find custom?), this makes the most sense
+    _can_be_used_for_fast_partial_dependence = True


I think its ok for now since fast mode is off by default but we should file an issue to track it!

jeremyliweishih · 2022-11-02T17:25:38Z

        """
        return self.fit(X, y).transform(X, y)
+
+    def _handle_partial_dependence_fast_mode(self, X, pipeline_parameters):


if the feature selector decided to drop a feature - should we be calculating partial dependence for it? I'm not sure what the current behavior is but I feel like we shouldn't be if the feature selector deemed the feature unnecessary. Don't think we need to solve in this PR but might be worth putting a issue up to discuss!

I saw your test case! So does this mean features dropped by the feature selector show no impact on predictions? I'm a little confused how the code chunk below affects it.

(forgive me if this is now unnecessary after my comment above!)

We can use the information from the original pipeline to determine if the feature gets dropped or not, and if it doesn't get dropped, this code lets us keep it. It basically turns off the Feature Selector for the single column-fitted pipelines. We say "take 100% of features" and "take features above the importance threshold of 0", so that we don't drop the single feature we're fitting that cloned pipeline with!

It's definitely a bit confusing to look at completely out of context, though. Let me know if you think the docstring isn't descriptive enough.

As to your other point: I don't know that it should be up to the partial dependence function to say that it won't calculate partial dependence for you if it deems the feature to not have an impact on predictions. For all we know, the partial dependence plot could be the way a user discovers this, and I could see it being useful to emit a warning or add something to the plot that indicates why this feature's PD is static.

If a user wants to not calculate PD at all in this case, I say it's up to them to decide that, but maybe we should be making that information (whether or not a feature gets passed to the estimator at all) more readily available. I can make an issue to think more about the concept of knowing that a feature won't have an impact on predictions and how that information can be accessible to users.

no this is an amazing explanation! it might be good to provide a little more context in the docstring 😄

Added a Return section to the docstring that hopefully explains this a little--let me know if it makes sense to you!

Created an issue for adding a feature to show whether a feature will be passed to the estimator: #3818

eccabay

This looks solid to me! Most of my comments are nitpicks related to docstrings. Awesome work!

eccabay · 2022-11-03T14:47:16Z

+
+    # Create a fit pipeline for each feature
+    cloned_feature_pipelines = {}
+    for variable in features:


I don't think this will work if features is a string, as the docstring says it can be

Very good call. I also think it should just be (list(str)), because it's getting passed in from _partial_dependence_calculation, which already says it'll just be a list of strings at that point.

eccabay · 2022-11-04T14:14:02Z

+    def _handle_partial_dependence_fast_mode(self, X, pipeline_parameters):
+        """Updates pipeline parameters to not drop any features based off of feature importance.
+
+        Note:


A style mega nit is that we don't need this in its own section. We can mirror other parts of the docstring here by just keeping it as its own unmarked separate paragraph.

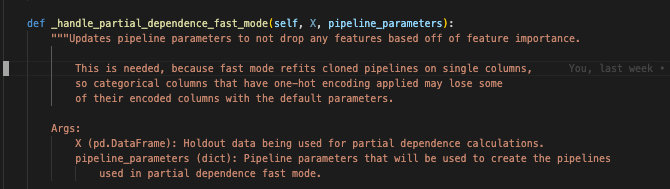

@eccabay Do you mean like this?

eccabay · 2022-11-04T14:15:39Z

+                to not drop any features. This is needed because the cloned pipeline that uses these features
+                will be fit on a single column, and we do not want to drop that column. We can use the original
+                pipeline to determine if that feature gets dropped or not.


It feels odd and/or slightly redundant to mention the "this is needed" within the return statement. It might fit better and be easier to reference in the note section instead?

Good call -- removed that section here and added another sentence above, so the note section now says:

This is needed, because fast mode refits cloned pipelines on single columns,
so categorical columns that have one-hot encoding applied may lose some
of their encoded columns with the default parameters. Therefore, we update the
parameters here to not drop any columns, and use the original
pipeline to determine if that feature gets dropped or not.

eccabay · 2022-11-04T14:20:22Z

+    error = re.escape(
+        f"cannot run partial dependence fast mode",
+    )


This might be something w.r.t regex I'm unfamiliar with, but why do we need re.escape here? Does keeping this as a regular string fail?

Nope, I think this was just an accidental holdover from when I tried to include the full error message with the component name and the extra quotation marks and whatnot weren't playing nice. I'll remove!

eccabay · 2022-11-04T14:23:08Z

+    if X_train is None or y_train is None:
+        raise ValueError("Training data is required for partial dependence fast mode.")


This is purely my opinion, but it may be neater to raise this error higher up in the call stack - potentially even in the highest level partial_dependence function. Just as fewer things to wade through when debugging an error.

I think that makes sense--moved up to partial_dependence with all the other error logic

…o decide how to handle pd fast mode

tamargrey force-pushed the partial-dependence-performance branch from ff43db8 to 460f0c8 Compare October 13, 2022 19:22

tamargrey force-pushed the partial-dependence-performance branch from 99d2367 to ab5b813 Compare October 26, 2022 16:10

tamargrey commented Oct 26, 2022

View reviewed changes

tamargrey force-pushed the partial-dependence-performance branch from 865149b to 4e4269b Compare November 1, 2022 13:47

tamargrey mentioned this pull request Nov 1, 2022

Handle Oversampler for partial dependence fast mode #3806

Open

tamargrey commented Nov 1, 2022

View reviewed changes

tamargrey changed the title ~~[Draft] Partial Dependence Optimization POC~~ Partial Dependence Fast Mode Nov 1, 2022

tamargrey marked this pull request as ready for review November 1, 2022 17:09

auto-assign Bot assigned tamargrey Nov 1, 2022

tamargrey requested review from christopherbunn, chukarsten, eccabay and jeremyliweishih November 1, 2022 17:24

tamargrey force-pushed the partial-dependence-performance branch from 7974af5 to 64f1f4d Compare November 2, 2022 16:01

jeremyliweishih approved these changes Nov 2, 2022

View reviewed changes

tamargrey mentioned this pull request Nov 2, 2022

Add ability to see if a base feature will have an impact on predictions #3818

Open

eccabay approved these changes Nov 4, 2022

View reviewed changes

tamargrey force-pushed the partial-dependence-performance branch 2 times, most recently from 29053e3 to 2eb025f Compare November 9, 2022 18:48

Tamar Grey added 8 commits November 9, 2022 15:15

refit on changed cols only

4225343

Add ability to call new implementation from outer util

7c0352f

add whitespace back

136d428

Avoid creating a new pipeline for each grid value

9630078

Add broken test for feature selector component to fix later

30717e8

Mock y in PD to avoid passing y into new PD implementation

7fd46c8

Allow whole features to be dropped and get correct PD calcs

123f687

Handle feature selectors dropping grid values in new PD implementation

295d9cc

Tamar Grey added 26 commits November 9, 2022 15:15

Raise error when dfs transformer shouldnt be used for fast mode

0b2b81f

Add property to components to raise error if incompatible with fast mode

f0fc62e

Move component specific logic to component methods

fed1d47

Update api to use fast_mode parameter

43e51a1

fill out docstrings

7ea78fd

handle arrow comments and expand tests

eeb1ecf

Add test that will fail when new components are added to force devs t…

fae56d6

…o decide how to handle pd fast mode

clean up

b6758cd

remove remaining arrow comments

b4604e3

Fix docstring linting issues

00eed63

remove unused import

22321b2

Use training data to refit pipelines

8487983

Add ability to pass y training in

3023fb3

Fix Oversampler error with categorical_features parameter

b59db23

Block oversampler from fast mode

56cee1c

udpate component test for blocked oversampler

f302747

Update docstring for training data parameters

1ca41a1

Pass training data into test and make required

18ff9d9

Add release note

6198433

clean up

7dd5029

Fix typo in comment

1c1487b

Change _training to _train to match rest of repo

c20170a

Expand docstrings from PR comments

0693038

HAndle prophet ci

a3b6bbb

Fix docstrings PR comments

2b7136f

PR Comments

48d5465

tamargrey force-pushed the partial-dependence-performance branch from 2eb025f to 48d5465 Compare November 9, 2022 20:16

tamargrey merged commit 9057491 into main Nov 9, 2022

tamargrey deleted the partial-dependence-performance branch November 9, 2022 21:33

chukarsten mentioned this pull request Nov 23, 2022

Release v0.63.0 #3860

Merged

		if X_train is None or y_train is None:
		raise ValueError("Training data is required for partial dependence fast mode.")

Conversation

tamargrey commented Oct 13, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

codecov Bot commented Oct 13, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Codecov Report

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

jeremyliweishih left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

eccabay left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

tamargrey commented Oct 13, 2022 •

edited

Loading

codecov Bot commented Oct 13, 2022 •

edited

Loading
