Radio signal decoder library for BRESSER WEATHER CENTER 5-IN-1
Python
Fetching latest commit…
Cannot retrieve the latest commit at this time.
Permalink
Failed to load latest commit information.
.gitignore First commit Sep 9, 2016
LICENSE Initial commit Sep 9, 2016
README.md Update README.md Oct 27, 2016
__init__.py First commit Sep 9, 2016
bresser.py Fix station_id decoding Oct 21, 2016
example.py Renamed example file Oct 27, 2016

README.md

Bresser Weather Center

The BRESSER weather center 5-in-1 (model 7002510) outdoor sensor transfers all measured values for wind speed, wind direction, humidity, temperature and precipitation rate to the base station using radio signals and a proprietary protocol.

This library decodes the readings sent by the Bresser sensors. I tested it only with a RTL2838 dongle, using the rtl-sdr software (http://www.rtl-sdr.com/).

Note that I've not fully reversed yet the data packed sent by the sensor, the work is still ongoing and the library still need to be tested a lot.

Reversing and packet structure

The sensor transmit the packet on the 868.300M frequency with AM modulation.

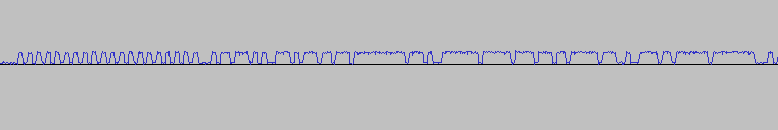

Following a capture of the wave already demodulated:

Radio Signal

The packet is 264 bits long and the bits are ecoded with 1 for high and 0 for low. The data should be read as nybble (half byte) in BCD format.

With the sampling rate set to 48Khz we have an average of 6 samples per bit.

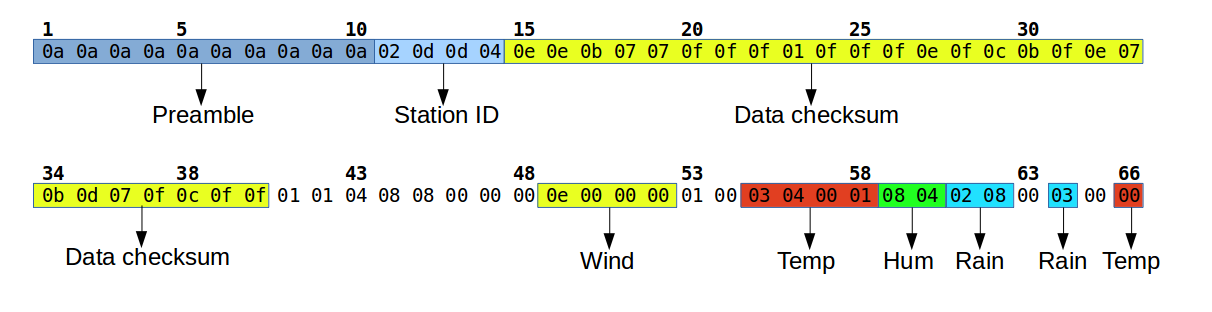

Following the packet structure I've reversed so far, not highlighted the parts who still need to be identified.

Packet structure

The checksum is just a XOR of the following data.

Get the code

Visit the project page on GitHub or get the code with the command:

git clone https://github.com/andreafabrizi/BresserWeatherCenter.git

Simple usage

from bresser import *

#The noise value should be manually adjusted for the moment
b = Bresser(printdata=True, noise = 700)
b.process_radio_data()
rtl_fm -M am -f 868.300M -s 48k -g 49.6 | ./example.py

2016-09-09 19:59:07:  Humidity: 50%  Temperature: 20.7°  Wind: 2.2 Km/h NNE  Rain: 4.0 mm
2016-09-09 19:59:17:  Humidity: 50%  Temperature: 20.7°  Wind: 2.2 Km/h NNE  Rain: 4.0 mm
2016-09-09 19:59:30:  Humidity: 49%  Temperature: 20.6°  Wind: 2.2 Km/h NNE  Rain: 4.0 mm

Advanced usage

from bresser import *

def process_packet(p):

    print "Humidity: %d%% " % p.getHumidity(),
    print "Temperature: %.1f" % p.getTemperature() + u"\u00b0 ",
    print "Wind: %.1f m/s %s" % (p.getWindSpeed(), p.getWindDirection()),
    print "Rain: %.1f mm" % p.getRain(),
    print ""

if __name__ == "__main__":

    #Noise neede to be adjusted manually
    b = Bresser(noise = 700)
    b.set_callback(process_packet)
    b.process_radio_data()
rtl_fm -M am -f 868.300M -s 48k -g 49.6 | ./example.py

Humidity: 91%  Temperature: 6.4°  Wind: 0.0 m/s E Rain: 78.8 mm
Humidity: 91%  Temperature: 6.4°  Wind: 0.0 m/s E Rain: 78.8 mm
Humidity: 91%  Temperature: 6.5°  Wind: 0.0 m/s E Rain: 78.8 mm

Note that most probably the gain and the frequency needs to be adjusted, depending on your device and antenna.

Antenna

As antenna I used a self made metal wire 8.64 cm long (300000/868000/4) and it works quite well.

To do

  • Remove dependency from rtl_fm using pyrtlsdr
  • Implement an automatic noise detection
