柱状图,选择堆积图,如果有两个图例分组,而其中一个分组的X轴第一坐标对应的点缺失时,会产生堆叠错误 #6861

Closed
sdtazhanghe opened this Issue Oct 18, 2017 · 2 comments

Comments

Projects
None yet
3 participants
@sdtazhanghe

sdtazhanghe commented Oct 18, 2017

One-line summary [问题简述]

柱状图,选择堆积图,如果有两个图例分组,而其中一个分组的X轴第一坐标对应的点缺失时,会产生堆叠错误。缺失分组会自动堆叠到上个X轴数据柱型之上。

Version & Environment [版本及环境]

  • ECharts version [ECharts 版本]:"3.7.1"
  • Browser version [浏览器类型和版本]:版本 60.0.3112.78(正式版本) (64 位)
  • OS Version [操作系统类型和版本]:win7

Expected behaviour [期望结果]

应该让堆叠按照正确的X轴点数据进行堆叠

ECharts option [ECharts配置项]

option ={
"title":{
"text":"简单柱状图标题",
"left":16,
"textStyle":{
"fontSize":14
},
"show":true
},
"tooltip":{
"trigger":"axis",
"axisPointer":{
"type":"shadow"
}
},
"toolbox":{
"show":true,
"feature":{
"dataZoom":{
"yAxisIndex":"none"
},
"dataView":{
"readOnly":false
},
"magicType":{
"type":[
"line",
"bar",
"stack",
"tiled"
]
},
"restore":{
},
"saveAsImage":{
}
}
},
"xAxis":{
"data":[
"审批通过",
"审批中",
"撤回",
"待提交",
"审批拒绝"
],
"nameDefault":"所有人",
"show":true,
"name":"所有人",
"nameLocation":"end"
},
"yAxis":{
"nameDefault":"所属行业",
"show":true,
"name":"所属行业",
"nameLocation":"end"
},
"legend":{
"show":false,
"data":[
"zly13",
"zly0031"
],
"tooltip":{
"show":false
}
},
"series":[
{
"type":"bar",
"stack":"all",
"data":[
[
"审批通过",
33
],
[
"审批中",
154
],
[
"撤回",
33
],
[
"待提交",
187
],
[
"审批拒绝",
33
]
],
"name":"zly13"
},
{
"type":"bar",
"stack":"all",
"data":[
[
"审批中",
66
],
[
"撤回",
200
]
],
"name":"zly0031"
}
],
"grid":{
"top":"65px",
"bottom":"10%",
"normalBottom":"10%",
"dataZoomBottom":"90px",
"containLabel":true
}
}

Other comments [其他信息]

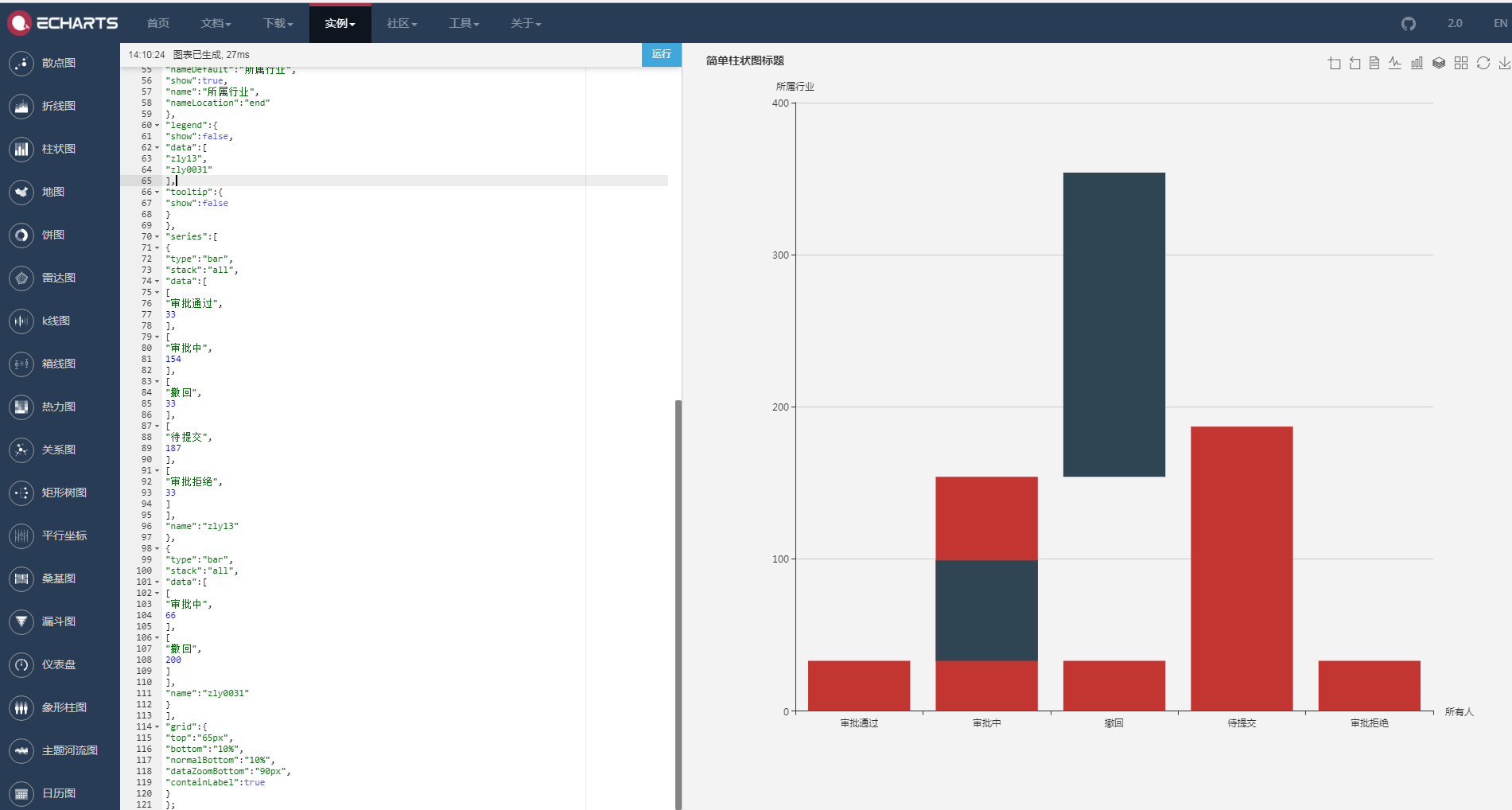

错误的情况
X轴第一坐标点加上对应数据则正常

@zpz1982

This comment has been minimized.

zpz1982 commented Nov 6, 2017

我也遇到了这个问题, win10, chrome

@100pah 100pah added the bug label Nov 8, 2017

@sdtazhanghe

This comment has been minimized.

sdtazhanghe commented Nov 21, 2017

希望下个迭代能解决啊,被产品经理折磨的不行了。

@100pah 100pah closed this in bf0df08 Feb 8, 2018
