Mario Tennis - Unfiltered - left part of the screen is rendered on the right side

[Pixelnarium]

I am using m64p on ArchLinux here. This does not happen in filtered mode. I also tried some other games like Mario 64, Blast Corps, Turok and Mario Golf and it does not happen there.

[theboy181]

This happens on angrylion when unfiltered too. @ledgendofdragoon had a work around for this in his tests.

[Tasosgemah]

Maybe it's an overscan thing? Meaning that it happens on real hardware but it's hidden?

[theboy181]

I think this happens on the real hardware if you disable the filters too. I would need to test again to be sure though.

[Pixelnarium]

How can I disable the filter on real hardware? Do I need an UltraHDMI for that? I "only" have an Everdrive but I can't find a "disable AA" cheat for Mario Tennis. But maybe this is a different thing.

[theboy181]

There is a few lists with aa codes around. Usually they are applied via cheat codes.

[LegendOfDragoon]

Lack of VI filter isn't causing this issue. It's the fact that his code for non-Vi filter displays extra pixels. Angrylion did tests on real hardware and determined that a certain number of pixels in each row are never displayed (first few and last few pixels). It's easy to fix.

[theboy181]

Thanks, I thought we had tested this. Why did t al fix this issue then?

[Pixelnarium]

I think this would explain some other observations I made. Ms. Pac-Man and Virtual Pool 64 have the same problem like Mario Tennis. Virtual Pool 64 just on the left side.

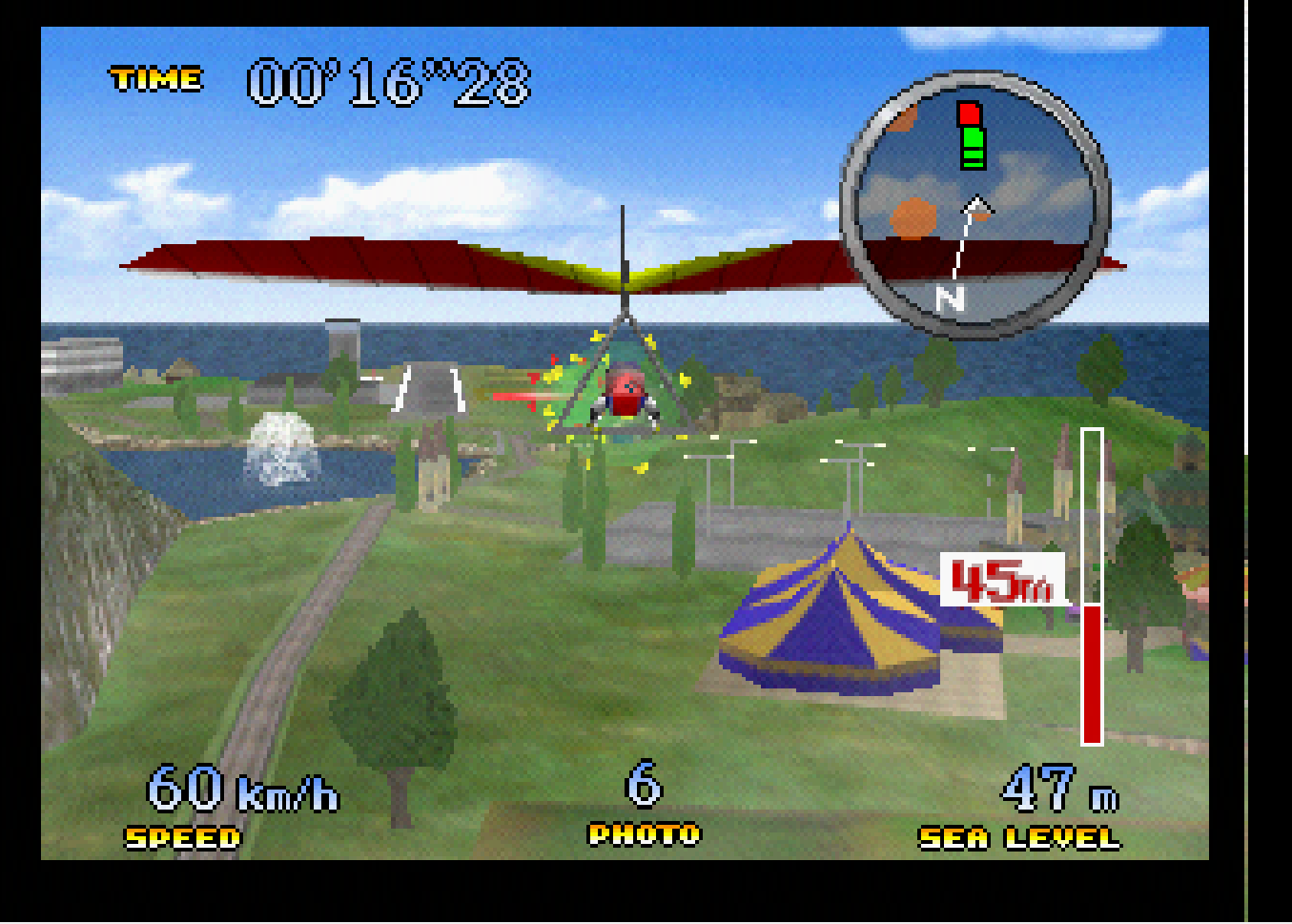

In some games it looks like this:

[ata4]

Hm... I could easily fix it, but the question is: how many pixels should be removed from the left and right? In filtered, it's 8. But in filtered, the width is always 640, unlike in unfiltered.

[LegendOfDragoon]

Why did t al fix this issue then?

He never implemented non-Filter.

But in filtered, the width is always 640, unlike in unfiltered.

I would just see where it would normally start after scaling width to 640.

[ata4]

Okay, I'm using the filtered mode for reference and just rescale the cropped area when in unfiltered mode. That appears to work just fine for most games, but it needs more testing.
