An error after update into the latest version of the models #786

Open
pacelu opened this issue May 21, 2019 · 2 comments

Comments

@pacelu
Copy link

commented May 21, 2019

Ensuring input files exist [####################################] 100%
Checking for existing output [####################################] 100%
2019-05-21 09:43:57:rastervision.runner.local_experiment_runner: INFO - Saving command configuration to /root/data/test_out4/chip/potsdam-seg/command-config.json...
2019-05-21 09:43:57:rastervision.data.raster_source.geotiff_source: INFO - Loading GeoTiff files...
2019-05-21 09:43:57:rastervision.data.raster_source.geotiff_source: INFO - Loading GeoTiff files...
2019-05-21 09:43:57:rastervision.data.raster_source.geotiff_source: INFO - Loading GeoTiff files...
2019-05-21 09:43:57:rastervision.data.raster_source.geotiff_source: INFO - Loading GeoTiff files...
2019-05-21 09:43:57:rastervision.data.raster_source.geotiff_source: INFO - Loading GeoTiff files...
2019-05-21 09:43:57:rastervision.data.raster_source.geotiff_source: INFO - Loading GeoTiff files...
Making training chips...
2019-05-21 09:43:57:rastervision.task.task: INFO - Making train chips for scene: 01
2019-05-21 09:44:11:rastervision.backend.tf_deeplab: INFO - Creating TFRecord
/usr/local/lib/python3.6/dist-packages/pluginbase.py:439: FutureWarning: Conversion of the second argument of issubdtype from float to np.floating is deprecated. In future, it will be treated as np.float64 == np.dtype(float).type.
fromlist, level)
2019-05-21 09:44:31:rastervision.task.task: INFO - Making train chips for scene: 02
2019-05-21 09:44:45:rastervision.backend.tf_deeplab: INFO - Creating TFRecord
2019-05-21 09:45:04:rastervision.task.task: INFO - Making validation chips for scene: 01
2019-05-21 09:45:17:rastervision.backend.tf_deeplab: INFO - Creating TFRecord
2019-05-21 09:45:37:rastervision.backend.tf_deeplab: INFO - Merging TFRecords
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/backend/tf_deeplab.py:78: tf_record_iterator (from tensorflow.python.lib.io.tf_record) is deprecated and will be removed in a future version.
Instructions for updating:
Use eager execution and:
tf.data.TFRecordDataset(path)
2019-05-21 09:45:37:rastervision.backend.tf_deeplab: INFO - 1000 records
2019-05-21 09:45:37:rastervision.backend.tf_deeplab: INFO - Merging TFRecords
2019-05-21 09:45:37:rastervision.backend.tf_deeplab: INFO - 500 records
2019-05-21 09:45:37:rastervision.runner.local_experiment_runner: INFO - Saving command configuration to /root/data/test_out4/train/potsdam-seg/command-config.json...
Training model...
2019-05-21 09:45:37:rastervision.backend.tf_deeplab: INFO - Setting up local input and output directories
2019-05-21 09:45:37:rastervision.backend.tf_deeplab: INFO - Downloading training data
2019-05-21 09:45:37:rastervision.backend.tf_deeplab: INFO - Downloading and untarring initial checkpoint
2019-05-21 09:45:38:rastervision.backend.tf_deeplab: INFO - tfdl_config=initialize_last_layer: "false"
last_layers_contain_logits_only: "false"
fine_tune_batch_norm: "true"
base_learning_rate: "0.001"
decoder_output_stride: 1
output_stride: 16
model_variant: "mobilenet_v2"
train_split: "train"
dataset: "custom"
train_batch_size: 8
training_number_of_steps: 5000

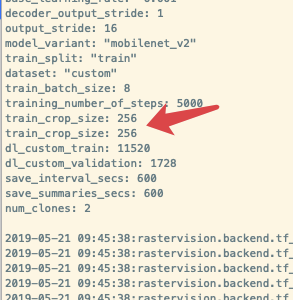

train_crop_size: 256
train_crop_size: 256
dl_custom_train: 11520
dl_custom_validation: 1728
save_interval_secs: 600
save_summaries_secs: 600
num_clones: 2

2019-05-21 09:45:38:rastervision.backend.tf_deeplab: INFO - Training steps=5000
2019-05-21 09:45:38:rastervision.backend.tf_deeplab: INFO - DL_CUSTOM_TRAIN=11520
2019-05-21 09:45:38:rastervision.backend.tf_deeplab: INFO - DL_CUSTOM_VALIDATION=1728
2019-05-21 09:45:38:rastervision.backend.tf_deeplab: INFO - DL_CUSTOM_CLASSES=8
2019-05-21 09:45:38:rastervision.backend.tf_deeplab: INFO - Starting training process
2019-05-21 09:45:38:rastervision.backend.tf_deeplab: INFO - Waiting for training and tensorboard processes
/usr/local/lib/python3.6/dist-packages/h5py/init.py:36: FutureWarning: Conversion of the second argument of issubdtype from float to np.floating is deprecated. In future, it will be treated as np.float64 == np.dtype(float).type.
from ._conv import register_converters as _register_converters

WARNING: The TensorFlow contrib module will not be included in TensorFlow 2.0.
For more information, please see:

INFO:tensorflow:Training on train set
WARNING:tensorflow:From /usr/local/lib/python3.6/dist-packages/tensorflow/python/ops/control_flow_ops.py:423: colocate_with (from tensorflow.python.framework.ops) is deprecated and will be removed in a future version.
Instructions for updating:
Colocations handled automatically by placer.
Traceback (most recent call last):
File "/opt/tf-models/deeplab/train.py", line 513, in
tf.app.run()
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/platform/app.py", line 125, in run
_sys.exit(main(argv))
File "/opt/tf-models/deeplab/train.py", line 463, in main
dataset.get_one_shot_iterator(), dataset.num_of_classes,
File "/usr/local/lib/python3.6/dist-packages/tensorflow/models-master/research/deeplab/datasets/data_generator.py", line 325, in get_one_shot_iterator
.map(self._preprocess_image, num_parallel_calls=self.num_readers))
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/data/ops/dataset_ops.py", line 1584, in map
self, map_func, num_parallel_calls, preserve_cardinality=False))
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/data/ops/dataset_ops.py", line 2771, in init
input_dataset, map_func, use_inter_op_parallelism, preserve_cardinality)
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/data/ops/dataset_ops.py", line 2737, in init
map_func, self._transformation_name(), dataset=input_dataset)
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/data/ops/dataset_ops.py", line 2124, in init
self._function.add_to_graph(ops.get_default_graph())
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/framework/function.py", line 490, in add_to_graph
self._create_definition_if_needed()
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/framework/function.py", line 341, in _create_definition_if_needed
self._create_definition_if_needed_impl()
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/framework/function.py", line 355, in _create_definition_if_needed_impl
whitelisted_stateful_ops=self._whitelisted_stateful_ops)
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/framework/function.py", line 883, in func_graph_from_py_func
outputs = func(*func_graph.inputs)
File "/usr/local/lib/python3.6/dist-packages/tensorflow/python/data/ops/dataset_ops.py", line 2099, in tf_data_structured_function_wrapper
ret = func(*nested_args)
File "/usr/local/lib/python3.6/dist-packages/tensorflow/models-master/research/deeplab/datasets/data_generator.py", line 287, in _preprocess_image
crop_width=self.crop_size[1],
IndexError: list index out of range
2019-05-21 09:45:40:rastervision.backend.tf_deeplab: INFO - Exporting frozen graph (/root/data/test_out4/train/potsdam-seg/model)
Traceback (most recent call last):
File "/usr/local/bin/rastervision", line 11, in
load_entry_point('rastervision==0.8.1', 'console_scripts', 'rastervision')()
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 722, in call
return self.main(*args, **kwargs)
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 697, in main
rv = self.invoke(ctx)
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 1066, in invoke
return _process_result(sub_ctx.command.invoke(sub_ctx))
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 895, in invoke
return ctx.invoke(self.callback, **ctx.params)
File "/usr/local/lib/python3.6/dist-packages/click/core.py", line 535, in invoke
return callback(*args, **kwargs)
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/cli/main.py", line 159, in run
dry_run=dry_run)
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/runner/experiment_runner.py", line 187, in run
self._run_experiment(command_dag)
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/runner/local_experiment_runner.py", line 35, in _run_experiment
run_commands(tmp_dir)
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/runner/local_experiment_runner.py", line 29, in run_commands
command.run(tmp_dir)
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/command/train_command.py", line 16, in run
self.task.train(tmp_dir)
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/task/task.py", line 136, in train
self.backend.train(tmp_dir)
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/backend/tf_deeplab.py", line 608, in train
num_classes, tfdl_config)
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/backend/tf_deeplab.py", line 382, in get_export_args
get_latest_checkpoint(train_logdir_local)))
File "/usr/local/lib/python3.6/dist-packages/rastervision-0.8.1-py3.6.egg/rastervision/backend/tf_deeplab.py", line 262, in get_latest_checkpoint
latest = sorted(zip(times, ckpts))[-1][1]
IndexError: list index out of range

The server configuration：
ubuntu 16.4
tensorflow 1.13.1
models: github The latest version
rastervision ：0.8.1

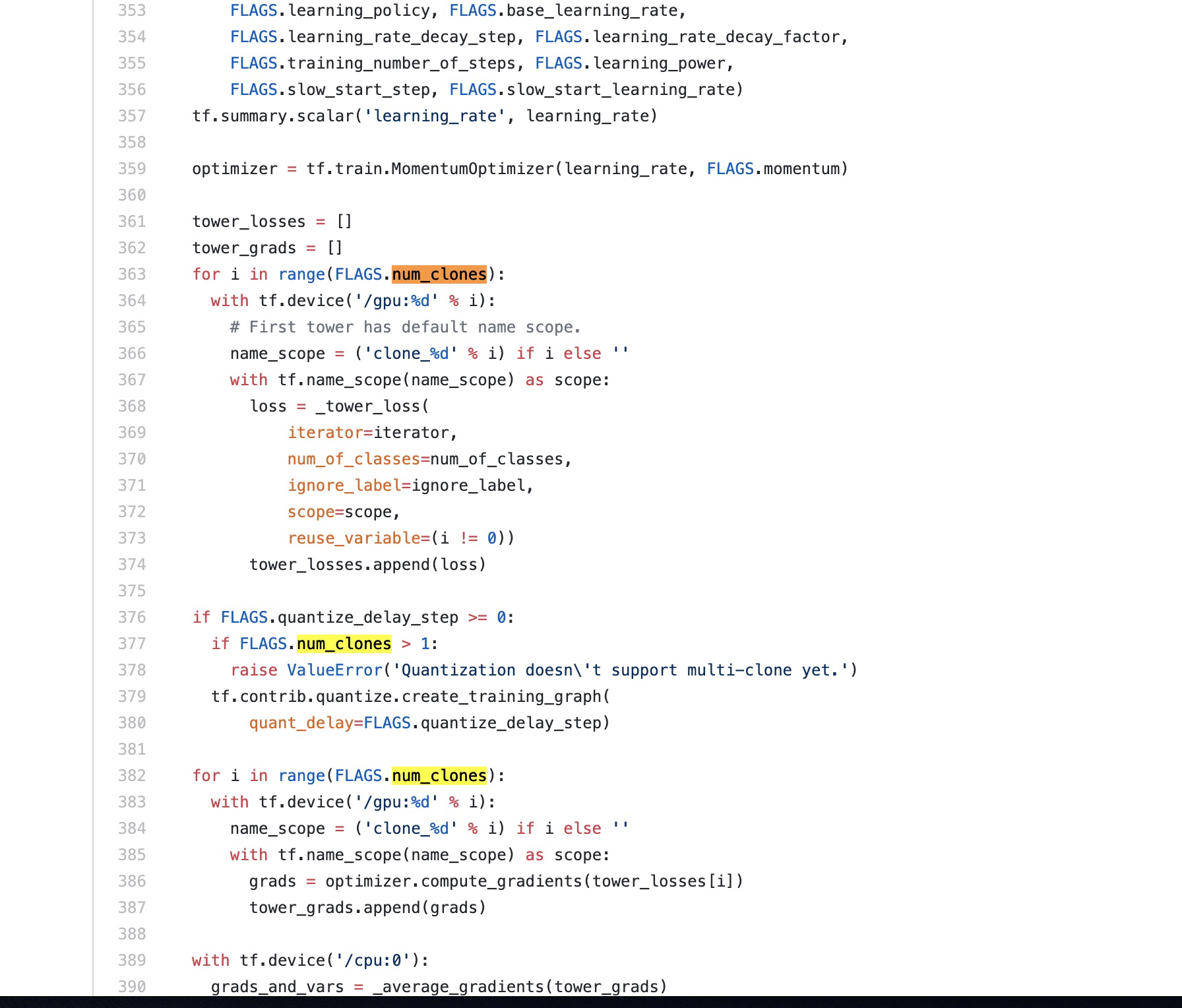

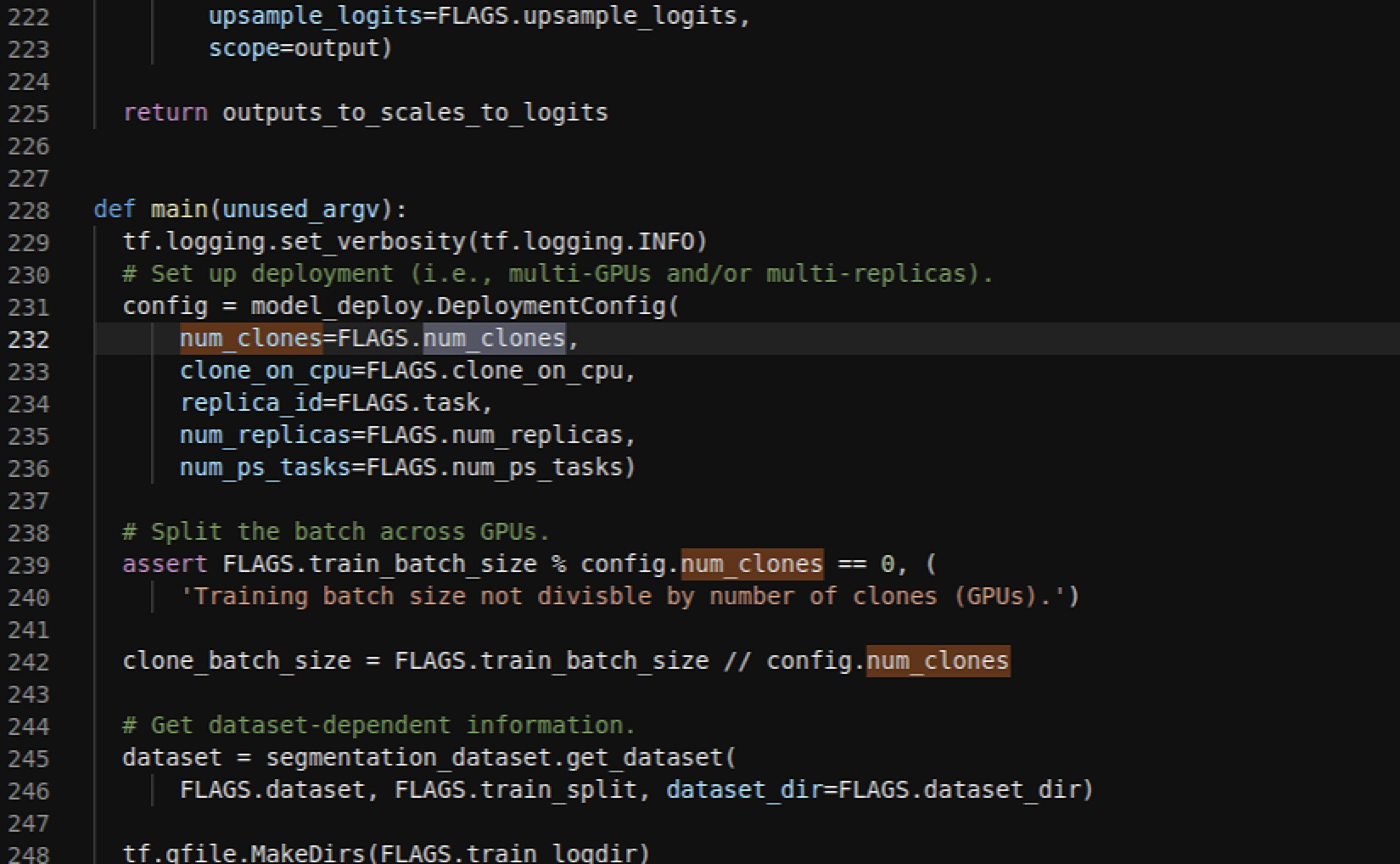

,Because I see models updated deeplab on GPU parallel function
The old models
I feel the problem
@lossyrob

This comment has been minimized.

Sign in to view
Copy link
Member

commented May 23, 2019

@pacelu are you using the the http://github.com/azavea/models fork, or the tensorflow/models repository? We aren't updating raster vision to keep in line with the tensorflow/models repository directly, and instead pinning tags to azavea/models as we release versions of Raster Vision. I'm wondering if there is an upstream breaking change that is causing this?
@pacelu

This comment has been minimized.

Sign in to view
Copy link
Author

commented May 24, 2019

@pacelu are you using the the http://github.com/azavea/models fork, or the tensorflow/models repository? We aren't updating raster vision to keep in line with the tensorflow/models repository directly, and instead pinning tags to azavea/models as we release versions of Raster Vision. I'm wondering if there is an upstream breaking change that is causing this?
the tensorflow/models
Because I see models updated deeplab on GPU parallel function
Because now the version of the corresponding GPU training is too slow, slower than 1 a GPU
#777
