Self Driving Car Engineer Project 9 - Implementing a PID-Controller

Benjamin Söllner, 20 Sep 2017


Fun Project Header Image

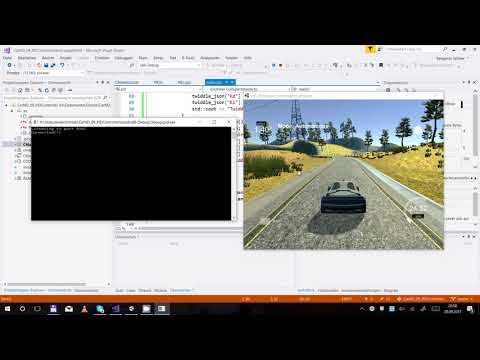

This C++ project of the Udacity Self Driving Car Engineer Nanodegree implements a PID Controller to steer a vehicle on a given track. The track information as well as the control information (throttle + steering) are exchanged via a websocket interface with the Udacity Self Driving Car Simulator. The coefficients of the controller are trained with the "Twiddle" algorithm. Here is a screencast video that showcases successful project implementation by letting the car drive around the track for about 1 lap.

The video thumbnail

Reflection

Describe the effect each of the P, I, D components had in your implementation.

The P-term of the PID-Controller is the proportional term; it consists of a proportionality factor Kp times the Cross Track Error (CTE) which is the shortest distance between the car's center position and the track the car should drive on. By taking the P-term into account, we achieve that the car steers back to the track in order to minimize the Cross Track Error.

The D-term is the differential term; it consists of a proportionality factor Kd times the differential Cross Track Error (CTE), which is the difference between the current and the previous Cross-Track-Error. By taking into account the differential CTE, we achieve that the proportional term is diminished as the CTE approaches zero, thereby preventing overshooting due to latency of the controller.

The I-term is the integral term; it consists of a proportionality factor Ki times the integral Cross Track Error (CTE), which is the cumulative sum of all previous CTEs. With this term, we eliminate systematic failures like drift.

With each run, the error terms are updated as follows (see PID::UpdateError(...) in PID.cpp, ll. 44ff.):

  // differential error = current error - previous error
	d_error = cte - p_error;
	// proportional error = now the current error
	p_error = cte;
	// integral error = add current term
	i_error += cte;

The control value then is a simple linear combination (see PID::GetControl(...) in PID.cpp, l. 44):

double control_value = -Kp*p_error - Kd*d_error - Ki*i_error;

A major task was to find the right coefficients Kp, Kd and Ki for the controller.

Describe how the final hyperparameters were chosen.

The coefficients Kp, Kd and Ki were first tweaked manually.

speed_pid.Init(.1, 1, .0001);

The target speed of the speed controller is given by the steering angle (see main.cpp, ll. 65f.):

// Speed is between 10 and 30 mph depending on how steep the steering angle is
double target_speed = 20. * (1. - abs(steer_value)) + 10.;

Note, that I changed the order of the terms to Kp, Kd, Ki compared to the original declaration in the starter code.

  • I then spent most of the time tuning the steering controller with a combination of coarse manual values and running twiddle on them for 1500 measurements, hoping that the car does not veer of the track. I first trained only the Kp value, then Kp with Kd. This already brought results that left the car on-track for about 1 hour. I then fixed Kp and Kd and let Twiddle run on Ki only. The final result left the car on-track for about 2 hours.

  • The final parameters (as well as the initial twiddle deltas, somewhat whacky numbers because I had to re-start the twiddle algorithm intermittently) can be found in main.cpp, ll. 37ff.:

// Initialize the controllers.
PID speed_pid, steer_pid;
// parameters found by trial-and-error
speed_pid.Init(.1, 1, .0001);
steer_pid.Init(0.114638203899845, 1.3948260829918, 0.000055);
// uncomment to learn parameters using twiddle
// steer_pid.InitTwiddle(0.000936507, 0.0279796, 0, 2.63063e-05, 1500);
// steer_pid.InitTwiddle(0, 0, 0.00005, 0.0000001, 1500);
  • The challenge implementing Twiddle was, that it has to run quasi-concurrent with the iteratively programmed controller loop. Therefore, it has to hold the state of where it currently is in the optimization workflow in some internal variables that get re-evaluated every time PID::Twiddle(...) is called (see PID.cpp, ll. 76ff.).

Submitted Files

  • README.md, readme.html: you are reading it! :)
  • src/PID.cpp: Controller logic
  • src/main.cpp: Boilerplate code and code for websocket communication as well as initializing + connecting both steering and speed controller
