Support Alpine-based docker base image

[jackyzha0]

Description

Use of venv and multi-stage builds to shave cost of building dependencies.

Motivation and Context

• Should fix Add support for Alpine based docker image #760

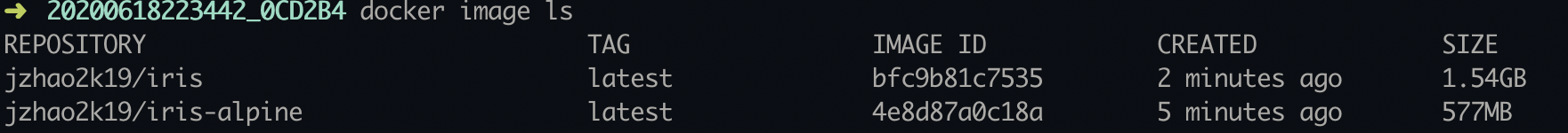

• Reduce already thicc Docker images to a more reasonable size (on Iris example, reduced image size from ~1.5GB to ~0.5GB or a 300% reduction)
• Add more documentation around using alternative base images

How Has This Been Tested?

• Tested using basic Iris Classifier example with @env(auto_pip_dependencies=True, docker_base_image="bentoml/model-server:0.8.12-alpine")
• Ran both full-size and alpine images to ensure functionality remained consistent

Types of changes

• Breaking change (fix or feature that would cause existing functionality to change)
• New feature (non-breaking change which adds functionality)
• Bug fix (non-breaking change which fixes an issue)
• Documentation
• Test, CI, or build
• None

Components (if applicable)

• BentoService (model packaging, dependency management, handler definition)
• Model Artifact (model serialization, multi-framework support)
• Model Server (mico-batching, logging, metrics, tracing, benchmark, OpenAPI)
• YataiService (model management, deployment automation)
• Docker related
• Documentation

Checklist:

• My code follows the bentoml code style, both ./dev/format.sh and
  ./dev/lint.sh script have passed
  (instructions).
• My change requires a change to the documentation.
• I have updated the documentation accordingly.
• My change requires a change in bentoml/gallery example notebooks
• I have sent a pull request to bentoml/gallery to make that change

[parano]

Hi @jackyzha0, just adding some context here:

In the default docker base image, we use conda to ensure the python version matches the saved bundle's python version(from what python version the bundle is created). The python version can be found in the bentoml.yml file under the saved bundle directory, as well as the environments.yml(conda environment config file). Besides installing the right python version, conda does make installing some packages a lot easier, (e.g. H2O for example) and some companies might be already using conda for dependency management.

Although with bentoml, It is possible to use a docker base image without conda installed, it will just ignore the environment.yml. And in that case, if the user has specified conda dependencies with their BentoService class, those dependencies will not be installed.

With Alpine based docker image, I think there are two approaches here:

1. Install conda in the alpine base image and use conda to install the right python version as well as conda dependencies. The downside is, an alpine image with conda install pretty much lost the size advantage IIRC, it is not that different from the default docker base image.

2. Ignore conda dependencies(we will just tell the users that conda is not available when using alpine based image) and publish one alpine base images for every major python versions that BentoML support, e.g. bentoml/model-server:0.8.1-alpine-py36, bentoml/model-server:0.8.1-alpine-py37, bentoml/model-server:0.8.1-alpine-py38

There might be other ways to do it, let me know if you'd like to discuss more.

[jackyzha0]

Hi @jackyzha0, just adding some context here:

In the default docker base image, we use conda to ensure the python version matches the saved bundle's python version(from what python version the bundle is created). The python version can be found in the bentoml.yml file under the saved bundle directory, as well as the environments.yml(conda environment config file). Besides installing the right python version, conda does make installing some packages a lot easier, (e.g. H2O for example) and some companies might be already using conda for dependency management.

Although with bentoml, It is possible to use a docker base image without conda installed, it will just ignore the environment.yml. And in that case, if the user has specified conda dependencies with their BentoService class, those dependencies will not be installed.

With Alpine based docker image, I think there are two approaches here:

1. Install conda in the alpine base image and use conda to install the right python version as well as conda dependencies. The downside is, an alpine image with conda install pretty much lost the size advantage IIRC, it is not that different from the default docker base image.
2. Ignore conda dependencies(we will just tell the users that conda is not available when using alpine based image) and publish one alpine base images for every major python versions that BentoML support, e.g. bentoml/model-server:0.8.1-alpine-py36, bentoml/model-server:0.8.1-alpine-py37, bentoml/model-server:0.8.1-alpine-py38

There might be other ways to do it, let me know if you'd like to discuss more.

Heyo @parano,

Thanks for the context! That does make a lot more sense. I actually did try the first approach, but ran into a lot of issues installing wheels as they are built for glibc but Alpine uses musl. If we did go down this path, this would require having a multi-stage build that rebuilds every requirement for musl which would completely kill image build times. Even after ignoring some of those build steps, the final image is actually ~1.2GB which is still way too large given that the Alpine image is supposed to be slim right 😅

I think option 2 will be the best way to go about doing it and just build Alpine versions for every major Python release. I was planning on writing up some more docs for this today. Anything major you'd like me to include?

[parano]

could you make sure this base image here in the example matches the name we have in the docker release script? bentoml/model-server:0.8.12-alpine3.7?

I think you may also want to rename the docker file here to Dockerfile-alpine-py36, Dockerfile-alpine-py37.. and add them to the docker/model-server/release.sh script.

We currently run that release script after every PyPI release, which pushes the new image to docker hub under, e.g. bentoml/model-server:0.8.2-alpine-py36.

[codecov]

Codecov Report

Merging #822 into master will increase coverage by 0.00%.
The diff coverage is 100.00%.

@@           Coverage Diff           @@
##           master     #822   +/-   ##
=======================================
  Coverage   56.41%   56.41%
=======================================
  Files         116      116
  Lines        8608     8609    +1
=======================================
+ Hits         4856     4857    +1
  Misses       3752     3752

Impacted Files	Coverage Δ
bentoml/saved_bundle/bundler.py	93.90% <100.00%> (+0.07%)	⬆️

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 8741efd...f099142. Read the comment docs.

[jackyzha0]

@parano Just added a section to release.sh to iterate over a list of Python versions and passes that into the Docker-alpine image as a build arg to save on code duplication! Should do the trick. I tested locally without the push step and it works

[parano]

👍

[parano]

Could you rename the image tag from bentoml/model-server:0.8.2-alpine36 to bentoml/model-server:0.8.2-alpine-py36 instead? It seems py36 is the convention that many other python projects in this space are following, e.g. pytorch, tensorflow for example.

Otherwise, this looks great @jackyzha0!

[parano]

Thanks for updating the PR @jackyzha0! I will go ahead and run the release these docker images for 0.8.2 and do some more testing on my end!

[parano]

Just published alpine based images for 0.8.1 on docker-hub https://hub.docker.com/repository/docker/bentoml/model-server

cc @bojiang - could you add a test case in the dockerized API server integration tests you are working on, to use alpine based docker image?
