Euro Truck Simulator 2 autonomous driving solution
Python C++ Other
Latest commit 0351ab8 Feb 22, 2017 @chi3236 chi3236 Apply adaptive IPM area

README.md

ChosunTruck

ChosunTruck

Introduction

ChosunTruck is an autonomous driving solution for Euro Truck Simulator 2. Recently, autonomous driving technology has become a big issue and as a result we have been studying technology that incorporates this. It is being developed in a simulated environment called Euro Truck Simulator 2 to allow us to study it using vehicles. We chose Euro Truck Simulator 2 because this simulator provides a good test environment that is similar to the real road.

Features

  • You can drive a vehicle without handling it yourself.
  • You can understand the principles of autonomous driving.
  • (Experimental) You can detect where other vehicles are.

How To Run It

Windows

Dependencies

  • OS: Windows 7 (64bit)

  • IDE: Visual Studio 2013

  • OpenCV version: 3.2

  • Cuda Toolkit 7.5 (Note: Do an ADVANCED INSTALLATION. ONLY install the Toolkit + Integration to Visual Studio. Do NOT install the drivers + other stuff it would normally give you. Once installed, your project properties should look like this: https://i.imgur.com/e7IRtjy.png)

Required to allow input to work in Windows:

Note: Input is not currently working correctly.
  • Go to C:\Users\YOURUSERNAME\Documents\Euro Truck Simulator 2\profiles and edit controls.sii from di8.keyboard/fusion.mouse to sys.keyboard/sys.mouse. (thanks Komat!)

Then:

  • Open the visual studio project and build it.
  • Run ETS2 in windowed mode and set resolution to 1024 * 768.(It will work properly with 1920 * 1080 screen resolution and 1024 * 768 window mode ETS2.)

Linux

Dependencies

Build the source code with the following command (inside the linux directory).

make

Then:

  • Run ETS2 in windowed mode and set its resolution to 1024 * 768. (It will work properly with 1920 * 1080 screen resolution and 1024 * 768 windowed mode ETS2)
  • It cannot find the ETS2 window automatically. Move the ETS2 window to the right-down corner to fix this.
  • In ETS2 Options, set controls to 'Keyboard + Mouse Steering', 'left click' to acclerate, and 'right click' to brake.
  • Go to a highway and set the truck's speed to 40~60km/h. (I recommend you turn on cruise mode to set the speed easily)
  • Run this program!

To enable car detection mode, add -D or --Car_Detection.

./ChosunTruck [-D|--Car_Detection]

Troubleshooting

OpenCV CUDA Libraries

Having trouble building OpenCV libraries with CMake? No worries, just use the prebuilt OpenCV libraries provided through nuget.

Linker Errors

Getting Linker Errors (LNKxxxx)?

Go to:

 My Project --> properties --> linker --> input --> additional dependencies

and change the path of your Linker dependencies to

opencv_calib3d310.lib;opencv_core310.lib;opencv_features2d310.lib;opencv_flann310.lib;opencv_highgui310.lib;opencv_imgcodecs310.lib;opencv_imgproc310.lib;opencv_ml310.lib;opencv_objdetect310.lib;opencv_photo310.lib;opencv_shape310.lib;opencv_stitching310.lib;opencv_superres310.lib;opencv_ts310.lib;opencv_video310.lib;opencv_videoio310.lib;opencv_videostab310.lib;opencv_viz310.lib;%(AdditionalDependencies)

Then, go to

C/C++ --> general --> additional #include dependencies

and change the path to where your opencv libraries are located

Assertion failed

Getting an error that looks like this when in Debug mode?

OpenCV Error: Assertion failed (src.checkVector(2, CV_32F) == 4 && dst.checkVect or(2, CV_32F) == 4) in cv::getPerspectiveTransform, file ...\opencv_sources\modules\imgproc\src\imgwarp.cpp, line 6353
  • Switch to Release build for now. Usually this is caused by a wrong Mat type being used (in this case, CV_32F).

Or this?

OpenCV Error: Assertion failed (ssize.area() > 0) in cv::remapBilinear, file ...\opencv\sources\modules\imgproc\src\imgwarp.cpp, line 3868

If you have some problems running this project, reference the demo video below. Or, open a issue to contact our team.

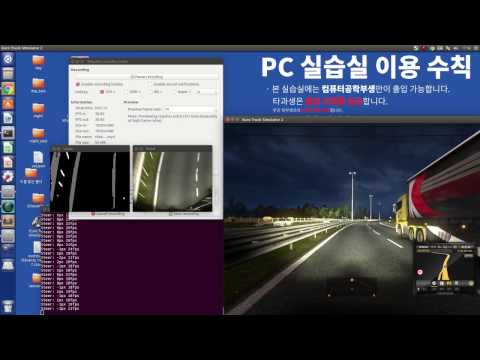

Demo Video

Lane Detection (Youtube link)

youtube link

Lane Detection + Vehicle Detection (Youtube link)

youtube link

Founders

Contributors

How To Contribute

Anyone who is interested in this project is welcome! Just fork it and pull requests!

License

ChosunTruck, Euro Truck Simulator 2 auto driving solution Copyright (C) 2017 chi3236, bethesirius, uoyssim

This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program. If not, see http://www.gnu.org/licenses/.
