Categorical colormapping of 3D arrays

[ianthomas23]

This is an draft PR to add categorical colormapping to Bokeh. It is essentially a reimplementation of Datashaders _colorize function so that all of the data is at the Bokeh level and available for colormapping and inspection. It definitely targets after the 3.0 release and is here as a starting point for discussions about functionality and implementation.

Example:

from bokeh.layouts import row
from bokeh.models import ColorBar, EqHistColorMapper, WeightedStackColorMapper
from bokeh.palettes import varying_alpha_palette
from bokeh.plotting import figure, show
import numpy as np

colors = ["red", "green", "blue"]
min_alpha = 40

def categorical_data():
    n = 20
    samples = 1000
    rng = np.random.default_rng(92478)

    centers = [(0.3, 0.3), (0.7, 0.5), (0.3, 0.7)]
    radii = [0.2, 0.3, 0.15]
    ncats = len(radii)

    dx = 1.0/n
    data = np.zeros((n, n, ncats), dtype=np.float32)
    data[:] = np.nan

    for k in range(ncats):
        x = rng.normal(centers[k][0], radii[k], samples)
        y = rng.normal(centers[k][1], radii[k], samples)
        i = (x / dx).astype(int)
        j = (y / dx).astype(int)
        for ii, jj in zip(i, j):
            if 0 <= ii < n and 0 <= jj < n:
                if np.isnan(data[jj, ii, k]):
                    data[jj, ii, k] = 1.0
                else:
                    data[jj, ii, k] += 1.0
    return data

data = categorical_data()
p = figure(width=500, height=400)

alpha_mapper = EqHistColorMapper(palette=varying_alpha_palette(color="#000", n=10, start_alpha=min_alpha))
color_mapper = WeightedStackColorMapper(palette=colors, nan_color=(0, 0, 0, 0), alpha_mapper=alpha_mapper)#, color_baseline=-10)
p.image_stack(image=[data], x=0, y=0, dw=1, dh=1, color_mapper=color_mapper)

color_bar = ColorBar(color_mapper=color_mapper)
p.add_layout(color_bar, "right")

show(p)

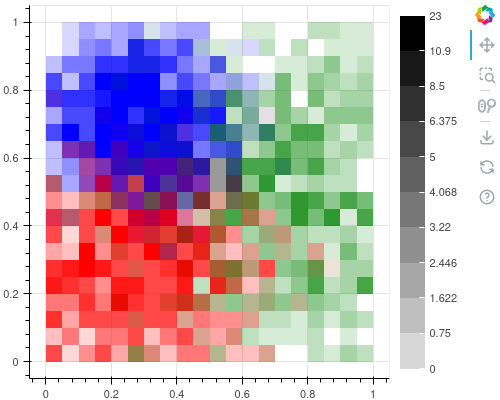

which gives

This uses a new ImageStack class, passing a 3D array of dims (ny, nx, ncat) where ncat is the number of categories. Each category has a color that is passed to the WeightedStackColorMapper that aggregates the 3D data array down to a 2D RGBA array. The colors are combined using a (sort of) weighted sum across the categories for each array element, and the alpha value is determined using a separate alpha_mapper which here is an EqHistColorMapper but could be linear or log or whatever. You can control the min_alpha via the alpha_mapper, and the color_baseline via the StackColorMapper. RGBA outputs are very similar to Datashader but not identical; I need to identify if these are just rounding errors or some fundamental difference.

The colorbar shows the EqHist levels using a color from the varying_alpha_palette that is only used for this purpose.

Some of the design and implementation are a little crude and will need discussion and improvement.

This will only be the start of work in this direction. The longer term plan is to support multiple ways of combining the categorical data (within BokehJS or via JS callbacks) and significantly richer colorbar/legend/labelling to support more complicated situations.

There are no tests at all yet, I have been comparing against Datashader so far.

(Edited to follow updated code).

[codecov]

Codecov Report

Merging #12356 (d98de08) into branch-3.1 (f63969a) will increase coverage by 0.00%.
The diff coverage is 94.73%.

@@             Coverage Diff             @@
##           branch-3.1   #12356   +/-   ##
===========================================
  Coverage       92.23%   92.24%
===========================================
  Files             314      314
  Lines           19682    19702   +20
===========================================
+ Hits            18154    18174   +20
  Misses           1528     1528

[mattpap]

Some of the CI failures are unrelated and will be fixed in PR #12631.

[ianthomas23]

Some of the CI failures are unrelated and will be fixed in PR #12631.

Thanks. I will finish this off on Monday (hopefully) then it will be ready for discussion and review.

[ianthomas23]

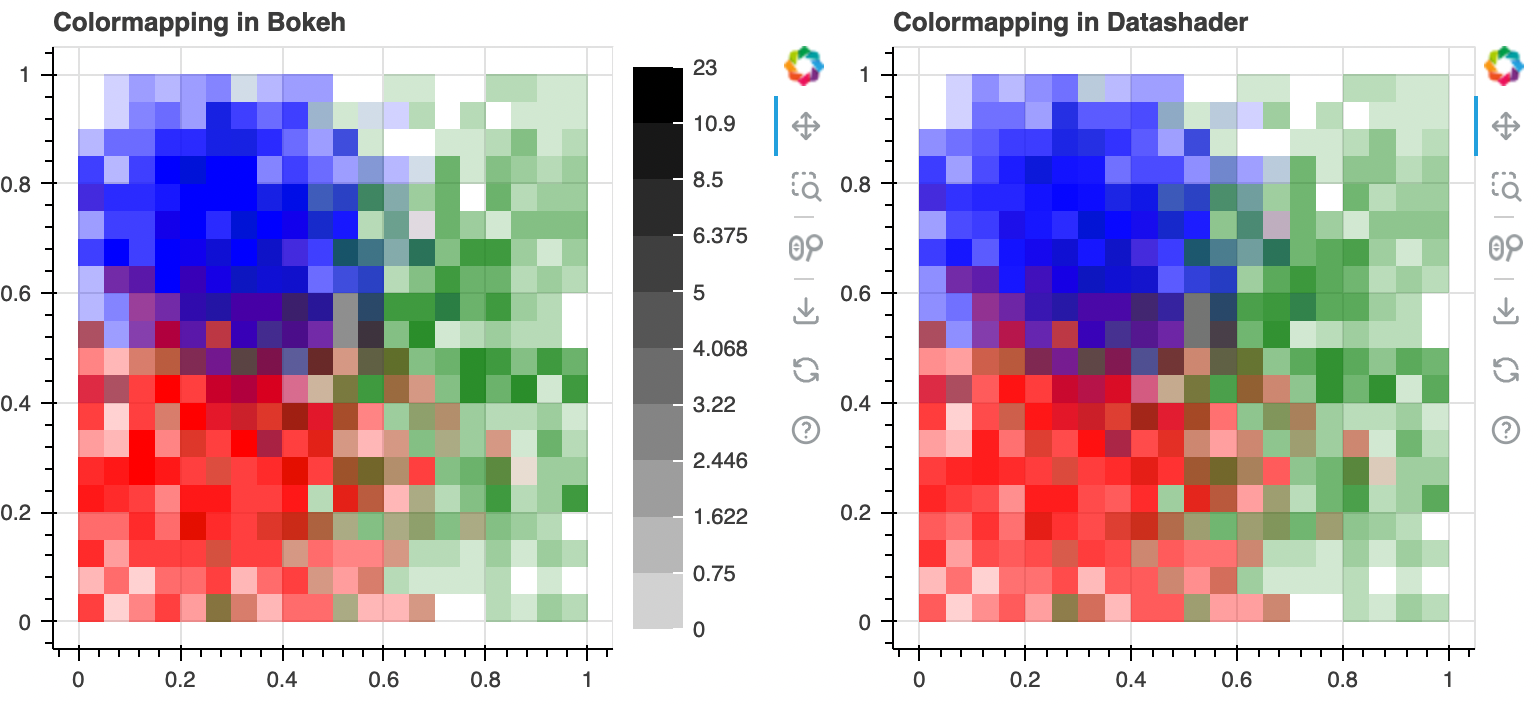

Comparison of the output here using Bokeh vs using Datashader's shade function:

Code to reproduce:

from bokeh.layouts import row
from bokeh.models import ColorBar, EqHistColorMapper, WeightedStackColorMapper
from bokeh.palettes import varying_alpha_palette
from bokeh.plotting import figure, row, show
import datashader.transfer_functions as tf
import numpy as np
import xarray as xr

n = 20
colors = ["red", "green", "blue"]
min_alpha = 40
want_floats = False

def categorical_data():
    samples = 1000
    rng = np.random.default_rng(92478)

    centers = [(0.3, 0.3), (0.7, 0.5), (0.3, 0.7)]
    radii = [0.2, 0.3, 0.15]
    ncats = len(radii)

    dx = 1.0/n
    if want_floats:
        data = np.full((n, n, ncats), np.nan, dtype=np.float32)
    else:
        data = np.zeros((n, n, ncats), dtype=np.uint32)

    for k in range(ncats):
        x = rng.normal(centers[k][0], radii[k], samples)
        y = rng.normal(centers[k][1], radii[k], samples)
        i = (x / dx).astype(int)
        j = (y / dx).astype(int)
        for ii, jj in zip(i, j):
            if 0 <= ii < n and 0 <= jj < n:
                if np.isnan(data[jj, ii, k]):
                    data[jj, ii, k] = 1
                else:
                    data[jj, ii, k] += 1
    return data

data = categorical_data()

ps = []
for i in range(2):
    title = "Bokeh" if i == 0 else "Datashader"
    kwargs = dict(width=420, height=350, title=f"Colormapping in {title}")
    if i > 0:
        kwargs["x_range"] = ps[0].x_range
        kwargs["y_range"] = ps[0].y_range
        kwargs["width"] = 350
    p = figure(**kwargs)
    ps.append(p)

    if i == 0:  # Bokeh colormapping
        if not want_floats:  # Convert unwanted data to nan.
            data = data.astype(np.float64)
            data[data == 0] = np.nan
        alpha_mapper = EqHistColorMapper(palette=varying_alpha_palette(color="#000", n=10, start_alpha=min_alpha))
        color_mapper = WeightedStackColorMapper(palette=colors, nan_color=(0, 0, 0, 0), alpha_mapper=alpha_mapper)#, color_baseline=-10)
        p.image_stack(image=[data], x=0, y=0, dw=1, dh=1, color_mapper=color_mapper)

        color_bar = ColorBar(color_mapper=color_mapper)
        p.add_layout(color_bar, "right")
    else:  # Datashader colormapping
        coords = np.arange(n, dtype=np.float64)
        cat = ["A", "B", "C"]  # <U1 "F" "M"
        da = xr.DataArray(data=data, dims=["y", "x", "cat"],
            coords=dict(x=coords, y=coords, cat=["A", "B", "C"]))
        im = tf.shade(da, color_key=colors, min_alpha=min_alpha).to_numpy()
        p.image_rgba(image=[im], x=0, y=0, dw=1, dh=1)

show(row(ps))

[ianthomas23]

This is now ready, there are a couple of things to highlight/discuss.

1. This reuses the Image glyph. You can pass in 2D arrays as before and colormap using LinearColorMapper or similar, or pass in 3D arrays and colormap using StackColorMapper. Validation of the 2D/3D arrays and their color mappers occurs in BokehJS but not Python.

2. The new colormapper class is called StackColorMapper. I'm not really happy about the name but I cannot think of a better one. The Stack part of the name comes from the 3D array really being a stack of 2D arrays that are combined to be rendered as a 2D image. In datashader we would probably call it a CategoricalColorMapper but that is too specific for the Bokeh use case. It could be a FlatteningColorMapper.

[ianthomas23]

Before this PR, all ColorMapper classes render themselves. Now a WeightedStackColorMapper renders its alpha_mapper. This function could be replaced by a virtual function in ColorMapper that is overridden in WeightedStackColorMapper, but the instanceof checks are quite common in the color mapper classes so I have followed that approach.

[ianthomas23]

This length_divisor isn't ideal, but is the easiest way to add the new functionality here. Really it is the length of the third dimension of the supplied array, but as we are dropping the dimensionality of arrays before they get here the information is not available so has to be passed in from lower down the call stack.

[mattpap]

We need to start using ndarrays in such APIs, but that's something for another time, as the existing ndarrays in bokehjs aren't that useful right now.

[ianthomas23]

The original _v_compute is generic and is called from a number of different places. This new _v_compute_uint32 is a specialisation of that function for uint32, i.e. colors that have been converted to RGBA bytes. This is only ever called from the rgba_mapper() function.

[ianthomas23]

Below the default behaviour is to drop back to the generic function. WeightedStackColorMapper implements its own version of the uint32 function as it directly manipulates the R, G, B and A bytes.

[bryevdv]

This reuses the Image glyph. You can pass in 2D arrays as before and colormap using LinearColorMapper or similar, or pass in 3D arrays and colormap using StackColorMapper. Validation of the 2D/3D arrays and their color mappers occurs in BokehJS but not Python.

This is the part I am concerned about. Having a situation where users have to carefully coordinate multiple parameter types because various combinations don't work at all together is inviting usage problems.

I guess I'd like to think about adding a new glyph type, that only accepts stacked images and only accepts stacked color mappers. Users won't have to fret over matching the right kind of mapper with the right kind of image, and if they get something wrong it will be a property error at the python level

Alternatively, we could consider adding a validation rule but I do think those are best avoided unless there is no better option to provide meaningful errors at the python level.

[ianthomas23]

I did originally write it as a separate ImageStack glyph but then I rolled it into Image after someone asked if that was possible. I am happy to separate it out again.

[bryevdv]

My preference would be to have a separate ImageStack but interested in hearing any other opinions from @bokeh/core

Question: are there any other operations specific to image stacks, besides stacked colormapping, that we might imagine adding in the future? I can imagine some hover operations or other aggregations that might apply.

[ianthomas23]

Question: are there any other operations specific to image stacks, besides stacked colormapping, that we might imagine adding in the future? I can imagine some hover operations or other aggregations that might apply.

Yes, in the short term I expect specific hover operations and probably some richer colorbar and legend possibilities. Longer term it is possible that this opens the door to a whole suite of image stack operations with a number of different color mappers.

[ianthomas23]

I've moved the new functionality out of Image and put it in a new ImageStack. Image and ImageStack are pretty similar so there is the opportunity for a shared base class here, but we already have an ImageBase and I can't think of a reasonable name for a new one that inherits from ImageBase. This could be something we refactor in the future, and this also applies to the ColorMapper classes if we end up extending that class hierarchy in future which seems likely.

I've also modified the examples above in line with these changes.

[bryevdv]

I really like the updated version @ianthomas23 One last thought: what you think about making StackColorMapper a base class, and renaming the current color mapper in this PR to WeightedStackColorMapper or similar? What comes to mind is that another mode of operations could be to have a standard 2d image color mapping on just one "slice" of the stack, e.g. SlicedStackColorMapper. I could imagine a slider or other method used to scrub through the individual slices by setting the slice index on the colormapper. I think having StackColorMapper be a base class would leave the door open more cleanly for additional color mapping options for stacked images in the future.

[ianthomas23]

@bryevdv Yes, that is a good idea. I cannot think of a better name than WeightedStackColorMapper so let's go with that.

[mattpap]

bokeh/bokehjs/test/baselines/linux/Tabs__should_allow_tabs_header_location_below_with_active_==_1.png

This shouldn't have been committed. This file is empty in this PR. Restoring the original will fix failing integration tests.
