Some issues with post-processing of included graphics #939

Closed
asmaier opened this issue Feb 3, 2018 · 5 comments

Comments

@asmaier
Copy link

@asmaier asmaier commented Feb 3, 2018

The output of the following example document including two graphics (the EPS can be freely downloaded from https://www.freepik.com/index.php?goto=74&idfoto=762099) shows some problems with the post-processing of images in LaTeXML:

\documentclass[12pt,a4paper,twoside]{book}
\usepackage{graphicx}
\begin{document}
\begin{figure}[t]
    \centering
	\includegraphics[width=0.8\linewidth]{Sheet-of-paper-with-grid/04.eps}
	\includegraphics[trim=0 0 400 400, width=0.8\linewidth, clip]{Sheet-of-paper-with-grid/04.eps}
\end{figure}

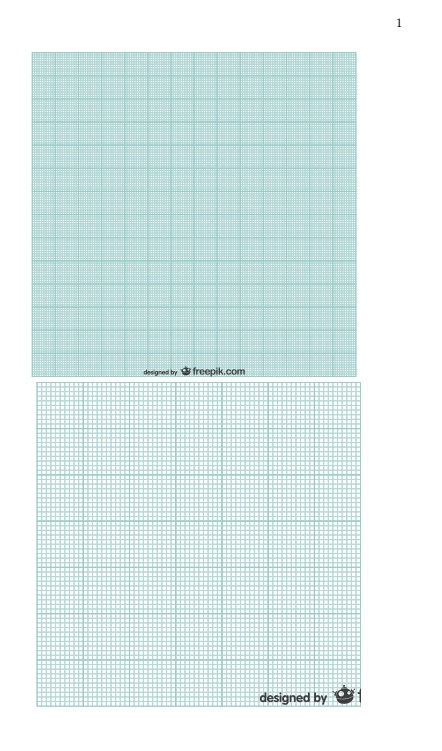

Using pdflatex the output looks like
pdflatex

Using LaTeXML like

$ latexml testgraphics.tex --dest=testgraphics.xml
$ latexmlpost --format=html5 --javascript='https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.2/MathJax.js?config=MML_CHTML' --dest=testgraphics.html testgraphics.xml

the output looks like

latexml

I see three issues here:

  1. Obviously the colors don't fit. This might be due to issues with transparency in the EPS file.
  2. The width=0.8\linewidth parameter seems to be ignored or handled differently. With pdflatex this causes the image to take 80% of the width of the text. So the second image ends up below the first image. This doesn't happen with LaTeXML. When I add a third image it will also show up at the side and not below the other images.
  3. The parameters for trim seem to be interpreted differently by LaTeXML. The size of the image is 800x800 points, so trim=0 0 400 400 should crop the lower left quadrant of the image. But the area cropped by latexmlpost is smaller than that. Maybe latexmlpost doesn't use points as default units as pdflatex does?

For the test I had installed the latest version of LaTeXML on Mac OS 10.12.6 via

brew install https://raw.githubusercontent.com/matteosecli/homebrew-core/patch-1/Formula/latexml.rb --HEAD

My versions of the software were

$ latexml --VERSION
latexml (LaTeXML version 0.8.2; revision f48d643)
$ convert -version
Version: ImageMagick 7.0.7-22 Q16 x86_64 2018-02-01
@dginev dginev added the bug label Feb 3, 2018
@dginev dginev added this to the LaTeXML-0.8.4 milestone Feb 4, 2018
@brucemiller

This comment has been minimized.

Copy link
Owner

@brucemiller brucemiller commented Feb 4, 2018

Issue (1) seems due to transparency; I now check if the image already has a transparent color set. The result is better, perhaps, but still kind of iffy (perhaps for other reasons?)

Issue(2) is a bit tricky; \linewidth is understood, but it isn't setting the image size to 80% (tricky to preserve the relative size). And the flow (linewrap) isn't handled quite the same way as LaTeX would, with fixed width page at run time. I'm going to defer on this for now.

Issue(3) the trim (& clip) needed to be handled in points relative to the image's own resolution, even though we're magnifying the image slightly.

So, this is all (mostly) fixed. Thanks for the report!

@brucemiller brucemiller closed this Feb 4, 2018
@asmaier

This comment has been minimized.

Copy link
Author

@asmaier asmaier commented Feb 6, 2018

Thank you for solving the issue (3) about trim. Now it works as expected.

But issue (1) doesn't seem to be fixed. In my tests I still don't see the correct colors. However using imagemagick on the commandline I saw, that the problem might be due to the CMYK colorspace of the EPS file. To convert that file one has to use -colorspace sRGB instead of -colorspace RGB to get the correct colors.

For issue(2) I found some kind of a workaround. To make sure the second image will show up below the first image in the HTML produced by latexmlpost one has have one \figure environment for each \includegraphics like

\documentclass[12pt,a4paper,twoside]{book}
\usepackage{graphicx}
\begin{document}
\begin{figure}[t]
    \centering
	\includegraphics[width=0.8\linewidth]{Sheet-of-paper-with-grid/04.eps}
\end{figure}
\begin{figure}[t]
    \centering
	\includegraphics[trim=0 0 400 400, width=0.8\linewidth, clip]{Sheet-of-paper-with-grid/04.eps}
\end{figure}

@brucemiller

This comment has been minimized.

Copy link
Owner

@brucemiller brucemiller commented Feb 6, 2018

Yeah, as I said the "fix" for (1) doen't quite do it. In fact, I just discovered it seems to be mangling the colors of some of my images. Thanks for the clue; it may be that the colorspace is the issue.

@brucemiller brucemiller reopened this Feb 6, 2018
@brucemiller

This comment has been minimized.

Copy link
Owner

@brucemiller brucemiller commented Feb 7, 2018

OK, I think (hope!) this is fixed now. Thanks again;

@brucemiller brucemiller closed this Feb 7, 2018
@asmaier

This comment has been minimized.

Copy link
Author

@asmaier asmaier commented Feb 8, 2018

I can confirm issue (1) is fixed now. Thank you very much.

@dginev dginev modified the milestones: LaTeXML-0.8.4, LaTeXML-0.8.3 Feb 25, 2018
