This project was develop with the purpose of testing and understanding Spring Cloud Sleuth and Spring Cloud Zipkin.

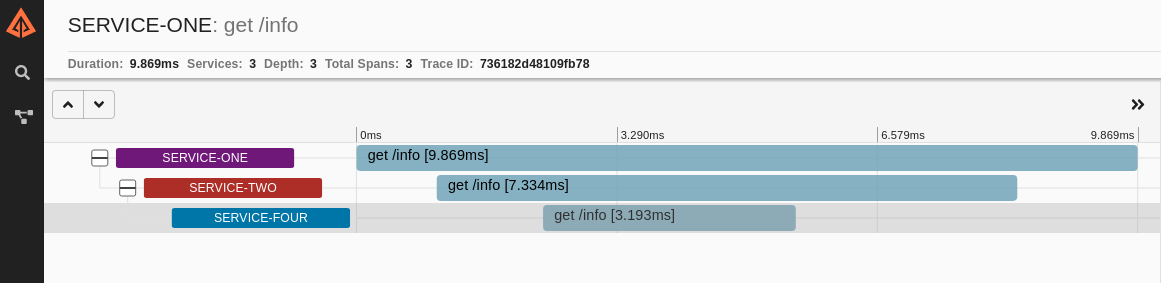

This is an analysis of a trace (multiple requests spanning several services):

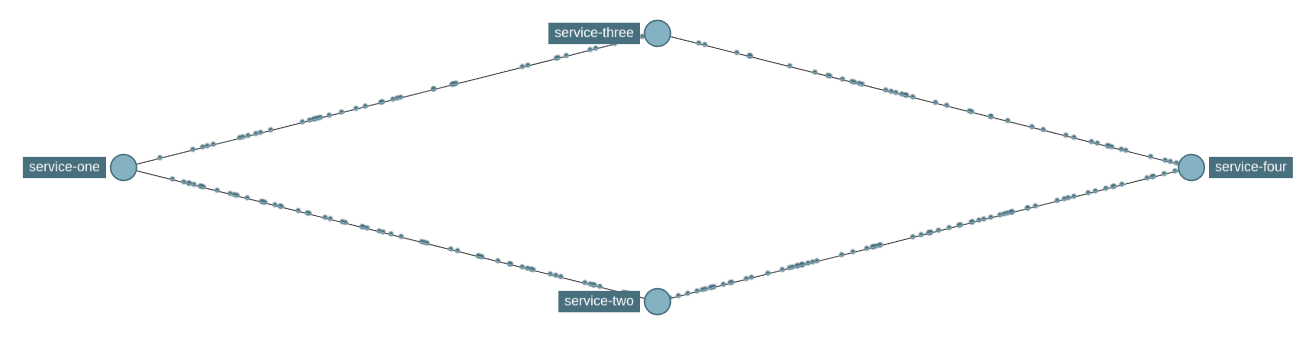

This is the visualization of service dependencies:
... marks logs with information that will be used for distributed tracing later.
Example of a log line with Sleuth:
2020-07-25 23:43:36.021 INFO [service-two,838f7c8a473d02df,f7e7a5468a2f7526,true] 789 --- [nio-8081-exec-4] d.d.d.servicetwo.MyController : returning ok from Service Two
Notice the [service-two,838f7c8a473d02df,f7e7a5468a2f7526,true] part. This is what Sleuth adds.
... is an application that receives part of the log info (you can configure) and is able to show timing information about the requests through multiple (micro)services as well as a graphical visualization of your services infrastructure.
Just for fun, I added Spring Boot Actuator to expose application metrics. Also, I added Micrometer's Prometheus dependency to expose the metrics according to how Prometheus expects it. Of course, I added a pre-configured Proometheus instance to the repository.
This demo is composed of 4 services. The first one ("first layer") balances requests between 2 and 3 (the "second layer" of services) which in turn ends up requesting info to the service number 4 (the "third layer" of the infrastructure).
Service 3 has a Thread.sleep(200) to make it slower. You can see on Zipkin that it gets less requests than service 2 because of that.
You may run the scripts/start-all.sh script, which starts everything and runs an ab (apache Bench) test for you to have some info on Zipkin server. After running it instructs you to head to http://localhost:9411 and analyze the tracing information for yourself.
NOTE: you need java 11 and Apache Bench for the script to work properly.
NOTE: you may have to stop the services manually later. Improvements on the script to come, maybe.
Below is the execution log:
$ ./start-all.sh
Starting zipkin server...
Starting Prometheus...
Starting services...
Waiting 20s for services to start
Starting benchmarking...
This is ApacheBench, Version 2.3 <$Revision: 1843412 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/
Benchmarking localhost (be patient)
Completed 1000 requests
Completed 2000 requests
Completed 3000 requests
Completed 4000 requests
Completed 5000 requests
Completed 6000 requests
Completed 7000 requests
Completed 8000 requests
Completed 9000 requests
Completed 10000 requests
Finished 10000 requests
Server Software:
Server Hostname: localhost
Server Port: 8080
Document Path: /info
Document Length: 89 bytes
Concurrency Level: 10
Time taken for tests: 159.370 seconds
Complete requests: 10000
Failed requests: 0
Total transferred: 1940000 bytes
HTML transferred: 890000 bytes
Requests per second: 62.75 [#/sec] (mean)
Time per request: 159.370 [ms] (mean)
Time per request: 15.937 [ms] (mean, across all concurrent requests)
Transfer rate: 11.89 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 0 0 0.1 0 4
Processing: 2 158 150.5 302 744
Waiting: 2 158 150.5 302 733
Total: 2 159 150.5 302 744
Percentage of the requests served within a certain time (ms)
50% 302
66% 308
75% 308
80% 309
90% 310
95% 313
98% 317
99% 321
100% 744 (longest request)
Go to http://localhost:9411/ to see trace information.

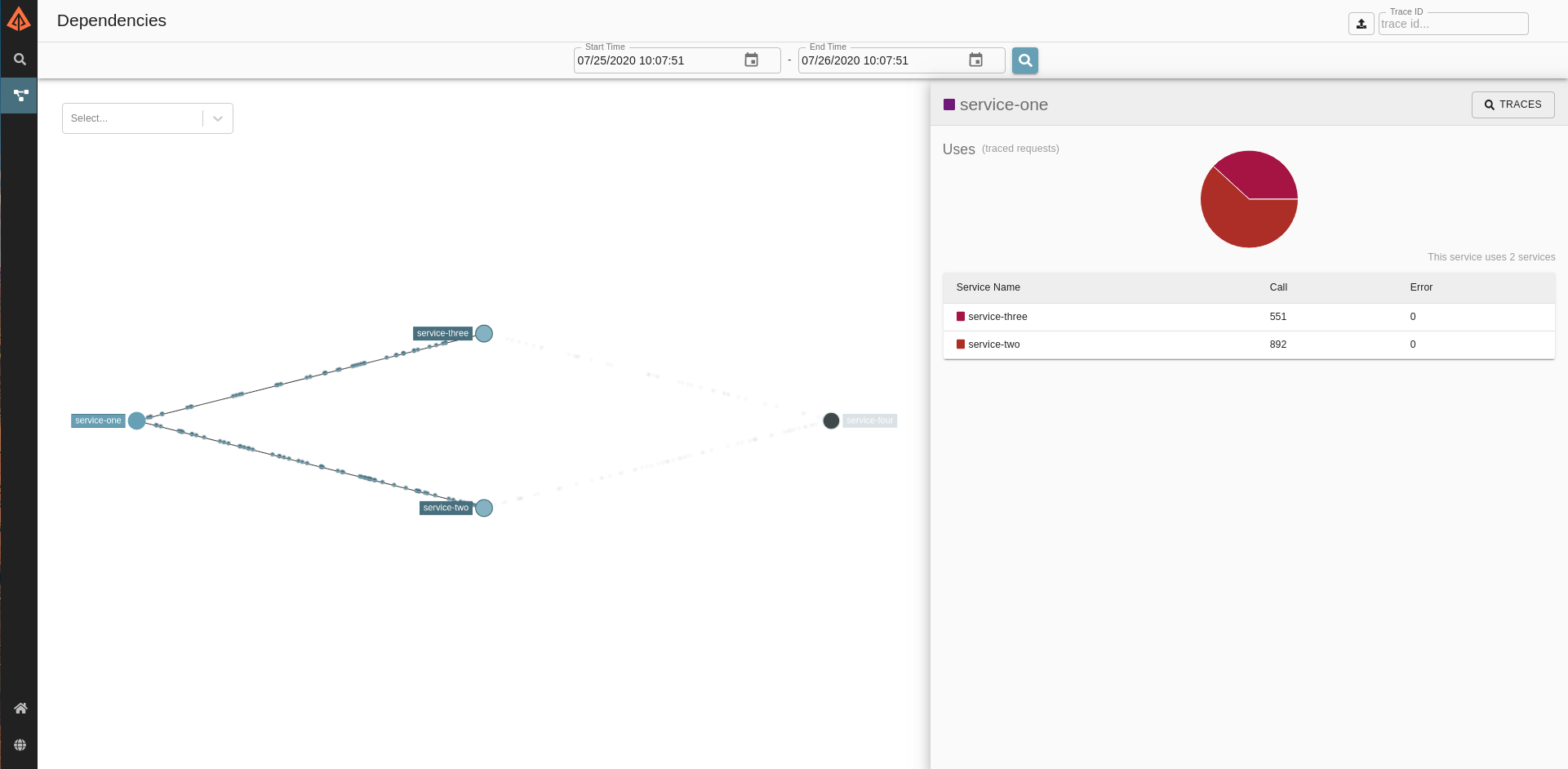

Go to http://localhost:9090/ to observe the services via Prometheus.And the resultant Zipkin graph (http://localhost:9411/zipkin/dependency):

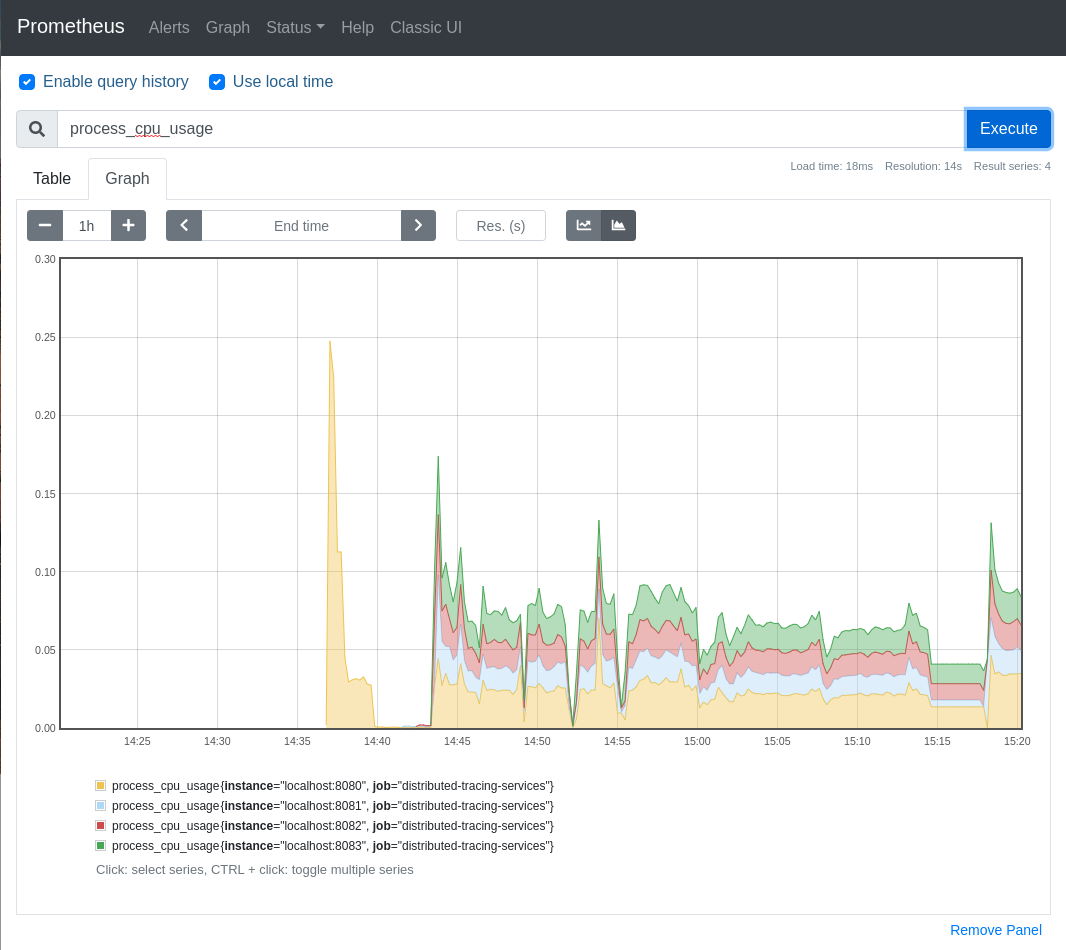

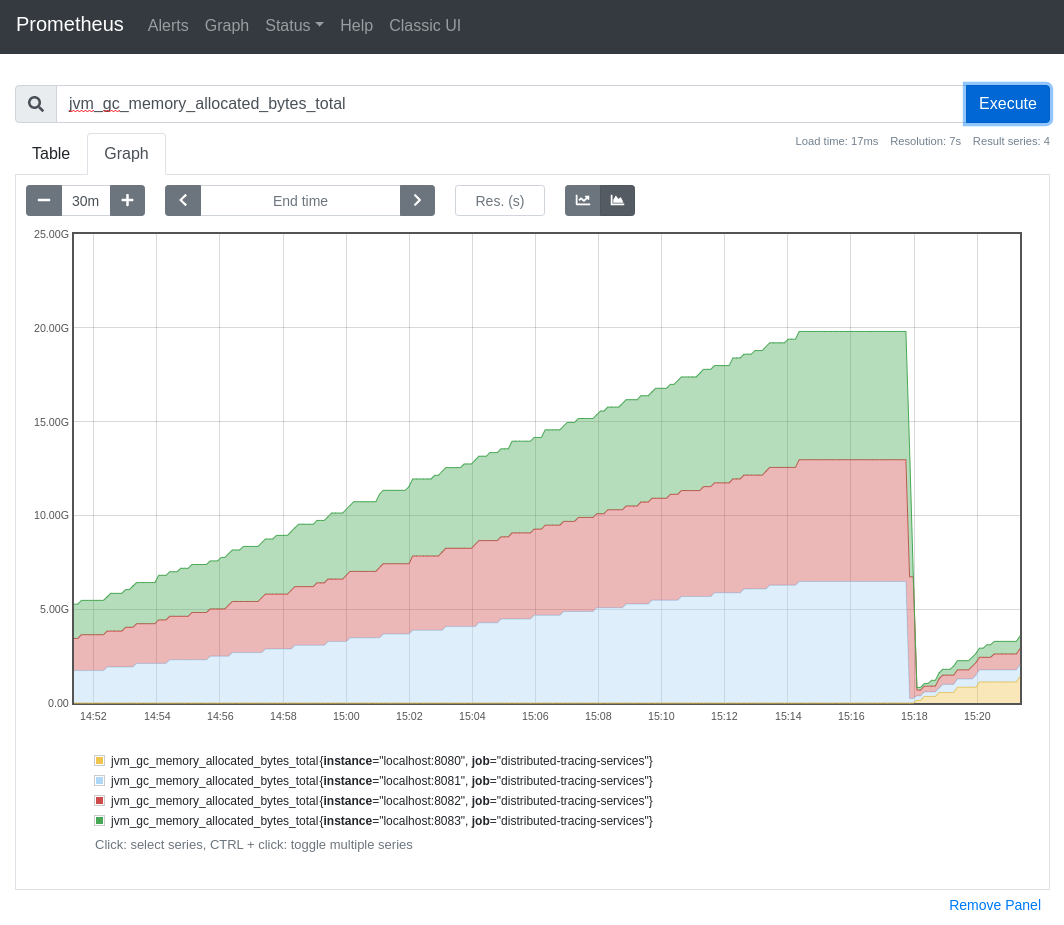

Also, you can play around with Prometheus at http://localhost:9090/ to see stuff like this:
