A UICollectionViewLayout subclass to put items in a quilting pattern

branch: master


RFQuiltLayout is a UICollectionViewLayout subclass, used as the layout object of UICollectionView.

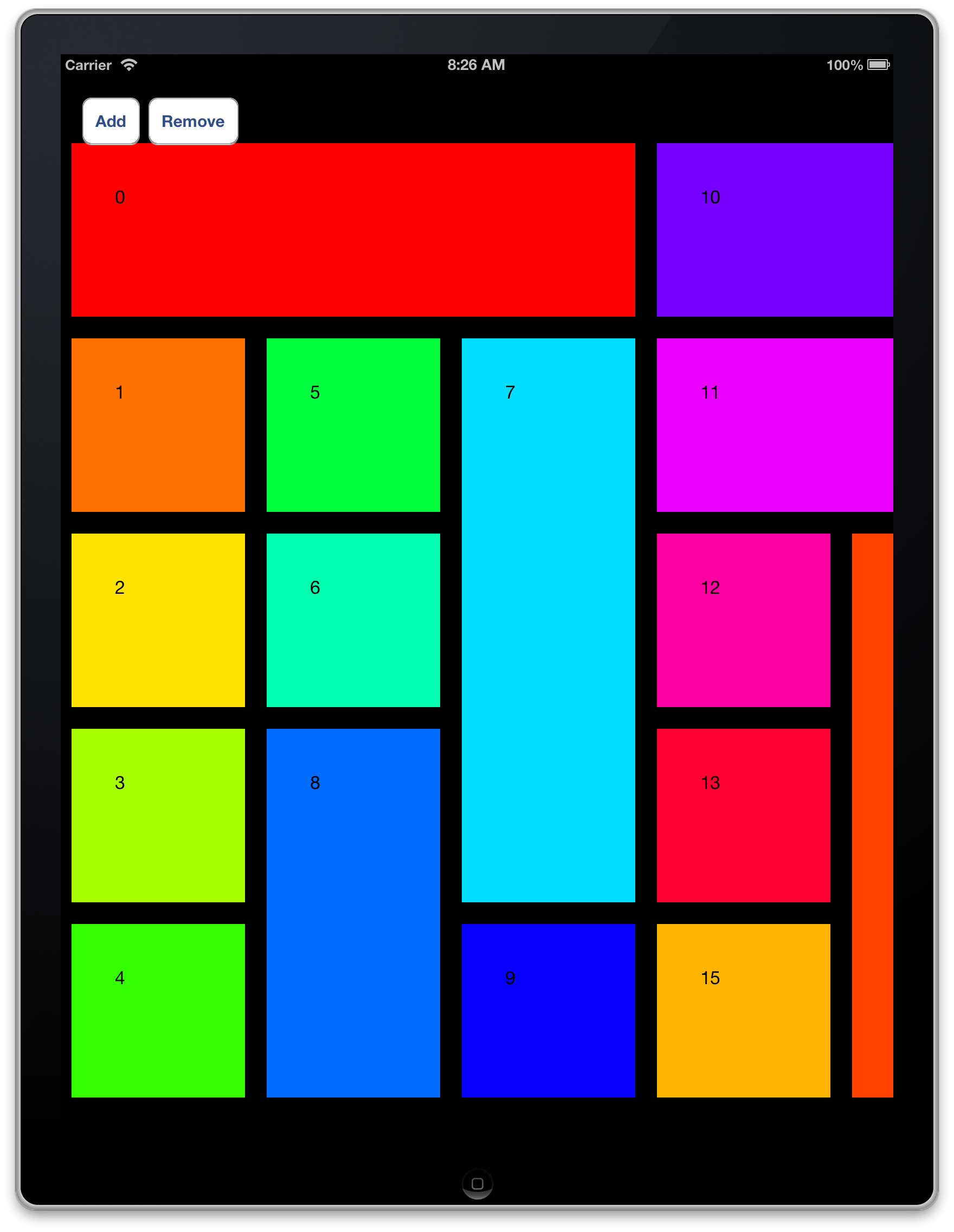

Demo 1Demo 2

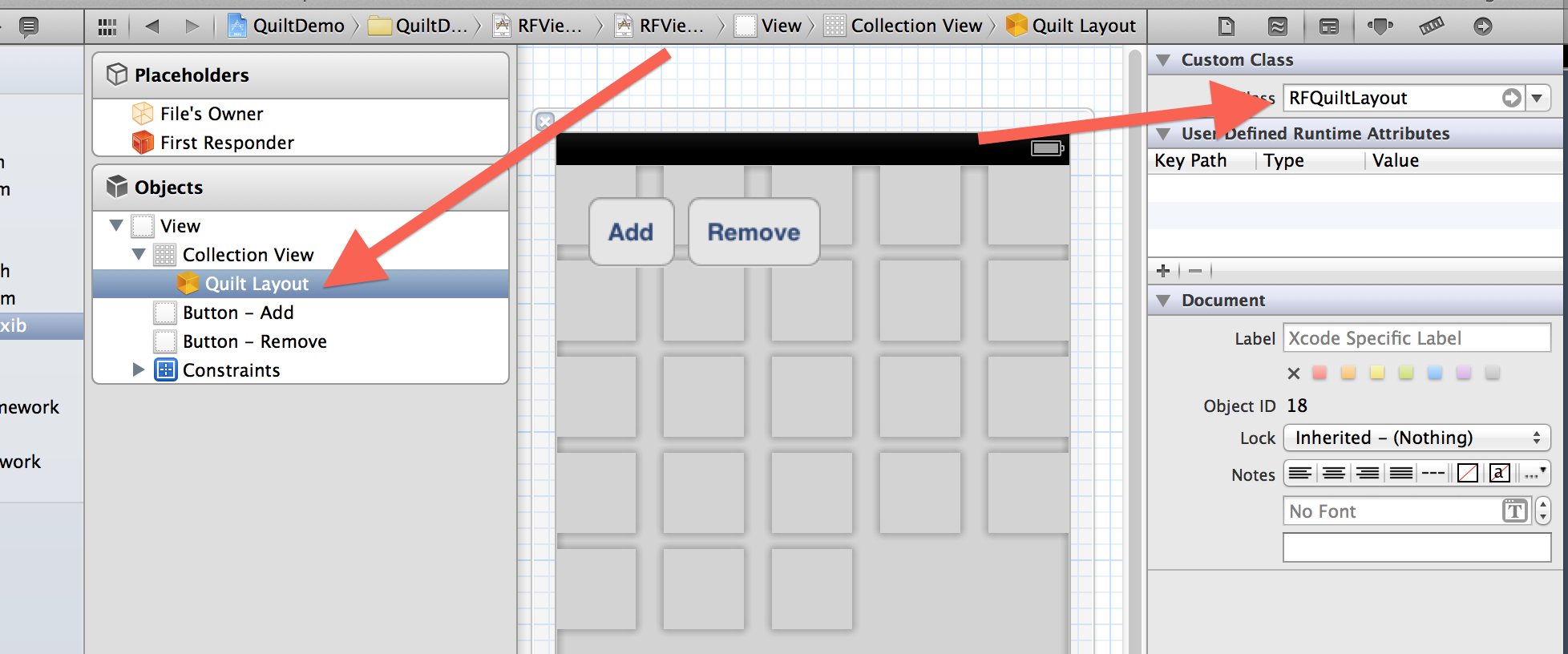

Add the layout as the subclass of your UICollectionViewLayout.

Subclass the layout

Make sure you set the delegate of the flow layout

- (void) viewDidLoad {
  // ...

  RFQuiltLayout* layout = (id)[self.collectionView collectionViewLayout];
  layout.direction = UICollectionViewScrollDirectionVertical;
  layout.blockPixels = CGSizeMake(100, 100);

- (CGSize) blockSizeForItemAtIndexPath:(NSIndexPath *)indexPath {
    if (indexPath.row % 2 == 0)
        return CGSizeMake(2, 1);

    return CGSizeMake(1, 2);

(Note: all delegate methods and properties are optional)
