simcom - A compiler and interpreter for the SIMPLE language

Author: Anthony Burzillo

A product of Peter Fröhlich's Spring 2013 Compilers and Interpreters class at Johns Hopkins.


Language

In our implementation, the SIMPLE language is a statically typed, imperative language with a single basic data type INTEGER as well as two constructive data types ARRAY and RECORD.

Check out the the grammar for the language, some of the tests, or the class website for more information about the SIMPLE language.

Executables

Consider the iffy program in tests/iffy.sim which writes 0 to the screen:

PROGRAM iffy;
  VAR x, y, z : INTEGER;
BEGIN
  x := 6;
  IF x MOD 200 >= 56 THEN
    WRITE 1
  ELSE
    WRITE 0
  END
END iffy.

sc - the SIMPLE compiler

Print out all the tokens in a program:

$ ./sc -s tests/iffy.sim
PROGRAM@1
identifier<iffy>@1
;@1
VAR@2
identifier<x>@2
,@2
identifier<y>@2
,@2
identifier<z>@2
:@2
identifier<INTEGER>@2
...
WRITE@8
integer<0>@8
END@9
END@10
identifier<iffy>@10
.@10

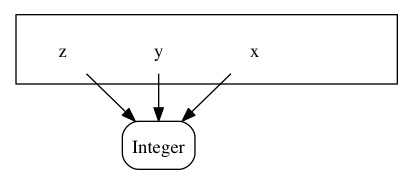

Create a graphical representation of the symbol table (with dot installed):

$ ./sc -t tests/iffy.sim | dot -T jpeg > table.jpg

symbol table

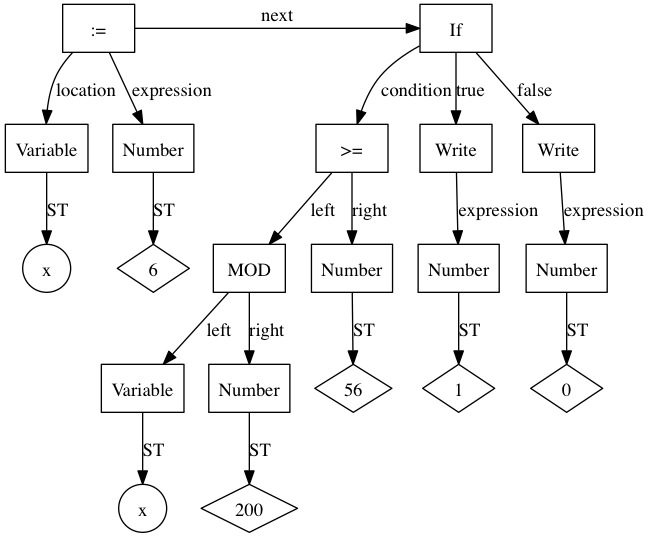

Create a graphical representation of the syntax tree (with dot installed):

$ ./sc -a tests/iffy.sim | dot -T jpeg > tree.jpg

syntax tree

Run the program in with the interpreter:

$ ./sc -i tests/iffy.sim
0

Create lazy AMD64 assembly code and run:

$ ./sc -l tests/iffy.sim > iffy.s
$ gcc -o iffy iffy.s
$ ./iffy
0

Create intermediate code:

$ ./sc -m tests/iffy.sim
Binary(mov): $6 -> !0
Assign: !0 -> x
Binary(mov): $200 -> !1
Division: x / !1
Binary(mov): $56 -> !2
Compare: >%rdx !2
Conditional Jump: >= goto Label: 4540158288
Binary(mov): $1 -> !3
Write: !3
Unconditional Jump: goto Label: 4540158416
Label: 4540158288
Binary(mov): $0 -> !4
Write: !4
Label: 4540158416

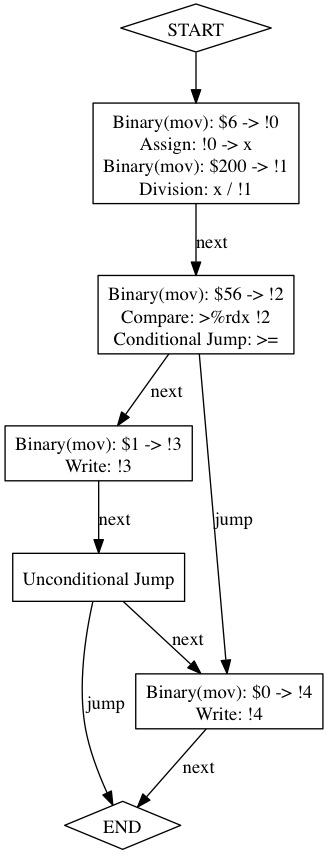

Create the flow graph block representation of the program (with dot installed):

$ ./sc -f tests/iffy.sim | dot -T jpeg > flow_graph.jpg

flow_graph

test

This program runs all of the executables in tests/ and reports on any that fail to run. test can be given any option and that option will be run on each executable.

Run the testing suite:

$ ./test
$$  Test 'args' was successful.
$$  Test 'arrassi' was successful.
$$  Test 'read_in' was successful.
...
$$  Test 't2' was successful.
+++++++++++++++++++++++++++++++++++++++++++
27 tests were run with 27 succesful, 0 failed.
