When viewing raw graph data via the GUI, values are not always calculated correctly #3355

Closed
frontierliu opened this issue Mar 17, 2020 · 1 comment
Labels
bug Undesired behaviour resolved A fixed issue
Milestone

Comments

@frontierliu
Copy link
Contributor

frontierliu commented Mar 17, 2020

Version: Cacti 1.2.10
OS: CentOS 7

20200317115119

When export graph data to html page, It is always base on base_value 1024,not 1000 or any other user defined in graph template. So, when the data is traffic, caculating are not accurate. as below:

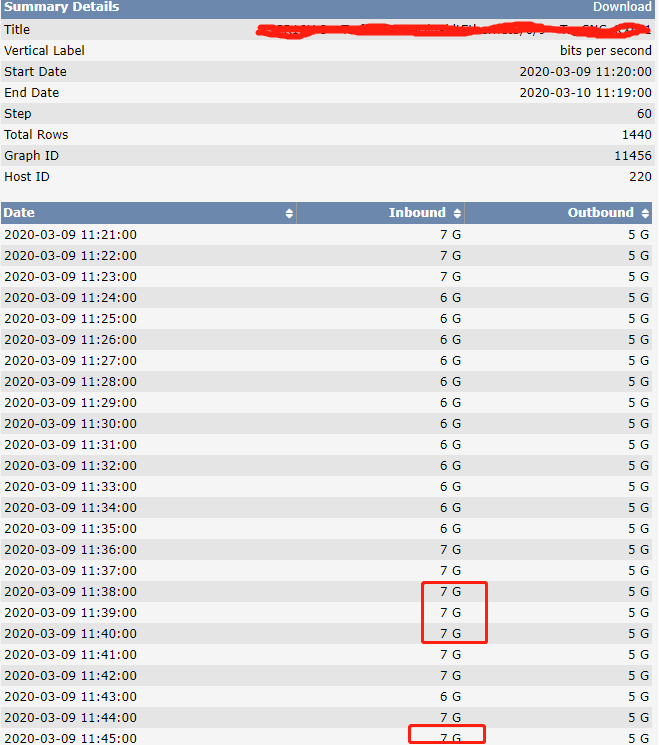

20200311112749

In fact,the traffic data were above 7.5G in peak time.

Explore :
I explore code of graph_xport.php , line 214:
print "<td class='right'>" . trim(number_format_i18n(round($row['col' . $i],3))) . '</td>';
the function number_format_i18n() is defined in include/global_languages.php, line 688:
function number_format_i18n($number, $decimals = 0, $baseu = 1024) {
Obivious it has default base_value =1024, but in graph_xport.php ,the base_value parameter is ignored and always defaut to 1024.

How to fix:
juse modify the code of graph_xport.php, line 214 , as below:

diff --git a/usr/local/github/cacti/graph_xport.php b/graph_xport.php
index 0435ba6..fdd325a 100644
--- a/usr/local/github/cacti/graph_xport.php
+++ b/graph_xport.php
@@ -211,7 +211,7 @@ if (isset($xport_array['data']) && is_array($xport_array['data'])) {
                        print "<tr><td class='left'>" . date('Y-m-d H:i:s', (isset($row['timestamp']) ? $row['timestamp'] : $xport_array['meta']['start'] + $j*$xport_array['meta']['step'])) . "</td>";
                        for ($i = 1; $i <= $xport_array['meta']['columns']; $i++) {
                                if ($row['col' . $i] > 1) {
-                                       print "<td class='right'>" . trim(number_format_i18n(round($row['col' . $i],3))) . '</td>';
+                                       print "<td class='right'>" . trim(number_format_i18n(round($row['col' . $i],3),2,$graph_info['base_value'])) . '</td>';
                                } elseif($row['col' . $i] == 0) {
                                        print "<td class='right'>-</td>";
                                } else {

after modify graph_xport.php, It displays correct.

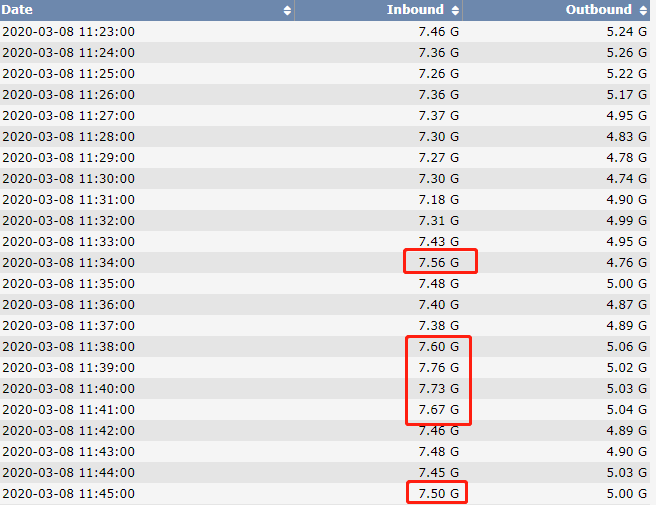

20200311112420

@frontierliu frontierliu changed the title minor bug about base_value in graph_xport.php and how to resolve minor bug about base_value in graph_xport.php and fixed Mar 17, 2020
@TheWitness
Copy link
Member

Pull request againt 1.2.x branch?

TheWitness added a commit that referenced this issue Mar 17, 2020
Resolved in pulle request #3356
@TheWitness TheWitness changed the title minor bug about base_value in graph_xport.php and fixed Minor bug about base_value in graph_xport.php and fixed Mar 17, 2020
@TheWitness TheWitness added bug Undesired behaviour resolved A fixed issue labels Mar 17, 2020
@TheWitness TheWitness added this to the 1.2.11 milestone Mar 17, 2020
@netniV netniV changed the title Minor bug about base_value in graph_xport.php and fixed When viewing raw graph data via the GUI, values are not always calculated correctly Apr 5, 2020
