Add Azure Block Blob Storage backend - #4685
Conversation
auvipy
left a comment
There was a problem hiding this comment.
plz check the lint error, fixing those will trigger test build
Codecov Report
@@ Coverage Diff @@
## master #4685 +/- ##
==========================================
+ Coverage 82.6% 82.65% +0.05%
==========================================
Files 140 141 +1
Lines 15868 15922 +54
Branches 1983 1987 +4
==========================================
+ Hits 13107 13160 +53
Misses 2567 2567
- Partials 194 195 +1
Continue to review full report at Codecov.
|
|
@c-w thank you very much for your contribution! Is there any chance that we can run integration/functional test with this backend, without actually connecting to Azure? |
|
Hi @georgepsarakis. There is Azurite for local emulation of Azure Storage which should be able to emulate all the APIs used in this pull request. If you wish, I can look into setting up Azurite for integration tests. How often do you run the full integration test suite? Are you fundamentally opposed to making live calls against a backend or is it just an issue of setting up test credentials and the associated cost? |
|
@c-w Azurite seems as a great choice for running the tests. @thedrow @auvipy what are your thoughts on this? I believe this could be merged (probably in a later version than 4.2), once we have a closer look. I am just asking if you are agreed, in order to continue looking into the integration testing option. Thanks. |
|
as its a bit big feature we should skip 4.2 |
|
That's great to hear. I'll get onto the integration tests via Azurite and push them onto this pull request. We were also planning to make a few follow-up pull requests after this one:
The overall idea is to use the Storage Queue transport channel with the Block Blob storage backend for simple workloads since the services are very cheap and combined only require setting up a single Azure resource. The combination of ServiceBus transport channel and CosmosDB storage backend on the other hand would enable more demanding workloads due to offering stronger latency guarantees, multi-zone failover, etc. We already have some branches with work-in-progress code for each of these features, but it'll take a bit more time to clean them up and submit pull requests. If you have any thoughts about the above, just let me know. |
|
@georgepsarakis I've implemented the end-to-end test for the backend in 3ea28b6 and 1b9a263. Travis CI now starts Azurite via Docker: The required environment variables to light up the end-to-end test are then also set and the test executes: Changing between Azurite and live Azure with this mechanism is also easy (just over-write the |
|
great work ! @c-w |
|
Excellent work @c-w . I will have a closer look to the code and let you know if there are any suggestions. |
georgepsarakis
left a comment
There was a problem hiding this comment.
@c-w some minor notes, generally this looks fine.
| fi | ||
| - | | ||

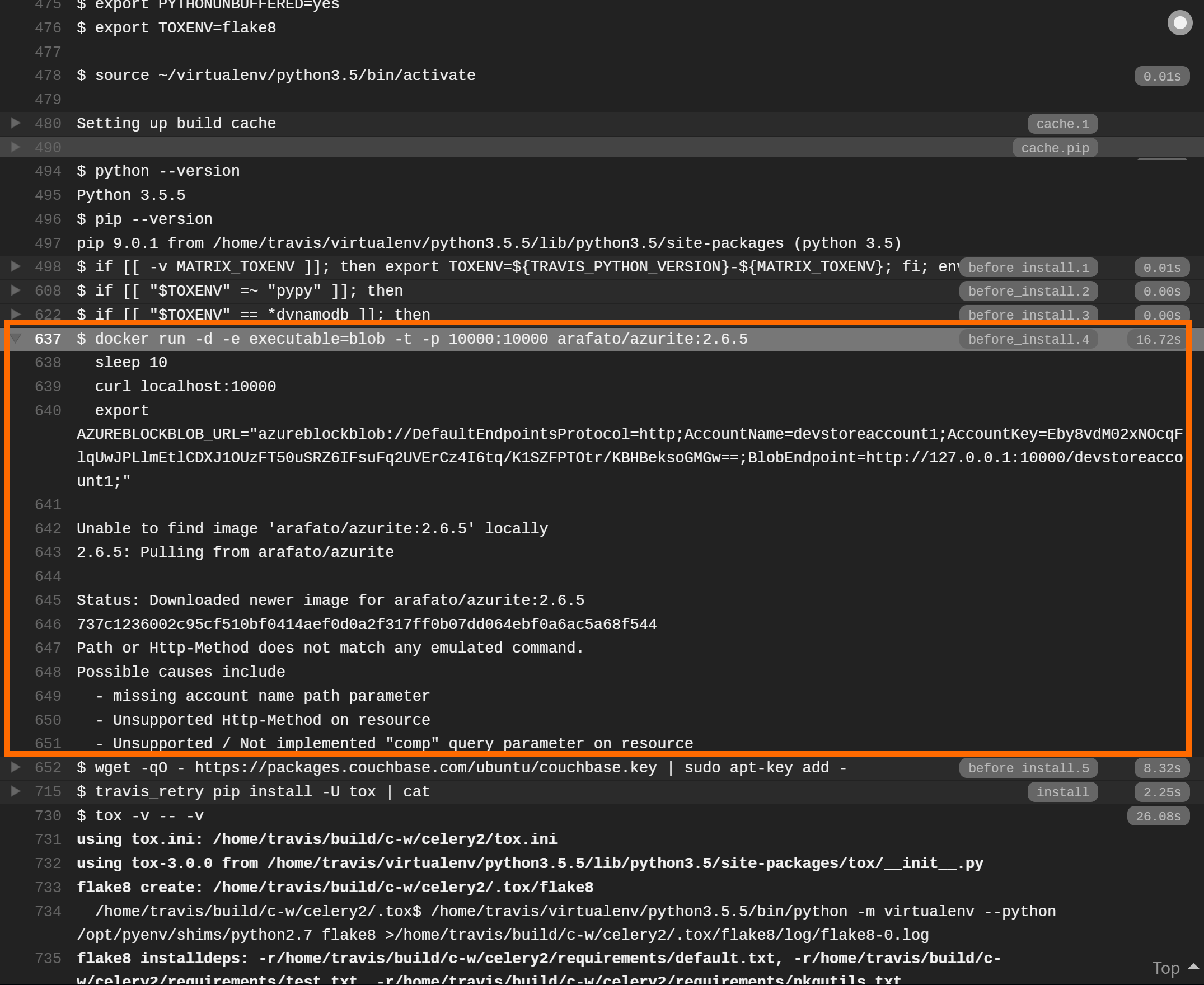

| docker run -d -e executable=blob -t -p 10000:10000 arafato/azurite:2.6.5 | ||
| while ! nc -zv 127.0.0.1 10000; do sleep 10; done |
There was a problem hiding this comment.
Very simple and efficient way of testing when the listening port is available 👍 .
| - | | ||
| docker run -d -e executable=blob -t -p 10000:10000 arafato/azurite:2.6.5 | ||
| while ! nc -zv 127.0.0.1 10000; do sleep 10; done | ||
| export AZUREBLOCKBLOB_URL="azureblockblob://DefaultEndpointsProtocol=http;AccountName=devstoreaccount1;AccountKey=Eby8vdM02xNOcqFlqUwJPLlmEtlCDXJ1OUzFT50uSRZ6IFsuFq2UVErCz4I6tq/K1SZFPTOtr/KBHBeksoGMGw==;BlobEndpoint=http://127.0.0.1:10000/devstoreaccount1;" |
There was a problem hiding this comment.
I am guessing the AccountKey parameter is a random value. Does it have to be in a specific format or we could use something that is more clearly a testing sample value?
There was a problem hiding this comment.
Unfortunately this is a required "well-known" value. See the key authentication section in the official docs for the storage emulator.
There was a problem hiding this comment.
I see, great, thanks for clarifying.
|
|
||
| self._container_name = ( | ||
| container_name or | ||
| conf.get(CONF_CONTAINER_NAME) or |
There was a problem hiding this comment.
It's slightly simpler to just use the default value of the get method here:
conf.get(CONF_CONTAINER_NAME, DEFAULT_CONTAINER_NAME)
There was a problem hiding this comment.
That was my initial implementation but it failed the tests since the conf value were explicitly set to None in one of the mappings that the conf access checks. Moving the default values to app/defaults.py fixed this. Implemented in 44517e3.
|
|
||
| self._retry_initial_backoff_sec = ( | ||
| retry_initial_backoff_sec or | ||
| conf.get(CONF_RETRY_INITIAL_BACKOFF_SEC) or |
There was a problem hiding this comment.
Same comment as above for all configuration options.
| container_name=self._container_name, fail_on_exist=False) | ||
|
|
||
| if created: | ||
| LOGGER.info("Created container %s", self._container_name) |
There was a problem hiding this comment.
You can also specify that this action refers to Azure Block Blob storage in the log message.
| @@ -0,0 +1,3 @@ | |||
| azure-storage>=0.36.0 | |||
There was a problem hiding this comment.
It is not advisable to use non-exact tags for package versions, as they might lead to inconsistencies among installations and CI results. Could you please use the most recent usable version?
There was a problem hiding this comment.
Could you provide some more guidance on what you require here? The azure-storage SDK has a bit of an odd versioning scheme where all versions below 0.36.0 are considered deprecated and the "new" SDK is versions 0.36.0 and above (see compatibility section on the official repository). As such, this dependency statement basically means "use any of the new SDK versions". Would you like to pin this to a specific version instead?
There was a problem hiding this comment.
Exactly, my suggestion was to pin the version for the new dependencies to the exact latest:
azure-storage==0.36.0
azure-common==...
azure-storage-common==...
|
|
||
|
|
||
| @contextlib.contextmanager | ||
| def patch_client(): |
| with patch_client() as mock_client: | ||
| self.backend.get(b"mykey") | ||
|
|
||
| mock_client.get_blob_to_text.assert_has_calls( |
There was a problem hiding this comment.
I think that perhaps assert_called_once_with is more suitable here.
| mock_client.delete_blob.assert_called_once_with( | ||
| "celery", "mykey") | ||
|
|
||
| @skip.unless_environ("AZUREBLOCKBLOB_URL") |
There was a problem hiding this comment.
If I understand correctly, this test case probably belongs to the integration test suite.
There was a problem hiding this comment.
I'm having some issues running the integration tests locally via docker-compose so I've made a change and pushed it up to Travis in 9ba725d to see if the move of the test was successful. I'll tag you on the PR when everything is ready to be re-reviewed.
There was a problem hiding this comment.
Alright, confirmed that integration tests ran and the new backend test executed and passed. Sample CI job log: https://travis-ci.org/celery/celery/jobs/372769687
| dynamodb: TEST_BACKEND=dynamodb://@localhost:8000 | ||
| dynamodb: AWS_ACCESS_KEY_ID=test_aws_key_id | ||
| dynamodb: AWS_SECRET_ACCESS_KEY=test_aws_secret_key | ||
| PASSENV = |
There was a problem hiding this comment.
The conversion to lowercase is an improvement of course, but as a general note, I believe it is preferable to avoid making changes outside the scope of the PR (however small), especially in extensive feature requests, as they might confuse reviewers and anyone inspecting the commit history in the future. Again, just explaining my view, no need to revert this 😄 !
There was a problem hiding this comment.
Totally agree on keeping diffs minimal, I'm a stickler for that in all of my code reviews, so we're definitely aligned there ;-)
However, I do believe that this is a required change. I was investigating for a while why the live test would still be skipped despite the AZUREBLOCKBLOB_URL variable being set, and it ended up being linked to the environment isolation that tox uses. Simply adding the AZUREBLOCKBLOB_URL to the passenv section though didn't fix it since the passenv property apparently needs to be lowercased (which is surprising given that configparser is supposed to be case insensitive).
There was a problem hiding this comment.
Wasn't aware of that, thanks for fixing this then 😄 !
|
Hi @georgepsarakis. I believe I've addressed all the comments. Could you please take another look? |
| .. _`CouchDB`: http://www.couchdb.com/ | ||
| .. _`Couchbase`: https://www.couchbase.com/ | ||
| .. _`Consul`: https://consul.io/ | ||
| .. _`AzureBlockBlob`: https://azure.microsoft.com/en-us/services/storage/ |
There was a problem hiding this comment.
Correct me if I am wrong, but I think I found a more accurate link here.
|
|
||
| from celery.backends.azureblockblob import AzureBlockBlobBackend | ||
|
|
||
|
|
There was a problem hiding this comment.
Although this test has certainly value, it is better if you also add and activate the integration suite by changing the tox configuration. You simply need to specify TEST_BROKER and TEST_BACKEND variables accordingly.
There was a problem hiding this comment.
Done in 446130f. Will verify on Travis and ping you once it's ready to be reviewed.
There are quite a few backends that don't run a full integration test though (e.g. cassandra, elasticsearch or mongodb). Is it really worth extending the CI run substantially for this integration test when the simple backend test already gives us confidence that the backend works? If not: we might even have an opportunity here to speed up the CI suite by moving the DynamoDB test (and all other Key-Value Store backends) to the new backend integration test style.
There was a problem hiding this comment.
I have a plan to use seaworthy for the integration tests so that we could start our services from within the test suite.
Please don't change how the test suite works yet.
The backend is implemented on top of the azure-storage library [1] which
uses Azure Blob Storage [2] for a scalable low-cost PaaS backend.
The backend was load tested via a simple nginx/gunicorn/sanic app hosted
on a DS4 virtual machine (4 vCores, 16 GB RAM) and was able to handle
600+ concurrent users at ~170 RPS.
The commit also contains a live end-to-end test to facilitate
verification of the backend functionality. The test is activated by
setting the `AZUREBLOCKBLOB_URL` environment variable to
`azureblockblob://{ConnectionString}` where the value for
`ConnectionString` can be found in the `Access Keys` pane of a Storage
Account resources in the Azure Portal.
[1] https://github.com/Azure/azure-storage-python
[2] https://azure.microsoft.com/en-us/services/storage/
|
This should now be ready for the next round of reviews, @georgepsarakis. |
|
@c-w thank you very much for the effort and changes so far. Integration tests seem to be running. DynamoDB is started without persistence so I think there is not much to be done, however the same may apply: What do you think? |
|
That's very interesting. I didn't know about tmpfs in Docker; seems like a neat feature. I did a bit of research and used Alternatively, as I mentioned in #4685 (comment), we could also consider turning off the full integration tests for azureblockblob and dynamodb and instead only rely on the new backend integration test which only takes seconds to run. The idea here would be to use the core redis and rabbitmq integration tests to verify that the framework wiring is working as expected and then to verify additional backends like azureblockblob, dynamodb, cassandra, etc. only at the backend interface layer (under the assumption that if the backend contract is correctly implemented, the rest of the framework wiring will work as expected). This should massively speed up the build at a small loss of end-to-end verification. Thoughts? Another thought: would it make sense to add the |
|
Looks like we save about 60% execution time on the azureblockblob integration tests by using tmpfs, so that was a great suggestion!
Overall the CI now takes still quite a bit longer though due to the new integration tests:
Let me know if this is acceptable, @georgepsarakis, or if you'd prefer to try some more optimizations as described in #4685 (comment). |
|
@c-w The .tox directory is quite large and caching it might not provide us with the benefit we're after. In any case, if we choose to do so we'll need to also install and use tox-pip-extensions to avoid recreating the virtual environment every time requirements change. At this point I'd rather extend our CI time than to loose the guarantee that everything works as expected. |
|
@thedrow Excellent, thanks for the clarification. It would definitely be neat to split out the results backends into their own repo (just like how the brokers are currently split out into the kombu repository). So is there anything else you need me to do before you can consider this ready to merge? |
thedrow
left a comment
There was a problem hiding this comment.
Overall this is very good work.
There are a few minor issues I'd like to address first.
| PASSENV = | ||
|
|
||
| azureblockblob: TEST_BROKER=redis:// | ||
| azureblockblob: TEST_BACKEND=azureblockblob://DefaultEndpointsProtocol=http;AccountName=devstoreaccount1;AccountKey=Eby8vdM02xNOcqFlqUwJPLlmEtlCDXJ1OUzFT50uSRZ6IFsuFq2UVErCz4I6tq/K1SZFPTOtr/KBHBeksoGMGw==;BlobEndpoint=http://127.0.0.1:10000/devstoreaccount1; |
There was a problem hiding this comment.
What's this account? Is it available to us forever?
If not, the secrets should not appear here.
There was a problem hiding this comment.
This is a "well known" string to connect to the Azurite storage emulator, not a real secret. See earlier discussion #4685 (comment) or the official docs.
| @skip.unless_module("azure") | ||
| @skip.unless_environ("AZUREBLOCKBLOB_URL") | ||
| class test_AzureBlockBlobBackend: | ||
| def test_live(self, manager): |
There was a problem hiding this comment.
Integration tests usually take a long time to complete.
This test checks two different cases. Let's split it to two tests.
There was a problem hiding this comment.

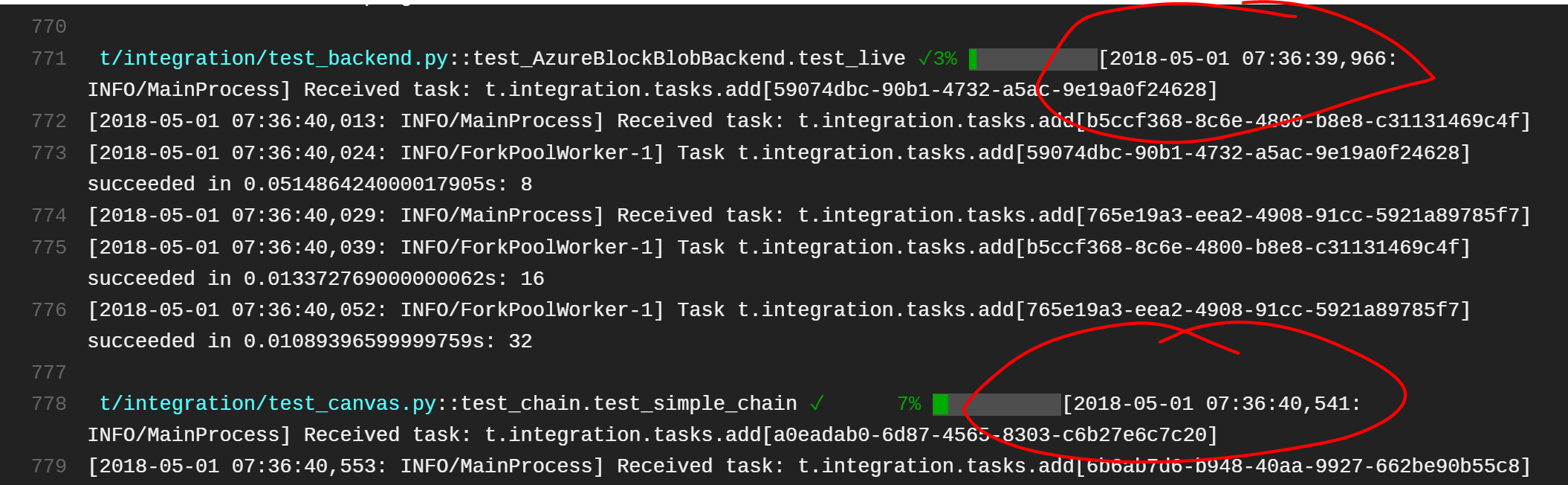

Done in 0167476. NB: the test seems to take less than 1 second on Travis currently so the runtime is not too bad (I guess because it's hitting the backend directly instead of also going through a more complex workflow with the broker and the rest of the platform).
| app=manager.app, | ||
| url=os.environ["AZUREBLOCKBLOB_URL"]) | ||
|
|
||
| key_values = dict((("akey%d" % i).encode(), "avalue%d" % i) |
There was a problem hiding this comment.
Please use a dict comprehension.
|
|
||

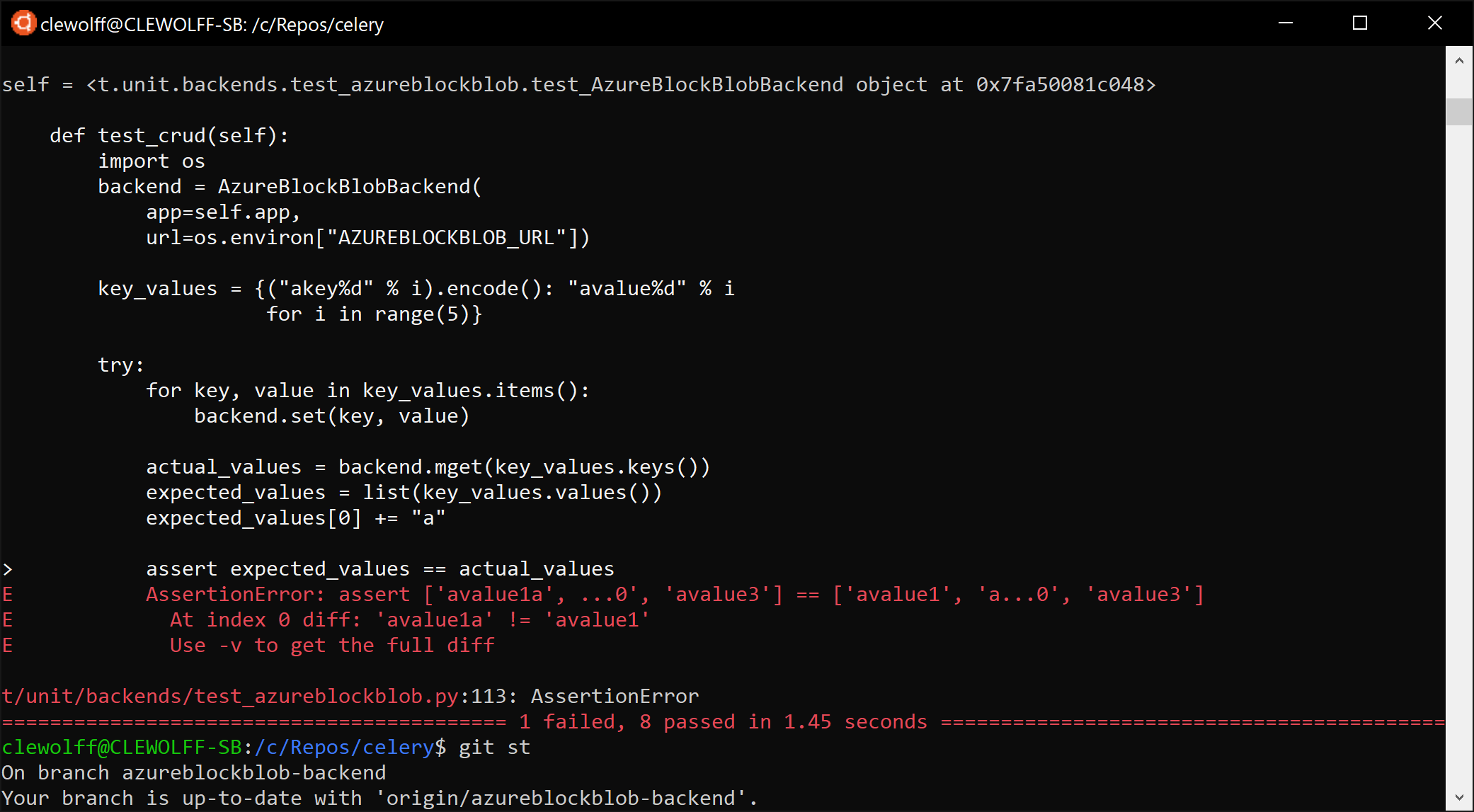

| actual_values = backend.mget(key_values.keys()) | ||
| for value, actual_value in zip(key_values.values(), actual_values): | ||
| assert value == actual_value |
There was a problem hiding this comment.
Please assert all(value == actual_value for value, actual_value in zip(key_values.values(), actual_values).
You can add a custom message to show the difference between both.
There was a problem hiding this comment.
Done in 0167476. The custom message is formatted by py.test for array comparison already.
|
|
||
| @classmethod | ||
| def _parse_url(cls, url): | ||
| match = URL_RE.match(url) |
There was a problem hiding this comment.
We usually use urllib.parse as far as I can recall.
Why do we need a regex here?
thedrow
left a comment
There was a problem hiding this comment.
LGTM.
Let's merge this after 4.2 hits GA.
georgepsarakis
left a comment
There was a problem hiding this comment.
Nice work @c-w , thank you very much for your contribution!
* Add transports based on Azure PaaS This pull request adds two new transport implementations: - `azurestoragequeues` is implemented on top of Azure Storage Queues [1]. This offers a simple but scalable and low-cost PaaS transport for Celery users in Azure. The transport is intended to be used in conjunction with the Azure Block Blob Storage backend [2]. - `azureservicebus` is implemented on top of Azure Service Bus [3] and offers PaaS support for more demanding Celery workloads in Azure. The transport is intended to be used in conjunction with the Azure CosmosDB backend [4]. This pull request was created together with @ankurokok, @dkisselev, @evandropaula, @martinpeck and @michaelperel. [1] https://azure.microsoft.com/en-us/services/storage/queues/ [2] celery/celery#4685 [3] https://azure.microsoft.com/en-us/services/service-bus/ [4] celery/celery#4720 * Exclude Azure transports from code coverage There is test coverage for the transports but the tests require Azure credentials to run (passed via environment variables) so codecov doesn't exercise them. * Remove env vars to configure transport * Remove abbreviations
|
@c-w thanks! and please don't forget to chime in when azure related issues arise! |
|
should we revert this before kombu 4.3 release? |
|
Sure thing, @auvipy; feel free to tag me on Azure-related issues. |
|
Clemens, could you investigate the reasons of build failure after merging this PR? |
|
Was this reverted because of test failures? |
|
yes! I was confused, and reverted back! |
|
So we need a new PR with the changes in this PR right? |
|
yes!! what I did is again reverted the reverted pr! let's see what the build says! |
|
Looking into it now, @auvipy. |
|
Looks like the build failure is linked to Travis CI setup. When I originally opened this PR, Docker had to be manually installed via apt-get on Travis and since then this requirement was removed (which makes the apt-get code now fail). Removing the custom Docker setup on Travis makes the CI proceed as normal. Here's the diff for the fix: ---
.travis.yml | 6 ------
1 file changed, 6 deletions(-)
diff --git a/.travis.yml b/.travis.yml
index 2e30d75..7760a6f 100644
--- a/.travis.yml
+++ b/.travis.yml
@@ -98,9 +98,3 @@ services:
- rabbitmq
- redis
- docker
-addons:
- apt:
- sources:
- - debian-sid
- packages:
- - docker-ce
--
2.7.4I'm now waiting for a full build to go through and will submit a follow-up PR once that's done. |
|
great thanks for investigating! |
|
Here's an example of a Travis build with the Azure Block Blob backend change and the Travis CI fix mentioned above: https://travis-ci.org/CatalystCode/celery/builds/424006344. For some reason, the tests for the Redis backend on Python 3 are now failing which I find surprising. I'll investigate why this is the case. |
|
Looks like the Redis test failures are transient and linked to timeouts/timing. Restarting the build fixes the test runs. Submitted the new pull request: #5025 |



Description
This pull request adds a new results backend. The backend is implemented on top of the azure-storage library which uses Azure Blob Storage for a scalable low-cost PaaS backend.
The backend was load tested via a simple nginx/gunicorn/sanic app hosted on a DS4 virtual machine (4 vCores, 16 GB RAM) and was able to handle 600+ concurrent users at ~170 RPS.
The commit also contains a live end-to-end test to facilitate verification of the backend functionality. The test is activated by setting the
AZUREBLOCKBLOB_URLenvironment variable toazureblockblob://{ConnectionString}where the value forConnectionStringcan be found in theAccess Keyspane of a Storage Account resources in the Azure Portal:This pull request was created together with @ankurokok, @dkisselev, @evandropaula, @martinpeck and @michaelperel.
