mgr: perf counters node exporter #45220

Merged
merged 24 commits into from May 10, 2022
Merged

mgr: perf counters node exporter #45220

merged 24 commits into from May 10, 2022

Conversation

avanthakkar
Copy link
Contributor

@avanthakkar avanthakkar commented Mar 2, 2022 •
edited

The number of perf counters keeps growing in each ceph version and mgr's performance is fragile when moving big payloads of data around because of subinterpreters. A way to reduce this load is by moving perf counters away from the mgr.

update: This PR will be the first of many which will be merge onto the feature branch feature-exporter. This PR is intended to have all features marked as done in Next steps except TLS support.

Next steps:

  • List socket files and make use of them
  • Create http server to expose GET /metrics for prometheus
  • Load perf counters from all daemons and transform to prometheus format
  • Containarize
  • Introduce a exporter container for cephadm
  • MetricCollector discovery in cephadm in order to configure prometheus to scrape all MetricCollector endpoints (mgr/cephadm: Adding prometheus service discovery endpoints #45425)
  • Ensure rook support
  • Posiblity to expose perf counters so that modules can request through http/whatever
  • Security: HTTPS / TLS 🆕
  • Security: HTTP Basic Auth 🆕
  • Ops: configuration (via ceph.conf + mon config opts) 🆕
  • Ops: application log (errors, warnings, etc.) 🆕
  • Ops: server log (HTTP requests) 🆕
  • Performance: HTTP compression 🆕
  • Performance: memory/cpu footprint, soak testing (mem-leak) 🆕
  • Documentation 🆕
  • Tests: Integration tests with teuthology
  • Tests: Add unit testing

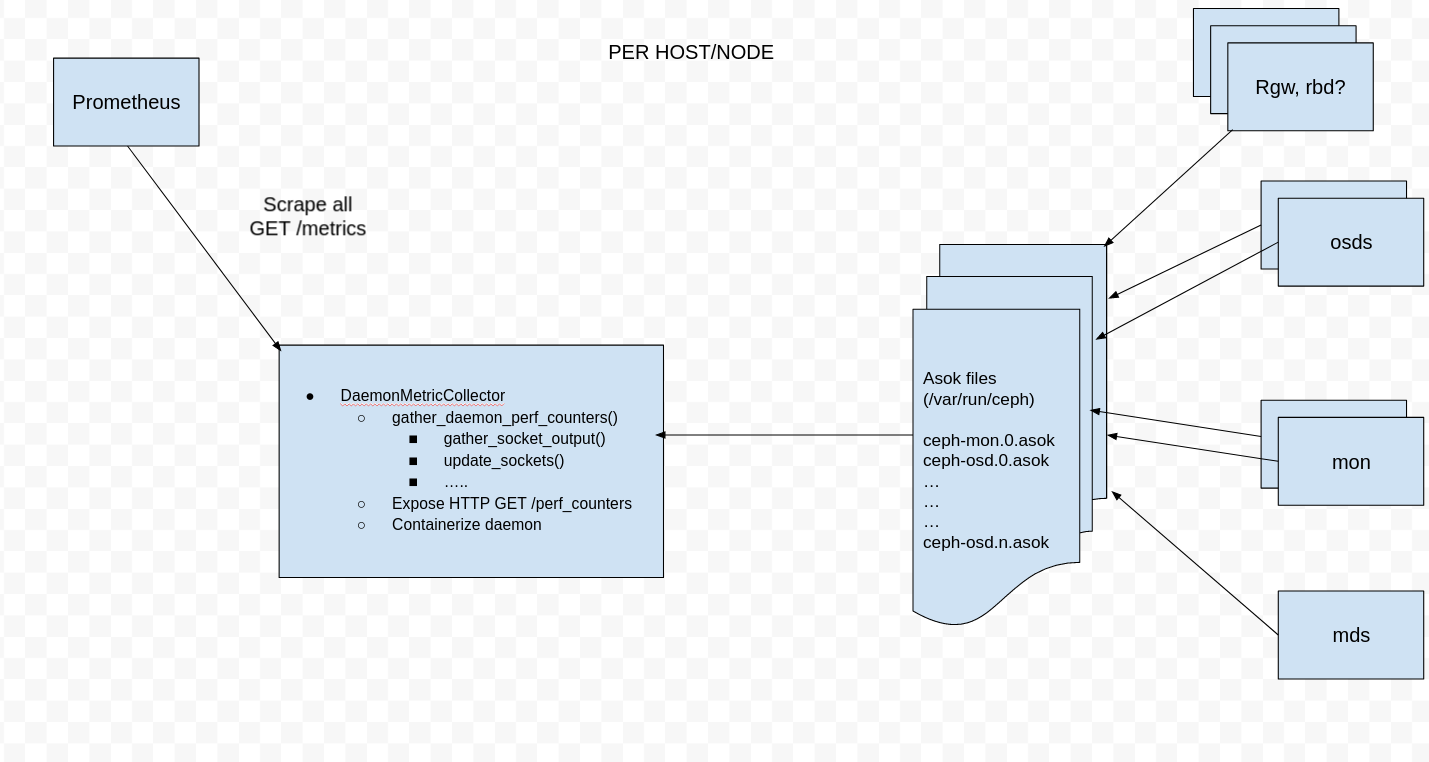

Proposal for node-exporter:
Screenshot from 2022-03-02 21-30-43

Signed-off-by: Pere Diaz Bou pdiazbou@redhat.com
Co-authored-by: Avan Thakkar athakkar@redhat.com

Checklist

  • Tracker (select at least one)
    • References tracker ticket
    • Very recent bug; references commit where it was introduced
    • New feature (ticket optional)
    • Doc update (no ticket needed)
    • Code cleanup (no ticket needed)
  • Component impact
    • Affects Dashboard, opened tracker ticket
    • Affects Orchestrator, opened tracker ticket
    • No impact that needs to be tracked
  • Documentation (select at least one)
    • Updates relevant documentation
    • No doc update is appropriate
  • Tests (select at least one)
Show available Jenkins commands
  • jenkins retest this please
  • jenkins test classic perf
  • jenkins test crimson perf
  • jenkins test signed
  • jenkins test make check
  • jenkins test make check arm64
  • jenkins test submodules
  • jenkins test dashboard
  • jenkins test dashboard cephadm
  • jenkins test api
  • jenkins test docs
  • jenkins render docs
  • jenkins test ceph-volume all
  • jenkins test ceph-volume tox

@avanthakkar avanthakkar changed the title mgr: perf counters exporter [[WIP] mgr: perf counters exporter Mar 2, 2022
@avanthakkar avanthakkar changed the title [[WIP] mgr: perf counters exporter [[WIP] mgr: perf counters node exporter Mar 2, 2022
@pereman2 pereman2 added this to In progress in Dashboard via automation Mar 2, 2022
cbodley
cbodley reviewed Mar 11, 2022
View reviewed changes
Copy link
Contributor

@cbodley cbodley left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

the beast stuff in http_connection looks good, nice work so far

src/msg/msg_types.h Outdated Show resolved Hide resolved
src/ceph_exporter.cc Outdated Show resolved Hide resolved
src/mgr/DaemonMetricCollector.cc Outdated Show resolved Hide resolved
pereman2 and others added 16 commits April 27, 2022 15:41
@pereman2 @avanthakkar
exporter: exporter dir and http_server.h
b4d3d57
* move all related files to the exporter to src/exporter
* move http_server logic to a new file under src/exporter/http_server.*

Signed-off-by: Pere Diaz Bou <pdiazbou@redhat.com>
@avanthakkar
exporter: add ceph-exporter package
d28d48c
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@avanthakkar
mgr/cephadm: adding ceph exporter container
db50570
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@pereman2 @avanthakkar
exporter: quote label values
f3f160e
Signed-off-by: Pere Diaz Bou <pdiazbou@redhat.com>
@avanthakkar
exporter: ignore mgr perf counters + change port to 9926 + cleanups
9217029
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@avanthakkar
exporter: make keep-alive connection based on client
0dea32c
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@avanthakkar
exporter: fix metrics names + scrape all exporter endpoints in cephadm
33c4b82
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@pereman2 @avanthakkar
exporter: Cleanups on DaemonMetricCollector and google styling
b34d925
1. Formatted all exporter files to google c++ styling.
2. Refactored send_requests a bit to increase readabilty.
3. Removed unused functions + variables.
4. Moved fs::path socketdir to a static const char* SOCKETDIR.

Signed-off-by: Pere Diaz Bou <pdiazbou@redhat.com>
@avanthakkar
exporter: fix lint errors + remove exporter entity
d42ea08
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@avanthakkar
exporter: update package description
de0877d
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@avanthakkar
exporter: cephadm tox fixes
6b4182c
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@avanthakkar
exporter-cephadm: increase number of docker.io occurences
69d7c0b
This is just a temporary change, as in future once the feature branch is merged in master the exporter
would be included in default master ceph image
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@pereman2 @avanthakkar
exporter: cleanups
b1ca06a
- DaemonMetricCollector singleton with static variable
- some iterator references
- DaemonMetricCollector chagne timer to steady_timer with chrono
- AdminClientSocket handle error when send_request.
- update_sockests now clears the list of sockets before adding new ones.
- use string_body instead of dynamic_body in http::response

Signed-off-by: Pere Diaz Bou <pdiazbou@redhat.com>
@avanthakkar
exporter: addressing cephadm cleanups/suggesstions
4af3d71
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@avanthakkar
exporter: fix run-tox-cephadm/mgr
39d9cd1
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@avanthakkar
expoter: addressing http server fixes
a2b7e7f
Signed-off-by: Avan Thakkar <athakkar@redhat.com>
@pereman2
exporter: move ceph_exporter.cc to src/exporter
4b97824
Signed-off-by: Pere Diaz Bou <pdiazbou@redhat.com>
@pereman2
exporter: guard metrics string
79efb79
Signed-off-by: Pere Diaz Bou <pdiazbou@redhat.com>
Dashboard automation moved this from Review in progress to Reviewer approved May 6, 2022
@pereman2 pereman2 merged commit 60460a3 into ceph:feature-exporter May 10, 2022
11 of 12 checks passed
@pereman2 pereman2 deleted the exporter-poc branch May 10, 2022 11:53
Dashboard automation moved this from Reviewer approved to Done May 10, 2022
@pereman2
Copy link
Contributor

We'll keep track of the whole progress in #46213.

@cbodley cbodley mentioned this pull request Jun 1, 2022
Merged
14 tasks
