Bug with +() coordinates

[Rmano]

See https://tex.stackexchange.com/questions/604366/how-do-i-fix-incorrect-label-placement

\documentclass[border=0.5cm]{standalone}
% \usepackage[oldvoltagedirection]{circuitikz}[=v0.8.3]
\usepackage[oldvoltagedirection]{circuitikz}


\begin{document}
\pgfcircversion
\begin{circuitikz}%[circuitikz/label/align=rotate]
\draw (0,0) to [L,l=$L_{nn}$] +(5,0);
\end{circuitikz}
\end{document}

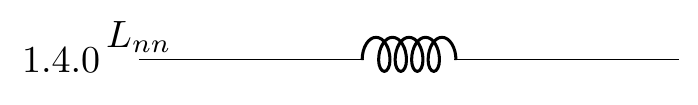

gives:

[Rmano]

This change to pgfcirclabel.tex:
pgfcirclabel.zip

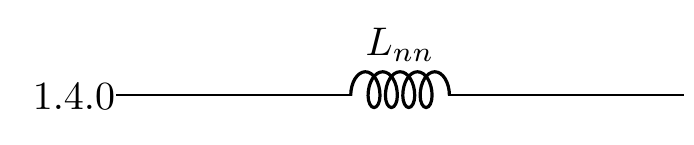

seems to fix this:

[ctmalan]

I am busy installing TexLive2021 on a new machine - will report tomorrow.

[ctmalan]

Can confirm the error on: This is pdfTeX, Version 3.141592653-2.6-1.40.23 (TeX Live 2021/W32TeX) (preloaded format=pdflatex 2021.7.10) 10 JUL 2021 10:39

Can also confirm that the upgated pgfcirclabel.tex fixed the issue.

[Rmano]

Can you also please give the Pgf/Tikz version for failing and not failing? You can see them with \pgfversion...

Thanks for the test, I'll merge the fix as soon as I can (and do a release)

[Rmano]

No need, I checked it with overleaf. This is a nasty combination of a bug fix on TikZ and an old change in circuitikz that worked thanks to the bug in TikZ... will merge soon.
