piface-mqtt

requirements

sudo apt-get install screen python-pip python-pifacedigitalio

pip install paho-mqtt

patch for old pifaces

change /usr/lib/python2.7/dist-packages/pifacecommon/spi.py to 15000 HZ (see https://github.com/piface/pifacedigitalio/issues/36)

# create the spi transfer struct
transfer = spi_ioc_transfer(
    tx_buf=ctypes.addressof(wbuffer),
    rx_buf=ctypes.addressof(rbuffer),
    len=ctypes.sizeof(wbuffer),
    speed_hz=ctypes.c_uint32(15000)
)

checkout

cd /home/pi/
mkdir ~/src/
cd ~/src/
git clone https://github.com/ckarrie/piface-mqtt
ln -s /home/pi/src/piface-mqtt/mqtt_client.py /home/pi/mqtt.py

update source

cd ~/src/
git pull

make permanent

as user pi:

crontab -e

@reboot sleep 60 && /usr/bin/screen -dmS py_mqtt python /home/pi/mqtt.py

MQTT structure

winden/
  <hostname>/
    piface/
      in/
        <port>		Values: "ON" or "OFF"
      out/
        <port>		Values: "ON" or "OFF"

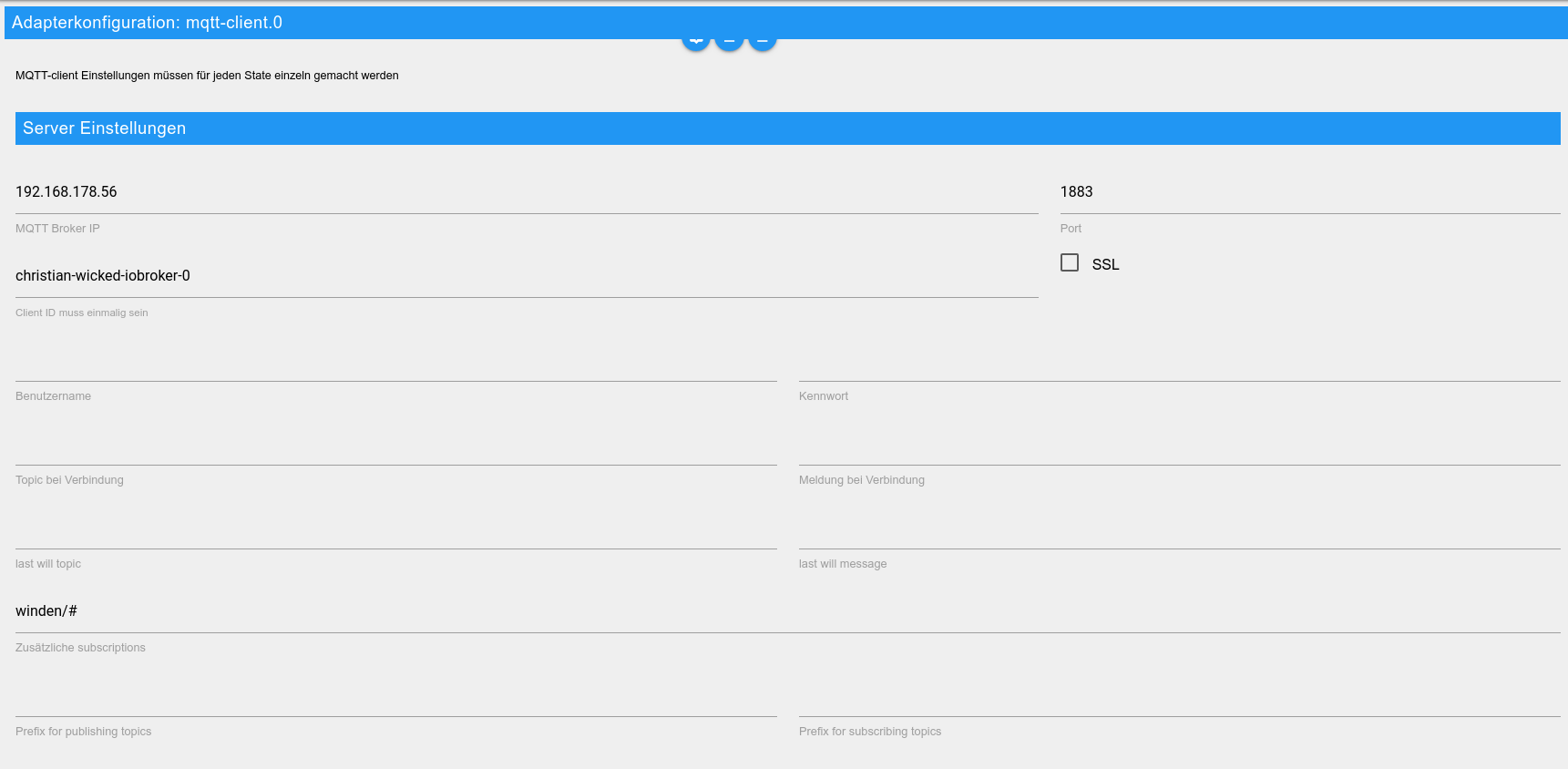

settings in iobroker:

Instanzen -> mqtt-client.0 -> zusätzl. Subscriptions: winden/#

Damit der Weg iobroker -> piface funktioniert, muss unter Objekte mqtt-client.0.winden.<hostname>.piface.out unter Einstellung der Haken bei publish gesetzt werden.

Imgur Instanzen

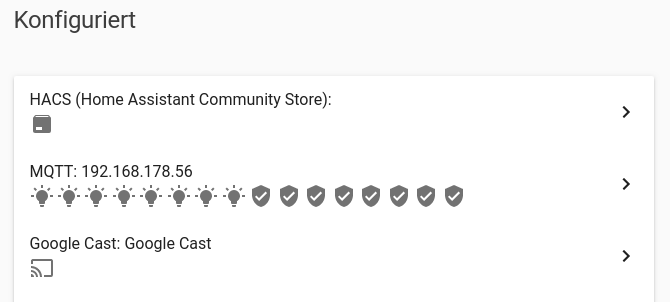

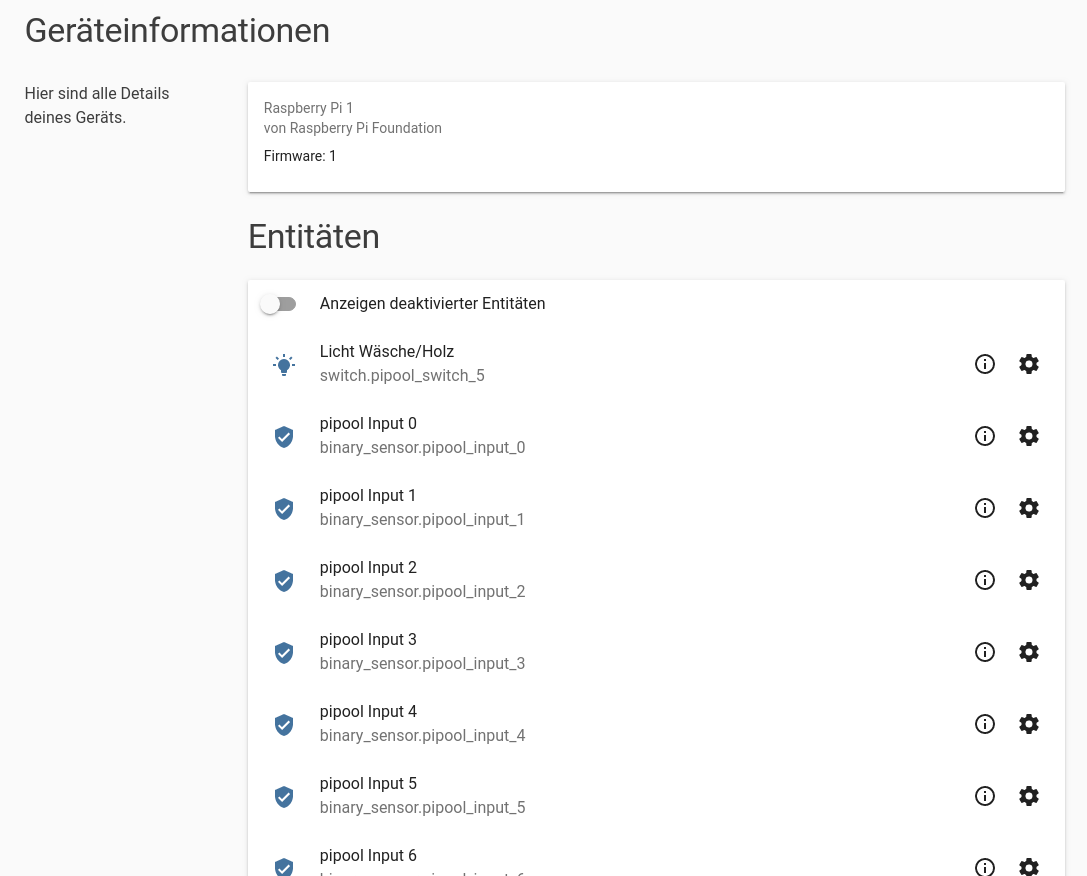

settings in home-assistant.io

Einstellungen -> Integrationen -> Plus-Button:

  • MQTT Borker Daten eingeben
  • Haken bei "Suche"

Hinweis: ich habe sämtliche manuelle MQTT-Einträge in der .homeassistant/configuration.yaml entfernt

A

B
