Fix the effect of label with outline in CHAR mode. #4550

Merged
merged 2 commits into from Jun 11, 2019

Conversation

@caryliu1999
Copy link
Contributor

commented Jun 4, 2019

Before:
v2.0.10 / fontSize: 20 / outLine width: 2

1559639968763

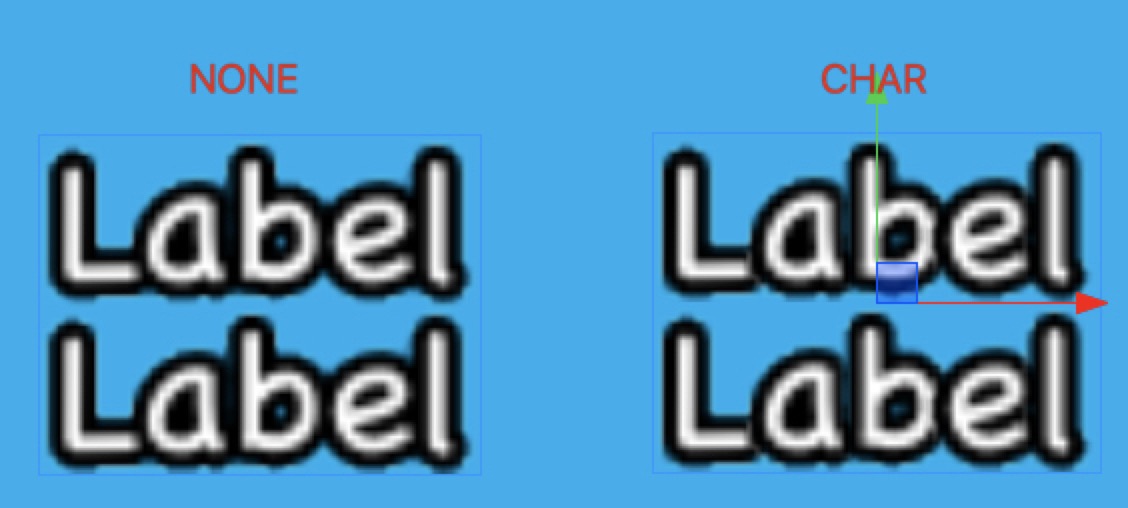

After:
after

caryliu1999 added some commits Jun 4, 2019

@jareguo

This comment has been minimized.

Copy link
Contributor

commented Jun 6, 2019

edge cropping 的问题,感觉突出一个像素就可以了吧?

@2youyou2 2youyou2 merged commit a1fac03 into cocos-creator:v2.1.2 Jun 11, 2019

1 check passed

ci/circleci: test Your tests passed on CircleCI!
Details
@caryliu1999

This comment has been minimized.

Copy link
Contributor Author

commented Jun 11, 2019

edge cropping 的问题,感觉突出一个像素就可以了吧?

绘制缓存字符的时候一开始是没有预留宽度的,直接用文字的实际宽度,所以描边会被完全裁切掉。

修改的第一版本字符缓存的canvas增加outline.width的宽度,相当于两边都是outline.width/2的空间,但是最边缘会有一点点的裁切。

目前是字符缓存的canvas都预留outline.width * 2的宽度,相当于两边都是outline.width的空间,能保证描边被完全绘制出来。然后取字符进行文本内容拼接的时候,字符会向左偏移outline.width,来抵消字符canvas size增加产生的间隙。node的contentSize计算跟NONE模式保持一致,整个canvas增加outline.width * 2的宽度。

knoxHuang added a commit to knoxHuang/engine-2 that referenced this pull request Jun 19, 2019

Fix the effect of label with outline in CHAR mode. (cocos-creator#4550)
* Fix the effect of label with outline in CHAR mode.

* fix edge cropping.
