Fibaro Dimmer 2 (FGD-212)

https://github.com/codersaur/SmartThings/tree/master/devices/fibaro-dimmer-2

Copyright (c) David Lomas

Overview

An advanced SmartThings device handler for the Fibaro Dimmer 2 (FGD-212) Z-Wave Dimmer.

Key features:

  • Z-Wave parameters can be configured using the SmartThings GUI.
  • Multi-channel device associations can be configured using the SmartThings GUI.
  • Child protection modes can be configured using the SmartThings GUI.
  • Fault tile indicates burnt-out bulb / overload / hardware errors.
  • Scene tile indicates last activated scene.
  • Sync tile indicates when all configuration options are successfully synchronised with the physical device.
  • Dimmer level range is now 0-100% (instead of 0-99%).
  • Nightmode feature allows switch-on brightness level to be controlled on a schedule.
  • Logger functionality enables critical errors and warnings to be saved to the logMessage attribute.
  • Extensive inline code comments to support community development.

Installation

  1. Follow these instructions to install the device handler in the SmartThings IDE.

  2. Note for iPhone users: The defaultValue of inputs (preferences) are commented out to cater for Android users. iPhone users can uncomment these lines if they wish (search for "iPhone" in the code).

  3. From the SmartThings app on your phone, edit the device settings to suit your installation and hit Done. The first configuration sync may take some time. If the device has not synced after 2 minutes, tap the sync tile to force any remaining configuration items to be synchronised. Note, if you are upgrading from an earlier version of this device handler it is still important to review all the settings, as many will not carry over from earlier versions!

Settings

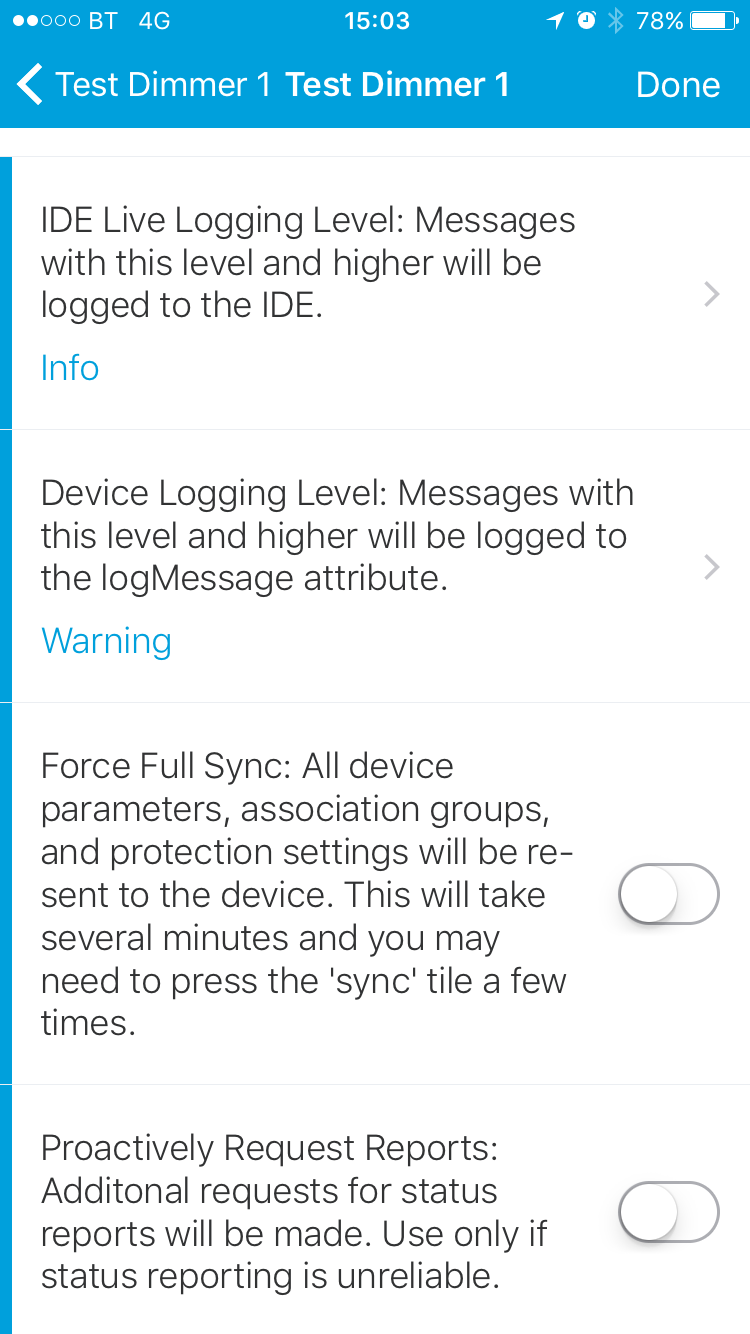

General Settings:

  • IDE Live Logging Level: Set the level of log messages shown in the SmartThings IDE Live Logging tab. For normal operation Info or Warning is recommended, if troubleshooting use Debug or Trace.

  • Device Logging Level: Set the level of log messages that will be recorded in the device's logMessage attribute. This offers a way to review historical messages without having to keep the IDE Live Logging screen open. To prevent excessive events, the maximum level supported is Warning.

  • Force Full Sync: By default, only settings that have been modified will be synchronised with the device. Enable this setting to force all device parameters, association groups, and protection settings to re-sent to the device. This will take several minutes and you may need to press the sync tile a few times before the device is fully synced.

  • Proactively Request Reports: If you find that device status is slow to update, enabling this setting will cause additional reports to be requested.

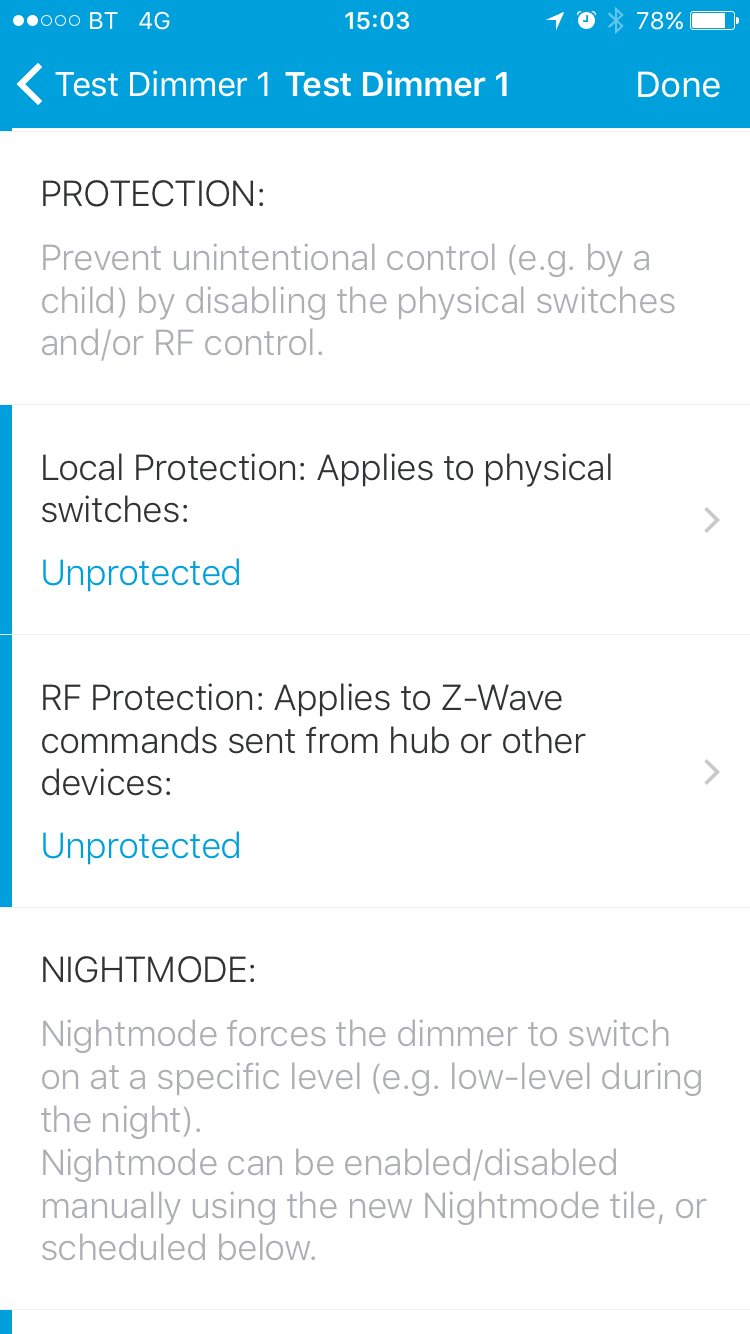

Child Protection Mode:

The Fibaro Dimmer 2 supports the Z-wave Protection Command Class. This allows the device to be protected from unintentional control (e.g. by a child) by disabling the physical switches and/or RF control.

  • Local Protection: Setting this option to No operation possible will disable both physical switches (S1/S2).

  • RF Protection: Setting this option to No RF control will prevent z-wave commands from altering the device state. This includes commands received from the hub as well as other associated devices.

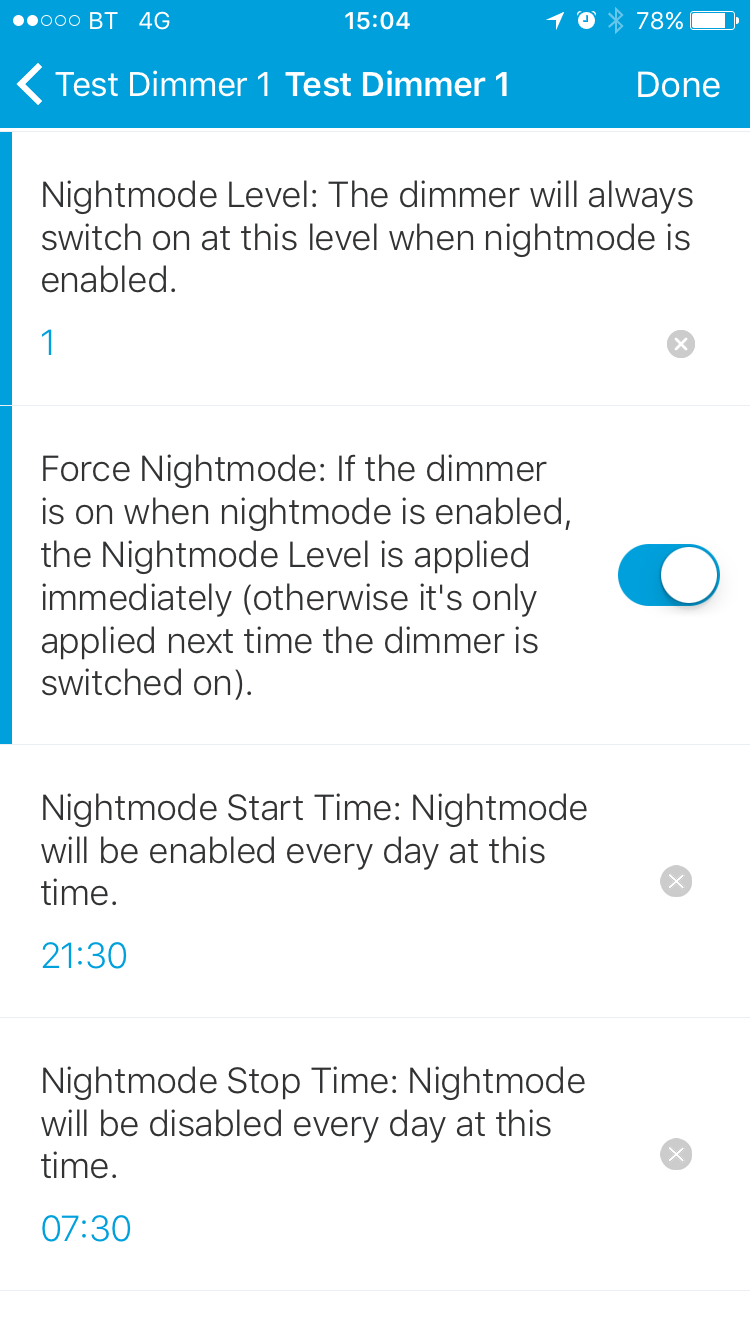

Nightmode:

The Nightmode feature forces the dimmer to switch on at a specified level. (Behind the scenes, this feature is updating Paramter #19). Nightmode can be manually enabled/disabled using the Nightmode tile and can also be scheduled using the settings here.

  • Nightmode Level: The dimmer will always switch on at this level when Nightmode is enabled.

  • Force Nightmode: If the dimmer is on when Nightmode is enabled, the Nightmode Level is applied immediately (otherwise it's only applied next time the dimmer is switched on). Similarly, if the dimmer is on when Nightmode is disabled, the brightness level will immediately be returned to the state prior to Nightmode being enabled.

  • Nightmode Start Time: Nightmode will be enabled every day at this time.

  • Nightmode Stop Time: Nightmode will be disabled every day at this time.

If Nightmode Start and Stop times are set here, they will only apply to the corresponding instance of the device. If you want to implement a Nightmode schedule for multiple devices it is possible to write a simple SmartApp (or use CoRE) to call the enableNightmode() and disableNightmode() commands on each device.

Device Parameters:

The settings in this section can be used to specify the value of all writable device parameters. It is recommended to consult the manufacturer's manual for a full description of each parameter.

If no value is specified for a parameter, then it will not be synched with the device and the existing value in the device will be preserved.

Auto-calibration:

If parameter #13 is used to force auto-calibration of the device, any values that are specified for parameters #1, #2, and #30 will be ignored. After hitting Done, monitor the Live Logging tab in the IDE to discover what the new auto-calibrated values are (the auto-calibrated values will not be updated in the device's settings screen due to limitations of the SmartThings platform).

Next time device settings are updated, remember to set parameter #13 back to 0: Readout if you do not want auto-calibration to be forced again. Additionally, review parameters #1, #2, and #30, as any values specified will over-write the auto-calibrated values.

Read-only Parameters:

The Fibaro Dimmer 2 has a few read-only parameters that are not shown in this section. The dimmer will periodically report the values of these read-only parameters to the hub, and their values can be seen in the Live Logging tab in the IDE.

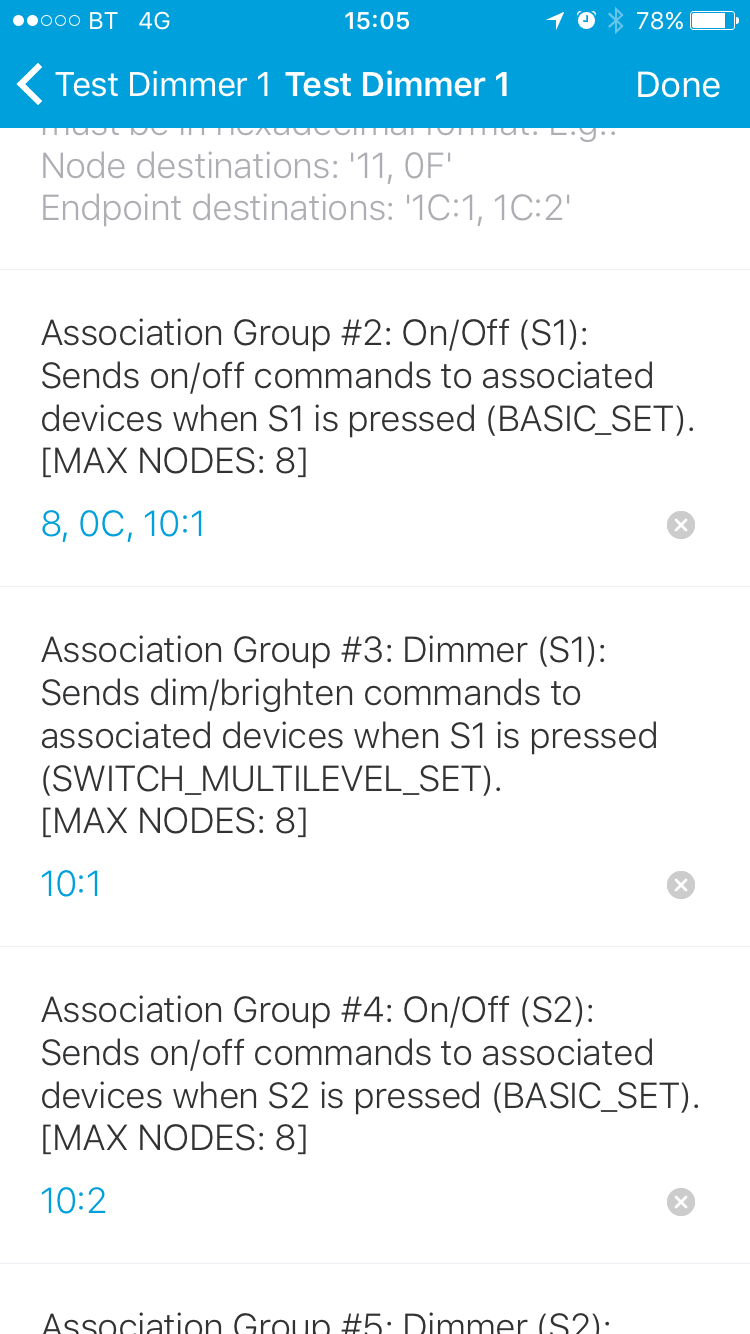

Multi-channel Device Associations:

The Fibaro Dimmer 2 supports Multi-channel Device Associations. This allows the physical switches connected to a Fibaro Dimmer 2 to send z-wave commands directly to groups of other devices (e.g. other dimmers or relays), without the commands being processed by the SmartThings hub. This results in faster response times compared to using a SmartApp for example.

The Fibaro Dimmer 2 supports four association groups:

  • Association Group #2: Sends on/off commands (BASIC_SET) when Switch #1 (S1) is used.
  • Association Group #3: Sends dim/brighten commands (SWITCH_MUTLILEVEL_SET) when Switch #1 (S1) is used.
  • Association Group #4: Sends on/off commands (BASIC_SET) when Switch #2 (S2) is used.
  • Association Group #5: Sends dim/brighten commands (SWITCH_MUTLILEVEL_SET) when Switch #2 (S2) is used.

The members of each Association Group must be defined as a comma-delimited list of target nodes. Each target device can be specified in one of two ways:

  • Node: A single hexadecimal number (e.g. "0C") representing the target Device Network ID.
  • Endpoint: A pair of hexadecimal numbers separated by a colon (e.g. "10:1") that represent the target Device Network ID and Endpoint ID respectively. For devices that support multiple endpoints, this allows a specific endpoint to be targeted by the association group.

You can find the Device Network ID for all Z-Wave devices in your SmartThings network from the My Devices tab in the SmartThings IDE. Consult the relevant manufacturer's manual for information about the endpoints supported by a particular target device.

GUI

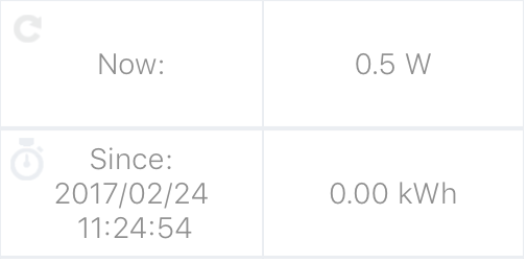

Power and Energy Tiles:

These tiles display the instantaneous power consumption of the device (Watts) and the accumulated energy consumption (KWh). The Now: tile can be tapped to force the device state to be refreshed. The Since: ... tile can be tapped to reset the Accumulated Energy figure.

Nightmode Tile:

This tile can be used to toggle (enable/disable) Nightmode.

Scene Tile:

If parameter #28 (Scene Activation) has been enabled, then the Fibaro Dimmer 2 will send SCENE_ACTIVATION_SET commands to the SmartThings hub. This tile will indicate the ID of the last-activated scene.

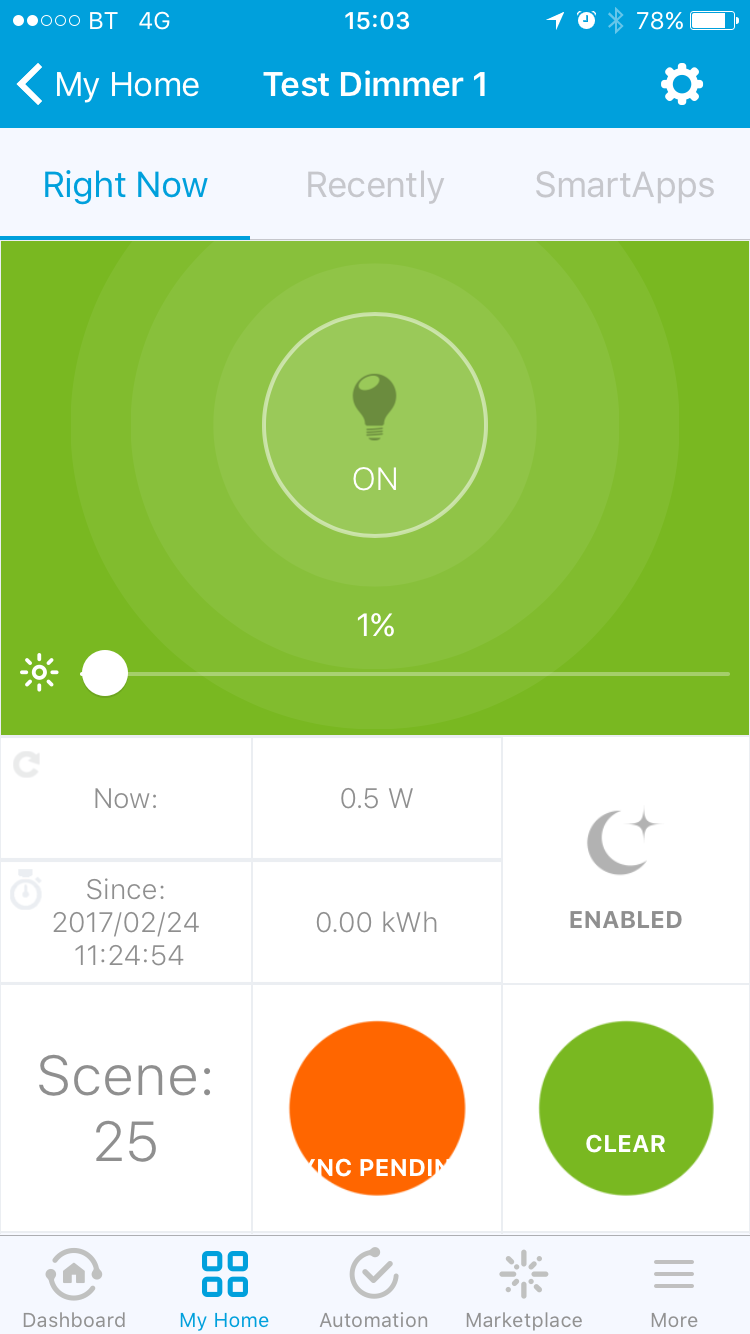

Sync Tile:

This tile indicates when all configuation settings have been successfully synchronised with the physical device. If the tile remains in the orange SYNC PENDING state, tap it to force any remaining unsynced items to be sent to the device.

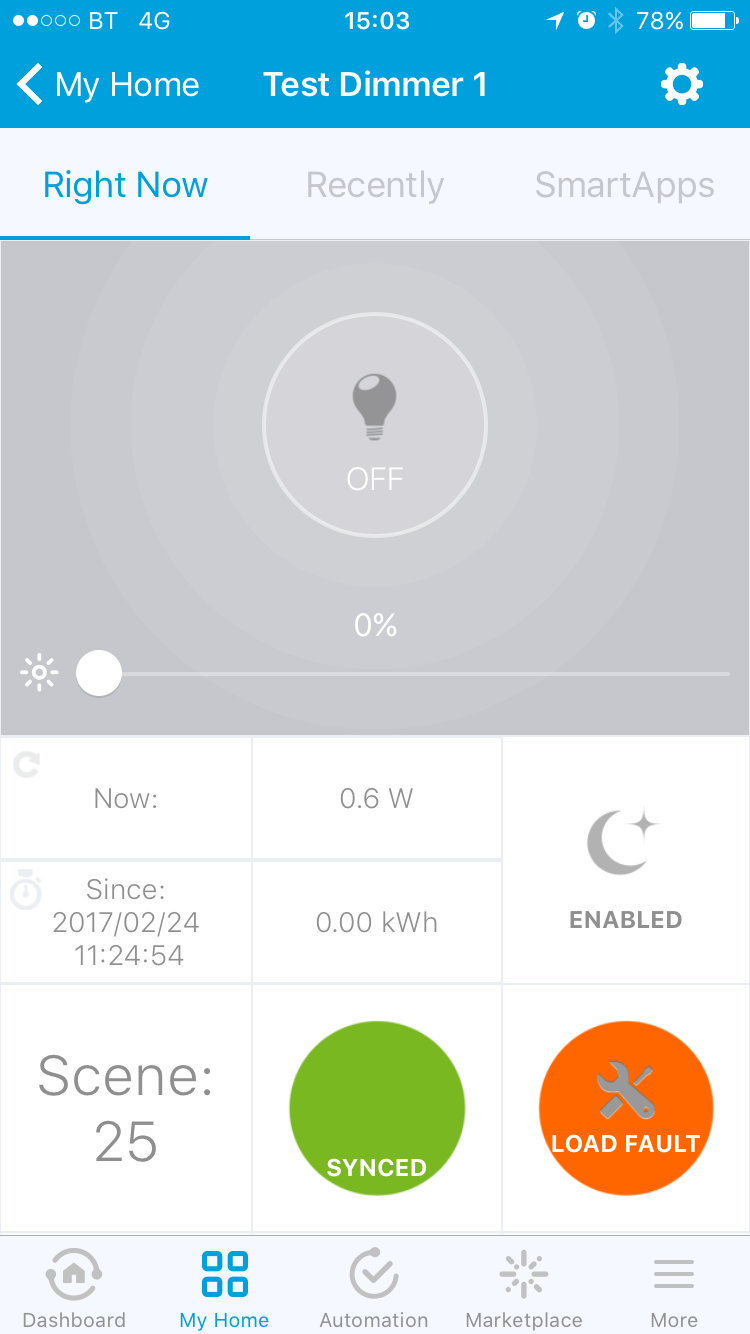

Fault Tile:

This tile indicates if the device has reported any faults. These may include burnt-out-bulbs (load error), overload, low voltage, surge, temperature warnings, firmware, or hardware issues. Once any faults have been investigated and remediated, the tile can be tapped to clear the fault status.

SmartApp Integration

Attributes:

The device handler has the following attributes:

  • switch [ENUM]: The switch State, 'On' or 'Off'.
  • level [NUMBER]: The current light level (0-100%).
  • power [NUMBER]: The current instantaneous power usage (Watts).
  • energy [NUMBER]: The Accumulated energy consumption (KWh).
  • energyLastReset: Last time that the Accumulated Energy figure was reset.
  • scene [NUMBER]: ID of last-activated scene.
  • nightmode [ENUM]: Indicates if Nightmode is 'Enabled' or 'Disabled'.
  • syncPending [NUMBER]: The number of configuration items that need to be synced with the physical device. 0 if the device is fully synchronised.
  • fault [ENUM]: Indicates if the device has any faults. 'clear' if there are no active faults.
  • logMessage [STRING]: Important log messages.

Commands:

The device exposes the following custom commands which can be called from a SmartApp:

  • enableNightmode(level): Enable Nightmode. The optional level parameter will override the Nightmode Level.
  • disableNightmode(): Disable Nightmode.
  • toggleNightmode(): Toggle Nightmode.
  • clearFault(): Clear any active faults.
  • reset(): Alias for resetEnergy().
  • resetEnergy(): Reset the Accumulated Energy figure back to 0.
  • sync(): Trigger device synchronisation.

Version History

2017-02-27: v2.02:

  • Fixed backgroundColor for fault tile.

2017-02-25: v2.01:

  • Preferences: defaultValues are commented out by default to cater for Android users. iPhone users can uncomment these lines if they wish (search for "iPhone").
  • updated(): Fix to allow device to sync after a forced auto-calibration.
  • updateSyncPending(): If a target value is null, then it does not need syncing.

2017-02-24: v2.00

  • Complete re-write in-line with new coding standards.
  • General Behaviour Changes:
  • Dimmer level now reverts to zero when switched off.

  • Dimmer level range is now 0-100%.

  • Fewer report requests are made, as the Fibaro Dimmer 2 is good at sending back reports anyway.

  • Nightmode scheduling fixed after change in the behaviour of _schedule()_.
  • Capabilities:
  • Added "Light" capability.

  • Added unofficial "Fault" capability. [attributes: 'fault', commands: clearFault()]

  • Added unofficial "Logging" capability. [attributes: 'logMessage']

  • Added unofficial "Scene Controller" capability. [attributes: 'scene']

  • Removed "Configuration" capability and configure() command, as not used.
  • Attributes:
  • energyLastReset: renamed from lastReset.

  • logMessage: Critical error and warning log messages.

  • syncPending: Number of items that need to be synced with the physical device.

  • fault: Indicates if the device has any faults (load, surge, overload, overCurrent, voltage, temperature, hardware, firmware). 'clear' if no active faults.
  • Commands:
  • resetEnergy(): Resets accumulated energy figure.

  • clearFault(): Clears any active faults.
  • Fingerprints: Updated to use new Z-Wave fingerprint format.
  • Tiles:
  • level: range is now 0-100%

  • scene: Indicates last activated scene.

  • syncPending: Shows when device configuration is synced.

  • fault: Indicates device faults.
  • Settings/Preferences:
  • Proactive Requests.

  • IDE Live Logging Level

  • Device Logging Level

  • Association Group members can be configured from the Settings GUI, including multi-channel endpoint destinations.

  • Protection Options can be set for local (physical switches) and RF Control, to prevent unintentional changes.
  • zwaveEvent():
  • zwaveEvent(CONFIGURATION_REPORT): Uses new scaledConfigurationValue attribute.

  • zwaveEvent(POWERLEVEL_REPORT): New handler for powerlevel reports.

  • zwaveEvent(COMMAND_CLASS_SWITCH_BINARY): Removed as it doesn't appear to be supported by the device.

  • zwaveEvent(ASSOCIATION_REPORT): New handlers for both normal and multi-channel association reports.
  • dimmerEvent(): Various optimisations and fixes.
  • update():
  • Added a check to prevent double execution.

  • Requests Firmware Metadata, Manufacturer-specific, and Version reports.
  • New custom commands:
  • clearFault(): Clears any active fault.

  • resetEnergy(): Reset the Accumulated Energy figure in the device.
  • New private helper functions:
  • logger(): Wrapper function for all logging: Logs events to IDE Live Logging, and also by raising logMessage events. Configured using configLoggingLevelIDE and configLoggingLevelDevice preferences.

  • sync(): Manages synchronisation of all parameters and association groups with the physical device. The syncPending attribute advertises remaining number of sync operations.

  • refreshConfig(): Requests all configuration, association group reports.

  • sendSecureSequence(): Secure an array of commands and send them using sendHubCommand.

  • Additional functions to dynamically build the parameters and association groups preferences.
  • New Metadata Funtions:
  • getCommandClassVersions(): Returns supported command class versions.

  • getParamsMd(): Returns device parameters metadata (including read-only parameters).

  • getAssocGroupsMd(): Returns association groups metadata.

2016-10-31: v1.03

  • Added event handlers for Crc16Encap, SensorMultilevelReport, ManufacturerSpecificReport, VersionReport, and FirmwareMdReport.

2016-10-24: v1.02

  • Increased delay between ConfigurationSet commands to 500ms to improve reliability of sending parameters.

2016-10-11: v1.01

  • Added Nightmode functionality.
  • dimmerEvents(): Fixed MeterGet requests after a switch or level state change.
  • on(), off(), setLevel(): Delayed switchMultilevelGet() requests by 8s as early requests generate erroneous data. The dimmer will send a correct report once it has completed the request anyway (which is usually sooner than 8s).
  • zwaveEvent(MeterReport): Removed rounding of power values. Also, Energy and power values are stored as dispEnergy and dispPower to work-around UI formatting issue.
  • Settings/Preferences: Fixed param24/25/27 to allow combination of options.
  • Simplified fingerprint.

2016-10-05: v1.00

  • Initial version based on device handler by hajar97.
  • Tiles: Added GetConfig button to retrieve the current device settings (which are displayed in the debug log).

To Do

  • Optimise zwaveEvent(CRC_16_ENCAP) by using ecapsulatedCommand(), once implemenation has been fixed by SmartThings.
  • Allow protection state to be controlled via commands (maybe just the local). This would allow a smartApp to disable all physical light switches, perhaps on a schedule, for example. E.g. stop children turning on the lights after 10PM. Similar to Nightmode.
  • Add Button capability and raise button events.

Physical Device Notes

General notes relating to the Fibaro Dimmer 2:

  • The device has three read-only parameters. These are not shown in the settings GUI, but their values will be reported in the Live Logging tab of the IDE when Configuration Reports are received.

References

Some useful links relevant to the development of this device handler:

License

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at:

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
