[WIP] Feature/video elements

[frontendschlampe]

add some more options for audio and video elements:

Audio/Video:

• add option to hide controls
• add option to play media in loop
• add option to mute media
• add option playsinline to prevent automatic fullscreen mode on iPhone devices when playback begins
• add options for preloading
• add options for start at and end at
• add possibility to include an audio/video caption
• add option to make audio/video responsive (using full width of its container)

YouTube

• add option to hide controls
• add option using extended privacy (via youtube-nocookie.com)
• add possibility to include a video caption
• add option to make video responsive (using full width of its container)

Vimeo

• add option to play media in loop
• add option to hide the user’s portrait on the video
• add option to hide the title on the video
• add option to hide the byline on the video
• add option for start at (end at is not supported by Vimeo)
• add possibility to include a video caption
• add option to change color
• add option to make video responsive (using full width of its container)

Many thanks to my customers for their financial support of this pr.

[leofeyer]

Again, please rebase. 😉

[frontendschlampe]

ok ... which branch?

[xchs]

Pull Requests for new features belong to the master branch.

[frontendschlampe]

We just extend an existing feature ;-)

[ausi]

This pull request has the feature label as you can see in the right column 🤓

[frontendschlampe]

Did I do it correctly with rebase?

[leofeyer]

You are adding 15 (!) new fields to tl_content. Can this not be optimized by sharing certain fields?

[frontendschlampe]

I will talk to @discordier and we will try ...

[frontendschlampe]

I talked to @discordier and we can share the fields, but we adopted the fields from c7b4f38 - there's a prefix for "youtube" options. When we want to merge the options, the prefix should be removed, which will be a problem for future updates. We planed a default prefix like "video", but we were to late. So we have to make a update script for renaming the existing fields?!

[Aybee]

Should be one widget with multiple checkboxes I think. If this is possible.

[frontendschlampe]

Should be one widget with multiple checkboxes I think. If this is possible.

I think, this is not possible, because we already have 3 different CE's ... maybe in Contao 5 we can make only one CE

[leofeyer]

Here's how I think that the fields should be:

• playerOptions: HTML5 player options
• youtubeOptions: YouTube options
• vimeoOptions: Vimeo options
• playerPreload (shared between all player elements)
• playerStart (shared between all player elements)
• playerStop (shared between all player elements)
• playerCaption (shared between all player elements)
• playerAspect (shared between all player elements)
• playerColor (shared between all player elements)

So the following fields need to be removed:

• playerResponsive: should be an option in playerOptions
• youtubeCaption: use playerCaption instead
• youtubeResponsive: should be an option in youtubeOptions
• youtubeAspect: use playerAspect instead
• youtubeStart: use playerStart instead
• youtubeStop: use playerStop instead
• vimeoStart: use playerStart instead
• vimeoStop: use playerStop instead
• vimeoCaption: use playerCaption instead
• vimeoColor: use playerColor instead
• vimeoResponsive: should be an option in vimeoOptions
• vimeoAspect: use playerAspect instead

If an element does not support one of the shared fields, we simply hide it.

[leofeyer]

@frontendschlampe What's the status on this?

[frontendschlampe]

yes ... I don't forget it! I hope, that I will work on it with @discordier this week ... not later than the beginning of next week.

[leofeyer]

This needs to be 'playerResponsive', doesn't it?

[leofeyer]

I wonder if it makes sense to have the video-related CSS code in a separate file (see contao-components/contao#10)? The image-related CSS code is in the layout.css style sheet, so why don't we just add the video-related code there, too?

@contao/developers /cc

[Toflar]

Fine for me. Is there already a PR for migrations because like this it's a BC break atm.

[Toflar]

And I wonder if we should drop autoplay completely. It's always been a bad idea and browser vendors are finally starting to block them automatically so it has no purpose anymore anyway.

[aschempp]

And I wonder if we should drop autoplay completely.

Really? I see a lot of background videos playing automatically. And that sounds like a useful case?

[Toflar]

The ones with sound: https://www.theverge.com/2018/3/22/17150870/google-chrome-autoplay-videos-sound-mute-update

[frontendschlampe]

Autoplay with sound is forbidden since a long time. If you want to have autoplay, you also have to play your video muted. But I wouldn't drop autoplay.

[frontendschlampe]

I wonder if it makes sense to have the video-related CSS code in a separate file (see contao-components/contao#10)? The image-related CSS code is in the layout.css style sheet, so why don't we just add the video-related code there, too?

I put in a separate one, because you need it only if you want to use responsive video. If you don't want to use responsive video, you don't have to use any separate css.

[leofeyer]

But following this logic, we would also have to remove the responsive images code from the responsive.css file, wouldn't we?

[frontendschlampe]

But following this logic, we would also have to remove the responsive images code from the responsive.css file, wouldn't we?

So it's not in the layout.css but in the responsive.css - I think the best would be, we add it to responsive.css, isn't it? So all responsive styles are at one place!

[Aybee]

As I e.g. do not use Contao FE CSS for me it's nice to have this CSS per Checkbox. But I also can put this CSS into my own CSS file like I do with responsive images

img {
  max-width: 100%;
  height: auto;
}

/* default 16:9 aspect ratio */
.video-wrapper {
  position: relative;
  padding-bottom: 56.25%;
  height: 0;
}
/* 21:9 aspect ratio */
.video-wrapper.ar219 {
  padding-bottom: 42.8571%;
}
/* 16:10 aspect ratio */
.video-wrapper.ar1610 {
  padding-bottom: 62.5%;
}
/* 4:3 aspect ratio */
.video-wrapper.ar43 {
  padding-bottom: 75%;
}
/* 1:1 aspect ratio */
.video-wrapper.ar11 {
  padding-bottom: 100%;
}
/* span iframe */
.video-wrapper > * {
  position: absolute;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  border: none;
}

[leofeyer]

Thank you @frontendschlampe.

[qzminski]

This commit brings back the problem with frameborder attribute (see #1233). Can this be updated before releasing 4.6.0?

[leofeyer]

Removed in eaaca08.

[frontendschlampe]

This commit brings back the problem with frameborder attribute (see #1233). Can this be updated before releasing 4.6.0?

That's interesting ... then YouTube and Vimeo providing invalid code. ;-)

[leofeyer]

IDTS. I may have copied it at some point.

[frontendschlampe]

<iframe width="560" height="315" src="https://www.youtube.com/embed/Rw8iMnkqvwk" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen></iframe>

Is original embed code from YouTube. ;-)

[leofeyer]

😳

[qzminski]

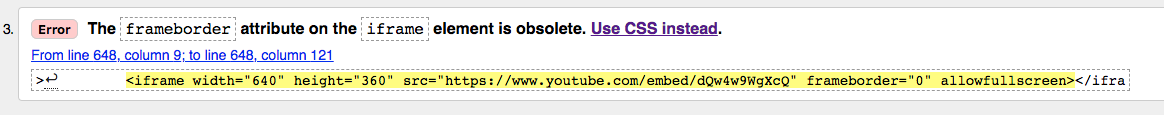

I guess they provide it for regular everyday normal users that only copy-paste the code, so that they are not confused with the frame border which is default styling for some browsers. The W3C clearly says it's an error however:

… and even points to the Wikipedia page that provides a list of equivalents.
