COR-807: Optimize Images

[toastercup]

Purpose:

This PR (and the cortex PR) utilizes image_optim to accomplish the following:

• Implements version image optimization
• Removes version format conversion feature (until this feature seems necessary, thumbnails will be generated using the original file's form)
• Adds support for SVGs
• Adds rss image variation, which is now utilized by the RSS feed
• Upgrades dependencies
• Implements per-Field image_optim configuration
• Refactors!

JIRA:

https://cb-content-enablement.atlassian.net/browse/COR-807

Steps to Take On Prod

This will require a migration of the Field configuration, as well as a re-generation of all assets (I'll write a small script that updates each Media with its existing Asset)

Changes:

• Changes to setup

  • N/A

• Architectural changes

  • N/A

• Migrations

  • N/A

• Library changes

  • cortex-plugins-core

• Side effects

  • Thumbnails will now be compressed

Screenshots

• Before
  N/A

• After
  N/A

QA Links:

http://web.cortex-7.development.c66.me/

How to Verify These Changes

• Specific pages to visit

  • Media Creation + Media Association in Blogs + RSS Feed

• Steps to take

  • Ensure Media of any type can be uploaded (PNG, JPG, GIF, SVG, etc)
  • Ensure Media's thumbnail variations are compressed if compression is supported (for example, SVG compression is disabled)
  • Ensure Media's original variation is uncompressed
  • Ensure Media can be associated with an Employer Blog
  • Ensure published Employer Blogs w/ associated Media render the correct data w/ the RSS thumbnail variation: http://web.cortex-7.development.c66.me/rss/v2/employer_blog (note that this has a 1-hour cache

• Responsive considerations

  • N/A

Relevant PRs/Dependencies:

cortex-cms/cortex#525

Additional Information

N/A

[arelia]

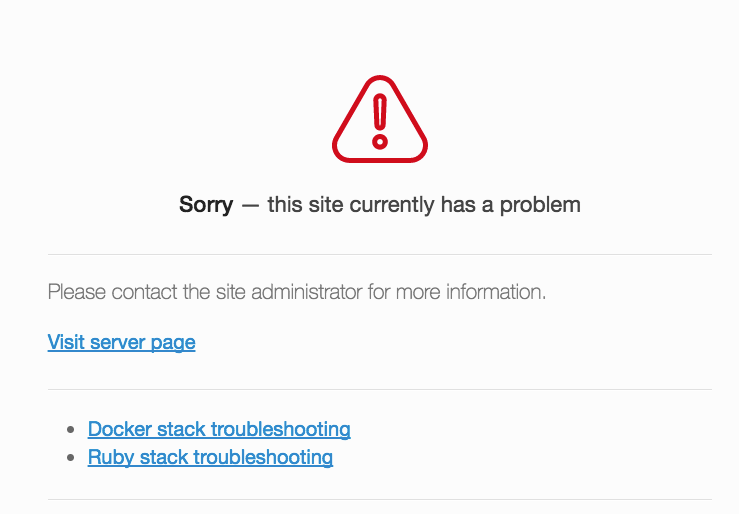

getting server error, will try again later to review:

[toastercup]

@arelia looks like it was a weird transient issue - it broke for me once (it timed out), but seems to be working again.

[toastercup]

@arelia I took another look and saw that occasionally, the level of optimization that was going on would lead to timeouts. I've implemented per-Field configuration of image_optim, and setup the Media ContentType with a more sane(+faster) set of optimizers. Good for review again! cc @MKwenhua

[arelia]

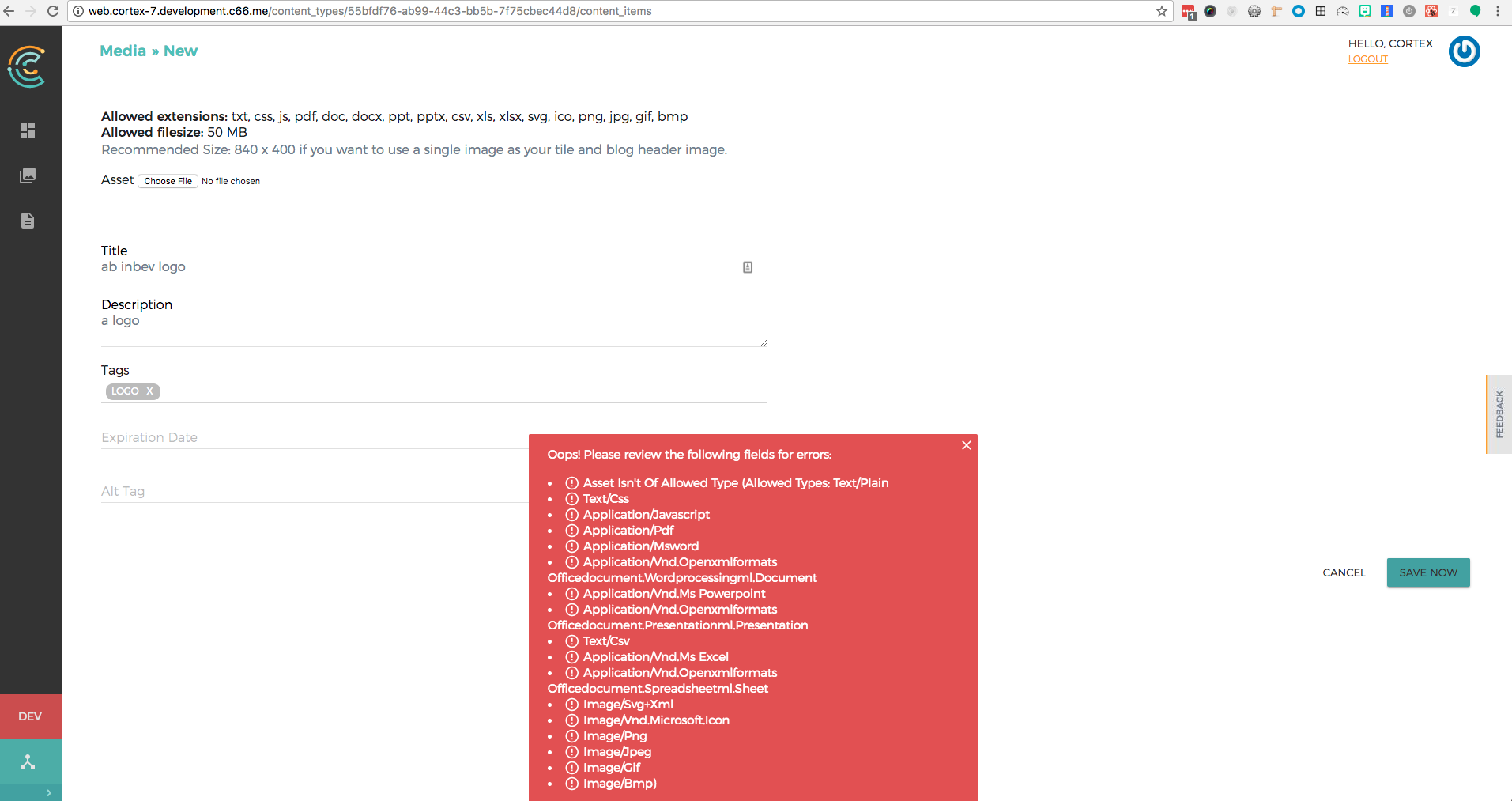

@toastercup I tried to add the ab logo from Employer (app/assets/images/homepage_logos/ab_logo.svg) and got this error which may or may not be in the scope of this story:

[toastercup]

@arelia shrine is detecting this asset as image/svg, while it should (?) be image/svg+xml. I'll have to dig into why this is for this particular file (I've tried other SVGs and it's fine), or figure out how to get mimemagic to spit out both image/svg as well as image/svg+xml as valid MIME types. This is not within the scope of this story - SVG support was just a bonus fix I included.

[arelia]

I was trying to get through adding one of each file type. It times out (shows this same server error from above) with this GIF which is 24mb downloaded: https://giphy.com/gifs/broadcity-comedy-central-season-4-l1J9xF1tfZQ1DqiYM

I'm not trying to review/approve anymore, just making you aware
