README.md

tgn_smart_home

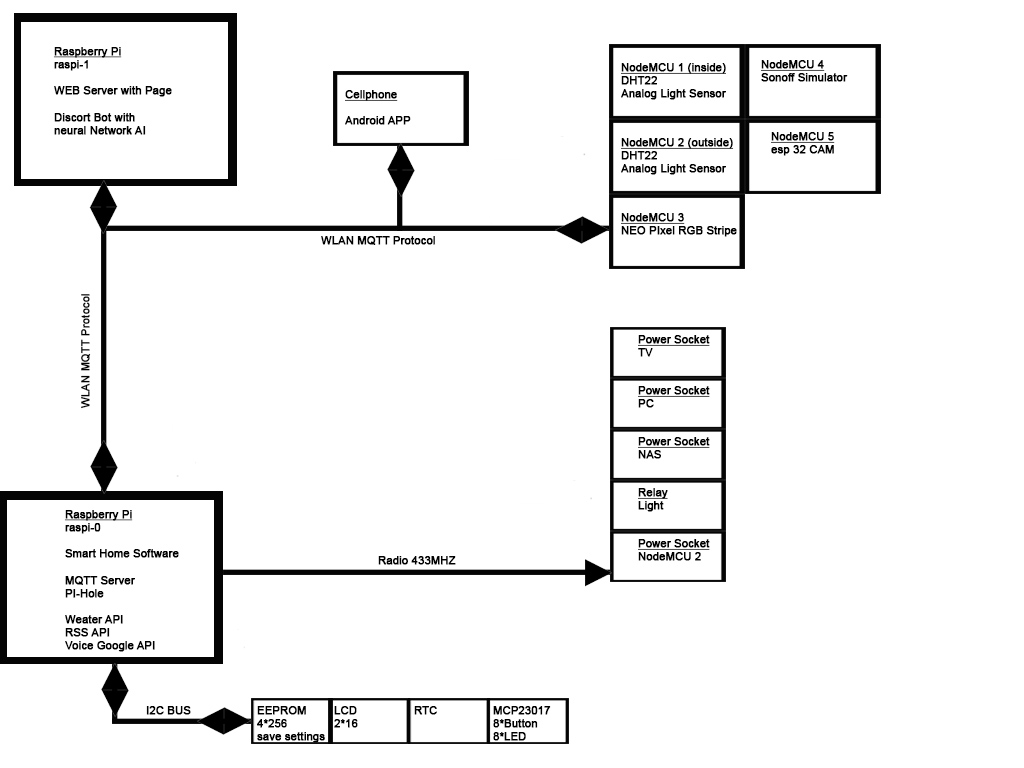

Project for a smarthome control with 433MHz transmitter, weather info, pi camera control, optional NodeMCU and Android App

The setup installs all required libraries and programs.

Contain:

  • xrdp
  • python-matplotlib
  • mpg321
  • gir1.2-gstreamer-1.0
  • gir1.2-gst-plugins-base-1.0
  • python3-pil.imagetk
  • thingspeak
  • gTTS
  • Adafruit_Python_DHT
  • Adafruit_Python_BMP
  • habridge
  • routes
  • pyopenssl
  • simplejson
  • cherrypy
  • pushbullet

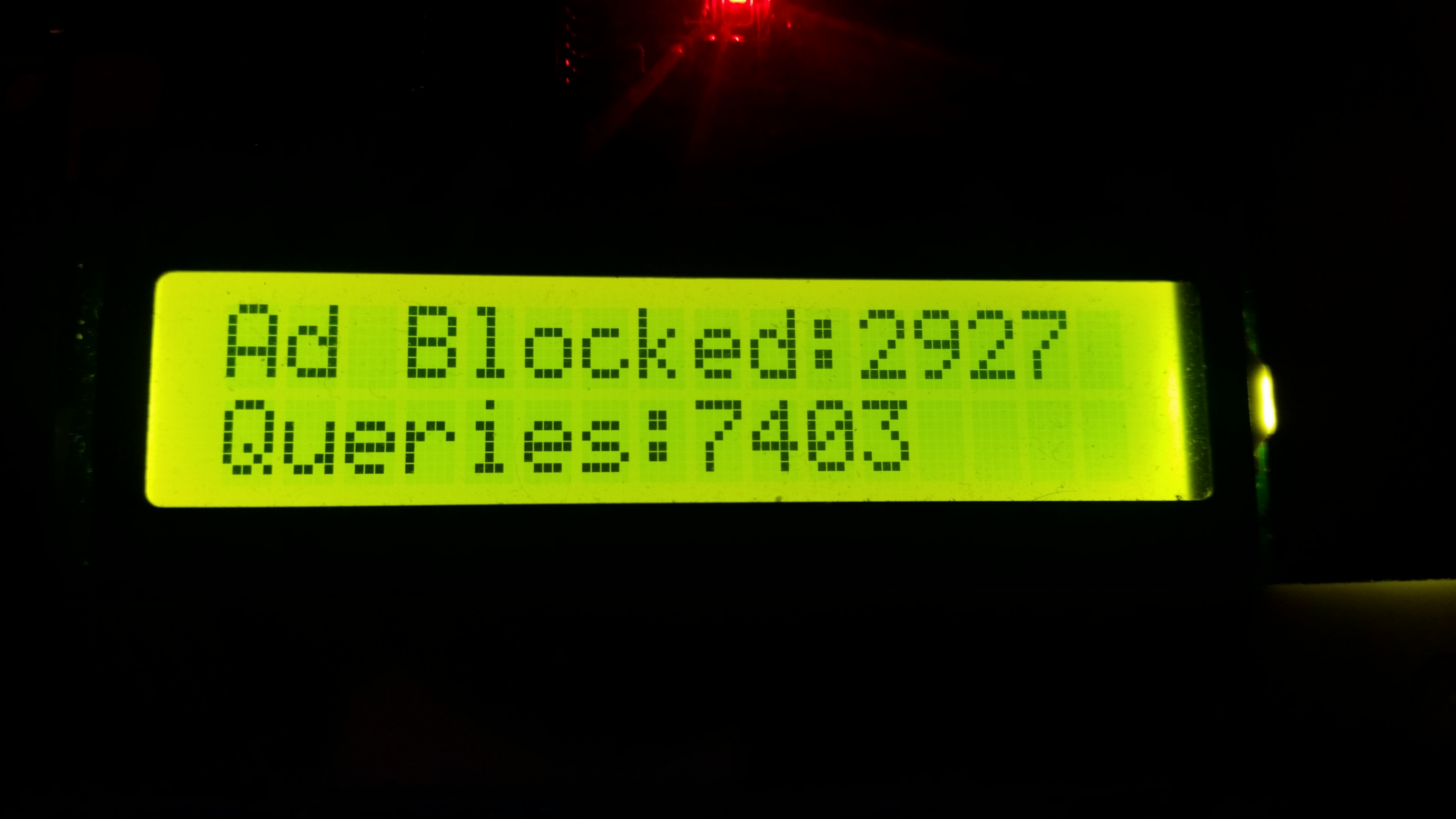

  • pi-hole
  • tgnLIB.py
  • flac
  • libportaudio
  • SpeechRecognition
  • ddclient
  • libwebsockets3
  • libssl1.0.0
  • mosquitto server
  • paho-mqtt
  • lirc

Required hardware:

  • Raspberry Pi 3 with min. 16GB SD-Card installed Debian Stretch Raspbian 2017.09 and Python 3.5
  • Speacker 3,5mm
  • Pi Camera
  • 7" HDMI Display
  • IR Reciver -- GPIO 18 (optional)
  • IR Transmitter -- GPIO 22 (optional)
  • 433Mhz RF Wireless Transmitter-Empfänger-Modul Link-Kit für ARM / MCU -- Transmitter on GPIO 17 /Reciver on GPIO 26
  • PIR motion detector -- GPIO 24 (optional)
  • ON I2C Bus: (all optional)
    • MCP23017 GPA0 - GPA3 = LED / GPA4 - GPA7 = button -- add: 0x20
    • 24LC256 EEPROM for saving settings -- add: 0x53 (recommended)

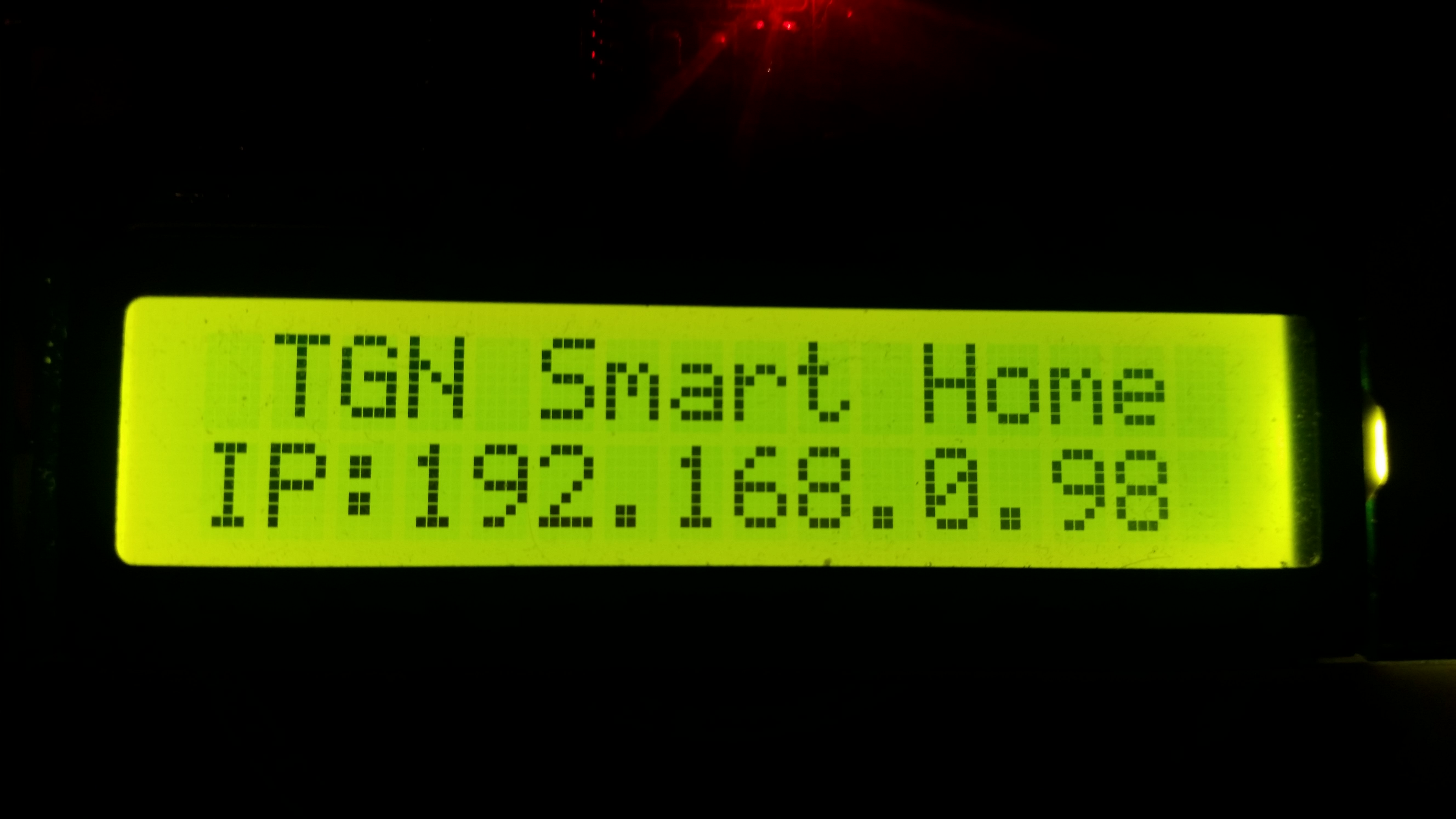

    • LCD 2x16 with PCF8574 -- add: 0x3f
    • PN532 NFC
    • BMP085
    • BH1750
    • 5 x 4 Bit Digital Tube LED Display Modul I2C
  • optional:
    • NodeMcu with DHT22, Fotoresitor and Small Display
    • Android Phone for Smart Home App
    • NodeMcu with DHT22, Fotoresistor and PIR Sensor

Installation:

  • open Terminal
  • sudo su
  • apt-get update
  • apt-get upgrade
  • raspi-config / Interfacing Options /P5 I2C ---- yes
  • raspi-config / Interfacing Options /P2 SSH ---- yes ---- Finished
  • reboot
  • open Terminal
  • sudo su
  • git clone https://github.com/cyber-Ahn/tgn_smart_home.git
  • cd tgn_smart_home
  • sudo bash setup.sh

GUI Start with /home/pi/start_main_gui.sh

WEB Interface Start with /home/pi/web_interface.sh

add to autostart:

sudo nano /home/pi/.config/lxsession/LXDE-pi/autostart

or

sudo nano /etc/xdg/lxsession/LXDE-pi/autostart

after LXDE-pi add line:

@lxterminal -e /home/pi/start_mqtt_broker.sh

@lxterminal -e /home/pi/start_main_gui.sh

Commands for HA Bridge or Google Assistant(need Auto Voice and Tasker):

  • Pi Commands

    • sudo python3 /home/pi/tgn_smart_home/libs/ha_bridge_com.py reboot 1
    • sudo python3 /home/pi/tgn_smart_home/libs/ha_bridge_com.py shutdown 1
  • wireless socket

    • sudo python3 /home/pi/tgn_smart_home/libs/ha_bridge_com.py [wireless socket number] [1 = on 0 = off]
    • example:
    • sudo python3 /home/pi/tgn_smart_home/libs/ha_bridge_com.py 4 1
