exported tiff seen as dmg

[lromano]

Checklist

• I have checked GitHub Issues and my problem is not described there.

Describe the bug

When exporting a finalized image with the export module, I noticed that several printing websites like whitewall or cewe were
refusing the image.

In whitewall, the returned error is clear : the file is a dng.

I tried to import it in Photoshop to verify this and indeed, it was opened via Camera Raw, which is a plugin used by Photoshop to deal with raw images.

It doesn't matter if I select 8 or 16 bits, include a specific icc profile or not, choose compression or not, the outcome is the same.

This does not seem to be normal and as a result, the only other option is exporting a jpeg, which is not ideal.

Steps to reproduce

Go to lighttable, double click or click 'd' to go in the darkroom, perform any random edit.

Go back to lighttable, select the image you want to export.

Go to the export module and select tiff, 8 or 16 bits, compressed or uncompressed.

Open a browser, try to upload the file to whitewall via the button 'upload photos'
navigating to https://www.whitewall.com/eu/

Notice that the file refuses to upload. If you check the browser developer tools / network tabs, you'll see the error. It complains about the format being a dng

You'll get the same error if you try to upload your tiff here :
https://www.cewe.be/fr/deco-murale/configurateur.html

Expected behavior

darktable should export a file fully recognized as a tiff

Logfile | Screenshot | Screencast

Example of export config giving the issue :

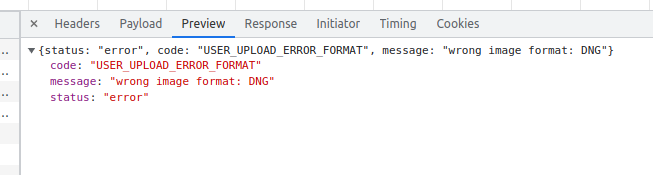

white wall website error response :

Commit

No response

Where did you install darktable from?

darktable.org

darktable version

4.2.1

What OS are you using?

Linux

What is the version of your OS?

Linux 5.10.176-2-MANJARO

Describe your system?

Intel(R) Core(TM) i5-9600K CPU @ 3.70GHz
16gb ram
Nvidia RTX 2700

Are you using OpenCL GPU in darktable?

No

If yes, what is the GPU card and driver?

No response

Please provide additional context if applicable. You can attach files too, but might need to rename to .txt or .zip

No response

[ralfbrown]

Please upload a sample file for analysis.

As it happens, DNG files are TIFF files. TIFF is a container format and can contain images in multiple different encodings, including JPEG and un-demosaiced raw. Every camera RAW format I'm familiar with except .CR3 is in fact a TIFF container, and the "JPEG" files your post-1998 camera creates are also TIFF containers, but with a small header prepended so that older software recognizes them as JFIF-format JPEGs.

[parafin]

It’s probably about TIFF tags dt writes to the exported files.

[kmilos]

Yeah, that "wrong image format: DNG" message is completely useless.

Can you try perhaps removing this one suspect tag by running exiftool -TIFF-EPStandardID= foo.tif?

The second suspect could be exiftool -CFAPattern= foo.tif

[kmilos]

Also, if you don't want to share an image, please at least share the output of exiftool -a -u -s -g1 -w txt foo.tif for a "failing" case.

[lromano]

Hello, here is a sample file, I had to put it in a zip because of github validation rules + the output of the file
DSC00146.tif.zip
DSC00146.txt

[kmilos]

Ah, so this was actually an imported DNG created by Adobe Lightroom, and there are a bunch of DNG/Lightroom tags left over, hard to tell which one exactly throws off those apps. In addition, there is XMP metadata from Lightroom, also hard to tell if we should be messing w/ it...

It could be as simple as

---- XMP-dc ----
Format                          : image/dng

so you can try exiftool -XMP-dc:Format= foo.tif

Otherwise, you can also try removing these DNG specific tags one by one (w/ exiftool -TagName= foo.tif):

UniqueCameraModel
CameraCalibration1
CameraCalibration2
AnalogBalance
AsShotNeutral
BaselineExposure
BaselineNoise
BaselineSharpness
LinearResponseLimit
ShadowScale
CameraCalibrationSig
PreviewApplicationName
PreviewApplicationVersion
PreviewSettingsDigest
PreviewColorSpace
PreviewDateTime
NoiseProfile
NewRawImageDigest

Once we find what it is, making the code change should be straightforward (famous last words)...

[lromano]

Hello everyone, seems that kmilos found the culprit.

Indeed, this image is part of old raw files converted by Lightroom into dng.
I suppose that the program added a bunch of peculiar tags at this moment.

to verify that, I tried to upload an image, this time directly coming from a raw imported straight into darktable; and then, no issues to upload te file.

I also tried to execute this command that you recommended, into the problematic dng from Lightroom :
exiftool -XMP-dc:Format= foo.tif

And then, no problems to reupload, issue is fixed. So it's probably the one confusing those websites validity checkers.

Here is the modified sample file :
sample.tif.zip

[kmilos]

@lromano Please test the fix if possible, thanks.
