Noise tools embed incorrect 'maker' and 'model' in presets.json

[tduell]

---

Describe the bug/issue
I've generated noise profile data (presets.json file) for the new Pentax K-3 Mark III camera, using the noise tools (darktable-gen-noiseprofile) and attempted to test the noise profiles on images from the camera, starting darktable with the command 'darktable --noiseprofiles /home/terry/Pentax-K-3/presets.json'.
darktable does not recognise that the noise data in presets.json is applicable to the images.
If the presets.json file is edited to reflect what is in the image exif data, darktable then recognises that the noise data in the edited presets.json file is applicable to images from the camera.

To Reproduce
Please provide detailed steps to reproduce the behaviour, for example:

1. Produce appropriate images from the camera and run 'darktable-gen-noiseprofile' as appropriate for those images to produce 'presets.json' file.
2. Start darktable using the presets.json file in 1. above, and import images from the camera.
3. Attempt to apply 'denoise (profiled)' on an image.
4. denoise (profiled) uses 'generic poissonian'

The following notes elaborate in more detail;
darktable does not recognise the presets.json data is applicable to PENTAX K-3 Mark III DNG image.
The first few lines of the presets.json file as generated by the tools.

"version": 0,
"noiseprofiles": [
{
"maker": "PENTAX",
"models": [
{
"comment": "k-3 mark iii contributed by terry",
"model": "K-3 Mark III",
"profiles": [

The first few lines of edited presets.json to reflect what is in the exif.
darktable recognises that the edited presets.json data is applicable to PENTAX K-3 Mark III DNG image.

"version": 0,
"noiseprofiles": [
{
"maker": "RICOH IMAGING COMPANY, LTD",
"models": [
{
"comment": "k-3 mark iii contributed by terry",
"model": "PENTAX K-3 Mark III ",
"profiles": [

An extract from the output of exiftool for a PENTAX K-3 Mark III DNG file.

File Type : DNG
File Type Extension : dng
MIME Type : image/x-adobe-dng
Exif Byte Order : Little-endian (Intel, II)
Make : RICOH IMAGING COMPANY, LTD.
Camera Model Name : PENTAX K-3 Mark III
Orientation : Horizontal (normal)
Software : PENTAX K-3 Mark III Ver. 1.01

Expected behavior
denoise (profiled) will show 'found match for ISO...'

Screenshots

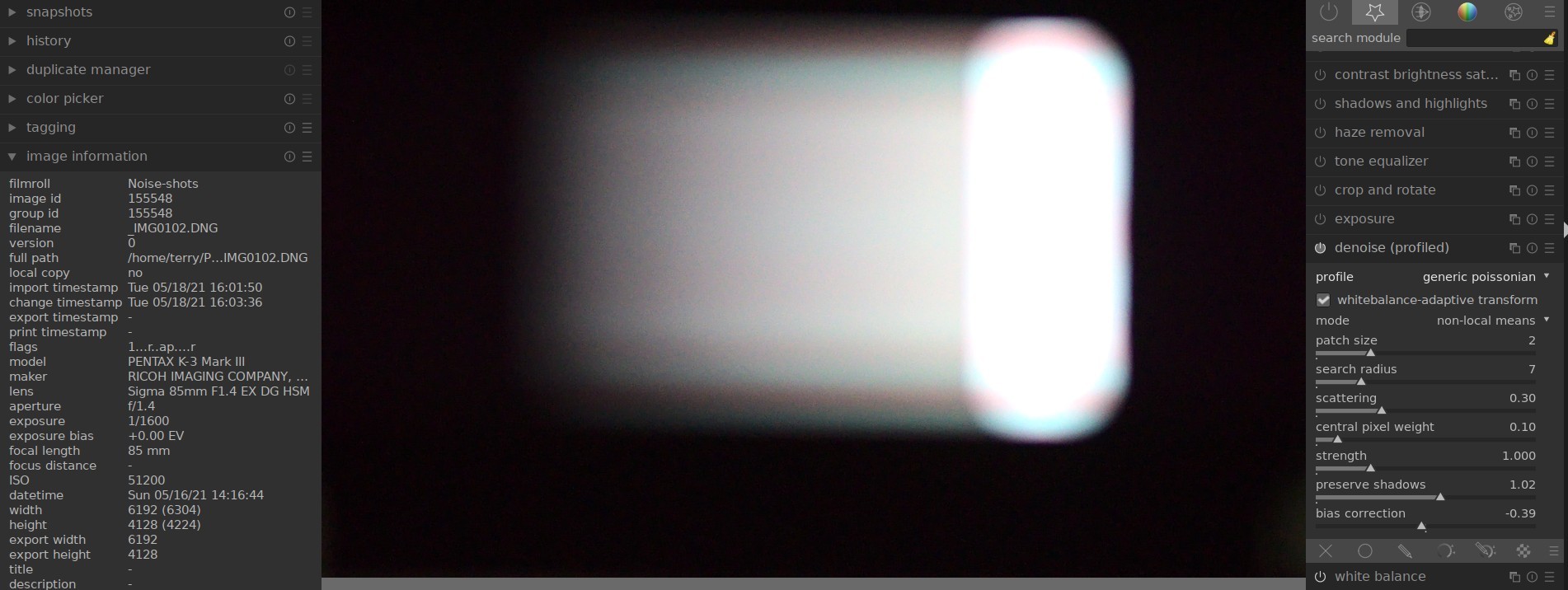

'Selection_012.jpg' shows result with original presets.json file.

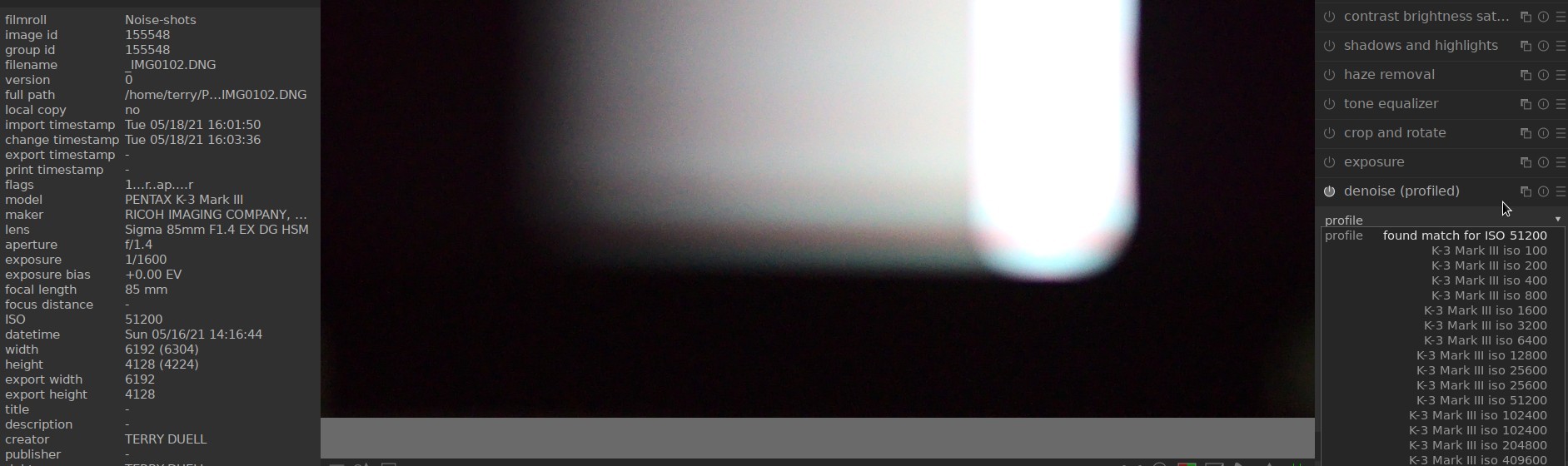

'Selection_013.jpg' shows result with edited presets.json file.

Platform
_Please fill as much information as possible in the list given below. Please state "unknown" where you do not know the answer and remove any sections that are not applicable _

• darktable version : release-3.5.0-2257-gd48e51476
• OS : Linux
• Linux - Distro : Fedora 33
• Memory : 16GB
• Graphics card : Geforce GTX750Ti
• Graphics driver : nouveau
• OpenCL installed : yes
• OpenCL activated : yes
• Xorg : ?
• Desktop : Cinnamon
• GTK+ :
• gcc :
• cflags :
• CMAKE_BUILD_TYPE :

Additional context
Please provide any additional information you think may be useful, for example:

• Can you reproduce with another darktable version(s)? **yes with version x-y-z / Not tried

• Can you reproduce with a RAW or Jpeg or both? RAW-file-format/Jpeg/both Can reproduce with other images from the subject camera.

• Are the steps above reproducible with a fresh edit (i.e. after discarding history)? yes/no Not tried
  ![

• If the issue is with the output image, attach an XMP file if (you'll have to change the extension to .txt)

• Is the issue still present using an empty/new config-dir (e.g. start darktable with --configdir "/tmp")? yes/no
  Selection_012](https://user-images.githubusercontent.com/76498546/118600956-01343000-b7f5-11eb-8620-24c3075a3b58.jpg)


[kmilos]

Perhaps this can be closed as non-issue?

Some background: the way it works now is that rawspeed's "translated/unified/sanitized/normalized" values for make and model are used first (whether it's a DNG or a vendor raw format), and then the ones from the file as a fallback. So after implementing support in rawspeed, see now how it now works out for K-3 Mark III and GR III (try running the noise tools on master again).

For "proper" cameras, if it doesn't exits, one should add it first to cameras.xml with the normalized mapping in the field (either manually first for testing and generating the noise profile, but eventually it should get into rawspeed via a camera support issue). I guess for smartphones and other devices one currently doesn't bother...

[johnny-bit]

Best case scenario should be: "Do not 2nd guess DNG data" and ideally in case there's no info in cameras.xml we should assume that the data in DNG is correct one. And the cameras.xml should only be used for outliers like vendor-only raw formats if I understand correctly... Dunno where the discrepancy for noise tools comes from, but i do know that wb tools will just bail on unknown camera...

Maybe this should be open to investigate possible code improvements for noise/wb tools when the data is in readable format (eg DNG) and there's no entry in cameras.xml?

[kmilos]

"Do not 2nd guess DNG data" and ideally in case there's no info in cameras.xml we should assume that the data in DNG is correct one. And the cameras.xml should only be used for outliers like vendor-only raw formats if I understand correctly...

There seem to be a plethora of "DNG only" output Pentax/Ricoh and other vendor models that are present and "normalized" already, so we're not talking about outliers but intended operation to keep the vendor names (they keep putting different ones in there like "PENTAX RICOH IMAGING" vs "PENTAX" vs "RICOH IMAGING COMPANY, LTD." vs "PENTAX Corporation", or "LEICA CAMERA AG" vs "Leica Camera AG", or "SAMSUNG DIGITAL IMA" vs "samsung" vs "SAMSUNG TECHWIN Co.", or "LGE" vs "LG Mobile") and model schemes sane...

[johnny-bit]

Ideally we wouldn't need that ;) So - what's your proposition here? Actually close as non-issue and keep in mind that some companies try to be fAnCy and make maintainer's life harder? pon., 14 cze 2021 o 17:10 Miloš Komarčević ***@***.***> napisał(a):

…

"Do not 2nd guess DNG data" and ideally in case there's no info in cameras.xml we should assume that the data in DNG is correct one. And the cameras.xml should only be used for outliers like vendor-only raw formats if I understand correctly... There seem to be a plethora of "DNG only" <https://github.com/darktable-org/rawspeed/blob/0452b3f628a7e6c1b3dc9c8ba8128abcc3f05731/data/cameras.xml#L9822-L9959> output Pentax/Ricoh and other vendor models that are present and "normalized" already, so we're not talking about outliers but intended operation to keep the vendor names (they keep putting different ones in there like "PENTAX RICOH IMAGING" vs "PENTAX" vs "RICOH IMAGING COMPANY, LTD." vs "PENTAX Corporation", or "LEICA CAMERA AG" vs "Leica Camera AG", or "SAMSUNG DIGITAL IMA" vs "samsung" vs "SAMSUNG TECHWIN Co.", or "LGE" vs "LG Mobile") and model schemes sane... — You are receiving this because you commented. Reply to this email directly, view it on GitHub <#8992 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/ACRRKFMJSBGKKVARIRKI77DTSYLXXANCNFSM45B3ALMQ> .

-- Pozdrawiam, Hubert Kowalski

[kmilos]

So - what's your proposition here? Actually close as non-issue and keep in mind that some companies try to be fAnCy and make maintainer's life harder?

This particular case is IMHO a non-issue (or rather, premature noise profile merge before basic camera support was analyzed and implemented). Perhaps there needs to be a warning about this in the wiki?

Going forward, maybe a couple of ideas... Instead of creating a translation entry for each new model (talking about "DNG only" here that doesn't require any additional information usual for cameras.xml):

1. Assume in the general case most vendors use a sane name (and model scheme) consistently, just capitalize it properly (e.g. using tolower()/toupper()), and use model as is
2. For the ones that are not sane, maintain a per vendor (not per model) translation dictionary
3. Use individual model mappings when truly needed

OTOH, I guess the current rawspeed "normalization" implementation is very neat/regular programmatically so there is no push to change it, but the burden remains on keeping cameras.xml up to date...

[johnny-bit]

Well, Ricoh Imaging Company is one of those SuPeR fAnCy ones because "RICOH IMAGING COMPANY, CO" can be both "Pentax" and "Ricoh" :/ but I agree. pon., 14 cze 2021 o 18:05 Miloš Komarčević ***@***.***> napisał(a):

…

So - what's your proposition here? Actually close as non-issue and keep in mind that some companies try to be fAnCy and make maintainer's life harder? This particular case is IMHO a non-issue (or rather, premature noise profile merge before basic camera support was analyzed and implemented). Perhaps there needs to be a warning about this in the wiki? Going forward, maybe a couple of ideas... Instead of creating a translation entry for each new model (talking about "DNG only" here that doesn't require any additional information usual for cameras.xml): 1. Assume in the general case most vendors use a sane name (and model scheme) consistently, just capitalize it properly (e.g. using tolower()/toupper()), and use model as is 2. For the ones that are not sane, maintain a *per vendor* (not *per model*) translation dictionary 3. Use individual model mappings when truly needed OTOH, I guess the current rawspeed "normalization" implementation is very neat/regular programmatically so there is no push to change it, but the burden remains on keeping cameras.xml up to date... — You are receiving this because you commented. Reply to this email directly, view it on GitHub <#8992 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/ACRRKFJN5A4Q4KPGBFW53ZDTSYSEHANCNFSM45B3ALMQ> .

-- Pozdrawiam, Hubert Kowalski

[johnny-bit]

However I think there MIGHT be and issue with denoise (profiled) module, since on exif data match it should take the data but according to the issue at hand - it doesn't.

[kmilos]

Don't think so - AFAICT the Exif data is sanitized through cameras.xml first , or simply passed through if an entry doesn't exist there, and only then stored in dt_image_t.make and dt_image_t.model to be used by all other modules...

Part of the issue was perhaps that the attempted "RICOH IMAGING COMPANY, LTD." contained a comma and period which were not allowed/supported in vendor name matching of the denoise module when added by hand - only [a-zA-Z ] are supported precisely because we rely on some sane sanitization... Potentially this could be expanded to any ASCII character to support these manual hacking/testing cases?

[johnny-bit]

OK, so:

noise tools correctly generate name for "unknown" camera: "PENTAX" as maker and "K-3 Mark III" as model

however due to exif data not going through cameras.xml "sanitization" process the module gets "RICOH IMAGING COMPANY, LTD."

this is problematic because we allow either "Pentax" or "Ricoh" in that case as maker in noiseprofiles.

Both problems for ricoh cameras were because exif reported "RICOH IMAGING COMPANY, LTD." instead of either Pentax or Ricoh...

so... how about we go with your suggestion from here:

For the ones that are not sane, maintain a per vendor (not per model) translation dictionary

just where to put good sanitization? in dt_image_refresh_makermodel or rather dt_rawspeed_lookup_makermodel? I think the later.

[kmilos]

noise tools correctly generate name for "unknown" camera: "PENTAX" as maker and "K-3 Mark III" as model

however due to exif data not going through cameras.xml "sanitization" process the module gets "RICOH IMAGING COMPANY, LTD."

this is problematic because we allow either "Pentax" or "Ricoh" in that case as maker in noiseprofiles.

I think this is sums it up, with the exception of "correctly"... The potential bug here is how noise tools figures out "PENTAX" as make when that is not what Exif (or sanitized rawspeed) data contain?

Exif.Image.Make                               RICOH IMAGING COMPANY, LTD.
Exif.Image.Model                              PENTAX K-3 Mark III

Both problems for ricoh cameras were because exif reported "RICOH IMAGING COMPANY, LTD." instead of either Pentax or Ricoh...

so... how about we go with your suggestion from here:

For the ones that are not sane, maintain a per vendor (not per model) translation dictionary

Unfortunately not going to work for this case since the mapping is not bijective: you choose either Pentax or Ricoh depending on the model, so has to be done on per model basis, like rawspeed already does...

just where to put good sanitization? in dt_image_refresh_makermodel or rather dt_rawspeed_lookup_makermodel? I think the later.

I don't think adding yet another layer of sanitization is the ideal approach, as it runs a danger of becoming out of sync w/ rawspeed.
