[WIP] Segmentation based highlights recovery for bayer sensors

[jenshannoschwalm]

EDIT: reflection current status

The new highlight recovery algorithm only works for standard bayer sensors.
It has been developed in collaboration by Iain from the gmic team and me.

The original idea was presented by Iain in pixls.us in: https://discuss.pixls.us/t/highlight-recovery-teaser/17670

and has been extensively discussed over the last months. No other external modules (like gmic …) are used. no OpenCL codepath yet.

I have been testing this on many images (all with very heavy clipping) and this algo does not fix all problems but for the vast majority of images is it far better than what we have atm. On 'normal' images - some parts are blown out because of wrong exposure like clouds, building surfaces, skin ... - this works just good imho.

@rawfiner - i promised to ping you.
@aurelienpierre - any comments?

The algorithm follows these basic ideas:

1. We understand the bayer data as superpixels, each having one red, one blue and two green photosites
2. We analyse all data (without wb correction applied) on the channels independently so resulting in 4 color-planes
3. We want to keep details as much as possible; we assume that details are best represented in the color channel having
   the minimum value. So beside the 4 color planes we also have a plane holding the minimum values (pminimum)
4. In all 4 color planes we look for isolated areas being clipped (segments).
   Inside these segments (including borders around) we look for a candidate to represent the value we take for restoration.
   Choosing the candidate is done at all non-clipped locations of a segment, the best candidate is selected via a weighing
   function - the weight is derived from
   • the local standard deviation in a 5x5 area and
   • the median value of unclipped positions also in a 5x5 area.
     The best candidate points to the location in the color plane holding the reference value.
     If there is no good candidate we use an averaging approximation over the whole sehment.
5. We evaluated several ways to further reduce the pre-existing color cast, atm we calc linearly while using a correction
   coeff for every plane.
   We also tried using some gamma correction which helped in some cases but was unstable in others.
6. The restored value at position 'i' is basically calculated as
   val = candidate + pminimum[i] - pminimum[candidate_location];

For the segmentation i implemented and tested several approaches including Felszenzwalb and a watershed algo,
both have problems with identifying the clipped segments in a plane. I ended up with this:

1. Doing the segmentation in every color plane.
2. The segmentation algorithm uses a modified floodfill, it also takes care of the surrounding rectangle of every segment
   and marks the segment borders.
3. After segmentation we check every segment for
   • the segment's best candidate via the weighing function
   • the candidates location
4. To combine small segments for a shared candidate we use a morphological closing operation, the radius of that op
   can be chosen interactively between 0 and 10.
5. To avoid single clipped photosites (often found at smooth transitions from not-clipped to clipped) we prepose
   a morphological opening with a very small radius before segmentation.

[TurboGit]

Tested on one picture and I get some magenta cast in the sky that I was not able to remove. Any way around that? Maybe I'm not using this new mode properly?

[jenshannoschwalm]

Could you share the raw? For some images the white point is not perfect. You might try with reducing the clip value a bit. The former reconstruct color module took care of such by setting clip to something below the UI value.

Could do that here too.

[TurboGit]

Sure I can share it, this was a "free" picture in a French magazine which talked about RAW software (darktable was one of them), and this picture was about demoed for the highlight recovery as the sky has many channels blown out!

Anyway, here is the link:

https://drive.google.com/file/d/1W0N67cVSXeivz-avMiBhB7cY4BKQvpFk/view?usp=sharing

[TurboGit]

Here is another one causing even more troubles:

https://drive.google.com/file/d/1XFKbgAkbLfckY-JZKrn4mP9MsxLTc59c/view?usp=sharing

[jenshannoschwalm]

I can see that too. ATM i find

1. filmic rgb "preserve chrominance" default fails here on some reason, "no" is better

Will look into it ...

[rawfiner]

filmic rgb "preserve chrominance" default fails here on some reason, "no" is better

The problem is here whatever filmic preserve chrominance value: see what happens if you disable filmic and reduce exposure to underexpose the image quite a lot: the highlights have their color cast.
Setting chrominance preservation to "no" just hides the issue because it desaturates highlights.

[rawfiner]

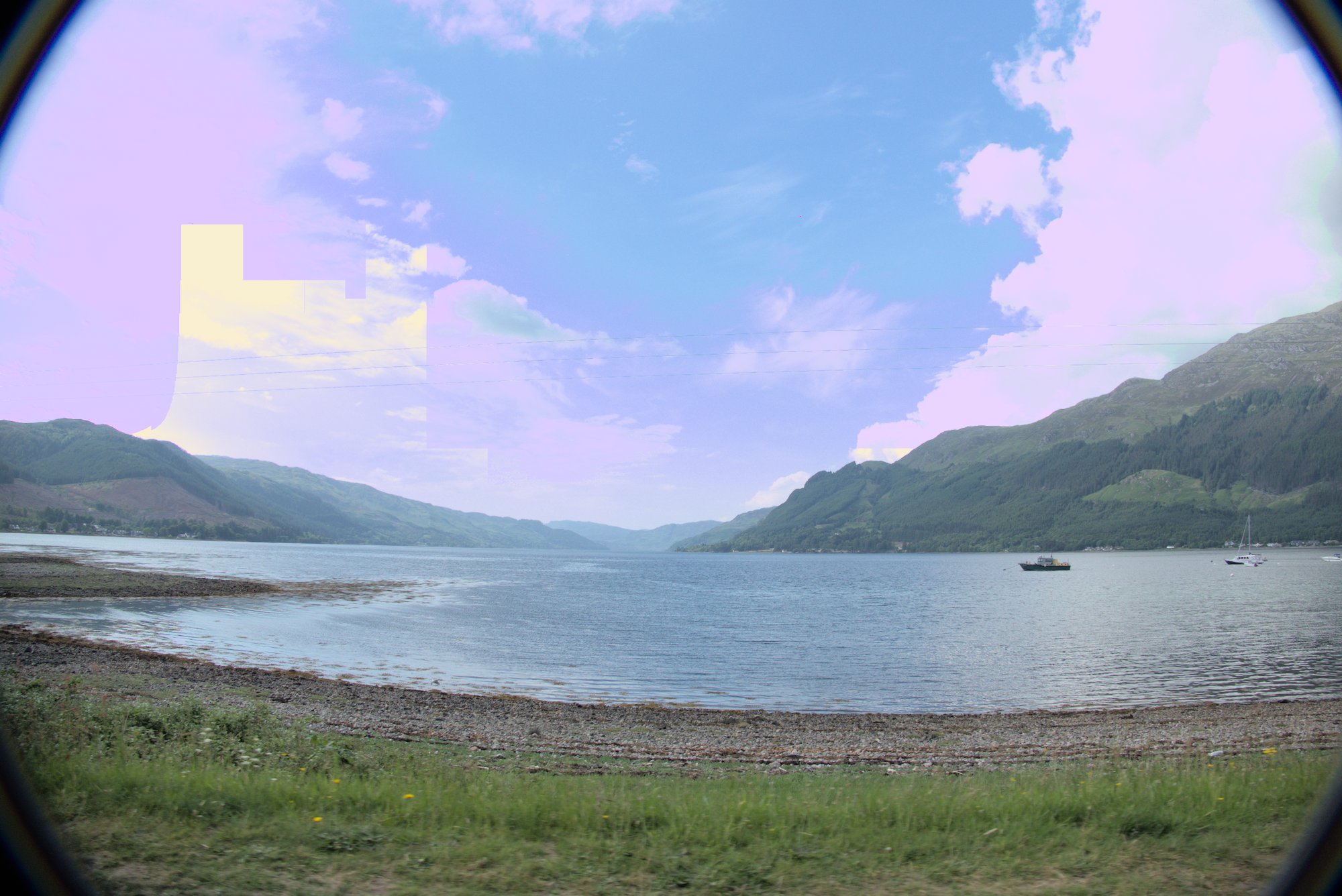

I get a strange behavior on this image:

raw is here: https://drive.google.com/file/d/1lfVZRgCinKbV0LF8nSfMc6wj3rY0Jo2S/view?usp=sharing

[jenshannoschwalm]

About the images @TurboGit gave: Both have very large areas clipped and the candidate detection via segmentation fails here. BTW the debugging option help here to detect such issues.

There might be a misunderstanding: the algorithm doesn't try to remove a cast by any means of color->grey correction, it tries to "guess" the sensor data as it should be estimated from mimimum plane and candidate.
So: a purple color cast can be understood a "missing blue" as blue is clipped. What we do here, find a better (higher) blue value so the cast is reduced.
In effect the output data of the reconstructed bayer data can be up to 2*clip - this might need correction of parameters in filmic.

Removing of the remaining color casts is deferred to filmic

My mentioning the filmic-rgb module setting: yes i am aware of the algo. I was wandering about the introduced violet cast. Tests show that is is introduced by a bad candidate.

[jenshannoschwalm]

I get a strange behaviour on this image:

Could not reproduce so far. I guess this is depending on the exact clipping setting?

[TurboGit]

A question, is that the very same algorithm that Aurélien is implementing here #10711? If yes, maybe you need to coordinate.

[jenshannoschwalm]

No, this is completely different. Just coincidence we both have been working on the same subject: highlights.

Me and Iain from gmic take the path via segmentation and finding a good candidate for a photosite, @aurelienpierre goes via interpixel correlation somehow (if i understand his code correctly). I tried his code too, for some images his algo is better, for some images this pr is certainly better imho.

[jenshannoschwalm]

The segmentation process depends on the specific setting of the clipping threshold. This had lead to instability.

The latest two commits reduce this problem a lot and also avoid some oversegmentation.

[rawfiner]

Could not reproduce so far. I guess this is depending on the exact clipping setting?

It seems to be fixed by your last commits :-)

[jenshannoschwalm]

Latest commit has removed all "developing internal" stuff while keeping all implemented functionality.

As we only have two UI parameters used in the algo we can keep module version the same helping testing on master developed images and new stuff in other highlights related PR's

[jenshannoschwalm]

Latest commit

• slightly changes calculation of the correction coefficient thus improves green/blue balance
• moves #defines to specific file

[jenshannoschwalm]

Still evaluating color managing so pending and WIP

[jenshannoschwalm]

There is heavy work on this -- closing this for now until there is something really good.
