tone equalizer

[aurelienpierre]

introduce a new "tone equalizer " module, intended to allow selective exposure adjustements in linear RGB (supposed to be color-safe). This is very similar to Lightroom, with blacks/shadows/midtones/highlights/whites cursors.

The luminance channels are blended with gaussian masks and the modifications are applied on a gaussian pyramid to preserve the local contrast (luminance modified in low frequency layers).

For now, nothing is optimized (naive C implementation) and the module is expected to be slow. This is just a proof of concept. I will make it faster once the core algorithm is validated.

[TurboGit]

Sounds very promising!

[TurboGit]

Just tested, quite nice indeed. The transitions are "smoothed" and so the tonality are pleasant. Nice work.

[aurelienpierre]

Thanks ! I have yet to squeeze in there either a laplacian pyramid or a wavelet decomposition to affect only the low frequencies, because I find it flattens a bit too much the local contrast.

[rawfiner]

Just tested and liked it :-)
It is probably already on your todolist, but it would be nice to have soft bounds on the sliders
Very nice addition Aurélien, thanks !

[aurelienpierre]

Just tested and liked it :-)
It is probably already on your todolist, but it would be nice to have soft bounds on the sliders
Very nice addition Aurélien, thanks !

Nice ! Soft bounds could quickely backfire. Given that each channel is separated from the others by 2 EV, pushing is beyond will move it to another channel, and the local contrast will suffer beyond repair.

But, increasing the channels around a third one will have the same effect as pushing it beyond/over ± 2 EV while preserving details.

I just stabilized the laplacian filter, I think it works great. There is only one scale for now, so the difference is only visible fully zoomed.

[rawfiner]

Thanks for the answer :-)
That makes sense.
I did not understand your remark about increasing the channels around a third one however, could you say it differently?

[aurelienpierre]

@rawfiner

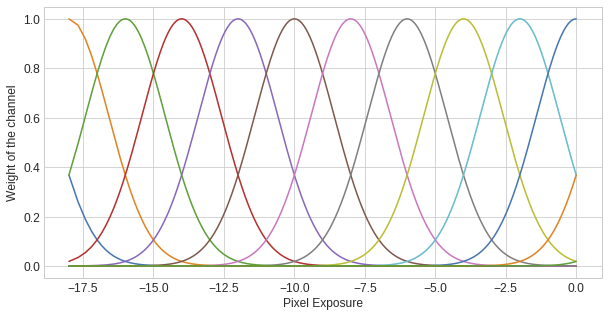

What the algo does is several band-pass filters between 0 and - 14 EV:

Each band-pass filter is defined by a gaussian window so that for every pixel, the sum of the weights of all windows are constant (= 1.77).

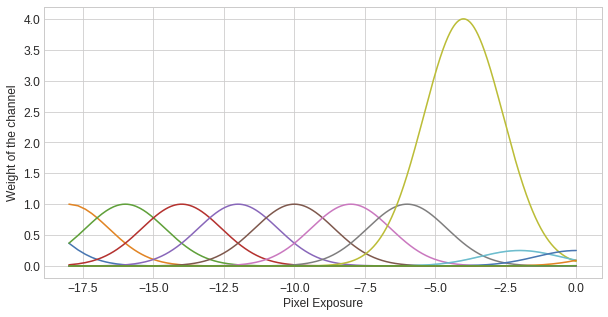

Each band is associated with an exposure compensation, which is a factor (+2 EV "=" × 4). Say you want to add 2 EV on the - 4 EV band, and remove 2 EV on the -2 EV and 0 EV bands, your parameters translate like this:

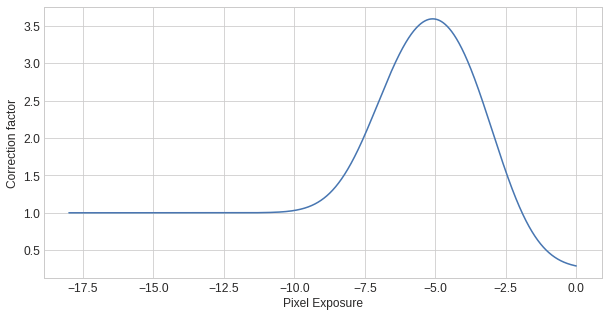

For every pixel, we then compute the sum of all the channels at the pixel's luminance and use the result as a correction factor (between 0.125 and 4):

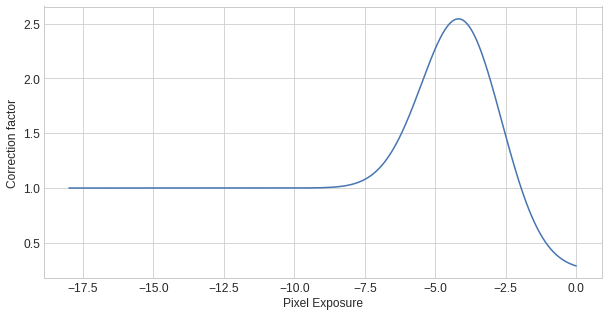

See here, at -4 EV, the correction factor is only ~ 2.5 (+1.30 EV) because the neighbouring channels have some weight to avoid breaking the local contrast. So we can increase the -6 EV channel as well:

Now, the -4 EV band gets a factor of ~ 3 (+1.5 EV)

Once you multiply the RGB vectors by the factor corresponding to their exposure, you get something very similar to a tone curve:

This approach shows none of the interpolation artifacts (cusps) of the splines interpolation, gives a smooth curve no matter what, and deal with pixels as full RGB vectors (not separating their components). But you see here how the operation is mildly damaging the local contrast near whites (oscillation) ? That can be made less problematic by using a laplacian pyramid (for now, there are only 2 scales), but still, you don't want to force exposure oscillations.

[rawfiner]

Thanks a lot for this detailed explanation 👍
This makes everything clear 😊

[aurelienpierre]

I have an error double free or corruption (!prev) affecting the line 508:

dt_free_align(luma_in);

It happens when using the laplacian mode with the power weighted norm (you can also see the thumbnail is wrong). I have spent 3h trying to troubleshot it, if someone has an idea ;-)

[rawfiner]

@aurelienpierre
In process_scale, if memory allocation failed, you will goto clean and free the 3 pointers while you just checked that one of them is NULL, hence you will free a NULL pointer. The error maybe comes from here?

[aurelienpierre]

In process_scale, if memory allocation failed, you will goto clean and free the 3 pointers while you just checked that one of them is NULL, hence you will free a NULL pointer. The error maybe comes from here?

No, that part was already an attempt to fix this problem, it arised before (and also freeing a pointer set to NULL is supposed to be harmless).

[ff2000]

Wanted to give it a try, for me it crashes in L.406:

Thread 19 "worker 1" received signal SIGILL, Illegal instruction.
[Switching to Thread 0x7fff6bd51700 (LWP 22899)]
0x00007fffa0e37556 in process_image (luminance=<optimized out>, method=<optimized out>, factors=<optimized out>,
    height=<optimized out>, width=<optimized out>, out=<optimized out>, in=<optimized out>)
    at /home/karl/src/darktable/src/iop/toneequal.c:406
406         for(int i = 0; i < 16; ++i) pixel_out[i] = correction[i / ch] * pixel_in[i];

(gdb) bt full
#0  0x00007fffa0e37556 in process_image (luminance=<optimized out>, method=<optimized out>, factors=<optimized out>, height=<optimized out>, width=<optimized out>, out=<optimized out>, in=<optimized out>)
    at /home/karl/src/darktable/src/iop/toneequal.c:406
        i = <optimized out>
        i = <optimized out>
        i = <optimized out>
        i = <optimized out>
        pixel_in = <optimized out>
        correction = <optimized out>
        pixel_in = 0x7fff686783c0
        correction = {0.314601362, 0.314340442, 0.314838082, 0.314575702}
        pixel_lum = <optimized out>
        luma = <optimized out>
        exposure = <optimized out>
        pixel_lum = 0x7fff683bdd20
        luma = {0.478164583, 0.479542047, 0.47692275, 0.478299618}
        exposure = {-1.06442082, -1.06027079, -1.06817245, -1.06401348}
        pixel_out = <optimized out>
        pixel_out = 0x7fff684503c0
        k = <optimized out>
        k = 105696
        ch = <optimized out>
#1  process_scale (method=<optimized out>, factors=<optimized out>, kernel=<optimized out>, height=<optimized out>, width=<optimized out>, out=<optimized out>, in=<optimized out>) at /home/karl/src/darktable/src/iop/toneequal.c:502
        in_toned = <optimized out>
        luma_in = <optimized out>
        luma_toned = <optimized out>
        ch = <optimized out>
        ch = <optimized out>
        in_toned = <optimized out>
        luma_in = <optimized out>
        luma_toned = <optimized out>
#2  process (self=<optimized out>, piece=<optimized out>, ivoid=<optimized out>, ovoid=<optimized out>, roi_in=<optimized out>, roi_out=<optimized out>) at /home/karl/src/darktable/src/iop/toneequal.c:739
        sigma = <optimized out>
        scale = <optimized out>
        gauss_1D = {0, 0, 0, 0, 0, 0, 0}
        gauss_kernel = {{0, 0, 0, 0, 0, 0, 0}, {0, 1.9748219e-40, 0, 0, 1.40129846e-45, 5.12985358e+26, 4.59163468e-41}, {3.72150149e+24, 4.59163468e-41, 3.51818148e+24, 4.59163468e-41, 4.37318806e+24, 4.59163468e-41,
            1.48111642e-40}, {0, 5.1298831e+26, 4.59163468e-41, 5.12985949e+26, 4.59163468e-41, -1.06401348, 0}, {0.478164583, 0.479542047, 0.47692275, 0.478299618, -1.06442082, -1.06027079, -1.06817245}, {-1.06401348,
            0.314601362, 0.314340442, 0.314838082, 0.314575702, 0.468128145, 6.01167674e-25}, {6.78136728e-19, 1.03526312e-13, 2.12414908e-09, 6.23464575e-06, 0.00226316601, 0.0872310847, 7.21254181e-32}}
        width_padded = <optimized out>
        height_padded = <optimized out>
        ch = <optimized out>
        in_padded = <optimized out>
        out_padded = <optimized out>
        d = <optimized out>
        in = <optimized out>
        out = <optimized out>
#3  0x00007ffff6dab89e in gomp_thread_start (xdata=<optimized out>) at /var/tmp/portage/sys-devel/gcc-8.2.0-r6/work/gcc-8.2.0/libgomp/team.c:120
        team = 0x7fffc80127f0
        task = 0x7fffc8012fa0
        data = <optimized out>
        thr = <optimized out>
        pool = 0x7fffc8012720
        local_fn = 0x7fffa0e37200 <process_image._omp_fn.0>
        local_data = 0x7fffdd2639a0
#4  0x00007ffff772296a in start_thread (arg=0x7fff6bd51700) at pthread_create.c:463
        pd = 0x7fff6bd51700
        now = <optimized out>
        unwind_buf = {cancel_jmp_buf = {{jmp_buf = {140735002515200, -920184838796788664, 140736903705022, 140736903705023, 8396800, 140737337107936, 919877179956870216, 920201243785509960}, mask_was_saved = 0}}, priv = {pad = {
              0x0, 0x0, 0x0, 0x0}, data = {prev = 0x0, cleanup = 0x0, canceltype = 0}}}
        not_first_call = <optimized out>
#5  0x00007ffff74571bf in clone () at ../sysdeps/unix/sysv/linux/x86_64/clone.S:95
No locals.

Can't tell you my parameters currently.

[edgardoh]

Should this be k += ch...

[aurelienpierre]

I process 4 pixels at each loop step to vectorize the fmaxf(log2f(...)...) but, indeed, when the pixel number is not a multiple of 4, that could end out of bounds

[aurelienpierre]

Thanks @ff2000 and @edgardoh, that's very helpful 🙂

[LebedevRI]

Step one is to not merge code that doesn't pass CI, especially if it was a PR. Seriously.
Step two - how does all other code deal with that? (s/simd/SIMD()/)

[aurelienpierre]

Step two - how does all other code deal with that? (s/simd/SIMD())

GCC will only issue a warning if -fopt-info-vec-missed flag is passed, and it seems Clang 8 does the same. Otherwise they just ignore the pragma and keep moving.

[TurboGit]

Step one is to not merge code that doesn't pass CI, especially if it was a PR. Seriously.

I did not only merged but also fixed compilation issues on my side using clang-7. So better looking at what has been done before saying something wrong.

[TurboGit]

Now this not compiling because my clang setup for building darktable is using v8 ! And so I did not catch the issues :( My bad.

[LebedevRI]

Clang 8 works fine though

I can assure you it does not. I suspect you build without OpenMP there.

[aurelienpierre]

I can assure you it does not. I suspect you build without OpenMP there.

No, that would be painfully slow and quite obvious.

I just tested right now, it builds on Clang 8/Fedora and runs on-par with GCC 9 build. It seems @MStraeten is able to build on MacOS too.

But Clang 7 is a princess. Same issue here : #2679 (comment)

[TurboGit]

Maybe ! What is the error BTW? Where can I see the log?

[TurboGit]

Then, what is the incantation to build with OpenMP with clang?

[TurboGit]

Ok, found and I have reproduce the error. Next step is to fix.

[aurelienpierre]

Maybe ! What is the error BTW? Where can I see the log?

My bad, the log (https://travis-ci.org/darktable-org/darktable/jobs/588119877) says:

In file included from src/iop/introspection_toneequal.c:77:
In file included from /build/darktable/src/iop/toneequal.c:83:
/build/darktable/src/common/fast_guided_filter.h:36:13: error: unknown pragma ignored [-Werror,-Wunknown-pragmas]
#pragma GCC optimize ("unroll-loops", "tree-loop-if-convert", \
            ^

But, that faulty pragma is supposed to get triggered only for GCC:

#if defined(__clang__)
#pragma GCC diagnostic ignored "-Wunknown-pragmas"
#endif

#if defined(__GNUC__)
#pragma GCC optimize ("unroll-loops", "tree-loop-if-convert", \
                      "tree-loop-distribution", "no-strict-aliasing", \
                      "loop-interchange", "loop-nest-optimize", "tree-loop-im", \
                      "unswitch-loops", "tree-loop-ivcanon", "ira-loop-pressure", \
                      "split-ivs-in-unroller", "variable-expansion-in-unroller", \
                      "split-loops", "ivopts", "predictive-commoning",\
                      "tree-loop-linear", "loop-block", "loop-strip-mine", \
                      "finite-math-only", "fp-contract=fast", "fast-math")
#endif

so Clang defines __GNUC__ ???

Then, what is the incantation to build with OpenMP with clang?

Just using sh build.sh should enable OpenMP because -fopenmp is set in CMakeLists.

[TurboGit]

No the error is:

In file included from /home/obry/dev/repositories/git/darktable/build/src/iop/introspection_toneequal.c:77:
/home/obry/dev/repositories/git/darktable/src/iop/toneequal.c:764:9: error:
      loop not vectorized: failed explicitly specified loop vectorization
      [-Werror,-Wpass-failed=loop-vectorize]
#pragma omp parallel for simd default(none) \
        ^

Looks like "omp simd" cannot be honored here.

[TurboGit]

@aurelienpierre : the error you quote should be fixed on master... I don't see it after my patch before merging.

[aurelienpierre]

@TurboGit what if you replace the loop in toneequal.c:764 by this one:

#ifdef _OPENMP
#pragma omp parallel for simd default(none) \
dt_omp_firstprivate(luminance, out, in_width, out_width, out_height, offset_x, offset_y, ch) \
schedule(static) aligned(luminance, out:64) collapse(2)
#endif
  for(size_t i = 0 ; i < out_height; ++i)
    for(size_t j = 0; j < out_width; ++j)
    {
      const float lum = luminance[(i + offset_y) * in_width  + (j + offset_x)];
      const size_t index = (i * out_width + j) * ch;
      out[index] = out[index + 1] = out[index + 2] = lum;
    }

[TurboGit]

Same error ! This does not work either with clang 8 & 9.

If we disable openmp it is slow.

[TurboGit]

I have disabled OpenMP for clang for toneequalizer. Not nice but this fixes the build issue and will let us time to come with a proper fix. To test on your side Aurélien, to build with clang-7 and OpenMP:

rm -fr build ; CC=clang-7 CXX=clang++-7 ./build.sh --enable-openmp

[aurelienpierre]

Not sure I can install Clang 7 on Fedora 30.

Did you have issues with Clang > 7 ? This is going to be so slow for Mac users…

[TurboGit]

Yes, same issue with clang 8 & 9.

[MStraeten]

with OSX i didn't found issues with clang and openmp. (used XCode 10.3 and 11; build was 21.09.19 before merge of #1904)

[TurboGit]

@MStraeten : maybe OpenMP was disabled? Can you show the config log? Also which clang version are you using?

[aurelienpierre]

No OpenMP support means no vectorization and no parallelization. If the module runs in less than 2 s for a display preview, it's pretty sure both are enabled.

I don't get why Clang 8 runs fine on my system. Isn't that just a warning treated as an error ? A pragma doesn't change the logic of the code, just how the preprocessor is supposed to do with it. There is no way to just bypass the warning ?

[aurelienpierre]

@TurboGit -Wno-error=loop-vectorize might disable the error

[TurboGit]

I'll double check ASAP.

[cryptomilk]

Why do you try to hide the error?

[aurelienpierre]

because it makes the compilation crash completely for something that is not blocking

[TurboGit]

No this option does not work. I still get the same issue.

[aurelienpierre]

Found it @TurboGit ! In CMakeLists.txt:

if(NOT SOURCE_PACKAGE AND NOT APPLE)
  # apple build fails on deprecated warnings..
  add_definitions(-Werror)
endif()

so warnings are turned into errors for any system but Apple, hence why @MStraeten could build with OpenMP and not care about simd fails.

[aurelienpierre]

See #2977 for a solution.

[MStraeten]

just in case you're still interested in the osx config here the current output of
cmake .. -DCMAKE_OSX_DEPLOYMENT_TARGET=10.14 -DCMAKE_C_FLAGS=-I/opt/local/include/libomp -DCMAKE_CXX_FLAGS="-stdlib=libc++ -I/opt/local/include/libomp -Ofast" -DCMAKE_LIBRARY_PATH=/opt/local/lib/libomp -DBINARY_PACKAGE_BUILD=ON -DRAWSPEED_ENABLE_LTO=ON -DCMAKE_BUILD_TYPE=RelWithDebInfo
cmake_out.txt

[TurboGit]

Thanks, so that's clang 11 and you indeed have OpenMP supported.
