Welcome to StarUML React Core Generator 👋

An extension for StarUML that generates a full-stack, test-driven development-ready .NET Core React CRUD application from a UML model. Inspired by the JHipster and Yellicode bookstore tutorial, it is minimalistic and intended to be modified for your own model-driven generator technology.

🏠 Homepage

Motivation

Model-Driven Development (MDD) generators enhance productivity, improve code quality, and foster better collaboration and communication. By leveraging MDD generators, development speed can be accelerated by 2 to 5 times or more compared to traditional software development approaches.

Benefits of Custom Code Generator

• Tailored Solutions: Custom code generators can be tailored specifically to the needs of a particular project or organization, providing greater flexibility and customization options.
• Optimized Code: With custom code generators, developers have more control over the generated code, allowing for optimization of performance, scalability, and maintainability based on project requirements.
• Integration with Existing Systems: Custom code generators can be seamlessly integrated with existing systems, ensuring smoother transitions and better compatibility with legacy infrastructure.

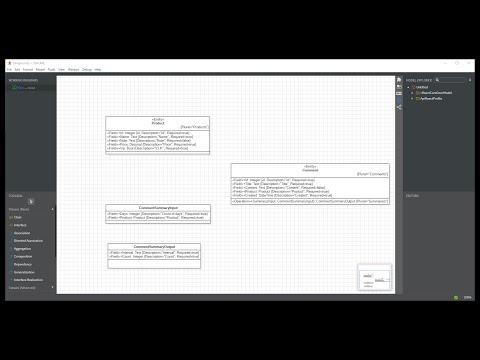

Screencast

Features

• Generate complete application.
• Generate integration tests.
• Generate test data seeds using Faker.js.
• Generate extra actions from @UMLClass operations (e.g., SQL aggregation actions).
• Simple and modifiable.
• Robust @UMLModel validation.
• Fast template development using Jest runner.

Primitive types

• Integer
• Text
• Decimal
• DateTime
• Bool

Prerequisites

• staruml >=6.0.0
• net6.0 ( Core )
• Imported assets\Profile.mfj for new project ( The sample already has an imported profile )

Install

1- Install StarUML, download page.

2- Download last release build

3- Unzip to StarUML extension user folder.

• Windows: C:\Users\<user>\AppData\Roaming\StarUML\extensions\user\staruml-react-core-generator

Example

1. Open test\data\sample.mdj
2. Change Project name using @UMLModel tag editor
3. Open (File > Preference > React Core) and fill Project path
4. Click on the menu (Tools > React Core ) and perform all the steps to generate the entire application
5. Run generated solution in Visual studio

Usage

Define the Domain Model Using a Class Diagram

Identify Main Data Entities: Extract key entities (e.g., users, products, orders) from the business specifications. Understand Attributes and Relationships: Analyze their attributes, relationships, and necessary operations. Add stereotypes to @UMLModel ( ReactCoreGen ), @UmlClass ( Entity ), Attributes ( Field ). Fill in their tags accordingly.

Initialize the Project

Generate the Application: Navigate to the menu (Tools > React Core) and follow the steps to generate the entire application.

Customization

Create Prototype: Focus on entity relationships and validate them. Specify Action Behavior: Customize the specified actions, then make minor UI changes. Code Merging: Be cautious with full customizations before modifying the UML model.

Continuous Application Updates

Version Control: Utilize version control systems to merge new UML model changes into the customized application.

Test-Driven Development (TDD)

Utilize execution tests to customize API actions instead of using Swagger UI or the React client. For insights into the TDD application, refer to the test coverage report, which provides valuable information about the application's architecture and its test cases. Benefits: TDD facilitates faster development and enhances code quality by making refactoring easier. It ensures that bugs are detected and resolved early, resulting in a more robust and maintainable codebase.

Deploying the Application Using Continuous Deployment (CD)

Test Execution: It is critical to execute tests using a continuous integration server (e.g., GitHub Actions) to ensure all tests in the repository pass. Disable application deployment unless all tests succeed.

Roadmap

• Many to many relation

How to modify

1. Copy C:\Users\<user>\AppData\Roaming\StarUML\extensions\user\staruml-react-core-generator to custom folder
2. Open in VS code
3. npm run export-metadata for save sample.mdj as sample.json
4. Execute ejs template by test\render-templates.test.js using Jest test runner and check output of template in console

Author

👤 David Skalka

Show your support

Give a ⭐️ if this project helped you!

---

This README was generated with ❤️ by readme-md-generator
