Refactor various bits of graphics code for readability

[Pokechu22]

This is mainly focused on software renderer changes, combined with some various fifo analyzer changes and typo fixes.

[Pokechu22]

The diff for tla-menu comes from "SW/Rasterizer: Use RAS1_IREF::getTexCoord and getTexMap" - I'm not 100% sure what's causing it (other than that the image is blue because the software renderer doesn't have #10204), but the game does use textures 4-7 for some parts of the effect.

[iwubcode]

@Pokechu22 - are you planning on investigating / resolving the fifo change or do you still think this is worthwhile to merge as is?

[Pokechu22]

The FIFO change is caused by "SW/Rasterizer: Use RAS1_IREF::getTexCoord and getTexMap". I've attempted to investigate it further and reproduce the issue on hardware backends, but I haven't been able to. As far as I can tell, the difference is caused by a bug where the software renderer would use the LOD and linear filtering configuration of textures 0-3 when an indirect stage used texture 4-7 (but it would still read texture data from textures 4-7 properly). TLA's menu uses different textures from EFB copies for all 4 quadrants of the screen, and those textures seem to have the texture number shuffled between quadrants and frames. But without porting PR 10204 to the software renderer, it's hard to be 100% sure what impact this had.

I think it's fine to merge even with that difference. It would be something to double-check when the software renderer has the copy filter implemented correctly, though.

Attempt at reproducing on hardware backends (for my reference)

diff --git a/Source/Core/VideoCommon/BPStructs.cpp b/Source/Core/VideoCommon/BPStructs.cpp
index d31bf59f13..a5b03d5a64 100644
--- a/Source/Core/VideoCommon/BPStructs.cpp
+++ b/Source/Core/VideoCommon/BPStructs.cpp
@@ -280,7 +280,7 @@ static void BPWritten(const BPCmd& bp, int cycles_into_future)
           destAddr, PE_copy.tp_realFormat(), copy_width, copy_height, destStride, is_depth_copy,
           srcRect, PE_copy.intensity_fmt, PE_copy.half_scale, 1.0f, 1.0f,
           bpmem.triggerEFBCopy.clamp_top, bpmem.triggerEFBCopy.clamp_bottom,
-          bpmem.copyfilter.GetCoefficients());
+          {0, 0, 21, 22, 21, 0, 0});
     }
     else
     {
diff --git a/Source/Core/VideoCommon/PixelShaderGen.cpp b/Source/Core/VideoCommon/PixelShaderGen.cpp
index 114bd2a7e5..d53aa6c7df 100644
--- a/Source/Core/VideoCommon/PixelShaderGen.cpp
+++ b/Source/Core/VideoCommon/PixelShaderGen.cpp
@@ -636,7 +636,7 @@ uint WrapCoord(int coord, uint wrap, int size) {{

   if (api_type == APIType::OpenGL || api_type == APIType::Vulkan)
   {
-    out.Write("\nint4 sampleTexture(uint texmap, in sampler2DArray tex, int2 uv, int layer) {{\n");
+    out.Write("\nint4 sampleTexture(uint texmap, in sampler2DArray tex, uint texmap2, int2 uv, int2 uv2, int layer) {{\n");
   }
   else if (api_type == APIType::D3D)
   {
@@ -674,7 +674,8 @@ uint WrapCoord(int coord, uint wrap, int size) {{
   {
     out.Write(R"(
   uint texmode0 = samp_texmode0(texmap);
-  uint texmode1 = samp_texmode1(texmap);
+  uint texmode1 = samp_texmode1(texmap2);
+  uint texmode02 = samp_texmode0(texmap2);

   uint wrap_s = {};
   uint wrap_t = {};
@@ -690,13 +691,13 @@ uint WrapCoord(int coord, uint wrap, int size) {{
 )",
               BitfieldExtract<&SamplerState::TM0::wrap_u>("texmode0"),
               BitfieldExtract<&SamplerState::TM0::wrap_v>("texmode0"),
-              BitfieldExtract<&SamplerState::TM0::mag_filter>("texmode0"),
-              BitfieldExtract<&SamplerState::TM0::mipmap_filter>("texmode0"),
-              BitfieldExtract<&SamplerState::TM0::min_filter>("texmode0"),
-              BitfieldExtract<&SamplerState::TM0::diag_lod>("texmode0"),
-              BitfieldExtract<&SamplerState::TM0::lod_bias>("texmode0"),
-              // BitfieldExtract<&SamplerState::TM0::max_aniso>("texmode0"),
-              BitfieldExtract<&SamplerState::TM0::lod_clamp>("texmode0"),
+              BitfieldExtract<&SamplerState::TM0::mag_filter>("texmode02"),
+              BitfieldExtract<&SamplerState::TM0::mipmap_filter>("texmode02"),
+              BitfieldExtract<&SamplerState::TM0::min_filter>("texmode02"),
+              BitfieldExtract<&SamplerState::TM0::diag_lod>("texmode02"),
+              BitfieldExtract<&SamplerState::TM0::lod_bias>("texmode02"),
+              // BitfieldExtract<&SamplerState::TM0::max_aniso>("texmode02"),
+              BitfieldExtract<&SamplerState::TM0::lod_clamp>("texmode02"),
               BitfieldExtract<&SamplerState::TM1::min_lod>("texmode1"),
               BitfieldExtract<&SamplerState::TM1::max_lod>("texmode1"));

@@ -760,15 +761,15 @@ uint WrapCoord(int coord, uint wrap, int size) {{
         // exist.  The GPU may still implement dFdx using coarse derivatives; we just don't have the
         // ability to specifically require it.
         out.Write(R"(
-  float2 uv_delta_x = abs(dFdxCoarse(float2(uv)));
-  float2 uv_delta_y = abs(dFdyCoarse(float2(uv)));
+  float2 uv_delta_x = abs(dFdxCoarse(float2(uv2)));
+  float2 uv_delta_y = abs(dFdyCoarse(float2(uv2)));
 )");
       }
       else
       {
         out.Write(R"(
-  float2 uv_delta_x = abs(dFdx(float2(uv)));
-  float2 uv_delta_y = abs(dFdy(float2(uv)));
+  float2 uv_delta_x = abs(dFdx(float2(uv2)));
+  float2 uv_delta_y = abs(dFdy(float2(uv2)));
 )");
       }
     }
@@ -884,8 +885,8 @@ ShaderCode GeneratePixelShaderCode(APIType api_type, const ShaderHostConfig& hos

   if (api_type == APIType::OpenGL || api_type == APIType::Vulkan)
   {
-    out.Write("\n#define sampleTextureWrapper(texmap, uv, layer) "
-              "sampleTexture(texmap, samp[texmap], uv, layer)\n");
+    out.Write("\n#define sampleTextureWrapper(texmap, texmap2, uv, uv2, layer) "
+              "sampleTexture(texmap, samp[texmap], texmap2, uv, uv2, layer)\n");
   }
   else if (api_type == APIType::D3D)
   {
@@ -1125,7 +1126,7 @@ ShaderCode GeneratePixelShaderCode(APIType api_type, const ShaderHostConfig& hos
             "\tint3 comp16 = int3(1, 256, 0), comp24 = int3(1, 256, 256*256);\n"
             "\tint alphabump=0;\n"
             "\tint3 tevcoord=int3(0, 0, 0);\n"
-            "\tint2 wrappedcoord=int2(0,0), tempcoord=int2(0,0);\n"
+            "\tint2 wrappedcoord=int2(0,0), tempcoord=int2(0,0), tempcoord2 = int2(0, 0);\n"
             "\tint4 "
             "tevin_a=int4(0,0,0,0),tevin_b=int4(0,0,0,0),tevin_c=int4(0,0,0,0),tevin_d=int4(0,0,0,"
             "0);\n\n");  // tev combiner inputs
@@ -1196,9 +1197,11 @@ ShaderCode GeneratePixelShaderCode(APIType api_type, const ShaderHostConfig& hos
       out.SetConstantsUsed(C_INDTEXSCALE + i / 2, C_INDTEXSCALE + i / 2);
       out.Write("\ttempcoord = fixpoint_uv{} >> " I_INDTEXSCALE "[{}].{};\n", texcoord, i / 2,
                 (i & 1) ? "zw" : "xy");
+      out.Write("\ttempcoord2 = fixpoint_uv{} >> " I_INDTEXSCALE "[{}].{};\n", texcoord & 3, i / 2,
+                (i & 1) ? "zw" : "xy");

-      out.Write("\tint3 iindtex{0} = sampleTextureWrapper({1}u, tempcoord, layer).abg;\n", i,
-                texmap);
+      out.Write("\tint3 iindtex{0} = sampleTextureWrapper({1}u, {2}u, tempcoord, tempcoord2, layer).abg;\n", i,
+                texmap, texmap & 3);
     }
   }

@@ -1605,8 +1608,8 @@ static void WriteStage(ShaderCode& out, const pixel_shader_uid_data* uid_data, i
   if (stage.tevorders_enable && uid_data->genMode_numtexgens > 0)
   {
     // Generate swizzle string to represent the texture color channel swapping
-    out.Write("\ttextemp = sampleTextureWrapper({}u, tevcoord.xy, layer).{}{}{}{};\n",
-              stage.tevorders_texmap, rgba_swizzle[stage.tex_swap_r],
+    out.Write("\ttextemp = sampleTextureWrapper({}u, {}u, tevcoord.xy, tevcoord.xy, layer).{}{}{}{};\n",
+              stage.tevorders_texmap, stage.tevorders_texmap, rgba_swizzle[stage.tex_swap_r],
               rgba_swizzle[stage.tex_swap_g], rgba_swizzle[stage.tex_swap_b],
               rgba_swizzle[stage.tex_swap_a]);
   }

[Pokechu22]

I did a quick and hacky implementation of the copy filter for EFBCopyFormat::B8, which allows seeing what is actually changing with this.

Hacky implementation

diff --git a/Source/Core/VideoBackends/Software/TextureEncoder.cpp b/Source/Core/VideoBackends/Software/TextureEncoder.cpp
index 2624bf0e04..bb9c4f4afa 100644
--- a/Source/Core/VideoBackends/Software/TextureEncoder.cpp
+++ b/Source/Core/VideoBackends/Software/TextureEncoder.cpp
@@ -273,6 +273,10 @@ static void EncodeRGBA6(u8* dst, const u8* src, EFBCopyFormat format, bool yuv)
   u32 readStride = 3;
   u8* dstBlockStart = dst;

+  const u32 copy_filter_sum = bpmem.copyfilter.w0 + bpmem.copyfilter.w1 + bpmem.copyfilter.w2 +
+                              bpmem.copyfilter.w3 + bpmem.copyfilter.w4 + bpmem.copyfilter.w5 +
+                              bpmem.copyfilter.w6;
+
   switch (format)
   {
   case EFBCopyFormat::R4:
@@ -470,7 +474,7 @@ static void EncodeRGBA6(u8* dst, const u8* src, EFBCopyFormat format, bool yuv)
     ENCODE_LOOP_BLOCKS
     {
       u32 srcColor = *(u32*)src;
-      *dst++ = Convert6To8((srcColor >> 6) & 0x3f);
+      *dst++ = (Convert6To8((srcColor >> 6) & 0x3f) * copy_filter_sum) / 64;
       src += readStride;
     }
     ENCODE_LOOP_SPANS
@@ -753,6 +757,9 @@ static void EncodeRGB8(u8* dst, const u8* src, EFBCopyFormat format, bool yuv)
   s32 tSpan, sBlkSpan, tBlkSpan, writeStride;
   u32 readStride = 3;
   u8* dstBlockStart = dst;
+  const u32 copy_filter_sum = bpmem.copyfilter.w0 + bpmem.copyfilter.w1 + bpmem.copyfilter.w2 +
+                              bpmem.copyfilter.w3 + bpmem.copyfilter.w4 + bpmem.copyfilter.w5 +
+                              bpmem.copyfilter.w6;

   switch (format)
   {
@@ -927,7 +934,7 @@ static void EncodeRGB8(u8* dst, const u8* src, EFBCopyFormat format, bool yuv)
     SetSpans(sBlkSize, tBlkSize, &tSpan, &sBlkSpan, &tBlkSpan, &writeStride);
     ENCODE_LOOP_BLOCKS
     {
-      *dst++ = src[0];
+      *dst++ = (src[0] * copy_filter_sum) / 64;
       src += readStride;
     }
     ENCODE_LOOP_SPANS

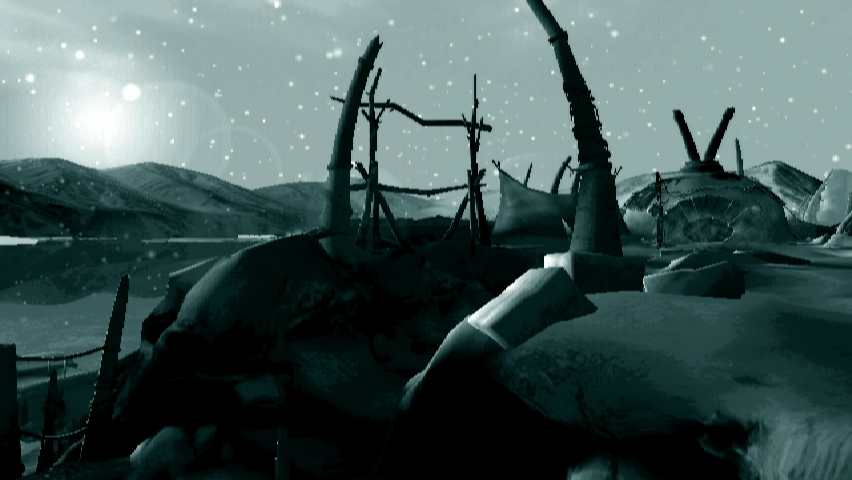

Old images

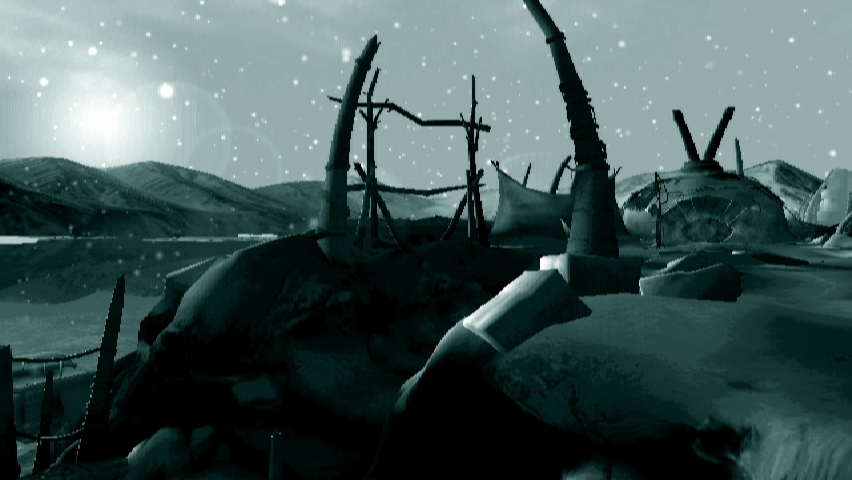

New images

Notice that the bottom-left quadrant was brighter on the first frame than the others (most obvious in the animation, where it flickers). That's no longer happening. (These images are with the object range 0-348, hiding the menu text.)

[iwubcode]

constexpr s16& operator[](int index) const ?

[Pokechu22]

That would need to be constexpr const s16& operator[](int index) const, but it's also assigned to in some cases so that won't work. Theoretically both could be added, but there doesn't seem to be a case where it's needed.

[Pokechu22]

I added one more change to the last commit fixing various XF mistakes: XFMEM_POSTMATRICES was calculating the row by subtracting XFMEM_POSMATRICES (POS vs POST), resulting in incorrect row numbering.

[JMC47]

The fifoci difference is explained above. NVM. Is this ready for merge now?

[Pokechu22]

I think it's best to wait for an approving review on this one.
