Optimize GetVertexSize

[K0bin]

This increases performance in Mario Galaxy 1 on the hub space ship from ~85 FPS to ~112 FPS. (5900X, downclocked to 2.2Ghz for testing).

[shuffle2]

I wonder if it's worth it to have an implementation of popcnt in Common which chooses implementation based on cpuid?

[Pokechu22]

A bit of context for why the code ended up being the way it was: originally, the only code that could get a vertex's size was this code (which was part of the generation logic for the legacy/platform agnostic vertex loader). As part of #9540, I split that off into VertexLoaderBase in 0a906f5, so that I could use it in the fifo analyzer in 73f4e57. But then as part of the same pull request, I wanted to separate components by spaces, so I generalized it into the callback-based version in 77b1cca. In #9718, I decided that just knowing the offsets wasn't enough, and ended up creating some separate code for decoding vertices for the fifo analyzer: f0f12ac, which made the original component sizes function obsolete/unused, and generally quite overcomplicated.

[K0bin]

I fixed the linter warnings and the failed unit test.

Interesting back story. I was pretty surprised to find such a long hanging fruit in a project as old and mature as Dolphin.

[K0bin]

Oh, I just realized I've missed VertexLoader_Color,

[Pokechu22]

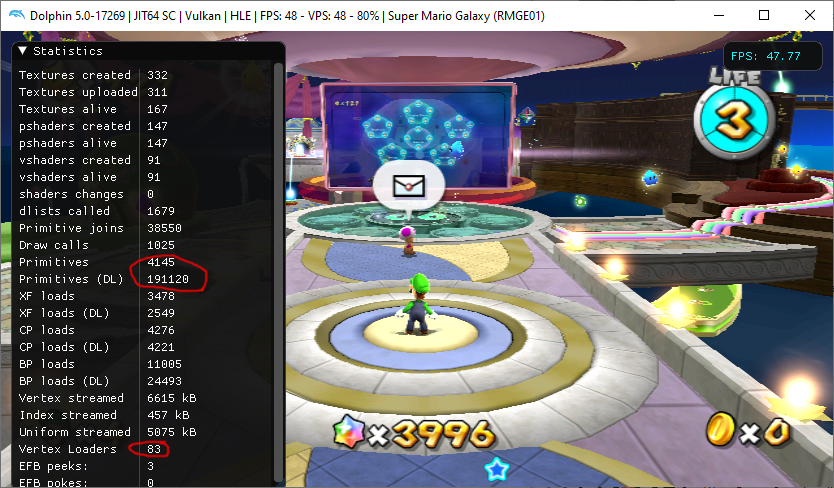

Otherwise, this change look good to me. The performance improvement seemed surprising to me, though, since I thought GetVertexSize was only getting called when the vertex loader was created (so it being slow would have an impact for each new unique vertex format, but once those are all created it'd be fine; this would happen if RefreshLoader creates a new vertex loader). But, that's wrong; in b5fd35f I also added a call to it in OpcodeDecoding.h, here. That means it would get called for every single primitive command the game uses. We can see how many of them that is using graphics → advanced → show statistics:

That's 4145 + 1911120 = 1915265 on a single frame, compared to 83 times ever. This can definitely be cached in some way (I don't know if it'd be possible to reduce it to just 83 times with the current code, but it could be recalculated for each CP load instead, at least...). I'll look into doing that.

[kode54]

That's 4145 + 1911120 = 1915265 on a single frame

4145 + 191120 = 195265, or 200k times per frame. Still a lot, though.

[Pokechu22]

4145 + 191120 = 195265, or 200k times per frame. Still a lot, though.

I mistyped that an embarrassingly large number of times (see edit history), and it seems like I still didn't get it right. But yeah, 200k times per frame is still a lot (even if it's less than 2M times per frame, it's still 12M/second at 60FPS).

[K0bin]

I addressed the latest review comments.

[K0bin]

I've also implemented a simple cache for the vertex sizes similar to how it's handled in the VertexLoaderManager and that gets performance up to ~140fps. Not bad at all. :D

I'll open a follow up PR once this one is merged.

[K0bin]

Cache PR: #11067

[Pokechu22]

Looks good to me.
