Fifo analyzer improvements, part 3 #9718

Pokechu22 · 2021-05-16T20:42:05Z

Features:

GP opcodes are decoded in a single place, OpcodeDecoding.cpp, instead of also being decoded for the FIFO player and recorder and in the FIFO analyzer.
The new decoder uses a callback which has different methods for each type of decoded command. The callback also has a function that gets a reference to the current CP state (and updates that for CP commands), so that it can properly decode vertices. It also can handle display lists decently well (by re-using the same callback).
Commands after the final object (the copy to the XFB) is now shown. Other copies also create new objects. Unfortunately, this affects both the object range and the analyzer view; since the objects for copies don't have any vertices, excluding or including them in the range has no effect. But it makes analyzing a bit easier.
Object info for each frame is now stored in a vector of structs containing the start position, offset to primitive data, size, and CP memory state. This, combined with the extra final object, simplifies the playback code a fair bit.

This is currently a draft to make sure this builds on all platforms. I still need to do a lot of cleanup, and may use EnumMap in a few more places and/or convert some other things (e.g. the BP and XF enums) to enum classes. Feedback is still appreciated (in particular, I have mixed feelings about what I needed to do to get nested EnumMaps in the various VertexLoaders, and opinions on the whole OpcodeDecoding callback structure would also be useful).

lioncash

Just a very preliminary review. Feel free to disregard any that would otherwise be addressed during cleanup

Source/Core/Common/EnumMap.h

Source/Core/Core/FifoPlayer/FifoPlayer.cpp

Source/Core/Core/FifoPlayer/FifoRecorder.h

Source/Core/VideoCommon/CPMemory.h

Source/Core/VideoCommon/VertexLoaderManager.h

Source/Core/VideoCommon/VertexLoaderManager.cpp

Source/Core/Core/FifoPlayer/FifoRecorder.h

Pokechu22 · 2021-05-17T00:44:21Z

One other thing I did was switch from

template <auto last_member, typename T = decltype(last_member),
          size_t size = static_cast<size_t>(last_member) + 1,
          std::enable_if_t<std::is_enum_v<T>, bool> = true>
class EnumFormatter {}

to

template <auto last_member>
class EnumFormatter
{
  using T = decltype(last_member);
  static_assert(std::is_enum_v<T>);
}

but it turns out that that causes issues with GCC prior to version 8; it treats different enums with the same numeric value as the same and then can't find the right things in the template (minimal case). I've fixed this by changing it to template <auto last_member, typename = decltype(last_member)> (godbolt), but this is a bit of an awkward fix. The problem is solved on GCC 8 (though I can't find a specific bug report for it; updating to GCC 8 would also remove all of the misleading "'vertex_shader_uid_data::::texgentype' is too small to hold all values of 'enum class TexGenType'" warnings (bug 61414).

Source/Core/Core/FifoPlayer/FifoRecorder.h

Source/Core/DolphinQt/FIFO/FIFOAnalyzer.cpp

phire · 2021-05-17T01:33:40Z

Source/Core/Core/FifoPlayer/FifoPlayer.cpp

+      // TODO: Is this really needed?  Couldn't we just copy all of the frame memory updates?  We're
+      // not associating memory updates with commands...


Potentially not.

Though in my PR, I modify this loop to pull-out and apply display-list memory updates to a temporary memory mirror so I can analyze the display lists too.

At the very least, this TODO: should be changed to describe the current issue with memory update timings

I did a quick test to see what happens if this is changed to just copy all memory updates at the same time, and fifoci shows no differences. Note that this is used during analysis (when converting FifoFrameInfo into AnalyzedFrameInfo), not playback. I don't think the memory update timings issue comes from here.

Actually, on further inspection, I've realized that there's no reason for AnalyzedFrameInfo to have its own copy of memoryUpdates, as the frame's memory updates are identical. I've removed it.

phire · 2021-05-17T01:35:43Z

Source/Core/Core/FifoPlayer/FifoPlayer.cpp

+
+      offset += cmd_size;
+
+      if (analyzer.efb_copy)


You might want to handle other BP triggers like tmem DMAs and cache flushes the same way.

Source/Core/Core/FifoPlayer/FifoPlayer.cpp

phire · 2021-05-17T02:08:31Z

Source/Core/Core/FifoPlayer/FifoRecorder.cpp

+  const u32 array_start = m_cpmem.array_bases[array_index];
+  const u32 array_size = m_cpmem.array_strides[array_index] * (max_index + 1);
+
+  FifoRecorder::GetInstance().UseMemory(array_start, array_size, MemoryUpdate::VERTEX_STREAM);


Just thinking out aloud here.

This is going to result in creating individual memory update for every single triangle strip or other primitive group out of the same vertex buffer.

It might be smarter to simply cache the min_index and max_index from function and make the memory as used the next time CPmem is updated to point at new vertex buffers.

phire · 2021-05-17T02:27:18Z

One thing I'm slightly worried about is a performance impact from rewriting OpcodeDecoder to be more generic, especially in single-threaded mode. It's a quite hot bit of code.

Pokechu22 · 2021-05-18T06:17:20Z

I've done a bit of inline hackery to tell the compiler to inline everything in the main case for OpcodeDecoder (it generates OpcodeDecoder::RunFifo<0> for the main fifo and then OpcodeDecoder::RunCallback<0>::OnDisplayList for the display list call, checked using Visual Studio's disassembler (alt+8 while debugging)). The new uses in the fifo player/recorder/analyzer don't have the same aggressive inlining, but I don't think they need to be as optimized. I haven't done any actual performance testing (as my machine isn't really well suited to that), though.

Oddly it doesn't seem to be linking on the windows buildbot, though it does work on my machine. I'm not sure why.

Pokechu22 · 2021-05-24T04:12:27Z

Source/Core/Core/FifoPlayer/FifoRecordAnalyzer.cpp

-void FifoRecordAnalyzer::Initialize(const u32* cpMem)
-{
-  s_DrawingObject = false;
-
-  FifoAnalyzer::LoadCPReg(VCD_LO, cpMem[VCD_LO], s_CpMem);
-  FifoAnalyzer::LoadCPReg(VCD_HI, cpMem[VCD_HI], s_CpMem);
-  for (u32 i = 0; i < CP_NUM_VAT_REG; ++i)
-    FifoAnalyzer::LoadCPReg(CP_VAT_REG_A + i, cpMem[CP_VAT_REG_A + i], s_CpMem);
-
-  const u32* const bases_start = cpMem + ARRAY_BASE;
-  const u32* const bases_end = bases_start + s_CpMem.arrayBases.size();
-  std::copy(bases_start, bases_end, s_CpMem.arrayBases.begin());
-
-  const u32* const strides_start = cpMem + ARRAY_STRIDE;
-  const u32* const strides_end = strides_start + s_CpMem.arrayStrides.size();
-  std::copy(strides_start, strides_end, s_CpMem.arrayStrides.begin());
-}


Note that this code failed to load CP_VAT_REG_B and CP_VAT_REG_C, which caused errors when recording for some games where the initial CP state matters (for instance, Need for Speed: Most Wanted was affected). This has been fixed with the new code, which also made this kind of loading happen in only one place.

Source/Core/VideoCommon/BPMemory.h

This also adds the commands after the last primitive data but before the next frame as a unique object; this is mainly just the XFB copy. It's nice to have these visible, though disabling the object does nothing since only primitive data is disabled and there is no primitive data in this case.

Source/Core/Core/FifoPlayer/FifoRecorder.cpp

Previously, EFB copies would be in the middle of other objects, as objects were only split on primitive data. A distinct object for each EFB copy makes them easier to spot, but does also mean there are more objects that do nothing when disabled (as disabling an object only skips primitive data, and there is no primitive data for EFB copies).

Videocommon also depends on core, which resulted in linking errors (though I'm not sure why). Ideally, dolphintool woudln't depend on videocommon... but some stuff in core does.

dolphin-emu-bot · 2021-12-19T01:25:34Z

FifoCI detected that this change impacts graphical rendering. Here are the behavior differences detected by the system:

DKCR-Char on ogl-lin-mesa: diff
inverted-depth-range on ogl-lin-mesa: diff
mp3-bloom on ogl-lin-mesa: diff
nfsu-reflections on ogl-lin-mesa: diff
DKCR-Char on sw-lin-mesa: diff
inverted-depth-range on sw-lin-mesa: diff
mp3-bloom on sw-lin-mesa: diff
nfsu-reflections on sw-lin-mesa: diff
soa-black on sw-lin-mesa: diff
DKCR-Char on ogl-lin-radeon: diff
inverted-depth-range on ogl-lin-radeon: diff
mp3-bloom on ogl-lin-radeon: diff
nfsu-reflections on ogl-lin-radeon: diff
DKCR-Char on uberogl-lin-radeon: diff
inverted-depth-range on uberogl-lin-radeon: diff
mp3-bloom on uberogl-lin-radeon: diff
nfsu-reflections on uberogl-lin-radeon: diff

_{^{automated-fifoci-reporter}}

JMC47 · 2021-12-20T19:24:30Z

This has been tested locally and has seen a lot of reviews from trusted developers.

shehzman · 2022-01-13T05:12:02Z

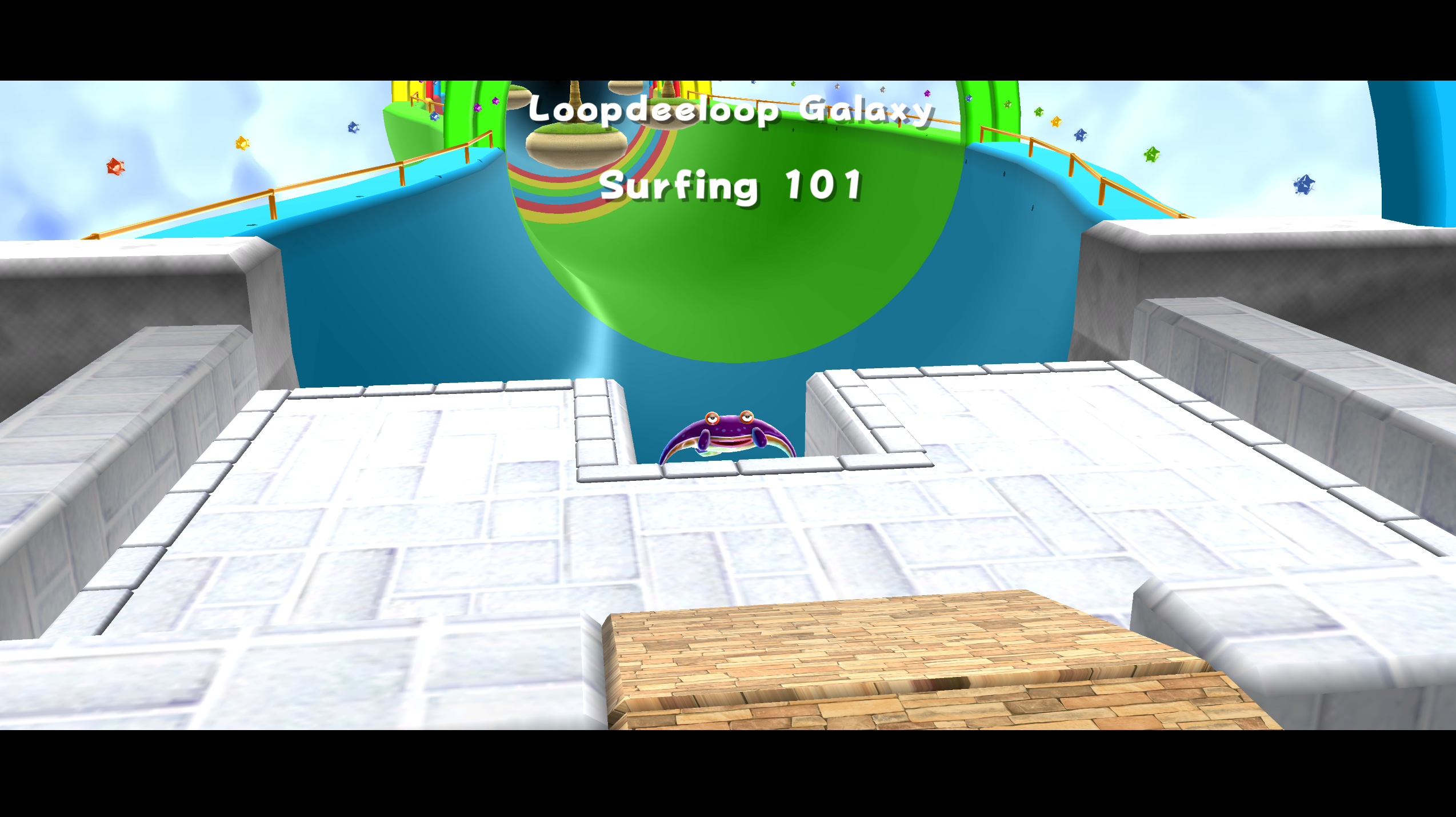

Ever since this branch, Mario Galaxy water shaders don't seem to load properly in Sea Slide Galaxy and Loopdeswoop/Loopdeloop Galaxy. Attached is the dump file and a screenshot of what the issue looks like.

bad_ps_5_0_D3D_0.txt

Pokechu22 · 2022-01-13T05:52:39Z

Thanks; I've created #10366 which should fix that.

lioncash reviewed May 16, 2021

View reviewed changes

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch 4 times, most recently from fbd7f3c to 9786b35 Compare May 17, 2021 00:08

phire reviewed May 17, 2021

View reviewed changes

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch from e0e8660 to 19f09a6 Compare May 18, 2021 06:16

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch 7 times, most recently from 5e54994 to 88a3588 Compare May 22, 2021 22:26

Pokechu22 commented May 24, 2021

View reviewed changes

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch 2 times, most recently from 0961002 to d3d9e6d Compare May 30, 2021 22:29

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch 4 times, most recently from 0086cf8 to 36f1d22 Compare June 13, 2021 21:29

Pokechu22 mentioned this pull request Jul 5, 2021

Ignore the top bit of the indirect texture matrix scale #9863

Merged

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch from 36f1d22 to 47743ac Compare July 11, 2021 22:28

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch 2 times, most recently from 4d31b39 to f28d724 Compare July 21, 2021 22:11

Rumi-Larry reviewed Jul 21, 2021

View reviewed changes

Source/Core/VideoCommon/BPMemory.h Outdated Show resolved Hide resolved

Rumi-Larry reviewed Jul 21, 2021

View reviewed changes

Source/Core/VideoCommon/BPMemory.h Outdated Show resolved Hide resolved

Pokechu22 added 4 commits December 18, 2021 12:51

Convert OpcodeDecoder::Opcode and OpcodeDecoder::Primitive to enum class

3aaeb2b

Create and use CPArray enum class

1914087

Fix wrapping in FifoPlayer comment

0441826

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch from 3576347 to d4a9c7a Compare December 18, 2021 20:53

Pokechu22 commented Dec 18, 2021

View reviewed changes

Source/Core/Core/FifoPlayer/FifoRecorder.cpp Outdated Show resolved Hide resolved

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch from d4a9c7a to 72bbb27 Compare December 18, 2021 21:10

Pokechu22 added 13 commits December 18, 2021 15:21

Refactor OpcodeDecoding and FIFO analyzer to use callbacks

b5fd35f

Remove DataReader from LoadXFReg

d84d695

VideoCommon: Move VertexLoaderManager logic out of CPState

d039b1b

OpcodeDecoding: Make s_is_fifo_error_seen static

0afe318

Fifo analyzer: Display equations for color/alpha combiners

95e0f83

VertexLoader_Color: Use Common::swap24

1a96489

Eliminate VarType for ComponentFormat

27cb704

Fifo analyzer: Decode floats in primitive data

f0f12ac

BPMemory: Correct spelling of MaxAniso

d1cc539

Switch to the Play / Record tab when fifo playback stops

f4f4dbb

TextureCacheBase: Re-wrap GetTexture comment

e7d5f8a

DolphinTool: Remove direct dependency on core

ffa512f

Videocommon also depends on core, which resulted in linking errors (though I'm not sure why). Ideally, dolphintool woudln't depend on videocommon... but some stuff in core does.

Pokechu22 force-pushed the better-fifo-analyzer-part-3 branch from 72bbb27 to ffa512f Compare December 18, 2021 23:25

JMC47 merged commit 32fed91 into dolphin-emu:master Dec 20, 2021
9 of 10 checks passed

Pokechu22 mentioned this pull request Jan 13, 2022

PixelShaderGen: Fix invalid use of int3(0) #10366

Merged

Pokechu22 mentioned this pull request May 19, 2022

Fifo recorder: Fix various indexed vertex component bugs #10676

Merged

Pokechu22 mentioned this pull request Sep 14, 2022

Optimize GetVertexSize #11066

Merged

Pokechu22 mentioned this pull request Oct 11, 2022

VertexLoader: Remove "too many initializer values" workaround functions #11160

Merged
