VideoCommon: Manually handle texture wrapping and sampling #9956
Conversation
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
3 times, most recently
from
51d60a2
to
4a84138
Compare
|
This does fix the EA VP6 issues on my NVIDIA. Fixes an issue where there's a one pixel line in the middle of certain Wii EA sports games as well, but due to the tmem regressions they still aren't playable. |
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
10 times, most recently
from
a3ae608
to
8e7afdf
Compare
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
from
8e7afdf
to
5373148
Compare
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
from
5373148
to
8779fb9
Compare
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
2 times, most recently
from
d83c704
to
d802a00
Compare
|
@Pokechu22 - just to confirm, is this ready to go? |
|
It's ready to be reviewed, yes. There still are some particularly bad performance decreases with mesa that I haven't investigated (fifoci takes ~45 minutes instead of a more normal 10-20 minutes for ogl-lin-mesa (compare this to ogl-lin-radeon, which went from ~4 minutes to ~7 minutes)), which may require the fifoci configuration to be changed. But apart from that, all features are implemented and the code has been reorganized in a way that shouldn't be too bad to review. |
|
I did some preliminary testing to see if the issues I've seen on a variety of games were resolved. Unfortunately not. That being said, I didn't notice any major regressions either. I'm curious what the incompatibility is with 'Anisotropic Filtering'? I had it on and off with both the GPU sampling and the manual sampling and didn't notice any issues. I'll do some more testing tomorrow, as well as start reviewing the code in more depth. |
|

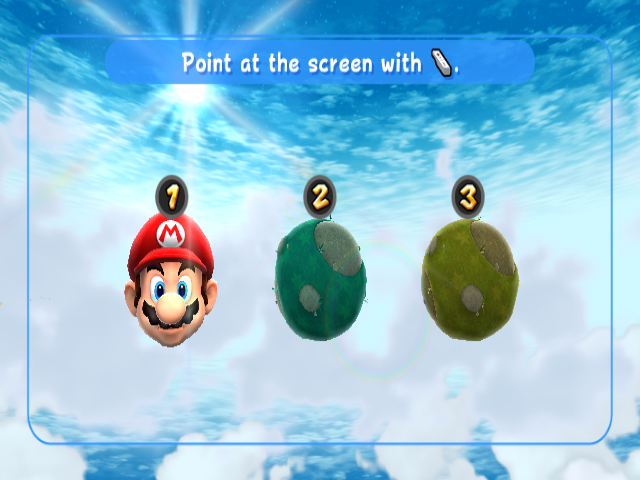

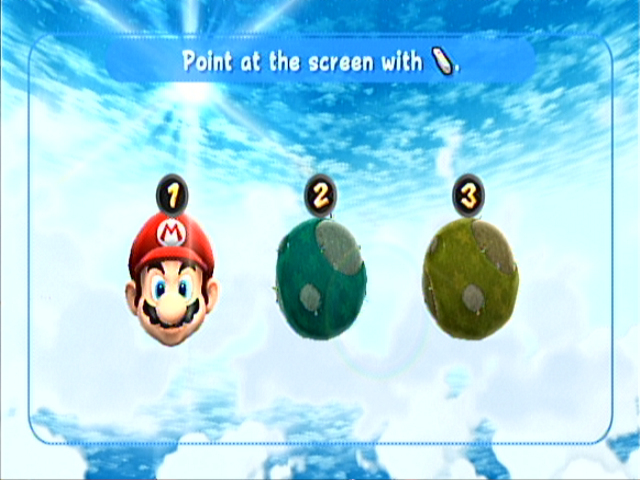

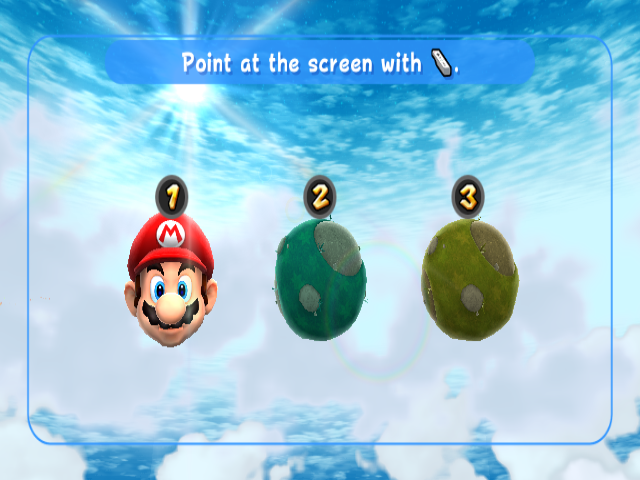

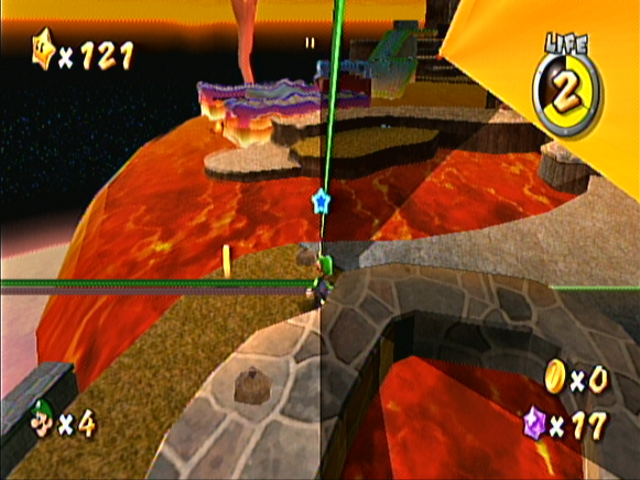

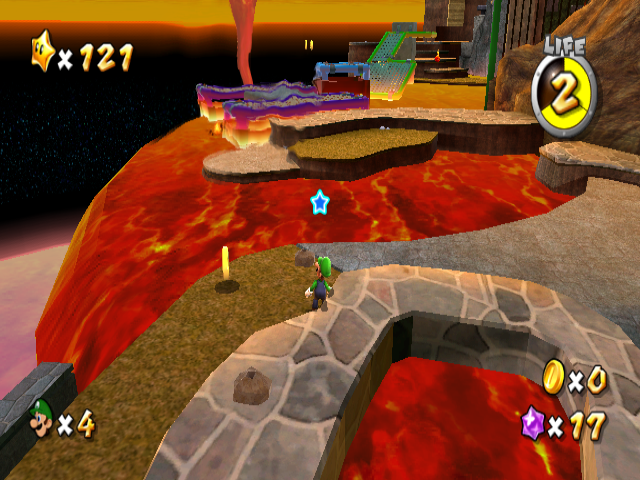

I looked through all of the fifoci changes above. Only a few had actually interesting differences that could be checked on hardware (though it's still hard to see due to analog signal stuff and the hardware fifoplayer having some vertex explosion issues).

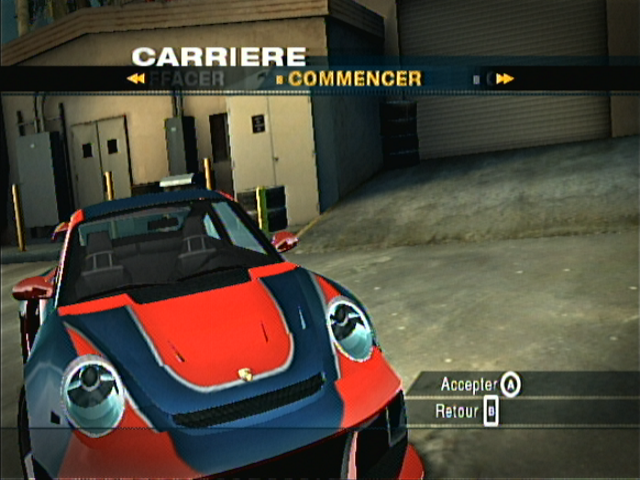

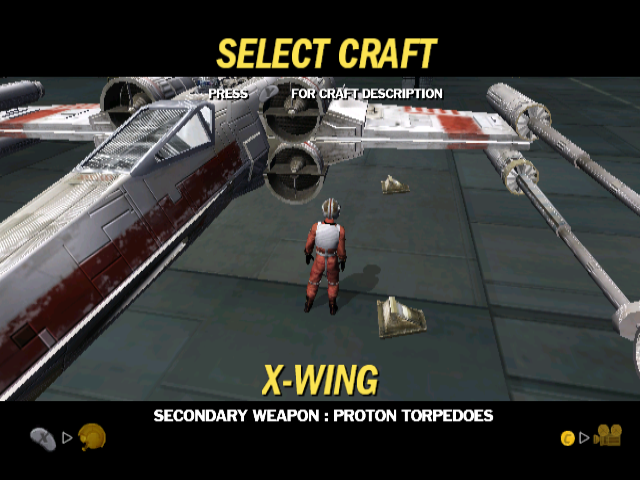

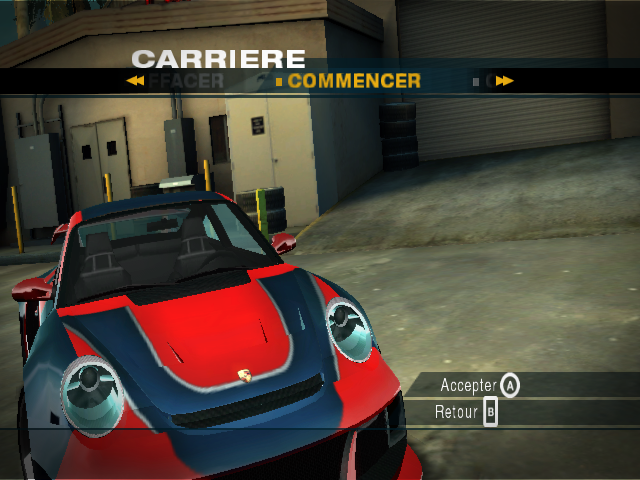

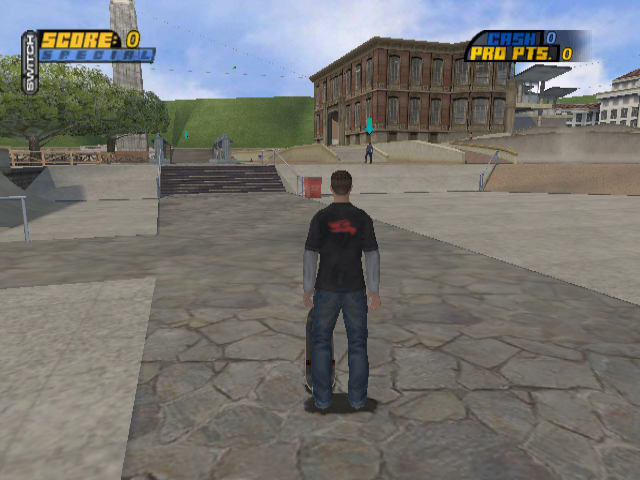

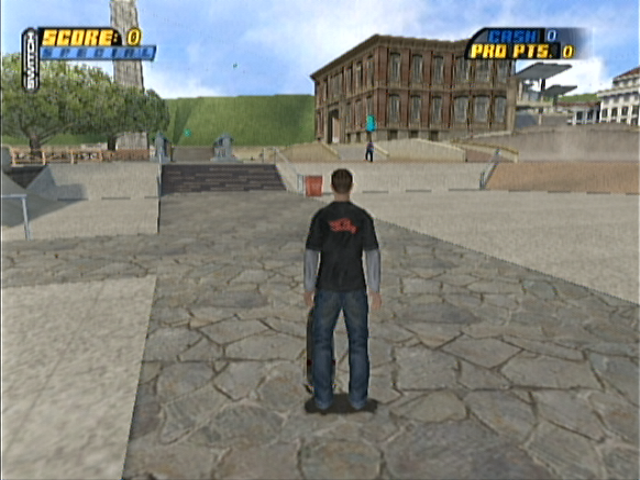

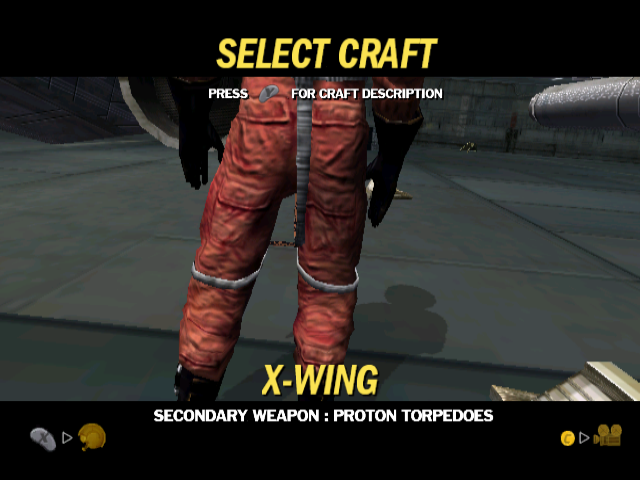

Most things seem to be improvements. However, RS2 has a red color on the tube (which is very hard to see), old / new. Need for speed underground has some new blue dots in the headlights which are odd. One triangle in Tony Hawk changed in brightness (but I can't tell what's right). Also the shadows in Tony Hawk (both 3 and 4) flicker now which seems like a bigger problem - this happens even when looping frame 0 only.
Anisotropic filtering is a form of texture filtering (related to mipmapping). It applies when performing texture sampling. I haven't implemented it for manual texture sampling, so it basically acts as if the value is set to 1x. |
|
|
||
| enum class AddressMode : StorageType |
There was a problem hiding this comment.
I think you ultimately made the right choice here but I was planning on taking advantage of the fact that we had separate enum types for our VideoCommon RenderState and add a 'Border' property. I suppose now I'll have to add it to BPMemory and document that it's not a real value.
There was a problem hiding this comment.
You probably could add a separate field for it into SamplerState; it's got space to spare since it uses 32-bit values while BP is limited to 24-bit values (though a few extra bits are already used for a higher maximum bias value for instance).
There was a problem hiding this comment.
After thinking some more about this, from a generic high level, I do wish we hadn't bled the emulation state into our somewhat generic graphics api. Obviously there is some overlap and this is relatively minor but I'm not sure this was necessary. My assumption is the point of Generate was to make that conversion from emulation to graphics backend. However, not suggesting you revert or modify this, just something I think we should avoid in the future.
To your point, adding a separate field might work but would make for a very klunky solution (if both are set, which do I choose?). For this particular use case, wouldn't we have enough bits to add a new enum flag? Again, no big deal, I will likely drop the feature (it's not critical) but thought it'd be worth discussing.
There was a problem hiding this comment.
There is an unused value in the enum (0, 1, and 2 correspond to valid values, while 3 is invalid), but hardware testing indicated that its behavior matches clamp (0).
Leaving the separate AddressMode enum would work, but then there would be an enum value that's not implemented in the actual shaders (since it doesn't exist on console), which feels weird to me.
|
Just did a rough pass. This looks really good @Pokechu22 ! I'll take another pass later in the week if someone else doesn't approve this in the meantime. |
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
from
d802a00
to
5e06980
Compare
The benefit to exposing this over the raw BP state is that adjustments Dolphin makes, such as LOD biases from arbitrary mipmap detection, will work properly.

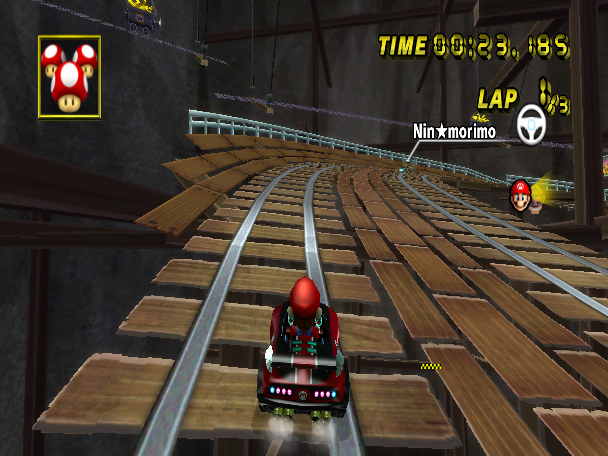

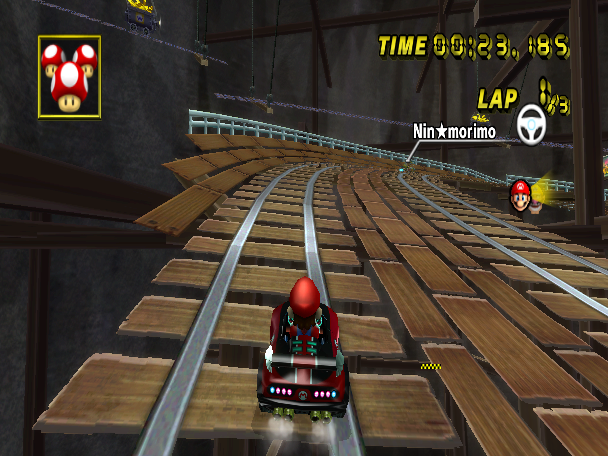

This produces behavior matching the behavior on hardware (see Wario's Gold Mine in Mario Kart Wii).
Note that both GLSL and HLSL provide a fwidth (fragment width) function defined as `fwidth(p) = abs(dFdx(p)) + abs(dFdy(p))`. However, it's easy enough to implement this ourselves (and it makes the code a bit more obvious).
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
from
d49d35f
to
ad2feb9
Compare
| @@ -266,6 +269,21 @@ void AdvancedWidget::AddDescriptions() | |||
| "<br><br>May improve performance in some games which rely on CPU EFB Access at the cost " | |||
| "of stability.<br><br><dolphin_emphasis>If unsure, leave this " | |||
| "unchecked.</dolphin_emphasis>"); | |||
| static const char TR_MANUAL_TEXTURE_SAMPLING_DESCRIPTION[] = QT_TR_NOOP( | |||
| "Use a manual implementation of texture sampling instead of the graphics backend's built-in " | |||
| "functionality.<br><br>" | |||
There was a problem hiding this comment.
Users aren't that good at reading lots of things, so having such a long description might not be a good idea. I suggest trying to break it down a bit.
"This setting can fix graphical issues in some games on certain GPUs, most commonly vertical lines on FMVs. In addition to this, enabling manual texture sampling will allow for correct emulation of texture wrapping (at 1x IR or when scaled EFB is disabled) and better emulates Level of Detail calculation.
This comes at the cost of potentially worse performance, especially at higher internal resolutions, and Anisotropic Filtering is not compatible yet.
If unsure, leave this unchecked."
There was a problem hiding this comment.
Don't have much to say about the new text but I'd make the last line:
<dolphin_emphasis>If unsure, leave this unchecked.</dolphin_emphasis>
There was a problem hiding this comment.
I've reworded this based on your suggestion. Let me know how the new wording looks.
Co-authored-by: JosJuice <josjuice@gmail.com>
Specifically, when using Manual Texture Sampling, if textures sizes don't match the size the game specifies, things previously broke. That can happen with custom textures, and also with scaled EFB copies at non-native IRs. It breaks most obviously by not scaling the texture coordinates (so only part of the texture shows up), but the hardware wrapping functionality also assumes texture sizes are a power of 2 (or else it will behave weirdly in a way that matches how hardware behaves weirdly). The fix is to provide alternative texture wrapping logic when custom texture sizes are possible.
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
from
ad2feb9
to
8d51fb2
Compare
This commit changes the default value of Fast Texture Sampling to true, and also moves the setting that controls it to the experimental section of the advanced tab. This is its own commit so that it can be easily reverted when we want to default to Manual Texture Sampling. Co-authored-by: JosJuice <josjuice@gmail.com>
Pokechu22
force-pushed
the
non-power-of-2-wrap-2
branch
from
8d51fb2
to
95b9941
Compare
|
FifoCI detected that this change impacts graphical rendering. Here are the behavior differences detected by the system:
automated-fifoci-reporter |
|
Tested and confirmed to work on Android. I guess it's just about time. |
|
With Manual Texture Sampling enabled, Dolphin seems to have significantly longer boot times when booting any game on my GTX 1070 when using D3D11 or D3D12. OpenGL and Vulkan are not affected. |
|
This is probably because it needs to compile shaders. |
Same behavior even with shader pre compilation disabled. |
|
I have a GTX 1070 as well and cannot reproduce the issue. |
|
Although this PR didn't completely fix the vertical/horizontal lines issue on Just Dance 2 (they're less noticeable, though), it did eliminate all lines on Just Dance 1, 3 and derivates (Just Dance Wii 2, Just Dance Greatest Hits, etc.) when using a NVIDIA GPU. My question is, given that enabling "Manual Texture Sampling" has a minor impact on performance and that it's only needed for specific GPU drivers (mainly NVIDIA), should this setting be enabled by default on the Game INI of the affected games? (asking because I was about to push a small batch of Game INI updates and earlier Just Dance games are among that batch) |
|
I plan on doing a larger batch of GameINI updates for all Bink Video and EA VP6 games, but it might be a while before I get around to it. Those early Just Dance games do use Bink Video, but if you already plan on updating their GameINIs, it would make sense to enable it for them. |
This PR reimplements texture sampling logic in the pixel shaders, rather than using the video backend's built-in texture sampling functionality. This fixes a number of bugs that occur in various drivers (such as the EA VP6 issue), and also allows implementing a few additional features that were not handled before (diagonal LOD and the jank wrap logic used by actual hardware and implemented for the software renderer in #9921). Currently, anisotropic filtering is not implemented, but that can be handled in a later PR.
