Readme.md

Custom badge

GitHub stars Star the project if you think it deserves it.

GitHub forks Fork the project to extend and contribute.

eXpandFramework logo Nuget
GitHub release GitHub Releases Custom badge nuget.exe list author:eXpandFramework
nuget.exe list Xpand -source https://xpandnugetserver.azurewebsites.net/nuget

How do I set up a package source in Visual Studio?, Efficient package management
How to Debug, How to boost your DevExpress Debugging Experience

Join the chat at https://gitter.im/xpandframework/community

GitHub open issues GitHub close issues

About

open collective backers and sponsors

eXpandFramework is the first open source project based on the DevExpress eXpressApp Framework (XAF). The eXpressApp Framework ships with DXperience Universal and can be evaluated free of charge (30 day trial) at: https://www.devexpress.com/ClientCenter/Downloads.

eXpandFramework is a FREE extension for XAF and operates within the Microsoft Public License (Ms-PL).

The framework was started and is led by Tolis Bekiaris. Tolis has made a huge contribution to XAF over the years receiving great recognition from DevExpress and the whole XAF community. In April 2011 Tolis was honored to be hired as Technical Evangelist for DevExpress frameworks!

The eXpandFrameowork organization consist of two projects. The main project, this one, which unfortunately lacks detailed documentation, and the Standalone low dependency well tested and well documented DevExpress.XAF repository. The main project acts as a container to the standalone proejct. Eventually all modules of main project will be puzzled from the standalone modules. The framework is transitioning fast from private server to GitHub since Oct 2018, so please bear with us and contribute where you can.

This framework has similar architecture to XAF. We recommend you go through the Getting Started document to get the feeling on how to get the most out of it. Afterwards just installed the modules you want and go through the blogs linked in the list below and feel free to post Issues.

Modules

Examples of those modules include (in the two right columns you can see the supported platform):

Module Name Description Windows ASPNET Nuget.org
ExcelImporter Imports Excel, csv files. Y Y Custom badge
WorldCreator Design runtime assemblies Y Y Custom badge
ModelDifference Model management Y Y Custom badge
Dashboard Enables native XAF dashboard collaboration and integrates the Dashboard suite Y Y Custom badge
Email Send emails using business rules from application model without coding (see http://goo.gl/Hkx6PK) Y Y Custom badge
WorkFlow Contains workflow related features (Scheduled workflows) Y Y Custom badge
System Support multiple datastore , calculable properties at runtime ,dynamic model creation,control grid options, datacaching, web master detail, view inheritance etc. Y Y Custom badge
JobSheduler Acts as a wrapper for the powerfull Quartz.Net, providing a flexible UI for managing Jobs at runtime Y Y Custom badge
DBMapper Map 14 different types of databases at runtime into worldcreator persistent objects Y Y Custom badge
IO Export & Import object graphs Y Y Custom badge
MapView Google Maps integration for XAF web apps. Blog posts. Y Y Custom badge
FileAttachments Provides support for file system storage as per E965 Y Y Custom badge
Scheduler Please explore the XVideoRental module found in Demos/XVideoRental folder (Blog posts) Y Y Custom badge
Reports Please explore the XVideoRental module found in Demos/XVideoRental folder Y N Custom badge
Chart Please explore the XVideoRental module found in Demos/XVideoRental folder Y N Custom badge
PivotGrid Please explore the XVideoRental module found in Demos/XVideoRental folder Y N Custom badge
Import Wizard Universal module for importing excel files into any XAF application. Y N Custom badge
AuditTrail Configures XAF Audit Trail module using the Application Modules. (see Declarative data auditing) Y Y Custom badge
StateMachine Enhance XAF's statemachine module in order to control transitions using permissions Y Y Custom badge
Logic Define conditional architecture Y Y Custom badge
ModelArtifact Parameterize model artifacts (Controllers, Actions, Views) Y Y Custom badge
AdditionalViewControlsProvider Decorate your views with custom controls Y Y Custom badge
MasterDetail XtraGrid support for master-detail data presentation using the model. Y N Custom badge
PivotChart Enhance analysis procedures / controls Y Y Custom badge
Security Provides extension methods, authentication providers, login remember me, custom security objects Y Y Custom badge
Wizard Design wizard driven views Y N Custom badge
ViewVariants Create views without the use of model editor Y Y Custom badge
Validation More rules , permission validation, warning/info support, Action contexts etc Y Y Custom badge
ConditionalObjectViews Allows the conditional navigation to your detailviews/listviews-->Merged with ModelArtifact Y Y
EasyTests Custom command and extensions for EasyTest see http://apobekiaris.blogspot.gr/search/label/EasyTest Y Y Custom badge
TreelistView Enhance hierarchy controls, map XtraTreeList options to model Y Y Custom badge
NCarousel Loads images asynchronously and displays them using a configurable carousel listeditor N Y Custom badge
VSIX Package Enhance Model Editor, Explore Xaf Errors, Drop Database at design time, ProjectConverter invocation

Dashboard

Blogs:
http://apobekiaris.blogspot.gr/search/label/dashboard

Model Difference

Extends XAF by adding great new features for example:

  • the ability to generate runtime members for your objects
  • creating Application/Role/User models in the database
  • storing your web cookies in the database
  • handling of external application models
  • combine end user modifications with application model
  • support for multiple models at design time

|

Blogs:
http://apobekiaris.blogspot.com/search/label/ModelDifference

WorldCreator

Creates dynamic persistent assemblies. The XAF user interface allows us to create an assembly without writing a single line of code. Advanced users can even use c# scripting and create new code generation templates.

Blogs:
http://apobekiaris.blogspot.com/search/label/WorldCreator

JobScheduler

For those who are not familiar with the concept of job scheduling, here is some background information. Also, there is great Quartz tutorial, which provides an excellent introduction.

Blogs:
http://apobekiaris.blogspot.com/search/label/JobSceduler

DBMapper

DBMapper has the same functionality as SqlDbMapper however is based on the powerful XPO . Thus DBMapper module is capable of transforming into WorldCreator persistent classes the following list of databases: Access, Advantage, Adaptive Server Anywhere, Ase, DB2, FireBird, FireBirdSql, SqlServerCe, SqlServer, ODP, Oracle, PersasizeSql, PostgreSql, SQLite, VistaDB

4

Blogs:
http://apobekiaris.blogspot.com/search/label/SqlDbMapper

Import Export Module

Provides collaboration between a xaf application and another system by allowing you to create object serialization graphs. The complexity of a graph can be configured using either UI or design time attributes. Changing object keys and choosing serialization strategies are straightforward as seen in this screenshot.

5|6
7
Blogs:
http://apobekiaris.blogspot.com/search/label/IO

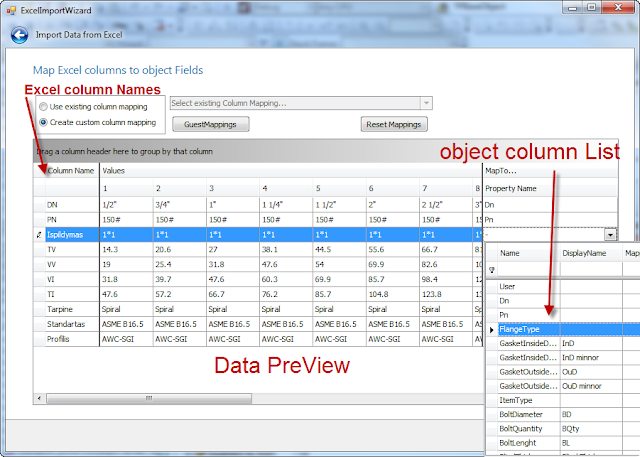

Import Wizard

Windows module for importing excel files into any XAF application.
Import Wizzard Preview
Blogs:
http://mdworkstuff.blogspot.gr/search/label/wizard

AdditionalViewControlsProvider

Allows us to place a Win or Web control in any given position in its respective XAF view and control its visibility, text decoration, font, height, width, etc. using conditional model rules.
8|9
Blogs:
http://apobekiaris.blogspot.com/search/label/AdditionalViewControlsProvider

ModelArtifactState

Apply conditional logic to the artifacts of your model (Controllers, Actions). It means that you can enable,disable,hide,execute etc. at many contexts or combination of them.

10
Blogs:
http://apobekiaris.blogspot.com/search/label/ModelArtifactState

StateMachine

Enhance XAF's statemachine module in order to control transitions using permissions.

Blogs:
http://apobekiaris.blogspot.com/search/label/Xpandstatemachine

PivotChart

Using it you can connect your analysis objects with any object and display/position them at any view. A big number of pivot features are also supported . Controlling Pivotgrid options is also available at runtime.

12|image
Blogs:
http://apobekiaris.blogspot.com/search/label/PivotChart

Logic

Provides the architecture / engine upon many of eXpand modules have been designed (AdditionalViewControlsProvider, ModeArtifactState, MasterDetail, ConditionalDetailViews) . Very valuable to the developers that want to implement a conditional module.

Blogs:
http://apobekiaris.blogspot.com/search/label/Logic

System modules

The features here are endless . Some interesting features are multiple datastore support, create calculable properties at runtime, dynamic model creation, GridView,GridColumn options…etc.

Blogs:
http://apobekiaris.blogspot.com/search/label/Core.Web\ http://apobekiaris.blogspot.com/search/label/Core.Win\

ConditionalObjectView

Allows the conditional navigation to your detailviews / listviews.

15

ViewVariants

End user can design views at runtime.

16

Blogs:
http://apobekiaris.blogspot.com/search/label/ViewVariants

Validation

Validation

Blogs:
http://apobekiaris.blogspot.com/search/label/Validation\ (warning/Info)

WizardUI

Enables designing of wizard views using the model editor.

image|image

image|image

TreelistView

Enable recursive filtering and viewing for your listviews ,map XtraTreeList options to model, support for conditional appearance module.

Blogs:
http://apobekiaris.blogspot.com/search/label/TreeListEditors

NCarousel

Web skinable listeditor based on JCarousel. Image loading is asynchronous , multiple editor with different configurations is allowed.

ncarouseleditor

Blogs:
http://apobekiaris.blogspot.com/search/label/NCaousel

Workflow

Blogs:
http://apobekiaris.blogspot.com/search/label/XpandWF

ExcelImporter

Windows ExcelImporter

Web ExcelImporter

Blogs:
http://apobekiaris.blogspot.gr/search/label/ExcelImporter
