[Canvas] Add Types to Functions #35087

clintandrewhall · 2019-04-15T16:18:43Z

Summary

~~Depends on #35749~~ (merged).

Addresses #40160

This PR isn't easy. This prepares for i18n by adding strong types to Canvas Functions. I'm publishing this as a WIP to gather feedback as I go.

It's taken me several days to get Typescript working with Canvas Functions. But, as a result of that effort, we have a ton of new features to support i18n:

Define and Enforce Function Arguments

Canvas Functions have their arguments defined as individual properties of the args property. Each argument has one or more types, regardless of if it's expecting an array or single value of that type, expressed as an array of strings:

args: {
    name: {
      types: ['string'],
    },
    names: {
      types: ['string'], // Same as above, but...
      multi: true,       // ...the argument will be an array
    },
  },
},

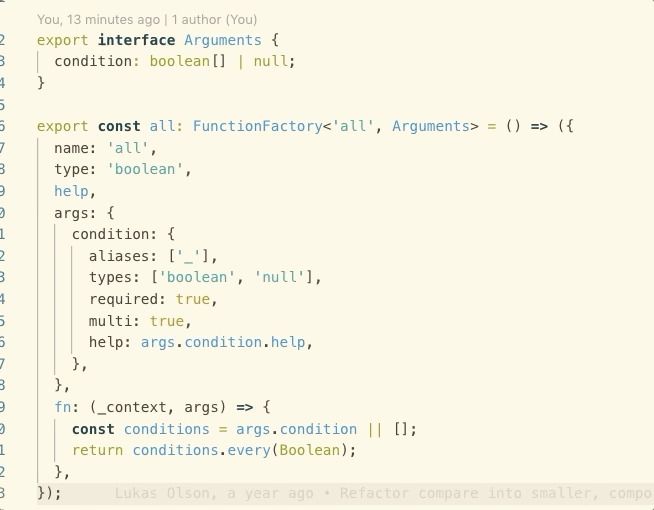

This difference is now typed, and the type of each argument is available to fn:

In addition, the presence of the resolve property set to false will now enforce that the argument types be functions:

Define and Enforce Context

By providing a generic type to represent the context passed into the Function, we can enforce it in fn:

elasticmachine · 2019-04-15T16:18:47Z

Pinging @elastic/kibana-canvas

elasticmachine · 2019-04-15T16:59:08Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

lukasolson · 2019-04-15T18:45:38Z

Further, the types array is omitted if the argument has the resolve property set to false.

Not sure I'm understanding correctly, but does this mean things like ply will have errors?

kibana/x-pack/plugins/canvas/canvas_plugin_src/functions/common/ply.js

Lines 72 to 83 in f2388db


           expression: {

             types: ['datatable'],

             resolve: false,

             multi: true,

             aliases: ['fn', 'function'],

             help:

               'An expression to pass each resulting data table into. Tips: \n' +

               ' Expressions must return a datatable. Use `as` to turn literals into datatables.\n' +

               ' Multiple expressions must return the same number of rows.' +

               ' If you need to return a differing row count, pipe into another instance of ply.\n' +

               ' If multiple expressions return the same columns, the last one wins.',

           },

resolve: false and types: [] are not supposed to be incompatible. When invoking the function to resolve the arguments, we check if the types match what the spec says. So, in something like ply where the expression argument is expected to return a datatable, if you don't actually return a datatable, we should throw an error.

clintandrewhall · 2019-04-15T21:28:22Z

@lukasolson Nice catch. @w33ble can you explain the relationship between resolve and types? Comparing when and then from case, for example?

elasticmachine · 2019-04-16T20:03:55Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

w33ble · 2019-04-17T19:37:31Z

Is there a reason you defined the type as FunctionFactory<Name, Arguments, Return, Context, Errors>?

Seems like it would fit better if you did context than arguments, since that's the order of the arguments in fn. ie. FunctionFactory<Name, Context, Arguments, Return, Errors>

clintandrewhall · 2019-04-17T19:39:59Z

@w33ble I can change the order, but you'd be forced to add void in a lot of function cases, like any, which don't have a context defined. I'm honestly easy with whatever order, I was just optimizing for terseness.

clintandrewhall · 2019-04-17T19:41:18Z

@w33ble For example:

export const any: FunctionFactory<'any', Arguments, boolean> = () => {
  const { help, args: argHelp } = getFunctionHelp().any;

would become

export const any: FunctionFactory<'any', void, Arguments, boolean> = () => {
  const { help, args: argHelp } = getFunctionHelp().any;

elasticmachine · 2019-04-17T20:20:54Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

elasticmachine · 2019-04-18T16:00:57Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

w33ble · 2019-04-18T16:07:39Z

@clintandrewhall I think FunctionFactory<'any', void, Arguments, boolean> is fine, and it has the advantage of being explicit. Also, isn't there a way to define multiple possible shapes? So that both FunctionFactory<'any', void, Arguments, boolean> and FunctionFactory<'any', Arguments, boolean> are valid? Or maybe adding a related ContextlessFunctionFactory type makes sense for functions that don't use context? You're the ts guy, you'd know more than me, it just seems weird that the argument orders don't match.

clintandrewhall · 2019-04-22T16:32:46Z

As requested, I've updated this PR to only include the TS changes. I'm still making some changes around naming.

elasticmachine · 2019-04-22T16:43:47Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

elasticmachine · 2019-04-22T18:25:46Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

elasticmachine · 2019-04-22T19:08:01Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

elasticmachine · 2019-04-26T00:40:52Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

monfera · 2019-04-26T18:16:48Z

x-pack/plugins/canvas/canvas_plugin_src/functions/types/common.ts

+/**
+ * Utility type: gathers values of a collection as a type for use as a type.
+ */
+export type ValuesOf<T extends any[]> = T[number];


TS ramp-up (for me) question, what's the difference between this and eg. Array<T>?

You should only use Array<T> for complex type expressions, (and eslint will complain if you deviate). For example: string[] and FooType[] are preferable to Array<string> or Array<FooType>, but Array<{foo: string}> is preferable in that case.

I read it - correctly? - as:

"You should use Array for complex type expressions only" (ie. not for simple expressions, though I'm not yet clear on what constitutes simple vs complex)

string[] and FooType[] are semantically, but not stylistically equivalent to Array<string> and Array<FooType>, resp.

I tried to trigger the syntax check, entering

export type ValuesOf<T extends any[]> = Array<T>;

but it didn't balk, maybe it still accepts it or I don't run the right linter. Also, ValuesOf and UnionToIntersection seem to be unused atm. All these are only curiosities, not sure if they're important at all.

I think generics may be an exception...?

monfera · 2019-04-26T18:51:12Z

x-pack/plugins/canvas/canvas_plugin_src/functions/types/functions.ts

+ */
+// prettier-ignore
+export type AvailableFunctionNames =
+  AvailableFunctions<typeof commonFunctions[number]>['name'] &


First of all, incredible work, learning so much just by looking through this! How can AvailableFunctionNames be used? It's not being referred to now, does it have an impact without use, or if not, what can in theory be hooked up to it?

This is going to be used for i18n, for starters. You'll see it's usefulness in my next diff.

Here's a practical example. In this case, the AvailableFunctions type can be used to enforce the structure of the FunctionHelpDict type, throwing a TS error if any of the functions are missing.

/** This type uses the collection of available functions, (which are all * `FunctionFactory`), to derive the name and argument types from them. This * allows for validation that 1/ every function available is listed, and 2/ every * function argument has a help string present. */ type FunctionHelp<T> = T extends FunctionFactory< infer Name, infer Context, infer Arguments > ? { [key in Name]: { help: string; args: { [key in keyof Arguments]: string }; } } : never; /** * This type represents an exhaustive dictionary of Function help strings, * organized by Function and then Function Argument. * * This type indexes the existing function factories, reverses the union to an * intersection, and produces the dictionary of strings. */ type FunctionHelpDict = UnionToIntersection<FunctionHelp<typeof functions[number]>>; /** * Help text for Canvas Functions should be properly localized. This function will * return a dictionary of help strings, organized by Canvas Function specification * and then by available arguments. */ export const getFunctionHelp = (): FunctionHelpDict => { return { alterColumn: { help: i18n.translate('xpack.canvas.functions.alterColumnHelpText', { defaultMessage: 'Converts between core types, eg string, number, null, boolean, date and rename columns', }), args: { column: i18n.translate('xpack.canvas.functions.alterColumn.args.columnHelpText', { defaultMessage: 'The name of the column to alter', }), type: i18n.translate('xpack.canvas.functions.alterColumn.args.typeHelpText', { defaultMessage: 'The type to convert the column to. Leave blank to not change type', }), name: i18n.translate('xpack.canvas.functions.alterColumn.args.nameHelpText', { defaultMessage: 'The resultant column name. Leave blank to not rename', }), }, },

elasticmachine · 2019-04-29T18:40:13Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

elasticmachine · 2019-04-29T19:43:00Z

💚 Build Succeeded

continuous-integration/kibana-ci/pull-request

monfera

Incredible, tight fitting types PR!

x-pack/plugins/canvas/canvas_plugin_src/functions/common/all.ts

x-pack/plugins/canvas/canvas_plugin_src/functions/common/alterColumn.ts

x-pack/plugins/canvas/canvas_plugin_src/functions/common/any.ts

x-pack/plugins/canvas/canvas_plugin_src/functions/common/as.ts

x-pack/plugins/canvas/canvas_plugin_src/functions/common/sort.ts

x-pack/plugins/canvas/canvas_plugin_src/functions/types/arguments.ts

x-pack/plugins/canvas/canvas_plugin_src/functions/common/plot/get_flot_axis_config.ts

x-pack/plugins/canvas/canvas_plugin_src/functions/common/plot/get_font_spec.ts

x-pack/plugins/canvas/canvas_plugin_src/functions/common/ply.ts

monfera

Thanks @clintandrewhall, I learnt a ton from this PR and there's still much to absorb!

elasticmachine · 2019-05-02T16:50:33Z

💔 Build Failed

continuous-integration/kibana-ci/pull-request

elasticmachine · 2019-05-02T18:29:27Z

💚 Build Succeeded

continuous-integration/kibana-ci/pull-request

* Reducing changeset to TS-only * Update names; fix a few bugs * Test fixes * Add browser and server functions * Update ts-ignore comments; convert pie; break up TS defs * Convert const to func * Plot conversion * Tweaks to documentation * Fix deleted file * Fix type errors * Update yarn.lock * Address feedback
