Overview

GPD provides two aspects of HL7 integration:

  1. Retrieval of patient information by querying the EMR for a given Patient ID.
  2. Generation of an HL7 message either containing (via Base64 encoding) or referencing the path of a treatment-report PDF.

The formats of the query and treatment-report messages, and the interpretation of the reponse to the patient query, are all configured via templates, which are described below.

Preferences

The HL7 tab in program preferences controls GPD’s interface with an EMR system:

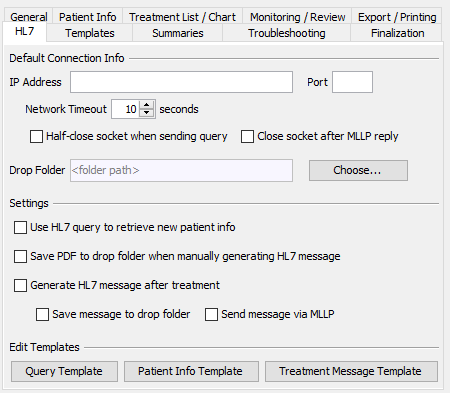

HL7 Preferences

  • IP Address & Port

    The network address of the server with which GPD will exchange MLLP-framed HL7 messages.

  • Advanced Socket Options

    • Network Timeout

      When GPD is waiting to receive or send data over the network, it will wait the specified number of seconds before aborting.

    • Half-Close socket when sending query

      When issuing a query, GPD will re-use the same socket connection to receive the server's reply. A TCP/IP socket can be put into a half-closed state, which may be required by some servers to recognize that the query message has finished sending. Generally you should not enable this option.

    • Close socket after MLLP reply

      If this box is checked, when reading a query response from the server, GPD will stop reading from and close the socket after it encounters the first MLLP end marker <0x1C>. If unchecked, GPD will continue to receive data until the server closes the socket. This option generally should be enabled.

  • Drop Folder

    Filesystem folder to save HL7 messages. Choose… to select a folder.

  • Use HL7 query to retrieve new patient info

    Check to enable retrieval of patient info via an HL7 query. If checked, when you add a new patient, you will be able to choose between using an HL7 query and entering the name and ID manually.

  • Save PDF to drop folder when manually generating HL7 message

    If checked, when you manually generate an HL7 message from the Treatment List, using the File→HL7→Save Treatment to Drop Folder or Send Treatment via MLLP menu items, a copy of the treatment report PDF will be placed in the HL7 Drop Folder.

    Note that this option only has an effect if the generated HL7 message references the PDF report using one of the ${PDF XXX} variables.

    The filename of the PDF will be generated according to Filename template set in the Export/Printing tab

    (See the Save Treatment Report PDF after collection preference in Customizing PDF Treatment Reports for details about the filename template).

  • Generate HL7 message after treatment

    Automatically generate an HL7 message after treatment data is collected.

  • Save message to drop folder

    Save the generated HL7 message to the chosen drop folder. The filename will be the same as that of automatically generated treatment reports, except that they will end in -HL7.txt rather than .pdf. See the documentation for Save Treatment Report PDF after collection in Customizing PDF Treatment Reports for details.

  • Send message via MLLP

    Send the generated message to the specified server via MLLP.

  • Edit Query/Patient/Treatment Message Templates

    Edit the respective template in a text-editor window.

Extra Config Preferences

These are the extra configuration properties that affect HL7 functionality:

# If set to true, a dialog indicating that an HL7 transmission was successful will be shown,
# rather than the default behavior of showing a dialog only if an error occurred.
show-HL7-transmit-success-message = false

Templates

Patient Query Template

The query template specifies the contents of the HL7 message that will be sent to the server to retrieve patient information when adding a new patient.

Here is an example of one such template:

# PROMPT PATIENT ID <- Query Patient ID:
# SET COUNTRY CODE = AU

MSH.3: BOS
MSH.4: EF
MSH.5: IPM
MSH.6: ISOFT
MSH.7: ${MESSAGE TIMESTAMP}
MSH.9.1: QRY
MSH.9.2: A19
MSH.10: BOS*${UNIQUE ID}
MSH.11: P
MSH.12: 2.3.1
MSH.17: ${COUNTRY CODE}
MSH.18: ASCII
MSH.19.1: ENG
MSH.19.2.1: English
MSH.19.2.2: r
QRD.1: ${MESSAGE TIMESTAMP}
QRD.2: R
QRD.3: I
QRD.4: BOS
QRD.7.1: 1
QRD.7.2: RD
QRD.8.1: ${PATIENT ID}
QRD.8.13: PAS
QRD.9: DEM
QRD.10.1.1: ALL
QRD.10.1.2: r

It is a simple mapping from HL7 fields to their values. The segments should be given in the correct order for the resulting message type (here QRY_A19) because GPD does not rearrange segments to ensure the proper order for each message type.

HL7 field specifications (ex. QRD.7.1) are separated from their values by a colon. Variable values will be expanded as in patient and treatment templates.

At the top of the template you’ll notice two directive lines – a directive line begins with a hash mark ‘#’ followed by a command (i.e. PROMPT or SET), a variable name (here PATIENT ID and COUNTRY CODE), a <- or =, and the “value” of the variable. What the value means depends on the directive:

  • For PROMPT commands, the value is the prompt that will be displayed to the user; it is the user’s typed response to the prompt that will be used as the variable’s value.
  • For SET commands, the variable is set directly to the value with no user interaction.

In either case, the variable can then be used both in the Patient Query Template – as above, where QRD.8.1 is set to the patent ID that the user entered – and in the Patient Info Template, described below. Note that if no PROMPT directives are found in the Patient Query Template, GPD will prompt the user for a Patient ID and assign the response to the variable PATIENT ID.

The variables available in the query template are

  • ${MESSAGE TIMESTAMP} – the timestamp (in HL7 format) when the query was generated.
  • ${UNIQUE ID} – A unique string (generated from a random UUID).
  • Any variables defined using PROMPT or SET directives.

When a new patient is created via an HL7 query, the query response is saved as an associated file for that patient. It can serve as a reference to the original information, and also enables passthrough segments and response field variables in the treatment message template.

Patient Info Template

This is the flip side of the Patient Query Template – it specifies how the message returned by the EMR will be mapped to patient information in GPD.

Here’s an example:

    Name: ${PID.5.1}, ${PID.5.2}, ${PID.5.5}

    PATIENT ID: ${QRD.8.1}

    DOB: ${PID.7}
    SEX: ${PID.8}

    Result Interpreter Prefix:       Dr.
    Result Interpreter Given Name:   Ryan
    Result Interpreter Surname:      Spencer

    Reason For Study:
      >
      >

Any variables defined using PROMPT or SET directives in the query template (or the implicit PATIENT ID if no PROMPT directives were found) are available. Other than those, all ${VARIABLE} expansions refer to fields in the HL7 message returned by the server.

The only field required by GPD itself is the Name: field at the top of the template; the rest are up to the user.

Treatment Message Template

This template determines the format of the HL7 message that will be generated after treatment data is collected. An example:

    # SET %IP ADDRESS% = 192.168.4.211
    # SET %PORT% = 42175

    MSH.3: ECT-base64_base64
    MSH.4: ECT
    MSH.5: PAS
    MSH.6: PAS
    MSH.7: ${MESSAGE TIMESTAMP}
    MSH.9.1: MDM
    MSH.9.2: T02
    MSH.10: ${UNIQUE ID}
    MSH.11.1: P
    MSH.11.2: T
    MSH.12: 2.6
    MSH.18: UNICODE UTF-8
    EVN.1: T02
    EVN.2: ${TREATMENT TIMESTAMP}
    PID.3.1: ${PATIENT ID}
    PID.3.4: Default
    PID.3.5: PAS
    PID.5.1: ${PID.5.1}
    PID.5.2: ${PID.5.2}
    PID.5.4: ${PID.5.4}
    PID.5.5: ${PID.5.5}
    PID.7: ${PID.7}
    PID.8: ${PID.8}
    PV1: ${PASSTHROUGH}
    ORC.1: RE
    ORC.5: CM
    ORC.9: ${MESSAGE TIMESTAMP}
    OBR.1: 1
    OBR.4.2: Adult
    OBR.7: ${TREATMENT TIMESTAMP}
    OBR.8: ${TREATMENT TIMESTAMP}
    OBR.20: 1
    OBR.22: ${MESSAGE TIMESTAMP}
    OBR.24: CUS
    OBR.25: F
    OBR.31.2: ${REASON FOR STUDY}
    OBR.32.1.2: ${RESULT INTERPRETER SURNAME}
    OBR.32.1.3: ${RESULT INTERPRETER GIVEN NAME}
    OBR.32.1.6: ${RESULT INTERPRETER PREFIX}
    OBR.32.2: ${TREATMENT TIMESTAMP}
    OBR.32.3: ${TREATMENT TIMESTAMP}
    OBR.34.1.2: VT
    TXA.1: ${UNIQUE ID}
    TXA.2: DI
    TXA.3: AP
    TXA.7: ${TREATMENT TIMESTAMP}
    TXA.12: ${PATIENT ID}-${TREATMENT TIMESTAMP}
    TXA.16: ${PDF FILENAME}
    TXA.17: LA
    OBX.1: 1
    OBX.2: ED
    OBX.3.1: FIND
    OBX.3.2: FINDINGS
    OBX.3.3: LB
    OBX.4: 2
    OBX.5.1: DOC
    OBX.5.2: ED
    OBX.5.3: PDF
    OBX.5.4: Base64
    OBX.5.5: ${PDF BASE64}
    OBX.11: F

In this template we once again have certain special variables:

  • ${MESSAGE TIMESTAMP}, ${UNIQUE ID} – Same meanings as in the Query Template
  • ${TREATMENT TIMESTAMP} – HL7 timestamp of the time of treatment collection.
  • ${PDF FILENAME} – filename of the generated PDF treatment report.
  • ${PDF PATH} – path to the generated PDF treatment report. This path will be valid until the user quits GPD.
  • ${PDF BASE64} – PDF contents in Base64 encoding.
  • Any variables defined using PROMPT or SET directives.

All other variable values are taken from the patient and treatment information as entered by the user, like ${REASON FOR STUDY} in the example, or from passthrough segments and query response field values, both of which are described below.

Passthrough Segments and Response Field Variables

If the patient or treatment was originally created via an HL7 query, then you have two additional features available in the treatment message template: passthrough segments, and response field variables. A passthrough segment looks like

    PV1: ${PASSTHROUGH}

(where PV1 can be any segment ID). When GPD is generating the HL7 treatment message, it will pass through, unchanged, any corresponding segments that were received in the server query response.

Additionally, you can refer to field values from the query response messages using the standard HL7 field value syntax, ex ${QRD.8.1}. In the example template, these are used to set the value of various fields of the PID segment.

Setting Network Preferences in Templates

The settings chosen on the HL7 tab of Preferences (IP address, etc.) are the default connection parameters; a particular template can override any of those settings. The method of doing this is to use the SET directive to change the value of one of the below special variables. Note that all of the special variable names start and end with percent % characters.

Variable Name Corresponding Preference
%IP ADDRESS% IP address
%PORT% Port
%TIMEOUT% Network timeout (in seconds)
%HALF CLOSE% Half-close socket when sending query (true or false)
%MLLP CLOSE% Close socket after MLLP reply (true or false)
%MLLP END EXTRA TIMEOUT% If %MLLP CLOSE% is true, wait this number of milliseconds
for extra data even after an MLLP block end marker is found
(the default value is 350 ms)

An example of setting connection preferences:

# SET %IP ADDRESS% = 192.168.4.211
# SET %HALF CLOSE% = false

Network Transport and File Format

Patient Query (MLLP over TCP/IP)

GPD opens a TCP/IP socket connection to the specified IP address and port and sends the query message in MLLP-block format:

 <0x0B>HL7-MESSAGE<0X1C><0X0D>

It waits on the same socket connection to read a reply from the server, also in MLLP-block format. If the Close socket after MLLP reply preference is checked, GPD will close the socket once the message is received; otherwise, GPD will wait for the server to close the socket.

Treatment Report (MLLP over TCP/IP)

GPD opens a TCP/IP socket connection to the specified IP address and port and sends the treatment report message in MLLP-block format. After the bytes are transmitted, GPD closes the socket without reading an acknowledgement.

Treatment Report (Filesystem)

GPD writes the bytes of the treatment report message to the file in standard HL7 format with carriage returns (0x0D) at the end of each segment.
