Add breakpoint support to IEx.pry #6307

josevalim · 2017-07-07T13:52:52Z

The main interface is a IEx.break!/4 function that sets up a breakpoint in module, function and arity with the given number of stops.

This function will instrument the given module and load a new version in memory with breakpoints at the given function and arity. If the module is recompiled, all breakpoints are lost.

When a breakpoint is reached, IEx will ask if you want to pry the given function and arity. In other words, this works similar to IEx.pry/0 as the running process becomes the evaluator of IEx commands and is temporarily changed to have a custom group leader. However, differently from IEx.pry/0, aliases and imports from the source code won't be available in the shell.

IEx helpers includes many conveniences related to breakpoints. Below they are listed with the full module, such as IEx.Helpers.breaks/0, but remember it can be called directly as breaks() inside IEx. They are:

By default, the number of stops in a breakpoint is 1. Any follow-up call won't stop the code execution unless another breakpoint is set.

Alternatively, the number of be increased by passing the stops argument. IEx.Helpers.reset_break/1 and IEx.Helpers.reset_break/3 can be used to reset the number back to zero. Note the module remains "instrumented" even after all stops on all breakpoints are consumed. You can remove the instrumentation in a given module by calling IEx.Helpers.remove_breaks/1 and on all modules by calling IEx.Helpers.remove_breaks/0.

To exit a breakpoint, the developer can either invoke continue(), which will block the shell until the next breakpoint is found or the process terminates, or invoke respawn(), which starts a new IEx shell, freeing up the pried one.

This functionality only works on Elixir code and requires OTP 20+.

Examples

The following sets up a breakpoint on URI.decode_query/2:

IEx.break!(URI, :decode_query, 2)

The following call will setup a breakpoint that stops once.

To set a breakpoint that will stop 10 times:

IEx.break!(URI, :decode_query, 10)

IEx.break!/2 is a convenience macro that allows breakpoints to be given in the Mod.fun/arity format:

require IEx
IEx.break!(URI.decode_query/2)

Or to set a breakpoint that will stop 10 times:

IEx.break!(URI.decode_query/2, 10)

This function returns the breakpoint ID and will raise if there is an error setting up the breakpoint.

Breaks and mix test

To use IEx.break!/4 during tests, you need to run Mix inside iex and pass the --trace to mix test to avoid running into timeouts:

iex -S mix test --trace
iex -S mix test path/to/file:line --trace

josevalim · 2017-07-07T18:28:55Z

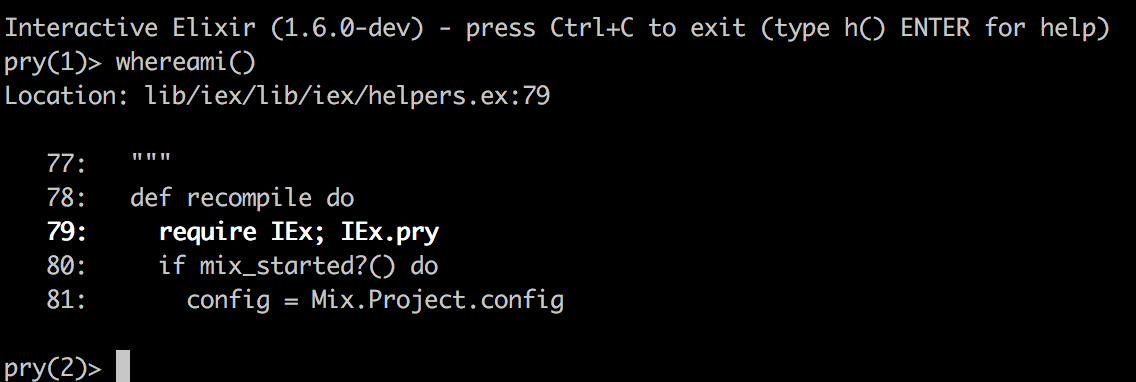

whereami() in action:

josevalim · 2017-07-08T12:09:02Z

open/0 and open/1 has landed.

eksperimental · 2017-07-08T12:16:24Z

I guess we are trying to be consistent with whereis but I think we shoulnd't introduce more inconsistencies and whereami should be renamed where_am_i

josevalim · 2017-07-08T12:33:54Z

"whereami" is a common debugger instruction so I wouldn't add the underscores. I am ok with replacing it by something else entirely though. What other names do other debuggers use?

slashmili · 2017-07-08T17:14:14Z

GDB is using list

(gdb) break 15
Breakpoint 1 at 0x40069a: file factorial.c, line 15.
(gdb) run
Breakpoint 1, duplicate (x=32767, y=1) at factorial.c:15
15	        return x * y;
(gdb) list
10	        j = duplicate(j, i);
11	    printf("The factorial of %d is %d\n",num,j);
12	}
13
14	int duplicate(int x, int y) {
15	        return x * y;
16	}

Python debugger is using list

-> duplicate(1, 2)
(Pdb) list
  1  	def duplicate(x, y):
  2  	    return x * y
  3
  4
  5  	import pdb; pdb.set_trace()
  6  ->	duplicate(1, 2)

And Perl debugger is using l :

  DB<2> l
1==>	$i = 1;
2:	$j = 5;
3
4
5:	$result = $i * $j;

josevalim · 2017-07-08T17:17:56Z

Thank you @slashmili! I think list is a bit overloaded for us though. Do you have any other suggestions?

michalmuskala · 2017-07-08T22:07:37Z

lib/iex/lib/iex/pry.ex

Isn't the tuple 3 elements?

Yes, thank you!

josevalim · 2017-07-10T09:13:01Z

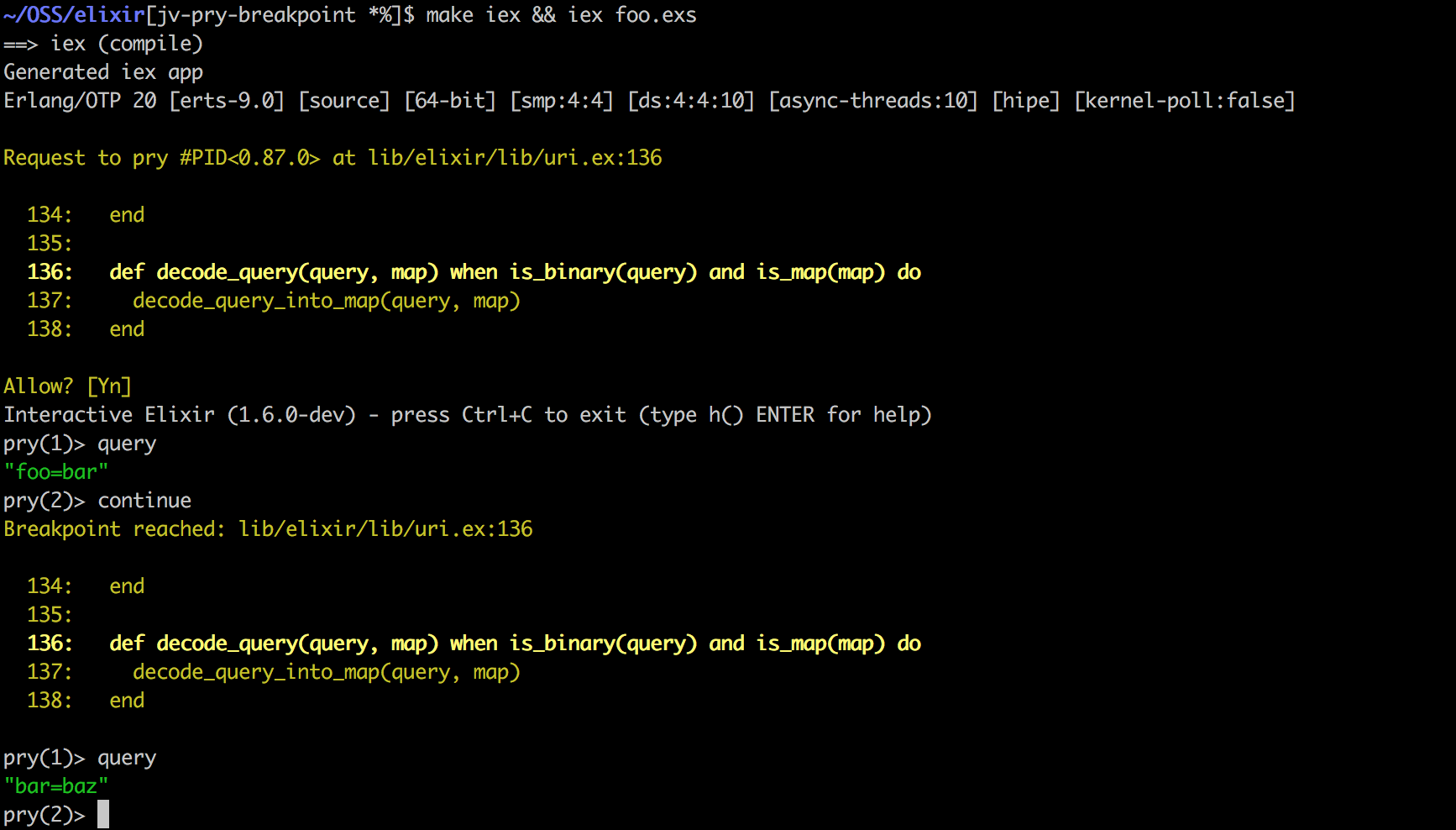

Break/continue workflow on a function with breakpoint being invoked multiple times:

michalmuskala · 2017-07-10T09:32:14Z

lib/elixir/src/elixir_expand.erl

This is kind of hacky, isn't it? It's just to get around the foo warning. It also makes the regular shell and shell-in-pry behave differently for code like this.

The implementation is sound but the idea is debatable. I have tried the following approaches:

Autocompletion of nullary calls - it is a bad user experience because it works only some times (for example, it wouldn't work for open/0 and whereami/0 because we also have other arities)

Parens autocompletion of all calls - if we add only (, we get incomplete input most of the times. If we add both, then we need to go back one position (currently it is not possible to add both and then put the cursor on the middle)

Accept continue in the shell - the UX is great, the inconsistency is, well, inconsistent

We can bring the warning back once we figure out autocompletion but since this feature is about the user experience, I have put it first here.

michalmuskala · 2017-07-10T09:34:16Z

lib/iex/lib/iex.ex

Given this section, should we talk somewhere about interrupt from the Ctrl-g menu? It's more powerful in a way it can solve this situation, but also infinite loops & waiting in a receive without a message.

Scrap that, I just read this bit further

michalmuskala · 2017-07-10T09:43:55Z

lib/iex/lib/iex/pry.ex

Do we have a hash of the file stored somewhere or something similar? My experience with that kind of source printing is that if the source changes, something completely irrelevant and extremely confusing can be printed. If we had a hash we could display some kind of warning that file changed on disc compared to what we have compiled.

Great idea. There is no hashing though. But something we could do for now is to print mod.fun/arity we are debugging. That will help with making it clearer in many cases.

We do have the module version but that is built on the AST.

alexrp · 2017-07-10T10:34:52Z

For what it's worth, in sdb, I went with source for displaying the current source context, e.g. source for 10 lines of context on both sides, or source 10 5 for 10 lines before the current line + 5 lines after the current line, etc.

whatyouhide · 2017-07-10T10:23:30Z

lib/iex/lib/iex.ex

+  private functions of the module being pried. Module functions
+  still need to be accessed via `Mod.fun(args)`.
+
+  Alternatively, you can use `IEx.break!/4` to setup a breakpoint


Does it make sense to be more concise here and forward to the documentation of IEx.break!/4? So that we don't have to repeat the warning for OTP 20+ and all.

I just wanted to give a quick run down of the pros and cons so the user doesn't have to figure it out for themselves.

whatyouhide · 2017-07-10T11:11:38Z

lib/iex/lib/iex.ex

Is this really an ArgumentError? It feels like most of the errors above are not, for example the :otp_20_is_required. What if we introduce a IEx.BreakError or something similar?

Good call. I will go with runtime error.

whatyouhide · 2017-07-10T11:13:52Z

lib/iex/lib/iex/config.ex

Nitpicky nitpick but I guess we tend to go with no [] on last argument kw list:

Agent.start_link(__MODULE__, :handle_init, [], name: @agent)

Yes, good call.

whatyouhide · 2017-07-10T11:16:15Z

lib/iex/lib/iex/evaluator.ex

    put_history(state)
-    handle_eval(Code.string_to_quoted(code, [line: line, file: "iex"]), code, line, iex_state, state)
+    put_whereami(state)
+    quoted = Code.string_to_quoted(code, [line: line, file: "iex"])


Would say same here for [] with options.

whatyouhide · 2017-07-10T11:17:06Z

lib/iex/lib/iex/helpers.ex

+  @doc """
+  Opens the current prying location.
+
+  This command only works inside a pry session started manually


IEx.pry/0, otherwise no linking?

whatyouhide · 2017-07-10T11:30:34Z

lib/iex/lib/iex/pry.ex

+    # In both cases, we are safe to print and the request will
+    # suceed.
+    request =
+      case IEx.Server.evaluator do


IEx.Server.evaluator()?

whatyouhide · 2017-07-10T11:37:58Z

lib/iex/lib/iex/pry.ex

+  end
+
+  def handle_call(:remove_breaks, _from, _counter) do
+    # Make sure to deinstrumented before clearing


Nitpick but "deinstrumented" -> "deinstrument".

whatyouhide · 2017-07-10T11:38:26Z

lib/iex/lib/iex/pry.ex

+    @table
+    |> :ets.match({:_, :"$1", :_, :_})
+    |> List.flatten
+    |> Enum.uniq


Bunch of parens for this calls?

whatyouhide · 2017-07-10T11:42:13Z

lib/iex/lib/iex/server.ex

        {:dictionary, dictionary} = Process.info(pid, :dictionary)
-        dictionary[:evaluator]
+        {dictionary[:evaluator], pid}
    end


Can maybe be refactored as

if pid = IEx.Server.local() do ... else nil end

but I don't have preference, just wanted to mention it.

whatyouhide · 2017-07-10T11:43:20Z

lib/iex/lib/iex/server.ex

-    self_leader = Process.group_leader
    evaluator = opts[:evaluator] ||
-                :proc_lib.start(IEx.Evaluator, :init, [:ack, self_pid, self_leader, opts])
+                :proc_lib.start(IEx.Evaluator, :init, [:ack, self(), Process.group_leader, opts])


() as well I guess 😄

josevalim force-pushed the jv-pry-breakpoint branch 3 times, most recently from 230680d to 7ad8d4f Compare July 7, 2017 16:50

Add IEx.Helpers.whereami/0

84884c6

josevalim force-pushed the jv-pry-breakpoint branch from 7ad8d4f to a19ac52 Compare July 7, 2017 18:21

josevalim force-pushed the jv-pry-breakpoint branch 3 times, most recently from d6c46d6 to cfede2f Compare July 8, 2017 12:08

Add IEx.Helpers.open/0 and open/1

b89ea99

josevalim force-pushed the jv-pry-breakpoint branch from cfede2f to b89ea99 Compare July 8, 2017 13:56

josevalim force-pushed the jv-pry-breakpoint branch from 3bfd67a to c9d2a23 Compare July 8, 2017 22:01

michalmuskala reviewed Jul 8, 2017

View reviewed changes

josevalim force-pushed the jv-pry-breakpoint branch 4 times, most recently from ac22534 to 9e28e66 Compare July 9, 2017 20:37

Add IEx.Pry infrastructure

1a2cd08

josevalim force-pushed the jv-pry-breakpoint branch 2 times, most recently from a1aca33 to 29c2503 Compare July 9, 2017 23:35

José Valim added 2 commits July 10, 2017 02:13

Add IEx.break!/4

beb4016

Disable warning of IEx commands via match_vars := apply

b21a1f1

josevalim force-pushed the jv-pry-breakpoint branch from 29c2503 to ca02358 Compare July 10, 2017 09:25

michalmuskala reviewed Jul 10, 2017

View reviewed changes

josevalim force-pushed the jv-pry-breakpoint branch from ca02358 to a85748a Compare July 10, 2017 09:40

michalmuskala reviewed Jul 10, 2017

View reviewed changes

Add IEx.Helpers.continue/0

9ea814f

josevalim force-pushed the jv-pry-breakpoint branch from a85748a to 9ea814f Compare July 10, 2017 09:57

Add IEx.Helpers.break!/2 and break!/4

b11df4d

josevalim force-pushed the jv-pry-breakpoint branch from 88625ff to b11df4d Compare July 10, 2017 11:14

whatyouhide reviewed Jul 10, 2017

View reviewed changes

José Valim added 2 commits July 10, 2017 14:08

Add remaining delegations to IEx.Pry

ea52178

Style improvements to IEx.Pry changes

f3c826d

josevalim force-pushed the jv-pry-breakpoint branch from 3e89dd3 to f3c826d Compare July 10, 2017 12:38

josevalim merged commit 06f2146 into master Jul 10, 2017

josevalim deleted the jv-pry-breakpoint branch July 10, 2017 12:39
