Add method reference for run in document

[LiangPPP]

run

The algorithm of run

The function run checks the APK file at five levels to analyze whether it meets the rules.

Here is the process of run.

    1. Clean the results of the previous analysis.

    2. Store the 'crime' description in the analysis result

    3. Level 1 Check: Permission requested
        - Check if the input file is a DEX file.
            - If Yes, set the first item of check_item in rule_obj to True.
            - If No, check if the permissions of the APK include the permissions in the rule.
                - If Yes, set the first item of check_item to True.
                - If No, the function exits.

    4. Level 2 Check: Native API call
        - Check if the APK uses any of the two native APIs in the rule.
            - If Yes, set the second item of check_item to True and store information about the calls of the two native APIs in the analysis result.
            - If No, the function exits.

    5. Level 3 Check: Certain combination of native API
	    - Check if the APK uses both native APIs in the rule.
	        - If Yes, set the third item of check_item to True and store the calls of the two native APIs in the analysis result.
            - If No, the function exits.

    6. Level 4 Check: Calling sequence of native API
        - Check if there are any mutual parent functions between each combined API call of the two native APIs
            - If Yes, check if any mutual parent function calls the first method before the second method.
                    - If Yes, set the fourth item of check_item to True and store information about the parent functions in the analysis result.
            - If No, the function exits.

    7. Level 5 Check: APIs that handle the same register
        - Check if the native APIs in the rule handle the same registers.
            - If Yes, set the fifth item of check_item to True and store the parent functions in the analysis result.
            - If No, the function exits.

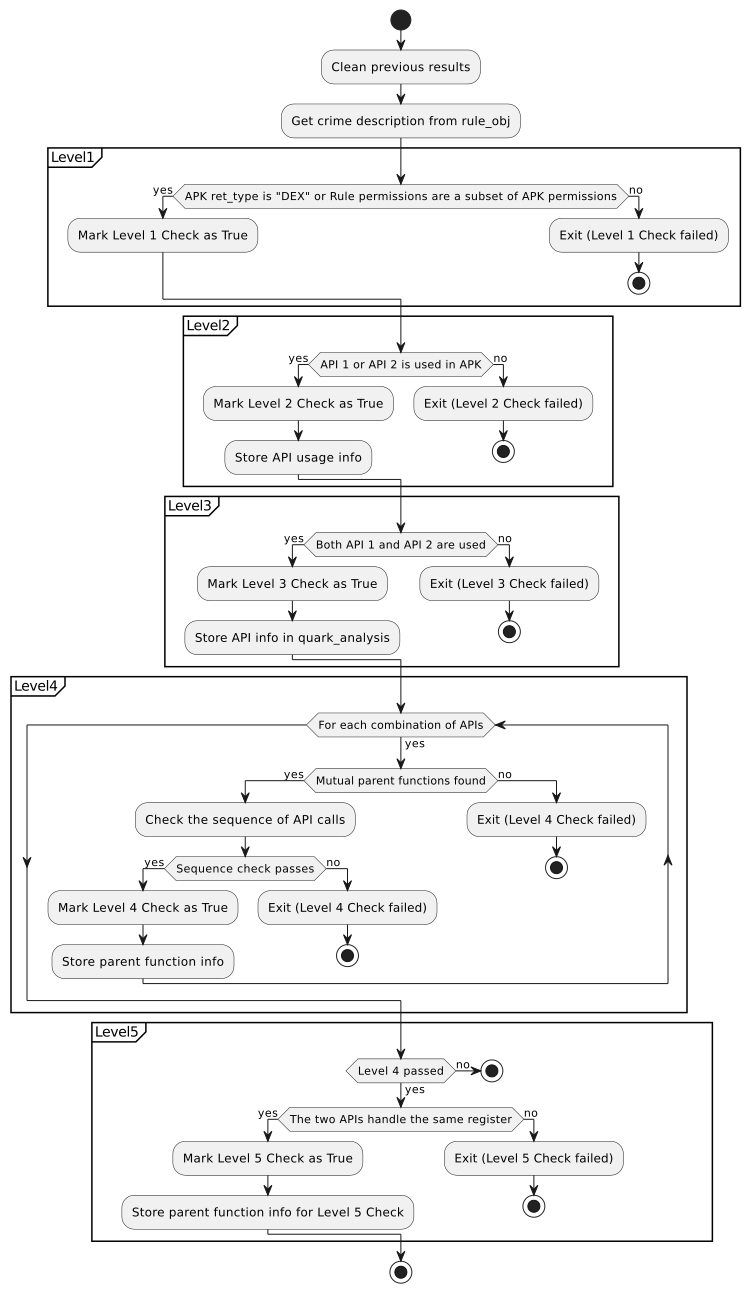

Here is the flowchart of run .

The code of run

    def run(self, rule_obj):
        """
        Run the five levels check to get the y_score.

        :param rule_obj: the instance of the RuleObject.
        :return: None
        """
        self.quark_analysis.clean_result()
        self.quark_analysis.crime_description = rule_obj.crime

        # Level 1: Permission Check
        if self.apkinfo.ret_type == "DEX":
            rule_obj.check_item[0] = True
        elif set(rule_obj.permission).issubset(set(self.apkinfo.permissions)):
            rule_obj.check_item[0] = True
        else:
            # Exit if the level 1 stage check fails.
            return

        # Level 2: Single Native API Check
        api_1_method_name = rule_obj.api[0]["method"]
        api_1_class_name = rule_obj.api[0]["class"]
        api_1_descriptor = rule_obj.api[0]["descriptor"]

        api_2_method_name = rule_obj.api[1]["method"]
        api_2_class_name = rule_obj.api[1]["class"]
        api_2_descriptor = rule_obj.api[1]["descriptor"]

        first_api_list = self.find_api_usage(
            api_1_class_name, api_1_method_name, api_1_descriptor
        )
        second_api_list = self.find_api_usage(
            api_2_class_name, api_2_method_name, api_2_descriptor
        )

        if not first_api_list and not second_api_list:
            # Exit if the level 2 stage check fails.
            return

        else:
            rule_obj.check_item[1] = True

        if first_api_list:
            self.quark_analysis.level_2_result.append(first_api_list[0])
        if second_api_list:
            self.quark_analysis.level_2_result.append(second_api_list[0])

        # Level 3: Both Native API Check
        if not (first_api_list and second_api_list):
            # Exit if the level 3 stage check fails.
            return

        self.quark_analysis.first_api = first_api_list[0]
        self.quark_analysis.second_api = second_api_list[0]
        rule_obj.check_item[2] = True

        self.quark_analysis.level_3_result = [set(), set()]

        # Level 4: Sequence Check
        for first_api in first_api_list:
            for second_api in second_api_list:
                # Looking for the first layer of the upper function
                first_api_xref_from = self.apkinfo.upperfunc(first_api)
                second_api_xref_from = self.apkinfo.upperfunc(second_api)

                self.quark_analysis.level_3_result[0].update(
                    first_api_xref_from
                )
                self.quark_analysis.level_3_result[1].update(
                    second_api_xref_from
                )

                if not first_api_xref_from:
                    print_warning(
                        f"Unable to find the upperfunc of {first_api}"
                    )
                    continue
                if not second_api_xref_from:
                    print_warning(
                        f"Unable to find the upperfunc of{second_api}"
                    )
                    continue

                mutual_parent_function_list = self.find_intersection(
                    first_api_xref_from, second_api_xref_from
                )

                if mutual_parent_function_list is None:
                    # Exit if the level 4 stage check fails.
                    return
                for parent_function in mutual_parent_function_list:
                    first_wrapper = []
                    second_wrapper = []

                    self.find_previous_method(
                        first_api, parent_function, first_wrapper
                    )
                    self.find_previous_method(
                        second_api, parent_function, second_wrapper
                    )

                    if self.check_sequence(
                        parent_function, first_wrapper, second_wrapper
                    ):
                        rule_obj.check_item[3] = True
                        self.quark_analysis.level_4_result.append(
                            parent_function
                        )

                        keyword_item_list = (
                            rule_obj.api[i].get("keyword", None)
                            for i in range(2)
                        )

                        # Level 5: Handling The Same Register Check
                        if self.check_parameter(
                            parent_function,
                            first_wrapper,
                            second_wrapper,
                            keyword_item_list=keyword_item_list,
                        ):
                            rule_obj.check_item[4] = True
                            self.quark_analysis.level_5_result.append(
                                parent_function
                            )

[codecov-commenter]

Codecov Report

Patch and project coverage have no change.

Comparison is base (b894b20) 79.19% compared to head (9a28168) 79.19%.

❗ Your organization is not using the GitHub App Integration. As a result you may experience degraded service beginning May 15th. Please install the Github App Integration for your organization. Read more.

Additional details and impacted files

@@           Coverage Diff           @@
##           master     #521   +/-   ##
=======================================
  Coverage   79.19%   79.19%
=======================================
  Files          63       63
  Lines        4960     4960
=======================================
  Hits         3928     3928
  Misses       1032     1032

Flag	Coverage Δ
unittests	79.19% <ø> (ø)

Flags with carried forward coverage won't be shown. Click here to find out more.

☔ View full report in Codecov by Sentry.
📢 Do you have feedback about the report comment? Let us know in this issue.

[zinwang]

LGTM!

[pulorsok]

LGTM
